Product Introduction
Degraded thermocouple‑processing hardware can produce drifting turbine‑metal‑temperature readings and trigger false thermal‑protection trips.

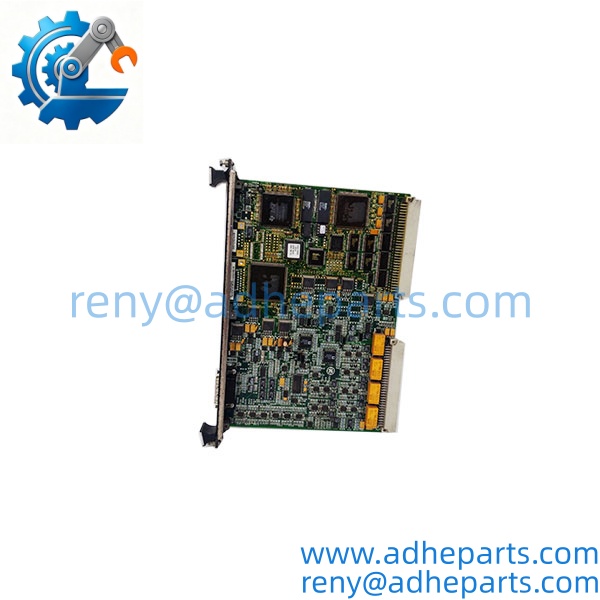

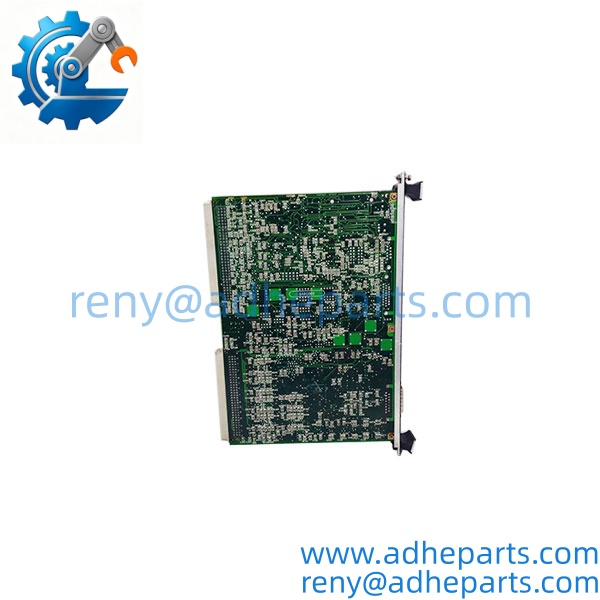

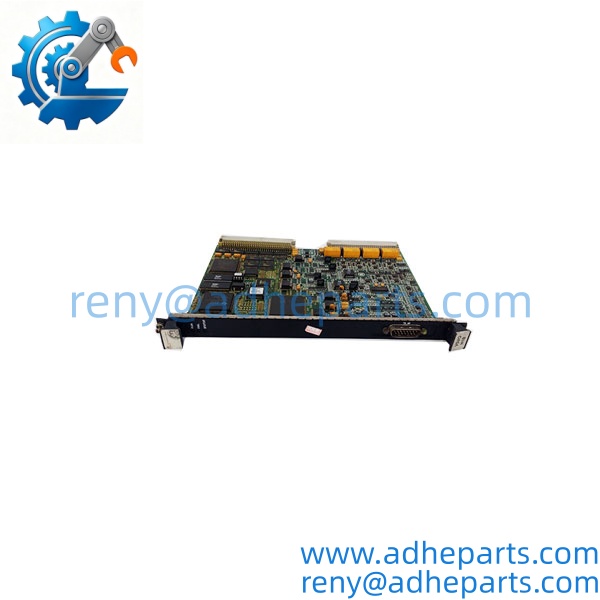

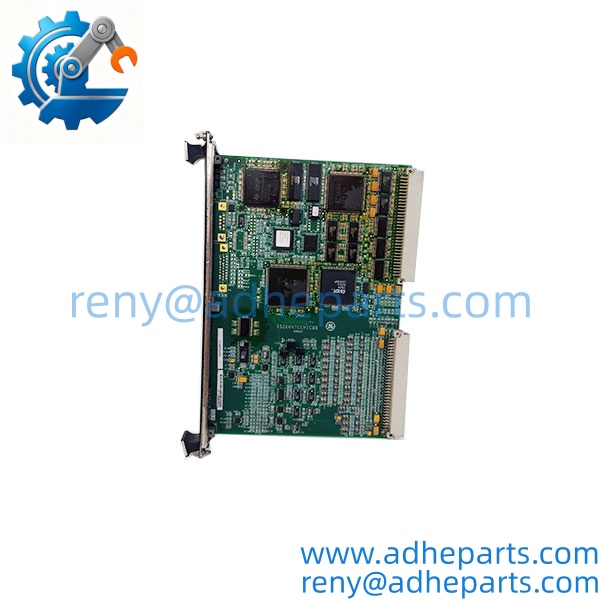

This VTCC board acts as the central processing engine for thermocouple measurements within Mark VI racks. It works paired with external TBTC or DTTC field‑wired terminal assemblies, performing cold‑junction compensation and open‑circuit thermocouple fault detection. The ‑CBB revision includes factory conformal coating for humid cabinet environments —though your mileage may vary depending on thermocouple‑cable shielding and cable‑run routing quality.
IS200VSVOH1BDC
IS200VSVOH1BDC
IS200VSVOH1BDC
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | GE Speedtronic Mark VI (not native Mark VIe) |
| Supported TC Types | E, J, K, S, T thermocouple sensor types |
| Input Millivolt Span | −8 mV to +45 mV |
| Associated Termination Hardware | TBTC / DTTC terminal boards |
| Processing Features | Cold‑junction compensation, open‑TC fault detection |
| Conformal Coating | Yes (‑CBB revision) |
| Backplane Interface | Mark VI VME‑style edge connector, dual ejector latches |
| Status Indicators | Multi‑LED array on front faceplate for module‑health diagnostics |
| Operating Ambient | 0 °C to +65 °C, non‑condensing |
| Mounting | Standard 6U Mark VI rack slot |
| Operational Modes | Simplex and TMR triple‑modular‑redundant capable |
Field Application & Technical Pitfalls (The Engineer’s Guide)
This thermocouple‑processor board serves three high‑priority power‑generation scenarios. Combined‑cycle gas‑turbine control racks monitor combustor‑can and exhaust‑gas temperatures. Steam‑turbine cabinets track casing‑metal‑temperature gradients during hot‑start and thermal‑ramp sequences. Cogeneration turbine packages use it for multi‑point bearing‑and‑exhaust thermal‑monitoring protection loops.
Critical technical pitfalls during replacement:
- Revision mismatch with termination hardware: Not all VTCC revisions interoperate with every TBTC/DTTC variant. Installing IS200VTCCH1CBB with mismatched terminal‑board hardware yields incorrect cold‑junction compensation and offset temperature readings.
- Backplane edge‑connector contamination: Dust or oxidation on gold‑plated edge fingers creates intermittent channel drop‑outs. The second ejector latch from the bottom must fully click closed; partial seating will not always light fault LEDs.
- ESD risk to analog front‑end: Even with rack power removed, static discharge can damage low‑level analog measurement circuits. Conformal coating offers only limited static‑event protection.
A plant maintenance crew swapped a suspected faulty VTCC board during a scheduled outage. They installed IS200VTCCH1CBB without validating compatibility against existing TBTC hardware and pushed the card into the slot without locking both ejector latches. After unit restart, several exhaust‑thermocouple readings showed fixed offset drift, and individual channels dropped in and out under cabinet‑vibration conditions. Technicians spent multiple shifts troubleshooting field thermocouple sensors before identifying hardware‑revision incompatibility and incomplete card seating. Always record the original VTCC revision and cross‑check against paired terminal‑board part numbers before swap‑out.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Match full part‑number IS200VTCCH1CBB and serial marking against OEM packing documentation. Inspect conformal‑coating integrity for chipping, burn marks, or rework‑solder residue. Check edge‑connector gold fingers for scratching or corrosion. Inspect ejector‑latch mechanical function.
- Live Rig Testing: Seat board in Mark VI test rack chassis. Energize rack backplane supplies. Complete power‑on self‑test and verify front‑panel LED sequence matches OEM reference. Inject simulated thermocouple millivolt‑level signals; validate cold‑junction compensation behavior and open‑thermocouple fault‑alarm triggering.
- Parameter Testing: Run continuity‑and‑isolation checks across backplane‑connector pins. Verify channel‑to‑ground isolation. Exercise full measurement range for each simulated TC‑type input. Stress‑test by gently manipulating card in‑slot to uncover intermittent‑connection artifacts.
- Final QA & Packaging: Apply protective plastic cover over edge‑connector fingers. Seal unit inside static‑shield anti‑static bag. Affix QC‑passed label including test‑run timestamp. Pack with rigid foam padding to protect PCB traces and connectors from transit‑shock damage.
Frequently Asked Questions (FAQ)
Can I hot‑swap IS200VTCCH1CBB while the Mark VI rack stays powered?No. This legacy Mark VI hardware does not support hot‑swap. Full rack‑control‑power shutdown is required before insertion or removal. Live‑power card handling risks damaging sensitive analog measurement circuits.
What exact termination boards pair with IS200VTCCH1CBB?Designed to work with TBTC‑series or DTTC‑series thermocouple‑terminal assemblies. It is not drop‑in compatible with Mark VIe native I/O packs. Verify exact load capacity with the OEM datasheet before integration.
What warranty coverage applies for new‑surplus IS200VTCCH1CBB boards?Twelve‑month functional warranty applies. Warranty excludes damage from ESD events, cabinet‑over‑temperature operation, mismatched‑termination‑hardware configurations, or field‑side wiring transients. Intact conformal‑coating shelf scuffs do not void coverage.
How do I tell genuine OEM surplus hardware from rebuilt aftermarket copies?Genuine OEM boards display uniform factory conformal‑coating coverage, crisp silkscreen marking, and consistent original‑component placement. Rebuilt boards often show hand‑applied repair solder, patch‑repaired traces, or non‑original replacement components. Well, technically legitimate OEM‑repaired boards exist, so full bench‑signal‑simulation testing serves as final validation.
Will I need to modify turbine‑control configuration after replacement?If you install the exact matching revision and retain existing TBTC/DTTC hardware, software configuration normally remains unchanged. Mismatched hardware revisions may require re‑mapping thermocouple‑channel definitions inside the control database.
What field symptoms point toward a failing ?Unstable or drifting temperature readings, sporadic “open‑thermocouple” alarms for good field sensors, fixed measurement offset across multiple channels, and intermittent loss of thermal‑data visibility. Many of these symptoms also stem from faulty TBTC terminal boards or degraded thermocouple cabling, so isolate the VTCC on a test rig for confirmation.
Is still in OEM active production?This Mark VI‑series component is officially discontinued. Once genuine surplus stock depletes, sourcing lead‑times expand sharply. Confirm stock availability well ahead of planned turbine‑outage windows.
