GE IS200STCIH6AED | 24-Channel Discrete Input Terminal Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

The Mark VIe documentation specifies the H6A STCI variant for 125 VDC nominal excitation, while the system guide states that STCI supports 24 contact inputs and connects to the PDIA I/O pack through the board’s D-type interface.

Product Introduction (Anti-Template)

Unlike a generic digital input board, the GE IS200STCIH6AED is a dedicated Simplex Contact Input terminal board designed for Mark VI/Mark VIe control applications. Its 24 input channels accept 125 VDC nominal contact excitation, with signal conditioning and filtering intended to reduce the effects of surge and high-frequency electrical noise. The board interfaces with a PDIA I/O pack and can be installed using DIN-rail or flat mounting arrangements.

One important procurement point: STCI variants are not interchangeable simply because the board outline looks similar. The H6A version is specifically associated with the 125 VDC input range, so the field excitation voltage and terminal configuration should be confirmed before replacement.

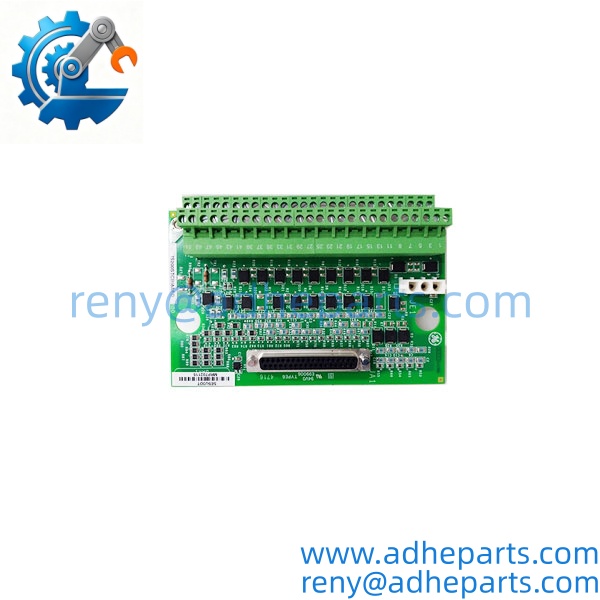

IS200STCIH6AED

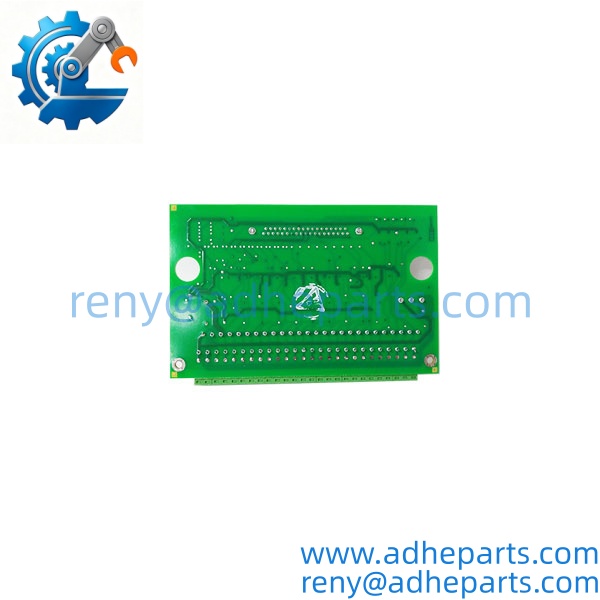

IS200STCIH6AED

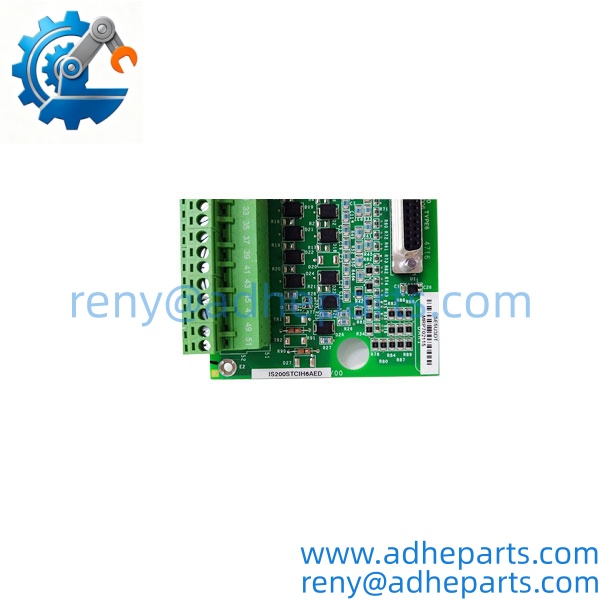

IS200STCIH6AED

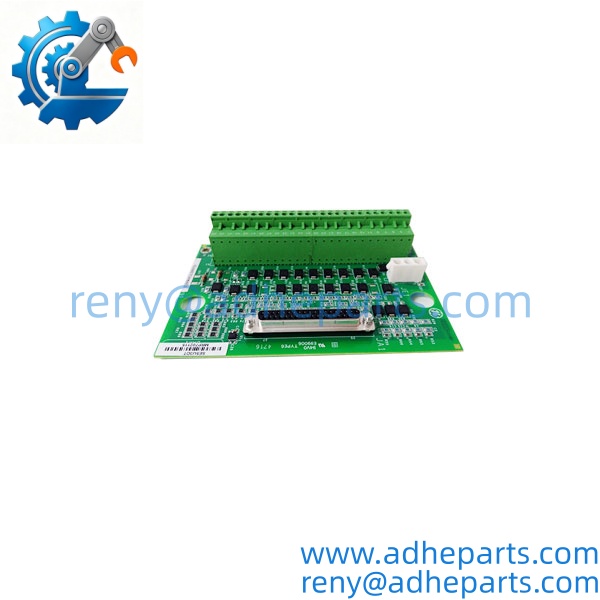

IS200STCIH6AED

QC, Procurement & Logistics SOP

1. Inbound Verification — Confirm the complete IS200STCIH6AED part number, revision suffix, board markings, connector arrangement, and terminal configuration. Compare the identification against the existing installation before accepting the unit as a replacement.
2. Live Rig Testing — Where a compatible Mark VI/Mark VIe test setup is available, verify board recognition through the associated I/O pack and check representative contact-input channels. Confirm that the excitation voltage is correctly detected and that no hardware incompatibility diagnostic is generated.
3. QA & Anti-Static Packaging — Inspect the PCB, terminal blocks, D-type connector, mounting points, and protective components. Package the board in ESD-safe material with connector protection and shock-resistant outer packaging.
4. Global Logistics & Export Compliance — Confirm the applicable HS classification, product description, country-of-origin documentation, and destination import requirements. Use secure packaging suitable for air or sea freight to protect the terminal assembly and connectors during transportation.

Technical Pitfalls & Integration Warnings

1. Firmware Rev Mismatch — The terminal-board ID information is checked by the associated I/O processor. A mismatch in board type or revision can generate a hardware incompatibility fault. For example, replacing an established configuration with a different revision without checking the controller database can prevent normal commissioning.
2. DIP Switch / Configuration Errors — The STCI terminal board itself does not use conventional DIP-switch configuration; GE documentation states there are no jumpers or hardware settings on the terminal board. Configuration therefore needs to be verified at the associated I/O and control-system level rather than assuming a physical switch setting exists.
3. Wiring/Terminal Incompatibility — H6A is the 125 VDC version of the STCI family. Using a 24 VDC or 48 VDC variant in the same field circuit can produce incorrect input behavior or damage the interface. Verify the excitation range, terminal style, cable, and 37-pin interface before energizing.
4. ESD During Unboxing — The terminal board interfaces directly with the I/O pack and controller-side electronics. Keep the replacement in ESD-safe packaging until installation, ground the technician and cabinet properly, and avoid touching exposed circuitry or connector contacts.

Frequently Asked Questions (FAQ)

1. How many contact inputs does IS200STCIH6AED support?
It supports 24 contact inputs. The H6A configuration is designed for 125 VDC nominal excitation, with an operating range of approximately 100–145 VDC.

2. Is IS200STCIH6AED a Mark VI or Mark VIe board?
The STCI architecture is used across GE Mark VI and Mark VIe control hardware. The exact installation should be identified from the controller and I/O pack configuration before ordering.

3. What I/O pack is compatible with the STCI board?
The Mark VIe system guide identifies the PDIA I/O pack as compatible with STCI. The I/O pack connects through the board’s D-type connector and communicates with the controller over the system network.

4. Can I replace a 24 VDC STCI with this H6A version?
No. The H6A version is intended for 125 VDC nominal excitation. The existing field excitation voltage must match the replacement board’s specified input range.

5. Does the terminal board have DIP switches that need to be copied from the old board?
No. GE’s Mark VIe hardware guide states that the STCI terminal board has no jumpers or hardware settings. System-level configuration and I/O identification still need to be checked during replacement.

6. Can this board be hot-swapped?
Do not assume hot-swapping is permitted. Field wiring may carry hazardous DC voltage, particularly with the 125 VDC H6A version. Follow the applicable GE shutdown, isolation, and installation procedure before removing or installing the board.

7. What should I provide when requesting a replacement?
Send the complete part number, revision suffix, nameplate or PCB photo, existing I/O pack model, field excitation voltage, and photos of the terminal wiring. These details help verify the correct STCI variant before quotation.
