Product Introduction (Anti-Template)

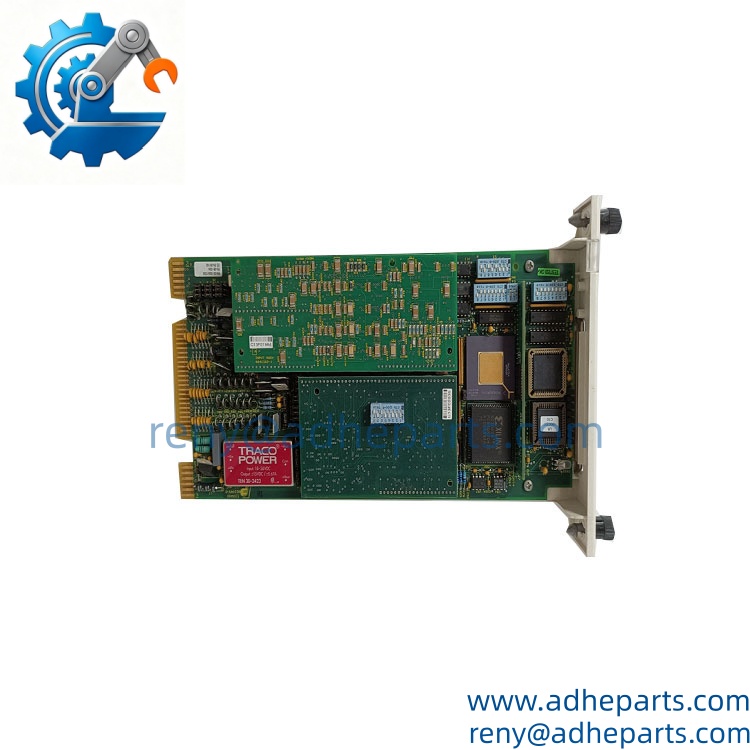

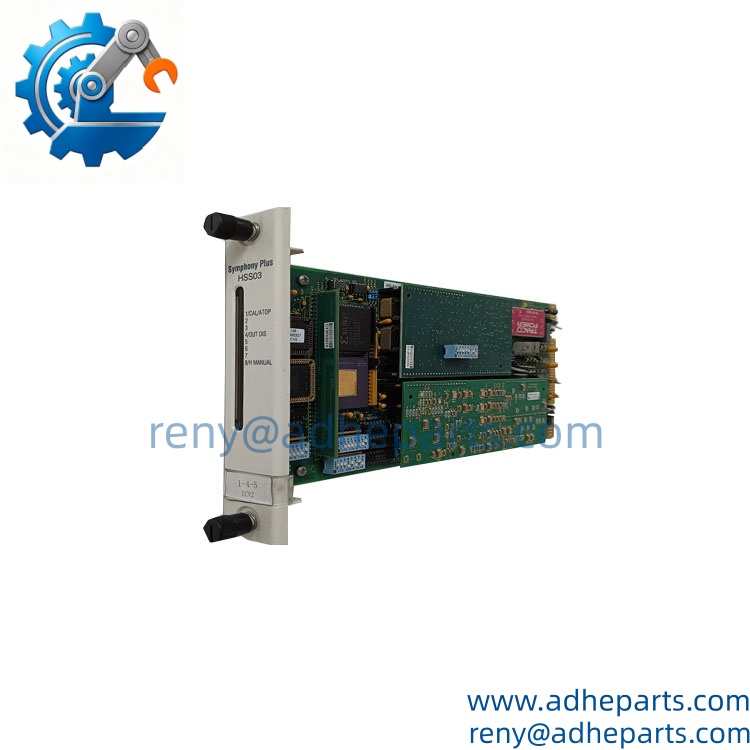

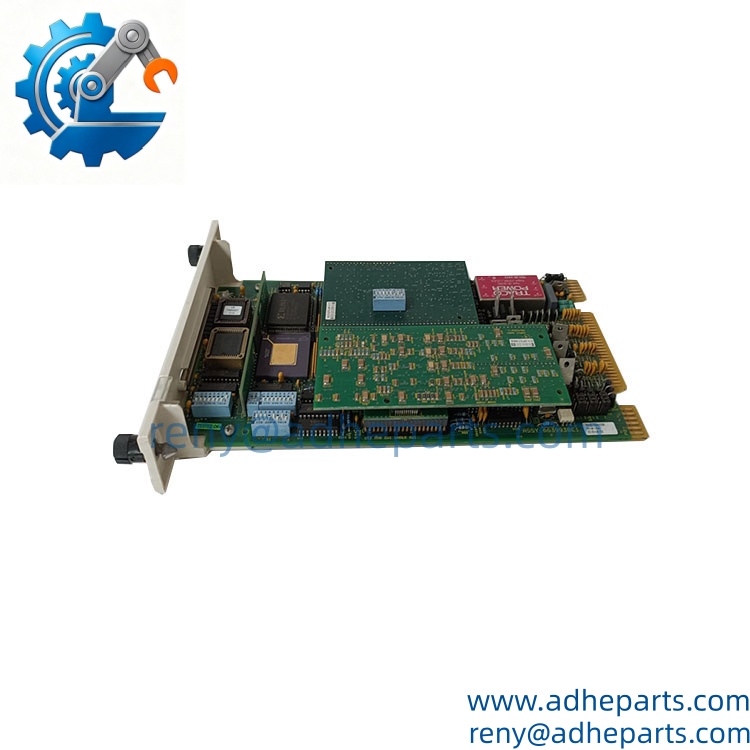

When turbine valve positioning starts drifting, the hydraulic servo interface is one of the first areas worth checking. ABB SPHSS03 is a hydraulic servo module for the Harmony Rack architecture, providing the interface between an HR Series controller and a servo valve or I/H converter.
Its typical duty is demanding: regulating servo-valve current so a hydraulic actuator can position steam-turbine control valves, gas-turbine fuel valves, inlet guide vanes, or nozzle mechanisms. ABB identifies SPHSS03 as an older module that has been replaced by SPHSS13.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SPHSS03 |
| Product Type | Hydraulic Servo Module |
| Module Type | I/O Module |
| System | Harmony Rack / Symphony Plus |
| Primary Function | Hydraulic actuator / servo-valve control |
| Supply Voltage | 24 V DC ±10% |
| Control Voltage Range | 18–30 V DC |
| Maximum Rated Current | Approximately 5 A |
| Maximum Switching Power | Approximately 120 W |
| Dimensions | 297.18 × 175.26 × 35.56 mm |
| Net Weight | Approximately 0.3 kg |
| HS Code | 85389099 |
| Replacement Model | SPHSS13 |
ABB’s product documentation describes SPHSS03 as a Hydraulic Servo Module for Harmony Rack and identifies SPHSS13 as its replacement. ABB turbine-control material also places SPHSS03 within the valve-positioning function, alongside the newer SPHSS13.
The commonly listed physical dimensions are approximately 297.18 mm deep, 175.26 mm wide, and 35.56 mm high, with a net weight around 0.3 kg.
Field Application & Technical Pitfalls (The Engineer’s Guide)
SPHSS03 is not an ordinary analog output card. It sits in a control loop where an electrical command ultimately affects a hydraulic actuator, so a small signal problem can become a significant mechanical-position error.
- Steam turbine valve positioning
The module can interface with servo valves to control turbine throttle and control valves. Accurate valve positioning directly affects turbine operating conditions. - Gas turbine fuel control
ABB documentation identifies the SPHSS family for turbine applications involving fuel valves. A malfunction here deserves immediate attention because the controlled variable is tied directly to turbine operation. - Inlet guide vanes and nozzle mechanisms
Hydraulic actuators can position inlet guide vanes and nozzle-angle mechanisms. These applications require stable servo output and reliable position feedback.
Three replacement pitfalls deserve attention:
- vs. SPHSS13: Do not automatically treat the newer SPHSS13 as an electrically identical drop-in replacement. ABB identifies as the direct replacement family, but the newer module has additional capabilities and different technical characteristics. Check the system revision and application before substitution.
- Servo-valve current compatibility: The servo output must match the installed hydraulic valve or I/H converter. A mismatch can produce insufficient actuator movement, excessive current, or unstable positioning.
- LVDT / position-feedback configuration: Feedback wiring matters. ABB’s newer documentation specifically highlights support for AC and DC LVDTs, which is a useful warning that feedback architecture should be checked rather than assumed.
Do not diagnose this module by looking only at the output current. Check the complete loop: controller command → servo module → I/H converter or servo valve → hydraulic actuator → position feedback.
Lesson learned: A turbine technician replaces a suspected servo module and sees the output signal returning to normal, but the valve still hunts around its target position. The module was not the actual problem—the feedback circuit had a wiring fault, so replacing the board alone could not correct the closed-loop behavior.
Quality Control (QC) SOP & Transparency
- Inbound Verification

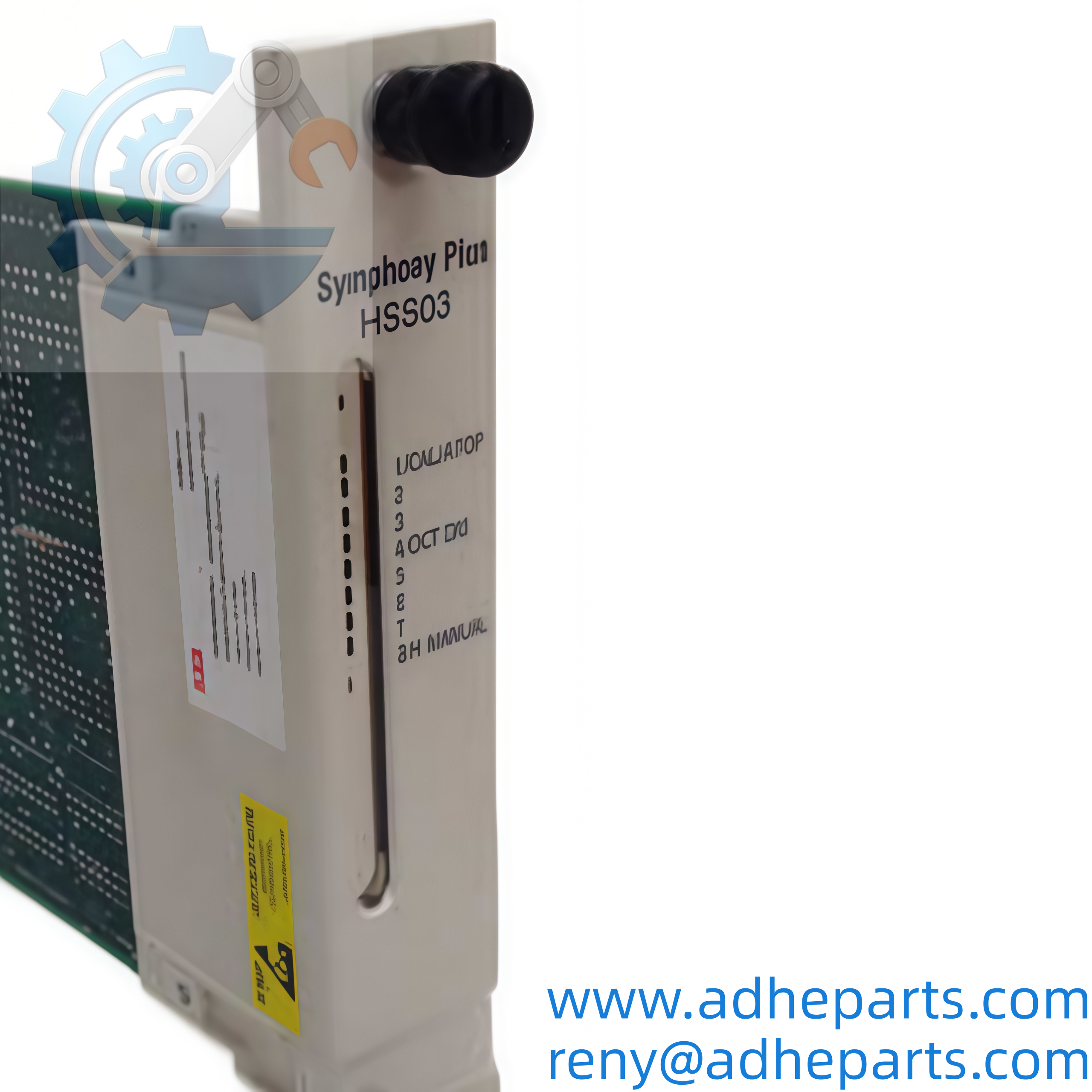

- Verify the exact ABB designation on the module label.

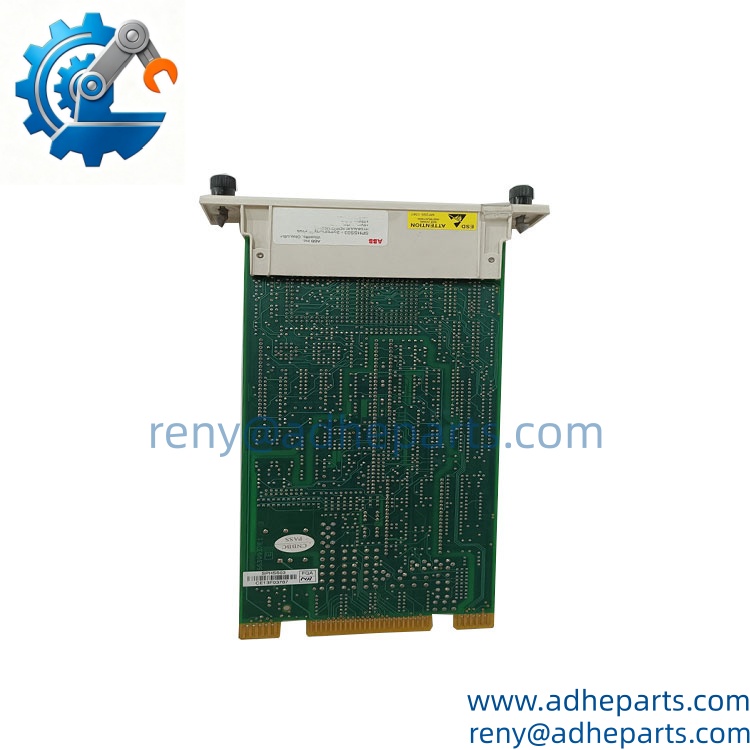

- Check the module housing, connectors, PCB condition, and identification markings.
- Inspect for corrosion, bent pins, cracked housings, or evidence of previous repair.
- Confirm that the physical dimensions and connector arrangement correspond to the Harmony Rack version.
- Record whether the unit is New Original, New Surplus, or Refurbished before shipment.
- Live Rig Testing
- Use a compatible Harmony Rack / Symphony Plus test environment where available.
- Apply a controlled 24 V DC supply within the specified range.
- Verify startup and diagnostic behavior.
- Exercise the servo output under a controlled test load.
- Where the proper turbine-control test setup is available, verify the module’s interaction with the servo valve interface and position-feedback circuit.
- Parameter Testing
- Measure supply voltage and current consumption.
- Check servo output response at multiple command levels.
- Verify output stability under representative loads.
- Inspect feedback-channel behavior where applicable.
- Monitor for abnormal heating, intermittent output, communication faults, or unexpected resets.
- Final QA & Packaging
- Record model, identification number, revision, and test status.
- Apply a QC-passed label after successful testing.
- Place the module in an anti-static protective bag.
- Protect the connector area from impact during transportation.
- Provide the applicable test report and a 12-month warranty under the agreed warranty terms.
Frequently Asked Questions (FAQ)
Q1. What is ABB used for?
is a Hydraulic Servo Module for Harmony Rack. Its main role is to provide the interface through which an HR Series controller can drive a servo valve or I/H converter for hydraulic actuator control.
Q2. Is mainly used in turbine control?
Yes. ABB turbine-control documentation places in the valve-positioning function, with applications including servo-valve control for turbine systems.
Q3. Has ABB discontinued ?
is a legacy module. ABB identifies as its replacement, so procurement teams should consider both the existing spare and the approved migration path when planning long-term inventory.
Q4. Can I directly replace with ?
Not without checking the system configuration. ABB describes as a direct replacement for and related SPHSS modules, but the newer design adds capabilities such as support for AC/DC LVDTs and higher servo-output capability. Confirm the specific turbine-control configuration before installation.
Q5. What power supply does use?
Commonly documented specifications list 24 V DC ±10%, with an operating control-voltage range of approximately 18–30 V DC.
Q6. Can be hot-swapped?
Do not assume it can. This is a turbine-control module connected to a hydraulic actuator loop. Unless the specific Harmony Rack configuration and maintenance procedure explicitly allow live replacement, isolate the equipment before removing the module.
Q7. What warranty is available?
A 12-month warranty can be provided under the agreed supply terms. For a legacy turbine-control module, it is also advisable to confirm the exact module designation, existing rack configuration, servo-valve type, and position-feedback arrangement before ordering.
