3. Key Technical Specifications

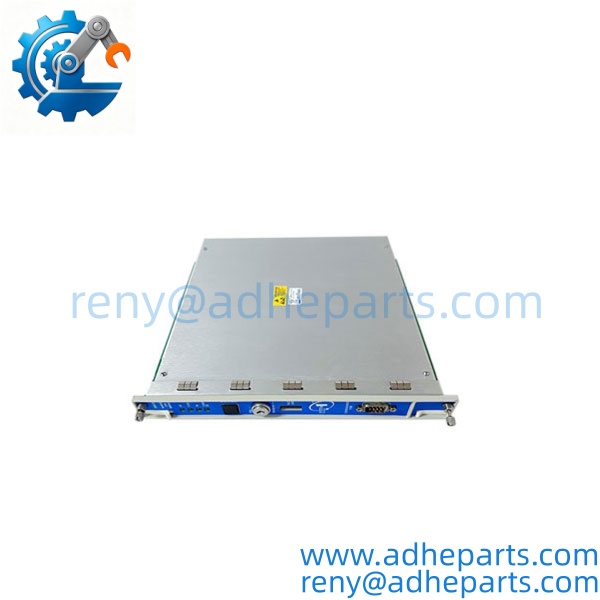

| Parameter | Value |
|---|---|
| Part Number | 138607-01 |
| Product Type | Standard Transient Data Interface (TDI) Module |
| System | Bently Nevada 3500 series |
| Associated Model | 3500/22M |
| Slot Location | Slot 1 (adjacent to power supplies) |
| Primary Function | Rack interface + high-speed data collection for System 1 |
| Power Consumption | Approximately 10.5 W |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Data Capability | Steady-state (static) + optional transient (waveform) data |
| Front Panel | USB / RS-232 configuration port, status LEDs |
4. Product Introduction (Anti-Template)

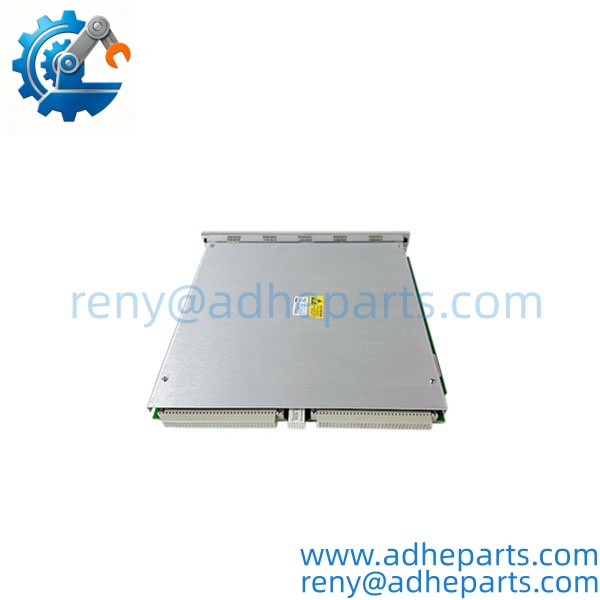

The Bently Nevada 138607-01 is the Standard Transient Data Interface (TDI) module used in the 3500 Machinery Protection System. It combines the functions of a traditional Rack Interface Module (RIM) with the data-collection capability of a communication processor.
Installed in Slot 1 of the 3500 rack (next to the power supplies), the module continuously gathers steady-state and, when enabled, transient waveform data from compatible M-series monitors. This data is passed over Ethernet to System 1 condition-monitoring software. The 138607-01 is the main TDI module; it is normally paired with a separate I/O module (copper or fiber Ethernet). Because it sits outside the critical protection path, its operation or failure does not affect the basic alarming and shutdown functions of the monitor modules. Note that this part number has been superseded in newer production by 288055-01 in some configurations, but the 138607-01 remains widely used in existing installations.

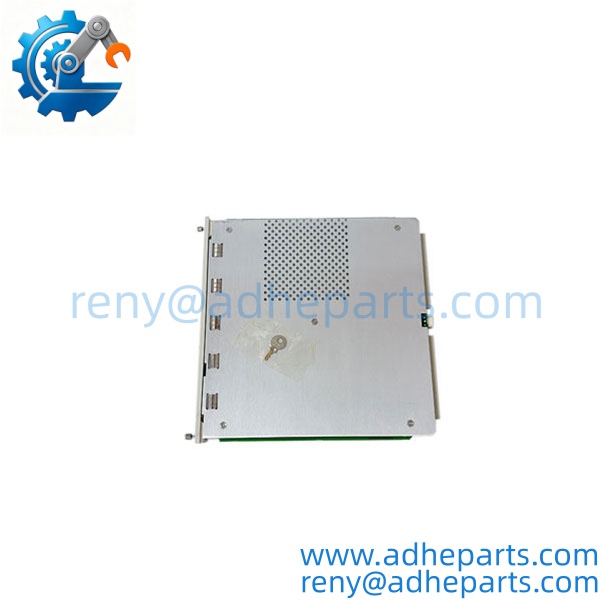

138607-01

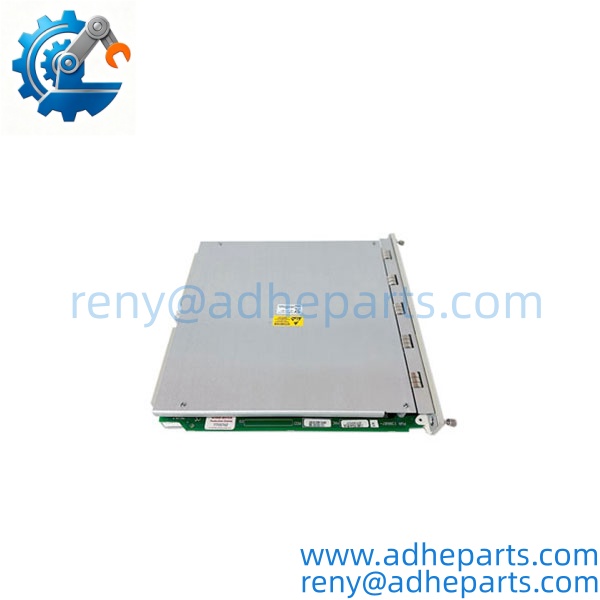

138607-01
138607-01
138607-01
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full part number (138607-01), any revision markings, connector condition, and LED integrity. Photograph all labels.
- Functional Testing – Install in a 3500 rack, apply power, verify OK and communication LEDs, and confirm basic Ethernet/System 1 link where possible.
- QA & Packaging – Protect the backplane connector and front-panel ports, clean the module, and pack in anti-static protective packaging.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial monitoring modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Slot Location – The TDI must occupy Slot 1. Installation in any other slot prevents proper rack communication.
I/O Module Pairing – The 138607-01 main module requires a matching I/O module (10/100Base-TX or 100Base-FX). Mismatched media prevents host connectivity.
Channel Enabling Disk – Transient/dynamic waveform collection requires the optional enabling disk. Without it only static data is available.
Replacement Note – Confirm whether the existing system expects the 138607-01 or the later 288055-01 equivalent before ordering.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 138607-01?
As a core 3500 system module, availability depends on surplus stock. Typical lead time after verification is 5–15 business days plus standard shipping.
What is the function of the 138607-01?
It is the Standard Transient Data Interface module that provides rack communication and collects steady-state and transient data for System 1 software.
Where does it install in the rack?
Always in Slot 1, next to the power supplies.
Does every 3500 rack need one?
Yes. Every 3500 rack requires either a 3500/22M TDI (such as 138607-01) or a 3500/20 RIM.
Has this part been replaced?
In some newer configurations it has been superseded by 288055-01. Verify compatibility with the existing rack and System 1 version.
What should be confirmed before ordering a replacement?
Exact part number (138607-01), required I/O module type (copper or fiber), standard vs TMR version, and compatibility with the existing System 1 software.
