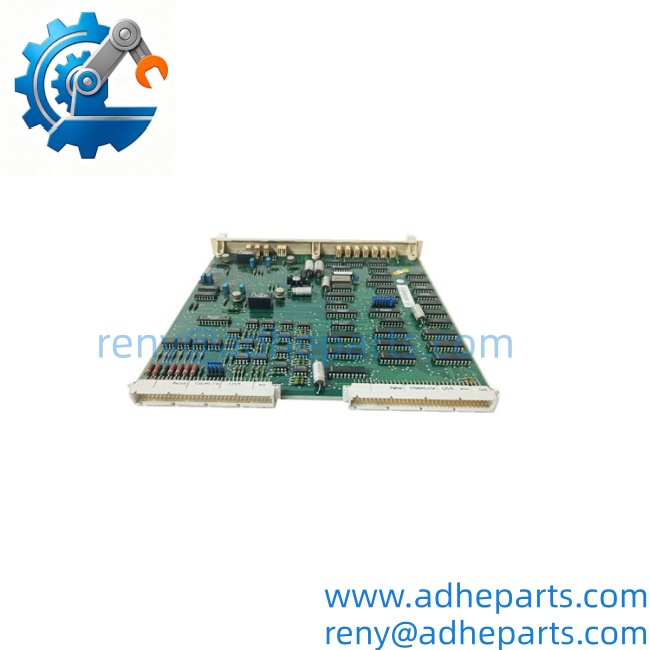

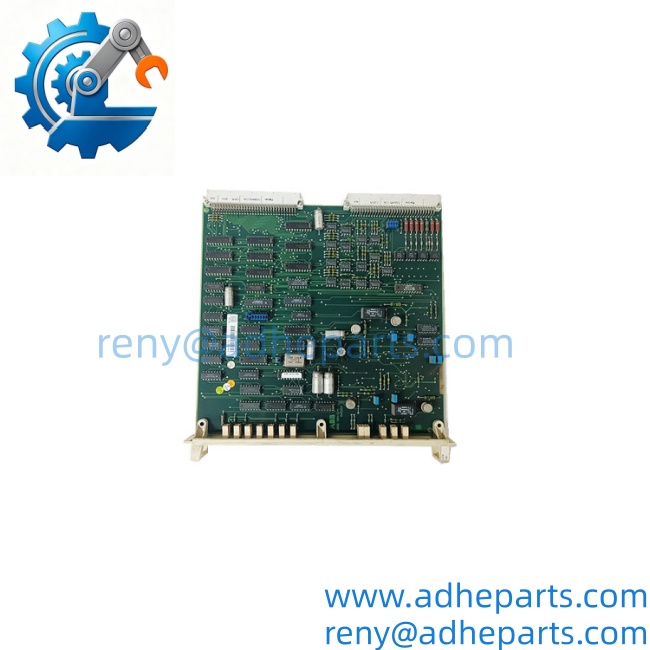

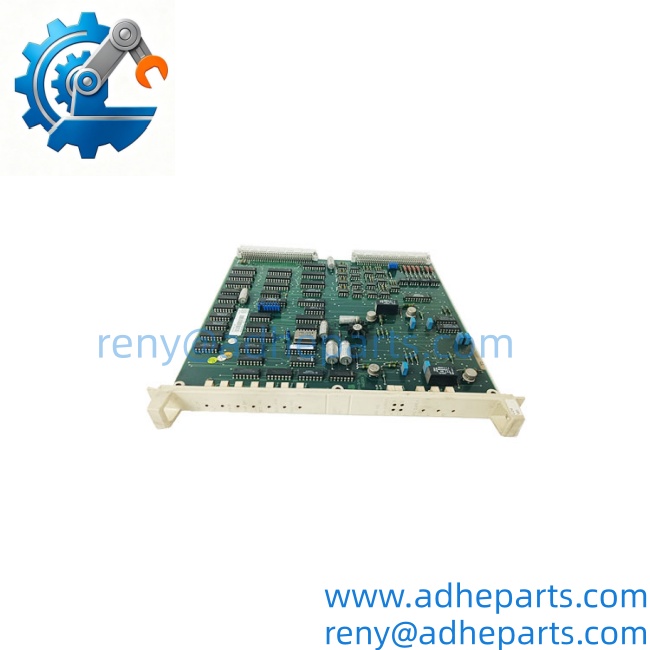

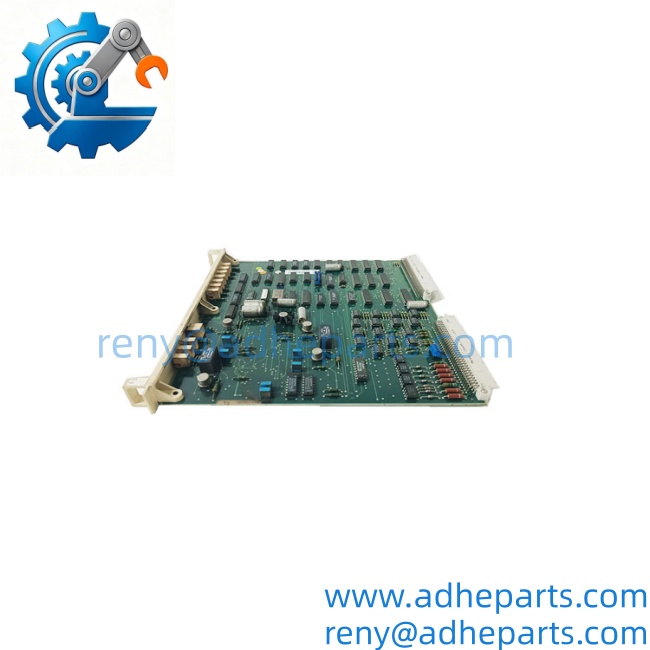

ABB DSBC 172 57310001-KD | MasterPiece Connection Board, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

ABB DSBC 172 57310001-KD

ABB DSBC 172 57310001-KD

Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing board before ordering. The -KD suffix defines the build variant, and that suffix matters.

Product Introduction

The ABB DSBC 172, order code 57310001-KD, is a bus connection board for the MasterPiece 200 and Advant Controller platforms. It sits in the controller rack and provides the electrical interface between the controller’s I/O bus and the field cabling that runs to remote I/O racks. It handles bus drive, termination, and signal conditioning — the unglamorous work that decides whether the bus runs clean or throws intermittent parity faults.

Two facts decide whether a swap works. First, the -KD suffix defines the build. Boards that carry the same base number but a different suffix can differ in termination arrangement, connector type, or firmware revision. Second, the termination settings on the board must match the bus topology. Pull the old board and record every jumper and switch position before you remove it. That record is the difference between a clean swap and a bus that faults every few hours.

ABB DSBC 172 57310001-KD

Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure mode that wastes the most maintenance hours is an intermittent bus fault. The controller logs a parity error every few hours, no card fails a self-test, and the field wiring checks out. In my experience, the bus connection board is usually the last thing anyone suspects and often the first thing that should be examined. The drive circuitry on this class of board ages, and a marginal driver will still pass a static test but drop frames under load. When you replace a DSBC 172, record the termination jumpers from the old board and verify the bus cable shield is grounded at one end only. A new board with the wrong termination settings will fault worse than the old one.

Part 2 – Numbered List (Application Scenarios)

1. Pulp & Paper – Remote I/O Rack Connection – The board drives the bus from the controller cabinet to a remote I/O rack on the machine floor. A marginal driver shows up as cyclic parity faults that correlate with production speed.
2. Power Generation – Distributed I/O on a Boiler – The board links the controller to I/O racks collecting thermocouple and pressure signals. Intermittent bus faults freeze analog values on the operator station without tripping the unit.
3. Metals – Mill Floor I/O Expansion – Used to extend the I/O bus across a long cable run to a mill stand. The termination and drive circuitry must match the cable impedance, or the bus faults under electrical noise from the drives.
4. Water Treatment – Long Cable Runs to Remote Sites – The board drives the bus over distances where signal attenuation matters. A board with aged drive components causes dropouts that look like instrument failures.

Part 3 – Short Field Story

A paper mill in the Southeast had a MasterPiece controller that logged a bus parity fault roughly every four hours. The fault would clear on its own, and no I/O card ever failed a test. The crew had replaced two I/O cards and re-terminated the bus cable at both ends. The fault stayed. We sent a DSBC 172 with the same -KD suffix as the original, and the mill’s technician recorded the termination jumpers from the old board before swapping. The parity faults stopped. The old board had a marginal bus driver that passed every static test but could not hold the line under load.

ABB DSBC 172 57310001-KD

Standard Operating Procedure (SOP) for Quality Control

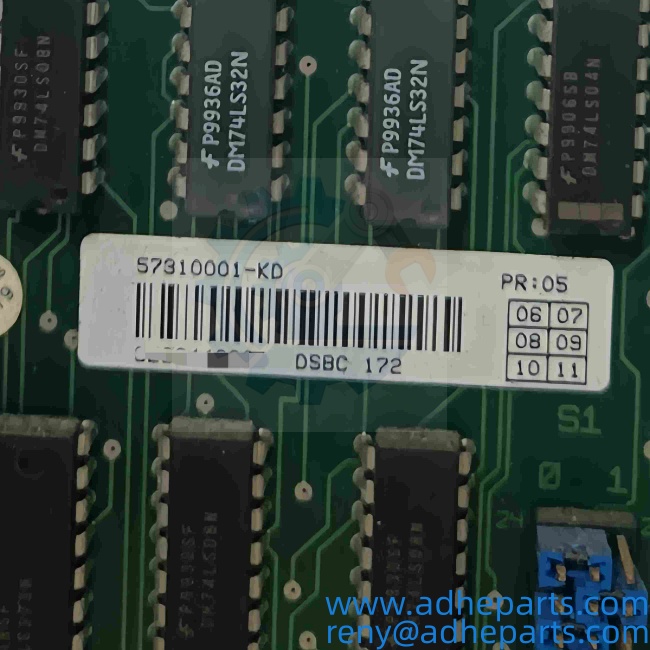

• Visual & Origin Inspection – We verify the ABB marking, the DSBC 172 model string, the 57310001-KD order code, and the date code. We inspect the backplane edge connector for bent pins and the field connector for cracked housings. A board with a damaged connector shroud or evidence of rework is rejected.
• Revision and Jumper Documentation – We read and photograph the firmware revision string, all jumper positions, and all switch settings. That record ships with the board so you can compare it against the unit you are replacing.
• Power-Up Self-Test – The board is inserted into a known-good MasterPiece or Advant rack. We verify it initializes without a bus fault and that the controller recognizes the board type.
• Bus Drive Verification – We connect the board to a loaded bus test rig with the specified cable length and node count. We run a continuous data exchange loop for one hour and log any parity or framing errors. Zero errors is the pass criterion.
• Termination Function Test – We verify the on-board termination engages and disengages correctly at each jumper or switch position, and that the bus impedance matches the configuration.
• Connector Integrity Test – We mate and unmate the backplane connector ten times to confirm the contacts do not deform and the retention mechanism holds. A loose board causes intermittent faults that are hard to diagnose in the field.
• ESD-Safe Packaging – The board is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected by rigid shrouds, and packed in a double-wall carton with static warning labels.

ABB DSBC 172 57310001-KD

Frequently Asked Questions (FAQ)

Q1: Will a different suffix on the DSBC 172 work in my rack?

A: Not without checking the build. The -KD suffix defines termination arrangement, connector type, and firmware revision. A board with the same base number but a different suffix may not initialize, or it may initialize but fault under load. Compare the full order code on your existing board and send us a photo of the label if you are unsure.

Q2: What is the warranty on this board?

A: We offer a 12-month warranty from the ship date. It covers bus driver failure, termination circuit failure, backplane connector failure, and field connector failure under normal operating conditions. It does not cover damage from hot-swapping the board with the rack energized, bent pins from forced insertion, or ESD damage from handling without a wrist strap. We test every board in a live rack before it ships.

Q3: Do you have this exact order code in stock?

A: Legacy MasterPiece and Advant inventory moves and varies by build. Confirm availability before you plan an outage. If we do not have the -KD variant, we will tell you what we do have and whether a different suffix would suit your rack. Do not assume any DSBC 172 will configure the same way.

Q4: What happens if the firmware revision does not match my system?

A: The board may fail to initialize, or it may initialize but drop bus frames under load. In some cases, the controller will not recognize the board at all. A firmware mismatch is the most common reason a replacement board does not work. Send us the revision string from your old board and we will match it if we can.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the rack before inserting or removing the board — these modules are not hot-swap capable. Second, record every jumper and switch position on the old board before you remove it. Third, verify the bus cable shield is grounded at one end only; grounding at both ends creates a ground loop that injects noise into the bus. Fourth, after installation, check the controller’s fault log for parity errors before you return the system to service. A board that powers up is not necessarily driving the bus correctly.
