Product Introduction
When your ABB Master DCS system needs to expand to more than 8 control racks and faces backplane bus signal attenuation issues, this module acts as the core bus signal amplification and distribution hub.
It features full electrical isolation between input and output bus ports, effectively suppressing bus signal crosstalk and electromagnetic interference. Its compact 145mm × 95mm × 30mm footprint fits directly into standard ABB DCS rack slots, no extra cabinet modification work required.

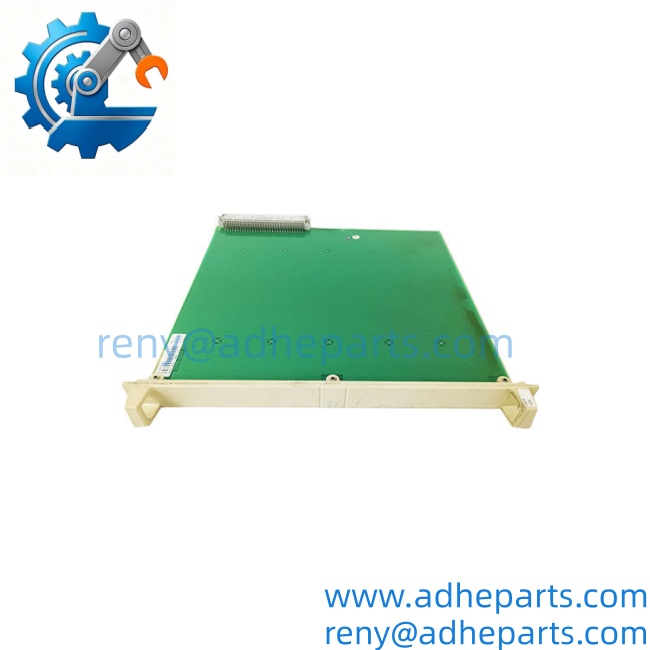

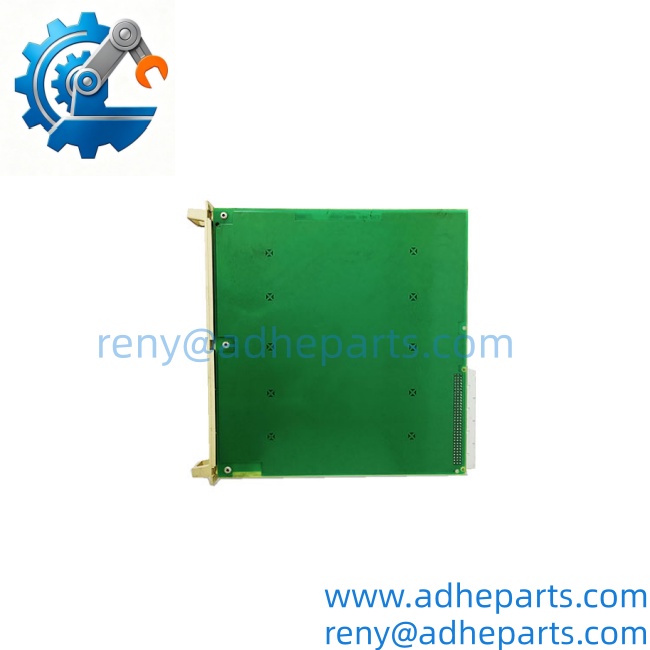

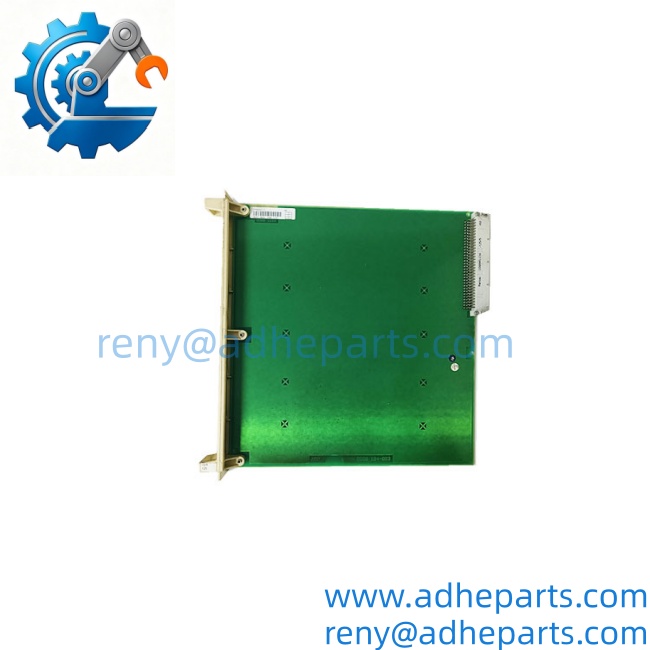

ABB DSBB110A 57330001-Y
ABB DSBB110A 57330001-Y
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | DSBB110A 57330001-Y |
| Product Type | Backplane Bus Buffer / Signal Repeater Module |
| Power Supply | 24 VDC industrial standard, 4.2 W low power consumption |
| Bus Width | 32-bit parallel industrial control bus |
| Maximum Transmission Speed | 12 Mbps stable data transfer |
| Operating Temperature Range | -10°C ~ +60°C |
| Relative Humidity | 10% ~ 90% non-condensing |
| Isolation Strength | 500V AC full bus port electrical isolation |
| Supported Racks | Up to 12 extended control racks after signal amplification |
| Installation Method | Standard ABB Master DCS rack slot mounting |
| Status Indication | Multi-color LED for bus activity and fault diagnosis |
ABB DSBB110A 57330001-Y
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Pulp & Paper Mill DCS Expansion: Acts as the bus buffer for large paper mill distributed control systems, supporting extended rack groups across multiple production line control cabinets.
- **Cement Plant Heavy Industry Automation: Delivers stable bus signal amplification for large cement plant DCS systems, adapting to high vibration and wide temperature swing production environments.
- **Large Chemical Plant Process Control: Provides reliable backplane bus signal distribution for large chemical plant multi-unit DCS systems, ensuring no data packet loss across all control racks.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect more than 12 extended racks behind a single DSBB110A module. The third bus channel will experience severe signal attenuation that causes random data communication errors.
- ⚠️ Bold Warning 2: Mismatched bus terminal resistance will cause bus signal reflection. This unit requires 120Ω termination resistors installed at both ends of the extended bus line to maintain signal integrity.
- ⚠️ Bold Warning 3: Skipping the post-installation 2-hour continuous bus stability test will leave you with hidden signal faults. The issue will only surface when the system is under full data load, leading to unexpected DCS partial communication dropout.
A large chemical plant maintenance team once swapped a DSBB110A module and skipped the bus termination resistance check. The missing 120Ω terminal resistor caused severe bus signal reflection, triggering random DCS communication errors that forced a 1.5-hour partial production shutdown for full bus troubleshooting.
ABB DSBB110A 57330001-Y
Quality Control (QC) SOP & Transparency

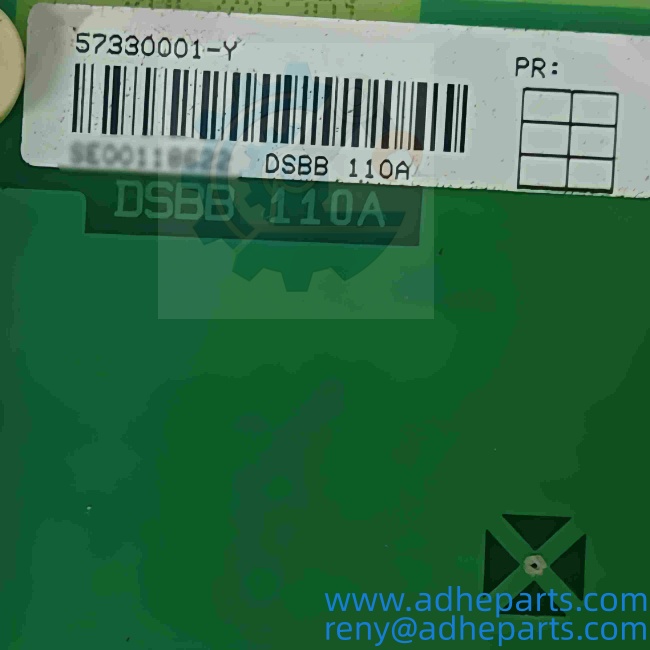

- Inbound Verification: Cross-check the OEM serial number against ABB’s official part registry, confirm the part number DSBB110A 57330001-Y matches the factory label, and inspect no bent pins on all backplane bus connectors.
- Live Rig Testing: Power the unit in a calibrated ABB Master DCS test rack, apply 24V DC power, and confirm full 12Mbps bus signal transmission stability for 2 continuous hours.
- Parameter Testing: Verify 32-bit bus signal amplification performance meets factory specifications, confirm 500V AC port isolation performance meets requirements, and validate all bus activity and fault LED indicators function correctly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
ABB DSBB110A 57330001-Y
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the ABB Master DCS system is running? No. You must first switch all control loops connected to the extended racks to manual backup mode before removing the unit, otherwise you will lose all bus communication to those racks.
- What exact ABB systems is this module compatible with? It works natively with ABB Master DCS series platforms. It will not operate correctly with ABB 800xA DCS systems without a custom bus protocol conversion adapter.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or improper bus termination configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB DSBB110A 57330001-Y modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the 12Mbps full-speed bus signal transmission performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory bus performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older DSBB100 legacy bus buffer unit? Well, technically it fits the same rack slot, but you will need to reconfigure the bus signal gain parameters in the DCS engineering software to support the full 12 extended racks expansion capability.
