Product Introduction
When closed-loop motor control loses clean encoder feedback, drives slip into unstable speed behavior or trigger hard faults mid-run. This DATX133 board slots directly into the ACS800 drive cabinet to condition rotor sensor signals before they reach the main drive CPU.
It accepts inputs from two separate speed transducers, letting operators run redundant position sensing on high-value rotating assets. Signal filtering on the board suppresses electrical noise from motor cable runs, though your mileage may vary depending on cable shielding quality.

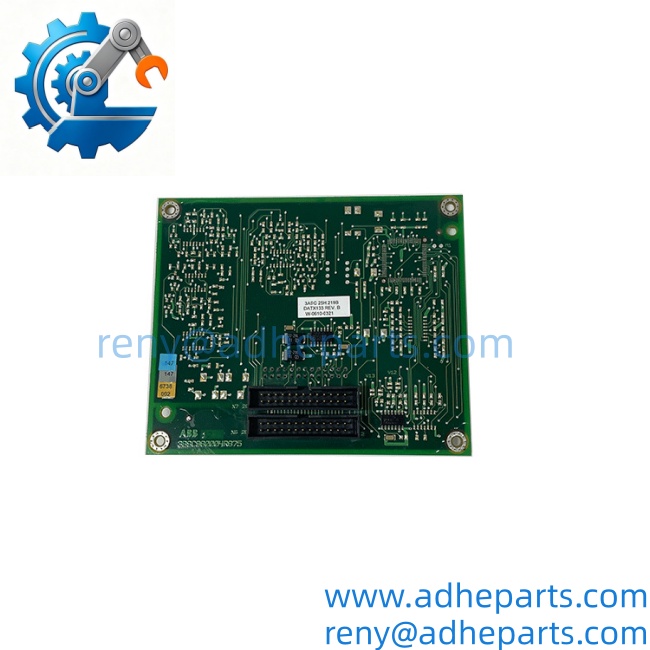

ABB 3ASC25H219B DATX133
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3ASC25H219B DATX133 |
| Product Type | Rotor feedback interface board |
| Compatible Drive Platform | ABB ACS800 |
| Auxiliary Supply | 24 VDC |
| Supported Sensors | Up to 2 pulse/encoder sensors |
| Signal Type | Incremental encoder pulse signals |
| Operating Temperature | -20°C to +70°C |
| Mounting | Plug-in slot inside ACS800 drive unit |
| Primary Role | Closed-loop speed and rotor position feedback |
| Protection | On-board transient voltage suppression |
Field Application & Technical Pitfalls (The Engineer’s Guide)
Critical Industrial Scenarios
- Paper mill large roll drives: maintains precise web tension by tracking rotor speed during constant torque production.
- Mining conveyor main motors: redundant sensor input guards against speed loss on long material transport runs.
- Cement kiln rotary drives: stabilizes low-speed rotor positioning to prevent refractory lining damage.
Critical Technical Pitfalls
- Sensor Wiring Polarity Reversal: Swapped A/B encoder channels will reverse rotor position reading; the drive will not trip immediately but oscillate wildly under load. Verify pinout against the third terminal block from the left.
- Mismatched Pulse Count: Using an encoder with different PPR than configured in drive parameters creates severe speed reading drift, even with correct physical wiring.
- Uncontrolled ESD Exposure: This populated PCB has sensitive input circuits. Static discharge on connector pins can degrade front-end signal amplifiers without any visible burn marks.
A plant electrician once fitted a spare DATX133 during a short maintenance window. He reused existing encoder cables but did not cross-check the A/B channel wiring. The drive powered up without faults, yet once loaded, the motor hunted back and forth on speed. Production kept running at reduced load for four hours until the team traced the polarity error. That unstable operation introduced extra mechanical stress on the gearbox.

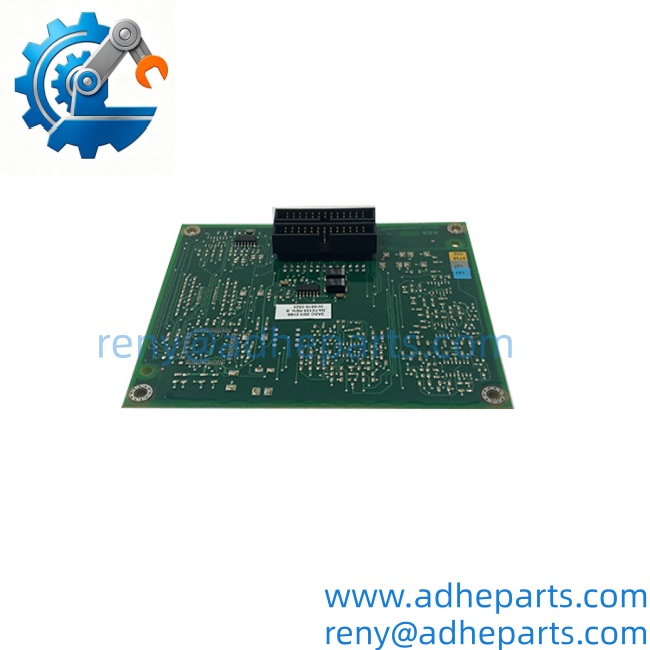

ABB 3ASC25H219B DATX133
Quality Control (QC) SOP & Transparency
- Inbound Verification: Match part marking, serial number, and OEM packaging documentation; inspect PCB solder joints, connector pins and board silkscreen for counterfeit signs or physical scuffs.
- Live Rig Testing: Install board in a bench ACS800 drive, apply 24VDC control power, connect simulated encoder pulse signals, validate dual-sensor signal capture and data transfer to drive firmware.
- Parameter Testing: Check input threshold stability for pulse signals, inspect transient suppression circuit continuity, confirm no leakage on signal lines.
- Final QA & Packaging: Save full test log with serial number; seal board inside anti-static shielding bag, affix QC passed sticker and pack in rigid protective carton.

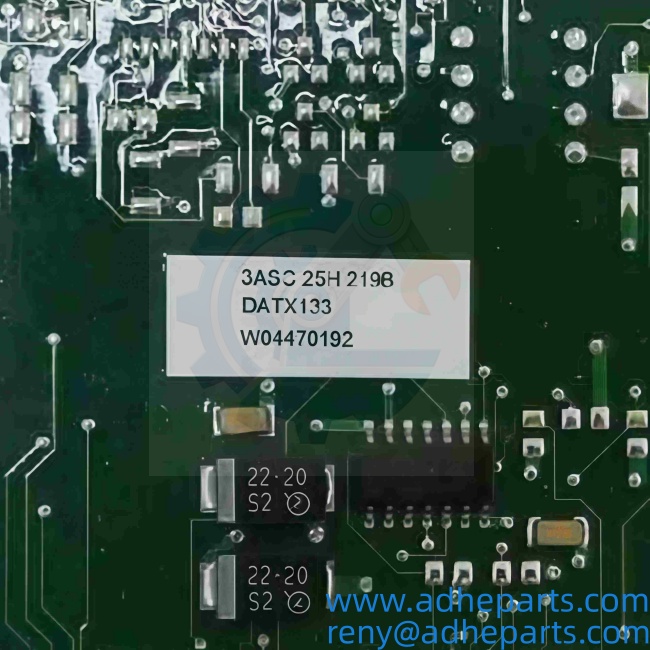

ABB 3ASC25H219B DATX133
Frequently Asked Questions (FAQ)
- Can I replace the DATX133 while the ACS800 drive remains powered? No. This board is not hot-swappable. Full drive shutdown and lockout/tagout must be completed before removing or installing the feedback board.
- Will this DATX133 board work on ABB ACS5000 or other non-ACS800 drive families? No. It is built exclusively for the series. Its edge connector and signal handshake protocol do not align with other ABB drive platforms.
- What warranty is provided for this new surplus DATX133? This unit carries a 12-month warranty covering hardware defects. Warranty does not cover damage from reversed wiring, ESD events, overvoltage, or incorrect drive parameter setup.
- How do I tell genuine OEM stock apart from reworked boards? Check for uniform silkscreen printing, original connector molding, and untouched solder pads. Refurbished boards often show reflow marks near the encoder input circuits.
- What happens when only one of the two connected speed sensors fails? The passes the remaining healthy sensor signal to the drive. The drive will log a diagnostic alarm, and maintenance should schedule sensor replacement before full loss of feedback.
- Does this board ship preloaded with drive parameter settings? No. The holds no stored configuration. You must enter encoder PPR and channel settings in the control software after installation.
- What cable length limits apply to the rotor sensors connected to ? Maximum reliable distance depends heavily on shielding and noise. For high-frequency pulse signals, keep runs under 100m whenever possible. Verify exact cable specs with the OEM datasheet.
