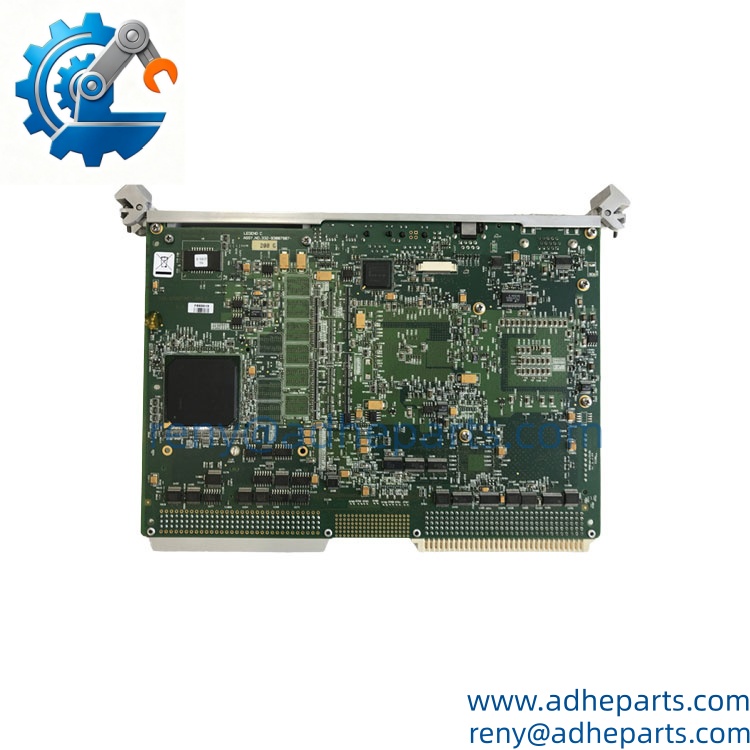

GE VMIVME-7807
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | 6U single-slot VME |
| Processor | Intel Pentium M (1.1 / 1.6 / 1.8 GHz options) |
| System Bus | 400 MHz (Intel 855GME chipset) |
| Memory | Up to 1.5 GB DDR SDRAM |
| Onboard Storage | Bootable CompactFlash (options up to 1 GB) |
| Ethernet | Dual 10/100/1000 + additional 10/100 |
| Expansion | One PMC site (PCI-X, 66 MHz) |
| USB | Four USB 2.0 (front and rear) |
| Serial Ports | Multiple 16550-compatible |
| Graphics | Integrated SVGA + DVI support |
| VME Interface | Full-featured (master/slave, DMA, interrupter/handler, system controller capable) |
| Timers | Multiple programmable + watchdog |
| Typical OS Support | Windows, VxWorks, Linux, QNX, LynxOS |
4. Product Introduction (Anti-Template)
When a VME system needs modern x86 performance in a single 6U slot, the VMIVME-7807 delivers a Pentium M-based single-board computer with substantial I/O. It combines up to 1.8 GHz processing, large DDR memory, dual Gigabit Ethernet, a PMC expansion site, and extensive front- and rear-panel connectivity.
The board includes a full-featured VME bridge supporting master and slave modes, DMA, and system-controller functions. CompactFlash provides bootable solid-state storage, while USB, serial, IDE/SATA, and video interfaces support both legacy and contemporary peripherals. It was widely used in industrial control, test systems, and embedded computing environments that required high bandwidth and I/O density on the VME backplane.

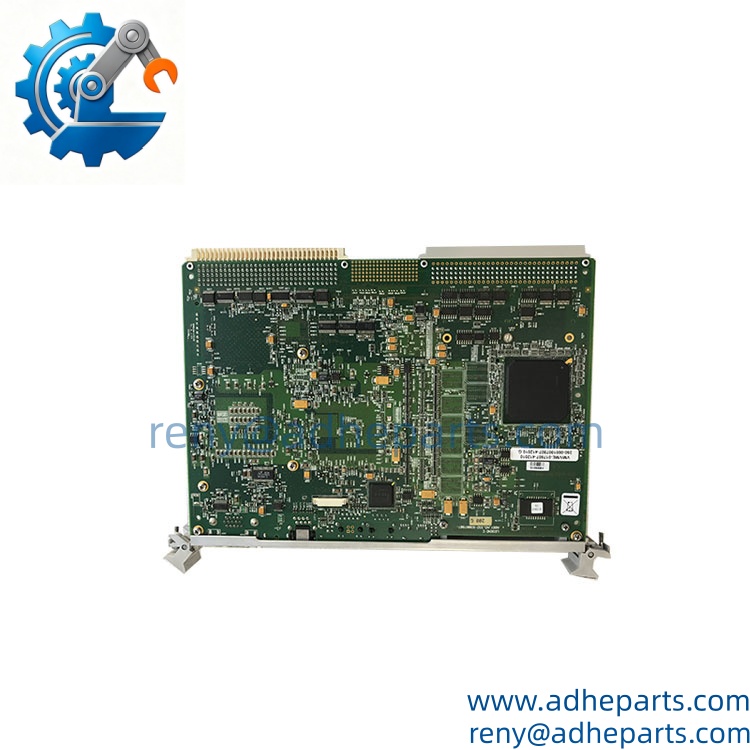

GE VMIVME-7807
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full model marking (VMIVME-7807 or VME-7807RC), processor speed, memory configuration, CompactFlash presence, and connector condition. Photograph labels and any option codes.
- Live Rig Testing – Install in a compatible 6U VME chassis, verify power-up, BIOS POST, Ethernet link, PMC detection (if fitted), VME bus access, and basic OS boot from CompactFlash or network.
- QA & Anti-Static Packaging – After functional pass, protect edge connectors and front-panel interfaces, clean the board, and seal in anti-static shielding with desiccant and humidity indicator.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial single-board computers. Packaging is rated for air and sea freight vibration; export documentation is prepared to minimize customs delays.

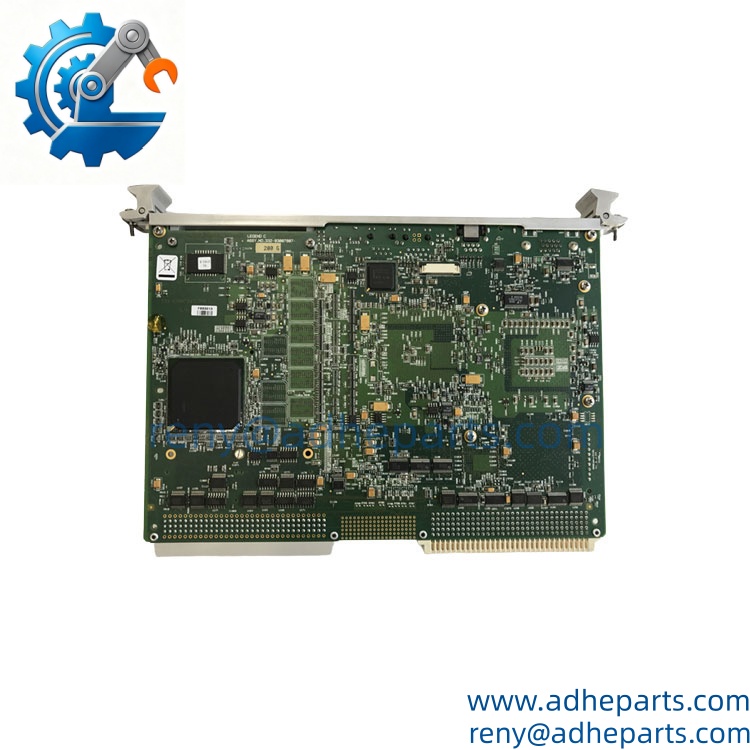

GE VMIVME-7807

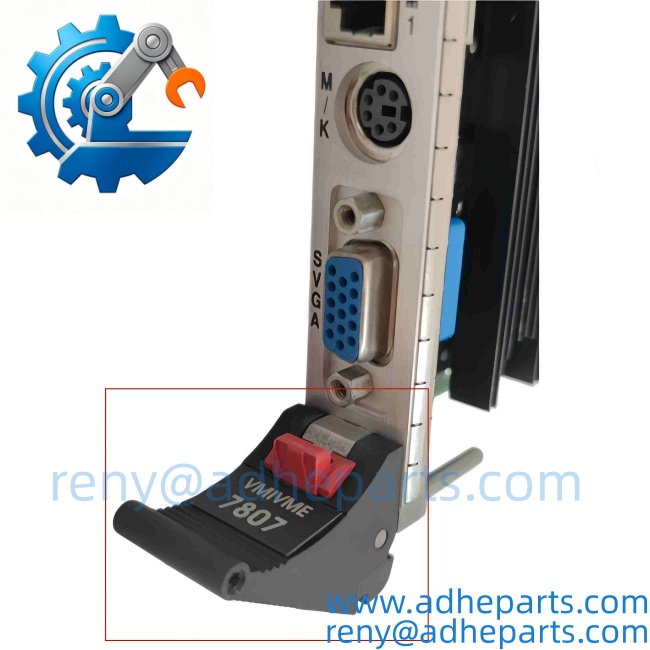

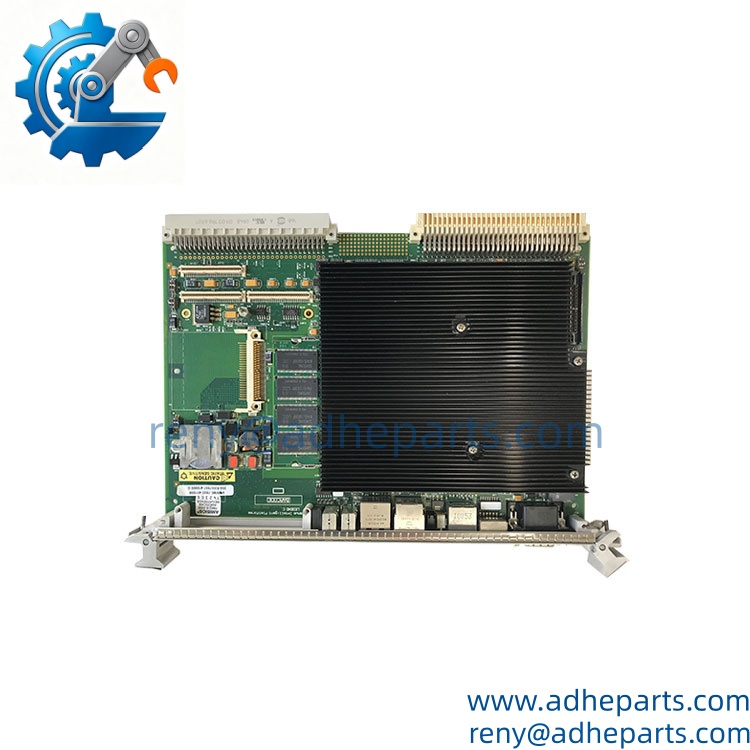

GE VMIVME-7807
6. Technical Pitfalls & Integration Warnings
Memory and CompactFlash Configuration – The board is ordered with specific memory and CompactFlash sizes. Installing mismatched or unsupported modules can prevent boot or cause instability.
Ethernet Routing Options – Dual Gigabit ports can be routed front/rear or both to P0 (VITA 31.1). Selecting the wrong configuration for the backplane design isolates network connectivity.
PMC Site Limitations – The single PMC site is PCI-X 66 MHz. Higher-speed or incompatible PMC modules will not function correctly.
VME System Controller Settings – Incorrect arbiter or requester configuration can cause bus contention or failure to grant the bus. Verify system-controller mode against the overall VME rack design.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified VMIVME-7807?
As a legacy product, availability depends on surplus stock. Typical lead time after verification is 3–10 business days plus standard air freight.
What processor speeds are available?
Common options are 1.1 GHz, 1.6 GHz, and 1.8 GHz Intel Pentium M.
How much memory does it support?
Up to 1.5 GB DDR SDRAM, depending on the ordered configuration.
Does it have Gigabit Ethernet?
Yes. Dual 10/100/1000 Ethernet ports are standard, with flexible front/rear or P0 routing options.
Is there a RoHS-compliant version?
Yes. The VME-7807RC is the RoHS-compliant variant with equivalent form, fit, and function.
What operating systems are typically supported?
Windows (2000/XP), VxWorks, Linux, QNX, and LynxOS, among others.
Can it act as the VME system controller?
Yes. It includes full system-controller capability with programmable arbiter modes.
