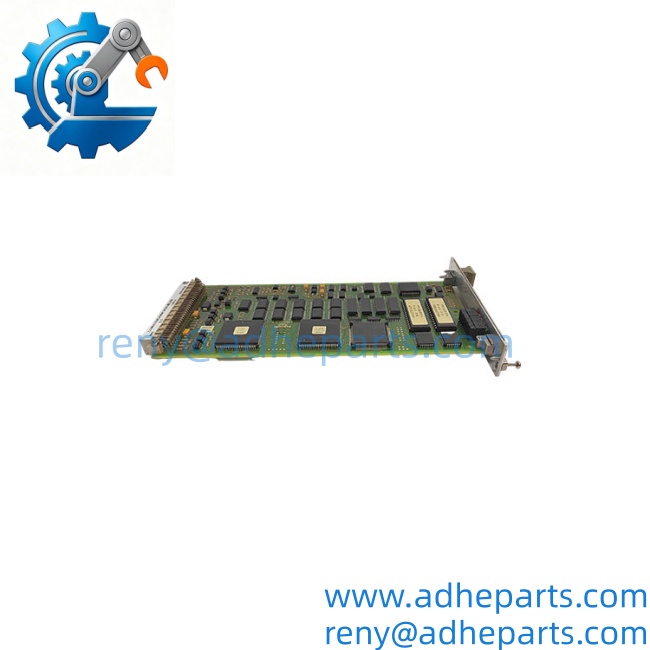

ALSTOM NRD108028 | 8RDB43655 SA43655.E Control Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

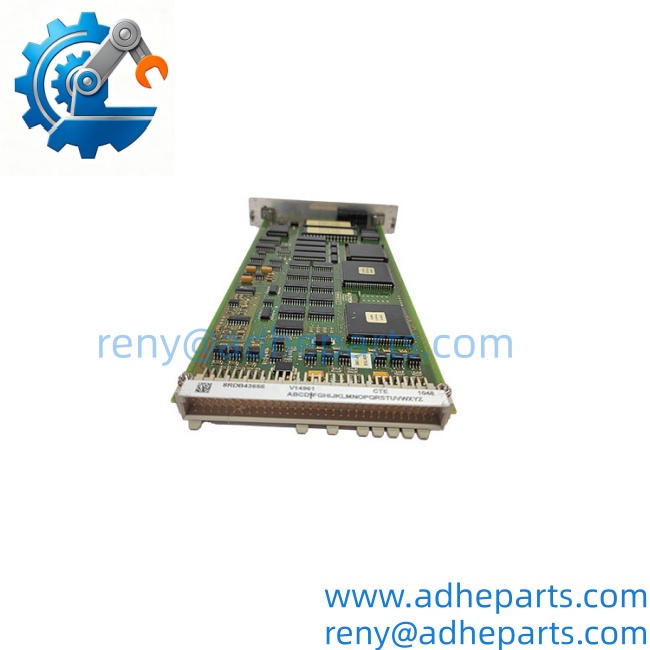

ALSTOM NRD108028 8RDB43655 SA43655.E

Key Technical Specifications

The references NRD108028, 8RDB43655, and SA43655.E are used together in available product records. However, the published technical descriptions are not fully consistent, so voltage, current, memory, connector, and host-system details should not be treated as universal specifications without checking the exact board revision.

Product Introduction (Anti-Template)

Operating as a safety-oriented control board within an ALSTOM control architecture, the NRD108028 is identified by the associated references 8RDB43655 and SA43655.E. Available technical records describe a VME-based board with EPROM sockets and dedicated host-system integration. It should therefore be purchased as a system-specific replacement rather than a generic PLC module. Before ordering, verify the board label, revision, connector arrangement, host controller, and approved replacement list. Honestly, matching the complete reference is more important than relying on a similar-looking circuit board.

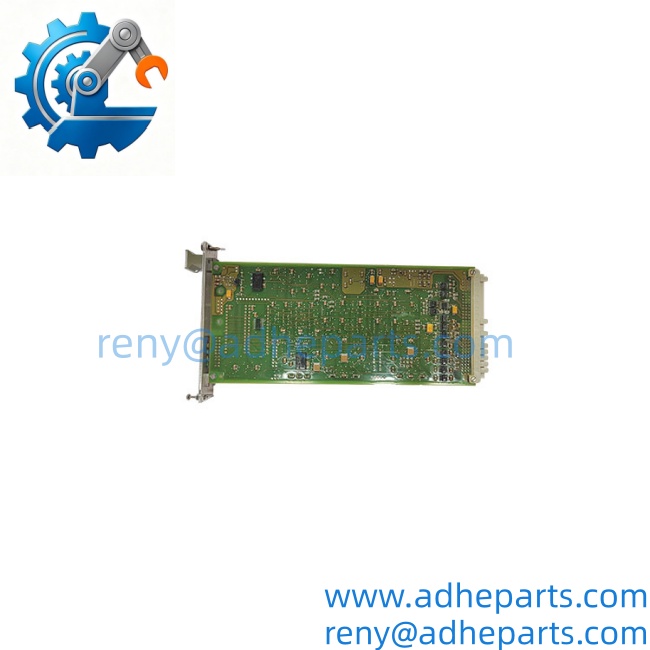

ALSTOM NRD108028 8RDB43655 SA43655.E

QC, Procurement & Logistics SOP

1. Inbound Verification
   Check the ALSTOM nameplate, NRD108028 marking, 8RDB43655 reference, SA43655.E suffix, board revision, serial number, and visible repair history. Compare the physical board with the buyer’s photographs or equipment documentation.
2. Live Rig Testing
   Where a compatible test platform is available, perform controlled power-on testing, bus recognition checks, memory or EPROM verification, and system-level signal validation. Do not energize the board outside its approved voltage range.
3. QA & Anti-Static Packaging
   Inspect PCB traces, edge connectors, sockets, terminals, solder joints, and mounting hardware. Package the board in an anti-static bag with shock protection and moisture control.
4. Global Logistics & Export Compliance
   Confirm the final HS classification based on the actual product function and destination customs requirements. Use secure packaging for air or sea freight and prepare the commercial invoice, packing list, country-of-origin information, and any requested warranty or inspection documents.

Technical Pitfalls & Integration Warnings

1. Firmware or Memory Revision Mismatch
   A board using an incompatible firmware, EPROM image, or system configuration may fail to initialize. For example, a host configured for revision V3.1 may reject or behave unpredictably with a V2.8 configuration. Confirm the approved software, EPROM, and hardware revision before installation.
2. DIP Switch or Configuration Errors
   Address, bus, termination, or operating-mode settings may be system-specific. A single incorrect switch position can prevent the host from recognizing the module or may create a bus conflict. Photograph the original settings before removal.
3. Wiring and Terminal Incompatibility
   Similar ALSTOM boards may have different connector assignments or terminal layouts. Never transfer wiring only because the board dimensions appear identical. Confirm the pinout, backplane position, signal type, and load rating against the relevant drawing.
4. ESD Damage During Unboxing
   EPROM sockets, bus-interface circuits, and exposed PCB components can be damaged by static discharge. Use a grounded ESD workstation, wrist strap, and anti-static packaging during inspection and installation.

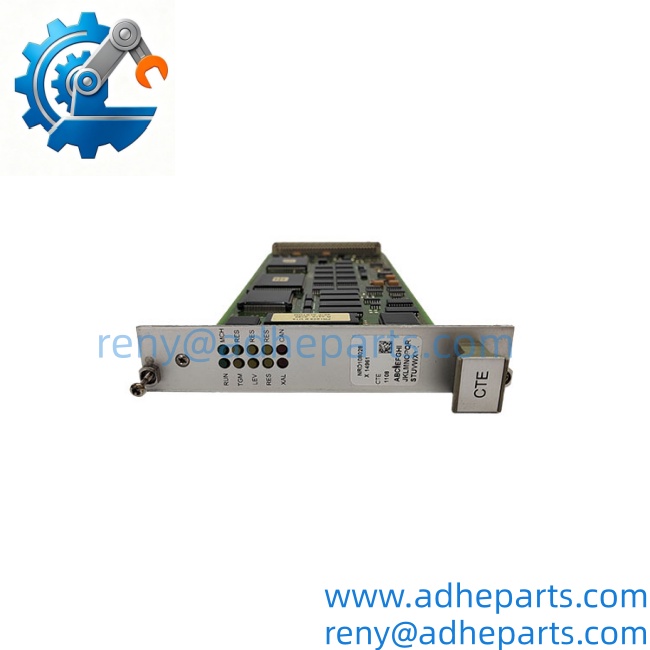

ALSTOM NRD108028 8RDB43655 SA43655.E

Frequently Asked Questions (FAQ)

1. Is NRD108028 the same product as 8RDB43655 SA43655.E?
These references are associated with the same ALSTOM control-board listing, but the buyer should confirm the complete marking and revision on the physical board before placing an order.

2. What is the exact input and output voltage?
Some available listings report 12 VDC input and 24 VDC output, with a 10 A output rating. These values require confirmation from the actual nameplate, wiring diagram, and host-system documentation before energizing the board.

3. Is this a general-purpose PLC or DCS module?
It should not be treated as a universal PLC or DCS replacement. The available information indicates a system-specific ALSTOM safety control board with dedicated host and bus integration.

4. Can another ALSTOM board replace it?
Only if the alternative is explicitly approved for the same host system, rack position, firmware or EPROM configuration, connector arrangement, and application. Similar model numbers alone are not sufficient.

5. Can the module be hot-swapped?
Do not hot-swap it unless the equipment manual specifically confirms that the host rack supports live insertion for this exact board. Power down, isolate, and verify the circuit before removal.

6. What information is needed for compatibility confirmation?
Provide the board nameplate, complete part number, revision, front and rear photographs, host controller model, rack or slot number, and the original equipment application.

7. What are the usual lead time and shipping options?
Lead time depends on the actual condition and stock location. Available options may include express air shipment or scheduled freight. Final delivery time should be confirmed after stock inspection, destination, customs requirements, and shipping method are known.
