Product Introduction
When your substation or industrial power system needs ultra-reliable differential protection performance to ensure the safety of critical high-value assets such as transformers and generators, this relay acts as the core “intelligent protection brain” for these key power equipment.
It belongs to ABB’s classic SPACOM protection series, adopting voltage-based operating principle, which can accurately identify internal faults while maintaining extremely high stability during external faults or CT saturation. Its built-in harmonic restraint function effectively resists the influence of inrush current and overexcitation conditions, completely avoiding protection misoperation. The triple-redundant processing architecture ensures that the trip decision can be completed within 10 milliseconds, quickly cutting off the fault and minimizing the damage degree of expensive power equipment. It supports multiple standard industrial communication protocols, enabling seamless interconnection with substation SCADA automation platforms.

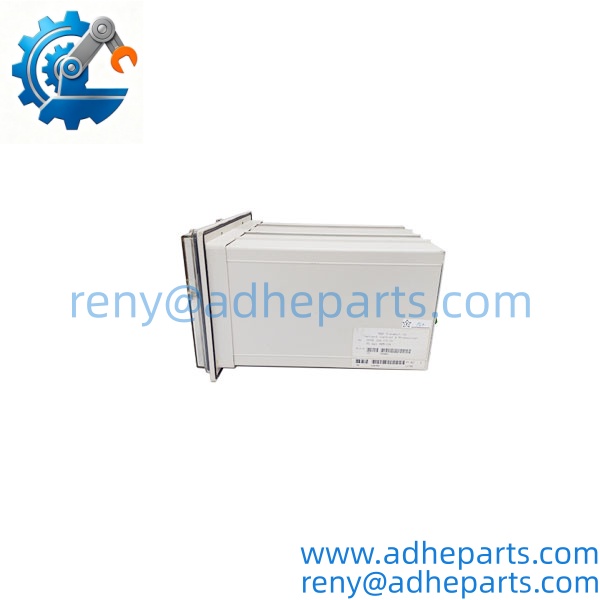

SPAD346C3

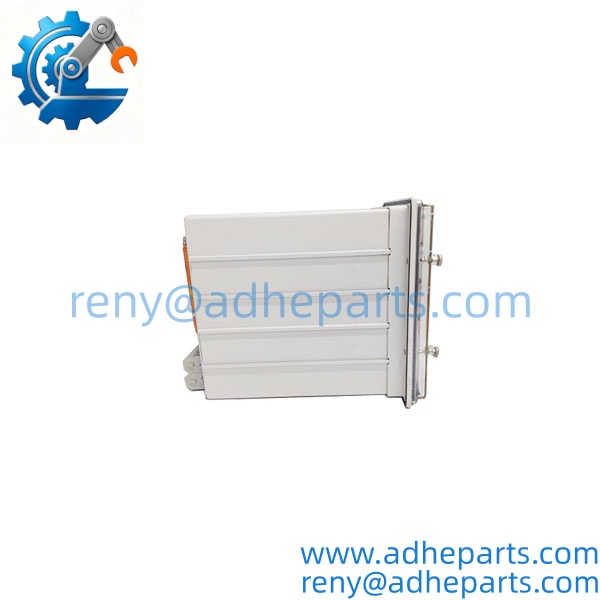

SPAD346C3

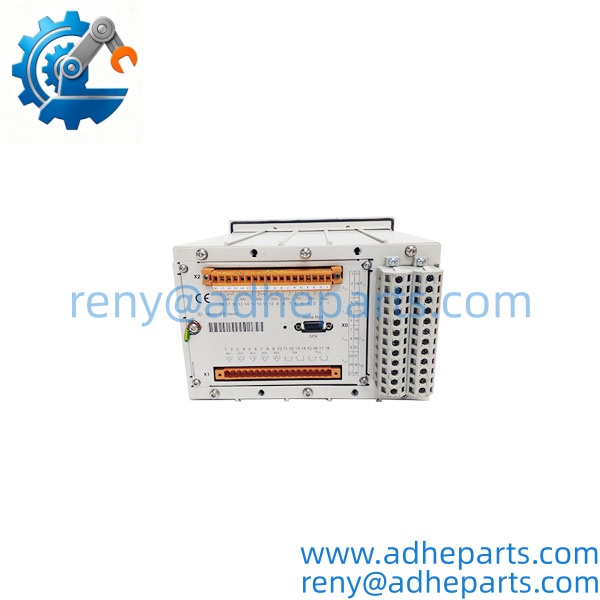

SPAD346C3

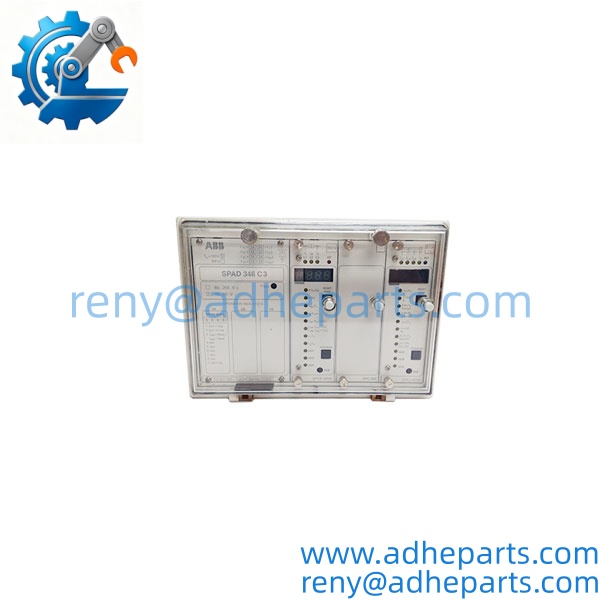

SPAD346C3
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | SPAD346C3 (AA/CA/DA/FA variants available) |
| Product Type | High-Impedance Differential Protection Relay |
| Compatible Assets | Power transformers, generators, large industrial motors, medium-voltage busbars |
| Operating Principle | Voltage-based high-impedance differential protection |
| Adjustable Operating Voltage Range | 20 V ~ 320 V |
| Trip Response Time | ≤ 10 ms ultra-fast action |
| Core Protection Feature | Built-in 2nd/5th harmonic restraint, immune to inrush current and overexcitation |
| Processing Architecture | Triple-redundant logic processing, zero single-point failure risk |
| Supported Communication Protocols | IEC 61850 Ed.2, Modbus RTU/TCP, DNP 3.0 |
| CT Saturation Immunity | Full stability under severe external fault CT saturation conditions |
| Operating Temperature Range | -25°C ~ +70°C |
| Protection Class | Industrial-grade substation protection device |
| Installation Method | Standard substation control cabinet panel mounting |
| Net Weight | ~1.8 kg |
| Recommended Application Scenarios | Preventive maintenance, protection system retrofit, OEM direct replacement |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Urban Substation Main Transformer Differential Protection: Acts as the core differential protection unit for 110kV/220kV substation main transformers, quickly identifying internal winding faults, cutting off the fault within 10ms, and protecting the high-value main transformer equipment from permanent burnout.
- **Large Thermal Power Plant Generator Protection: Delivers reliable high-speed differential protection performance for large generator sets in thermal power plants, adapting to harsh high-electromagnetic-interference power plant environments, ensuring the safe and stable operation of generator equipment.
- **Large Industrial Plant High-Power Motor Protection: Adapts to heavy industrial site environments, providing high-sensitivity differential protection for 6kV/10kV high-power large motors, preventing motor winding burnout accidents caused by internal faults.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never arbitrarily adjust the operating voltage setting value without completing the differential circuit CT wiring polarity verification. Wrong setting will cause the protection to refuse to operate during internal faults, resulting in severe damage to the protected equipment.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full differential circuit resistance measurement test will leave you with hidden protection dead zones. This unit must confirm the differential loop resistance fully meets the design requirements before putting into operation.
- ⚠️ Bold Warning 3: Do not disable the harmonic restraint function during commissioning. The inrush current generated during no-load transformer switching will cause the protection to misoperate, resulting in unnecessary tripping of the transformer.
A large thermal power plant maintenance team once swapped a SPAD346C3 relay and skipped the differential circuit resistance test. The hidden excessive loop resistance caused the protection to refuse to operate during the transformer internal fault, resulting in the main transformer being severely burned, with direct losses exceeding $1.2 million.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official SPACOM series part registry, confirm the part number SPAD346C3 matches the factory label, and inspect no damage or deformation on all wiring terminals and communication ports.
- Live Rig Testing: Power the unit in a calibrated ABB protection relay test bench, apply standard differential test voltage, and confirm full 2-hour continuous stable protection operation.
- Parameter Testing: Verify the 10ms ultra-fast trip performance meets factory specifications, confirm harmonic restraint function triggers correctly, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested relay in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap the communication wiring while the device is running? No. You must first set the protection to maintenance blocking state before operating the communication wiring, otherwise you will trigger unexpected protection action risks.
- What exact systems is this relay compatible with? It works natively with ABB SPACOM series protection systems, and can seamlessly connect to standard IEC 61850/Modbus/DNP 3.0 protocol substation SCADA platforms.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, improper setting, or differential loop abnormality in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB SPAD346C3 relays have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 10ms ultra-fast trip performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory calibration test documentation, add 2 extra business days to the turnaround window.
- Can this relay replace the older ABB legacy high-impedance differential protection unit? Well, technically it supports the same standard panel installation dimensions, but you will need to re-verify the differential loop parameters and protection setting values to ensure full system compatibility.
