Product Introduction

When a safety instrumented system loses external host access, plant operators lose visibility to critical ESD and fire‑gas logic status. This module handles bidirectional data flow between the Tricon triple‑redundant backplane and remote Modbus‑RTU equipment or TriStation engineering workstationsSiemensPLC.

Well, technically it supports Modbus TCP through auxiliary hardware, but native onboard ports operate as RS‑232 / RS‑485 serial. Installed in main chassis slots one through fifteen, it maintains fault‑tolerant communication even with one TMR leg reporting degraded status, —though your mileage may vary depending on matching controller firmware revisionsSiemensPLC.

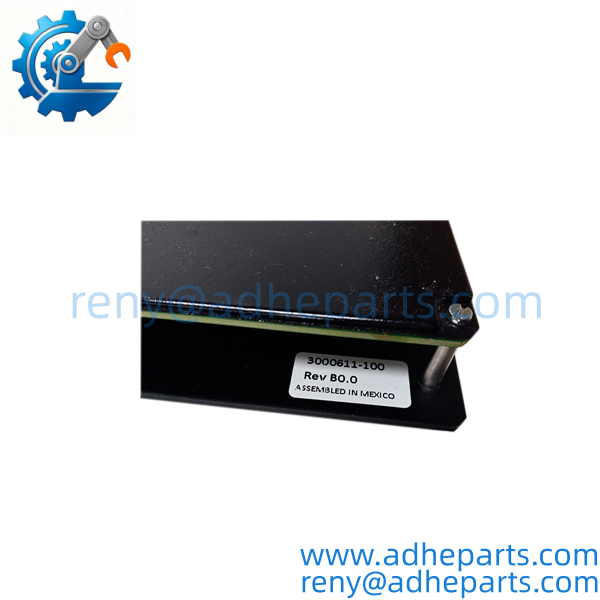

Triconex 4211

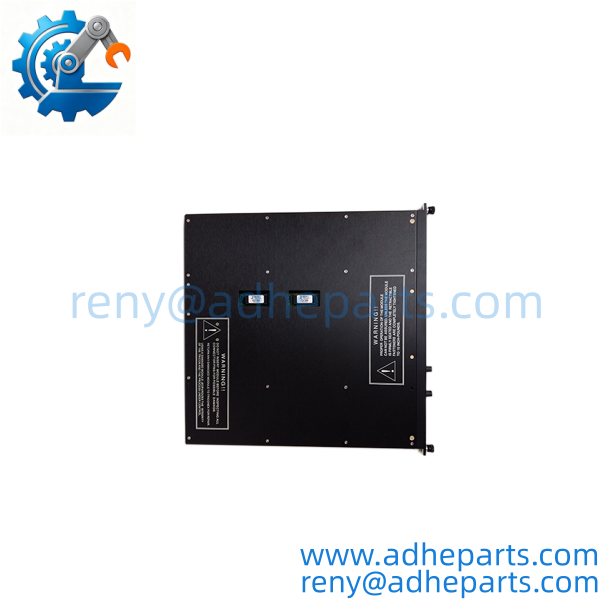

Triconex 4211

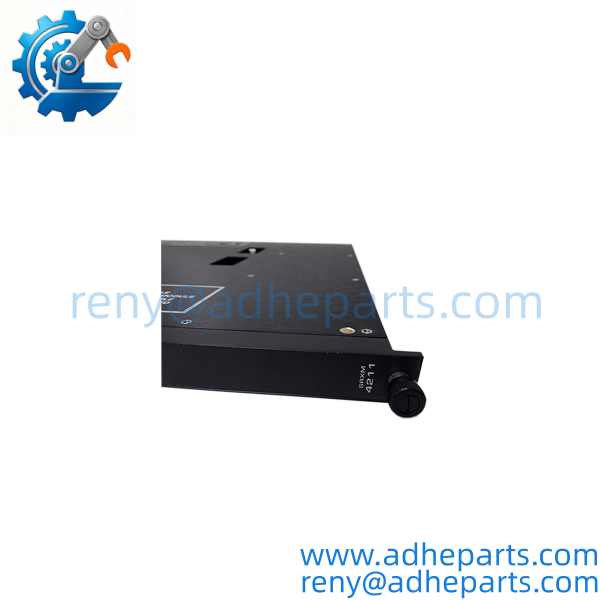

Triconex 4211

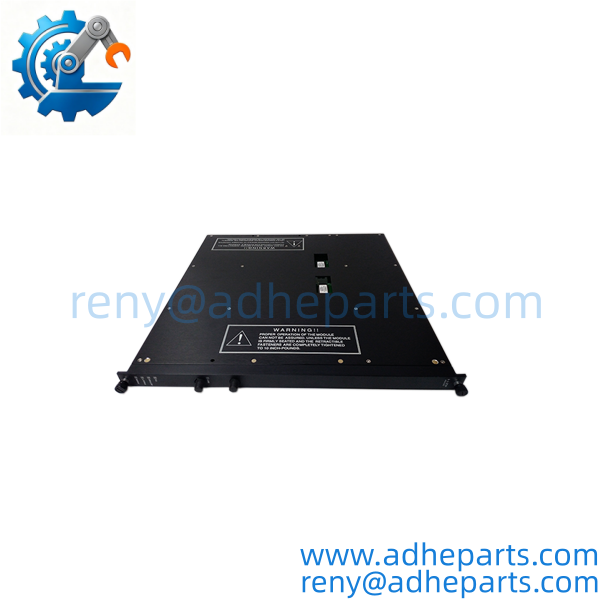

Triconex 4211

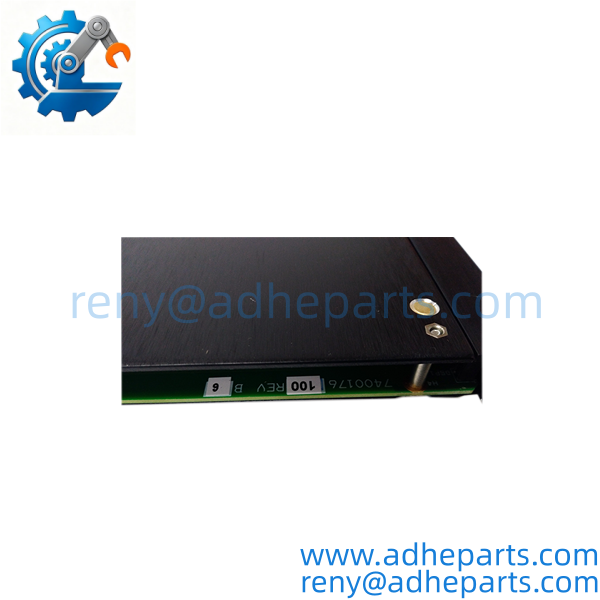

Triconex 4211

Key Technical Specifications

Field Application & Technical Pitfalls (The Engineer’s Guide)

Critical Industrial Scenarios

1. ESD emergency shutdown systems: delivers safety‑logic diagnostic data to DCS host SCADA over Modbus RTU links.
2. Fire & gas monitoring systems: passes detector alarm states from Tricon safety logic to plant‑wide HMI workstations.
3. Burner management installations: enables TriStation engineering access for online logic edits and fault log retrieval during scheduled turnaround work.

Technical Pitfalls (Bold Warnings)

• Firmware revision mismatch between 4211 and main processor modules: Mismatched firmware triggers COMM‑DEGRADED alarms even with healthy wiring; always cross‑check all three TMR leg versions in TriStation before commissioning replacement hardwareSiemensPLC.
• Improper serial termination resistor setting: Missing 120 Ω termination at the bus far‑end creates intermittent time‑outs that mimic module hardware failure. Check the third terminal block from the left for termination jumper placement.
• ESD damage during hot‑swap service: Static discharge through exposed edge‑connector contacts can corrupt onboard non‑volatile memory without immediate visible fault indicators.

Lesson‑Learned Anecdote One site swapped a spare 4211 during running ESD‑system service. The team skipped firmware validation after insertion. For three production shifts, intermittent host time‑outs occurred, and operators ignored the degraded communication warning. A random plant process upset nearly triggered an unplanned full‑site shutdown before technicians pulled diagnostics and aligned firmware across all three main processor legs.

Quality Control (QC) SOP & Transparency

1. Inbound Verification: Cross‑reference part number, serial number, OEM packing label; perform visual anti‑counterfeit inspection for board‑level tampering or resoldered components; photograph unit front‑face nameplate for internal inventory records.
2. Live Rig Testing: Seat module inside Tricon v10 test chassis; apply chassis 24 VDC supply; execute power‑on self‑test; validate TCB backplane handshakes with three main processor cards; establish Modbus‑RTU session against test slave device to confirm serial port function.
3. Parameter Testing: Measure backplane bus insulation resistance; log module power draw under full communication load; capture TriStation diagnostic status snapshot confirming zero hardware faults across TMR voting legs.
4. Final QA & Packaging: Wipe unit contacts with static‑safe cleaner; place module inside conductive anti‑static bag; apply printed QC‑passed sticker with test‑run date; seal within rigid outer shipping container.

Frequently Asked Questions (FAQ)

Can I hot‑swap the Triconex 4211 while the safety system remains online? Yes, physical hot‑swap is supported on Tricon v9 / v10 chassis. Even so, you should pause active TriStation host connections before extraction. Live open serial sessions can throw transient bus errors into system event logs.

Which exact Tricon chassis revisions accept this communication module? It fits Tricon v9.x and v10.x main chassis slots 1‑15. It will not physically operate within older Trident‑series racks. Verify exact load capacity with the OEM datasheet if your site runs mixed‑generation backplane hardwareSiemensPLC.

What warranty term applies to supplied Triconex 4211 units? All offered units carry a 12‑month warranty. New‑surplus coverage covers factory‑original defects. Refurbished units cover faults linked to our performed test and rebuild scope; physical field‑wiring damage sits outside warranty terms.

How do I visually tell genuine OEM hardware apart from rebuilt counterfeit copies? Genuine OEM modules carry crisp printed nameplate serial numbers, factory conformal board coating, and intact tamper seals. Rebuilt units often show solder rework near port connectors or blurry adhesive‑applied aftermarket labels. Serial numbers should cross‑reference against OEM original production records when possible.

My replacement 4211 shows COMM‑DEGRADED alarm right after installation. Is the module defective? Not automatically defective. Open TriStation module‑status view and compare firmware versions of the inserted 4211 against all three main processor cards. Version divergence creates this exact fault pattern. Match firmware baseline first before returning parts as failed stockSiemensPLC.

Does Triconex 4211 offer native Ethernet communication ports? No native Ethernet hardware exists on the 4211 itself. Modbus‑TCP access requires external serial‑to‑Ethernet converter hardware placed on the serial output path. Do not expect direct IP‑based host connection out of the box.

What environmental limits must I respect when installing this unit inside cabinet enclosures? Keep operating temperature within 0 °C to +60 °C, maintain non‑condensing humidity. Excessive cabinet heat above rated limits accelerates electrolytic capacitor aging and shortens expected field service lifespan.
