Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TC-PCIC02 |
| Manufacturer | Honeywell |
| Product Type | ControlNet Interface Module |
| System Compatibility | Honeywell Experion PKS C200/C300 environments |
| Interface Type | PCI Bus |
| Network Protocol | ControlNet |
| Data Transfer Rate | 5 Mbps |
| Bus Connection | PCI interface |
| Power Requirement | 5 VDC through PCI bus |
| Power Consumption | Approx. 700 mA |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Application | DCS communication and network connectivity |
| Weight | Approx. 0.12 kg |
The TC-PCIC02 is identified as a Honeywell ControlNet PCI communication interface module used with Honeywell Experion PKS C200/C300-related systems. It provides a high-speed deterministic ControlNet connection through a PCI interface at 5 Mbps.
Product Introduction (Anti-Template)
Unlike a standard Ethernet communication card, the Honeywell TC-PCIC02 is designed specifically for ControlNet-based communication inside Honeywell automation environments. The PCI interface allows a host workstation or engineering computer to exchange deterministic network data with supported Honeywell control architectures.
This module is mainly a communication bridge, not a controller or I/O module. Matching the network architecture, driver environment, workstation configuration, and Experion system version is critical before replacement. Honestly, communication cards often appear simple until the wrong driver or network configuration stops the entire connection chain.

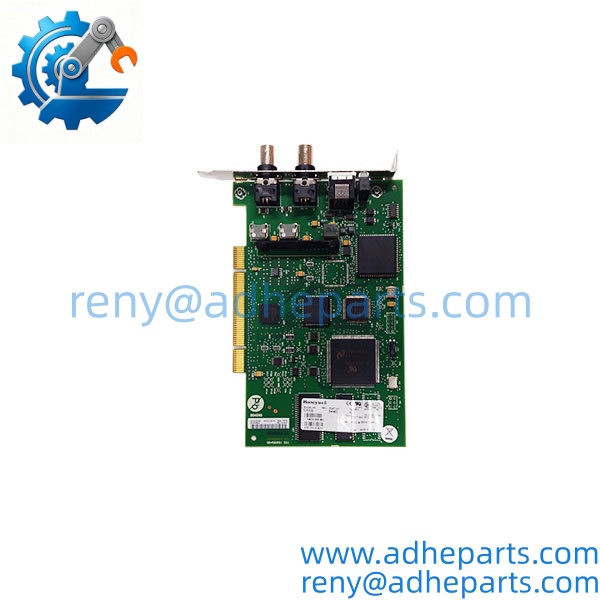

TC-PCIC02

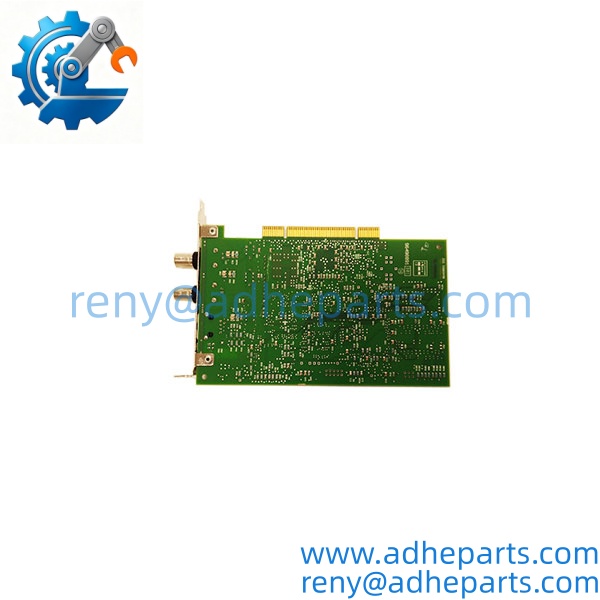

TC-PCIC02

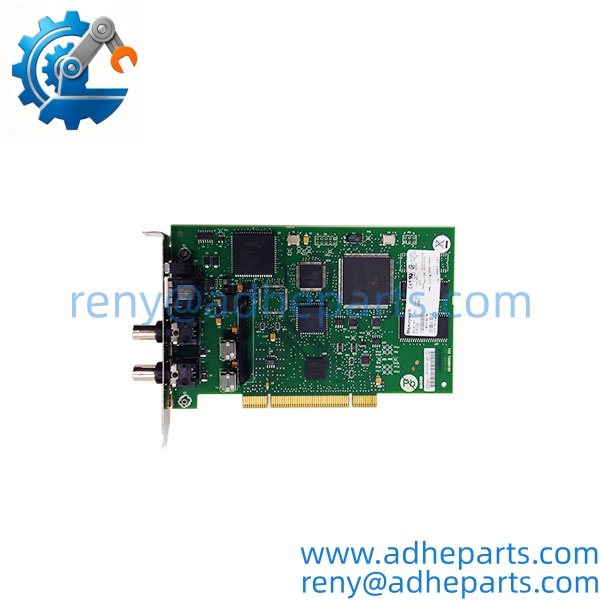

TC-PCIC02
