Product Introduction
When your HEIDENHAIN CNC system needs ultra-reliable high-precision position signal processing performance to ensure the micron-level machining accuracy of precision machine tools, this module acts as the core signal bridge between HEIDENHAIN high-precision encoders and the CNC main control logic unit.
It features HEIDENHAIN’s unique inductive non-contact coupling mechanism, eliminating physical contact wear between internal components, extending service life 5 times longer than traditional optical signal processing modules in high-dust industrial environments. Its built-in >100V/m strong magnetic field immunity design allows stable operation near welding equipment and high-power electromagnetic interference sources, perfectly adapting to harsh industrial site environments. It supports CANopen and analog signal dual output modes, enabling on-site reconfiguration to seamlessly connect to new networked CNC systems or legacy PLC platforms.
IK340
IK340

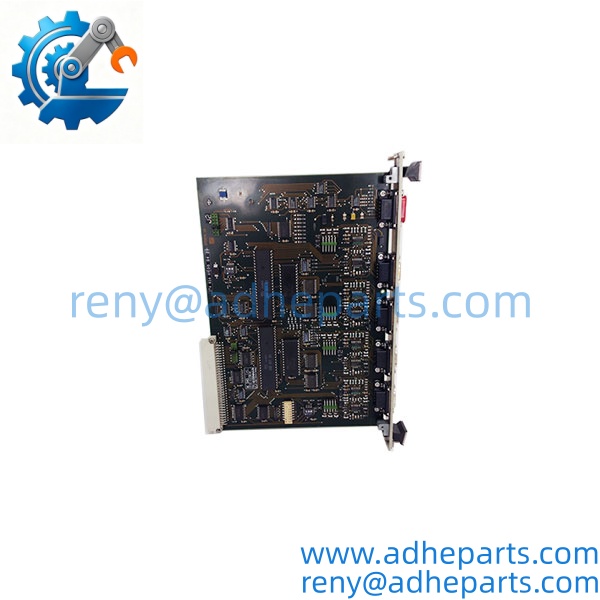

IK340

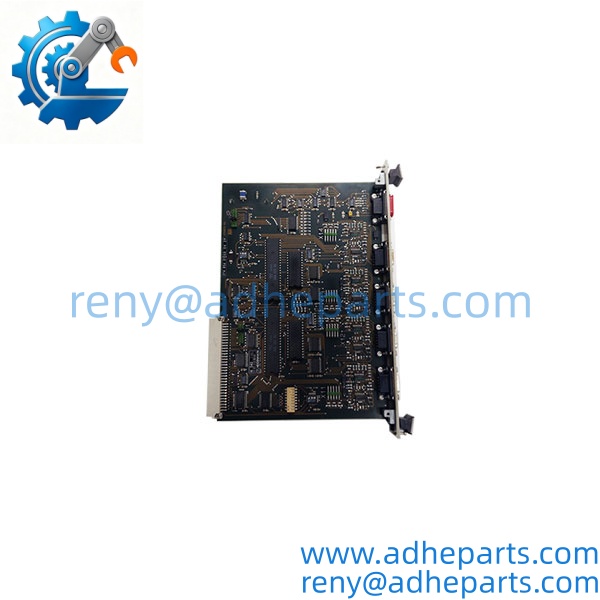

IK340
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | IK340 (270973-03) |
| Product Type | Motion Control Signal Processing I/O Module |
| Brand | HEIDENHAIN |
| Core Function | High-precision position signal acquisition, conditioning and transmission for CNC systems |
| Coupling Mechanism | Inductive non-contact coupling, no physical contact wear |
| Magnetic Field Immunity | >100 V/m strong magnetic field resistance |
| Supported Output Modes | CANopen industrial bus, analog signal (on-site reconfigurable) |
| Integrated Diagnostics | Real-time monitoring of temperature, voltage and signal integrity, pre-failure alert trigger |
| Installation Method | Standard industrial control rack/panel mounting |
| Operating Environment | Wide temperature range, high vibration resistance |
| Application Scenarios | Precision CNC machine tools, robotic assembly lines, automated production systems |
| Mechanical Design | Reinforced industrial-grade module housing |
| Service Life | 5× longer than traditional optical encoder interface modules in high-dust environments |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **High-Precision CNC Machining Center Control: Acts as the core position signal processing unit for HEIDENHAIN CNC systems on high-precision machining centers, processing high-resolution position feedback signals from linear encoders, ensuring the machine tool achieves micron-level machining accuracy.
- **Automotive Robotic Assembly Line Control: Delivers stable high-reliability signal processing performance for robotic assembly lines in automotive manufacturing workshops, adapting to high-dust and high-vibration production environments, ensuring the positioning accuracy of robotic assembly operations.
- **Heavy Industrial Large Machine Tool Control: Adapts to harsh heavy industrial site environments such as cement plants and metallurgical workshops, providing long-term reliable position signal processing for large heavy-duty machine tools, eliminating the need for frequent maintenance and lubrication.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never install this module within 30cm of high-power welding equipment without additional electromagnetic shielding measures. Excessive transient magnetic field interference will cause temporary position signal loss that triggers unexpected machine tool pause alarms.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full signal integrity diagnostic test will leave you with hidden signal attenuation risks. This unit must complete 2-hour continuous signal monitoring to confirm no signal integrity anomalies.
- ⚠️ Bold Warning 3: Do not arbitrarily switch the output mode between CANopen and analog without reconfiguring the corresponding CNC system parameters. The signal format mismatch will cause the CNC system to fail to correctly identify position signals, resulting in machine tool positioning deviation.
A precision mold manufacturing plant maintenance team once swapped an IK340 module and skipped the signal integrity diagnostic test. The hidden signal attenuation caused the machine tool position feedback to deviate by 8μm, resulting in a batch of high-precision molds being scrapped, with direct losses exceeding $28,000.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against HEIDENHAIN’s official motion control part registry, confirm the part number IK340 (270973-03) matches the factory label, and inspect no damage or deformation on all industrial multi-pin connectors.
- Live Rig Testing: Power the unit in a calibrated HEIDENHAIN CNC system test bench, apply standard industrial power supply, and confirm full 2-hour continuous stable signal processing operation.
- Parameter Testing: Verify both CANopen and analog output modes operate correctly, confirm signal integrity monitoring function triggers pre-failure alerts normally, and validate all status indicators function properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the CNC system is running? No. You must first set the CNC system to safe maintenance state and confirm all motion axes are in static locked state before removing the unit, otherwise you will trigger unexpected axis movement risks.
- What exact systems is this module compatible with? It works natively with HEIDENHAIN mainstream CNC systems. It will not operate correctly with non-HEIDENHAIN CNC platforms without custom signal protocol adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by electromagnetic over-interference, miswiring, or improper output mode configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine HEIDENHAIN IK340 modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full >100V/m magnetic field immunity performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official HEIDENHAIN factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older HEIDENHAIN legacy encoder interface unit? Well, technically it fits the same standard rack mounting footprint, but you will need to reconfigure the output mode and corresponding CNC system parameters to unlock the full high-reliability signal processing performance.
