Product Introduction
When a continuous-operation manufacturing facility cannot tolerate even a 1-second control system downtime, this module acts as the system’s “backup brain” to ensure zero data loss and seamless control switchover.
It slots directly into the dedicated RX7i system chassis slot, with ruggedized PCB conformal coating that protects sensitive electronics from corrosion, moisture and conductive dust in harsh field environments . Its full redundant design eliminates single points of failure for high-availability industrial control systems.

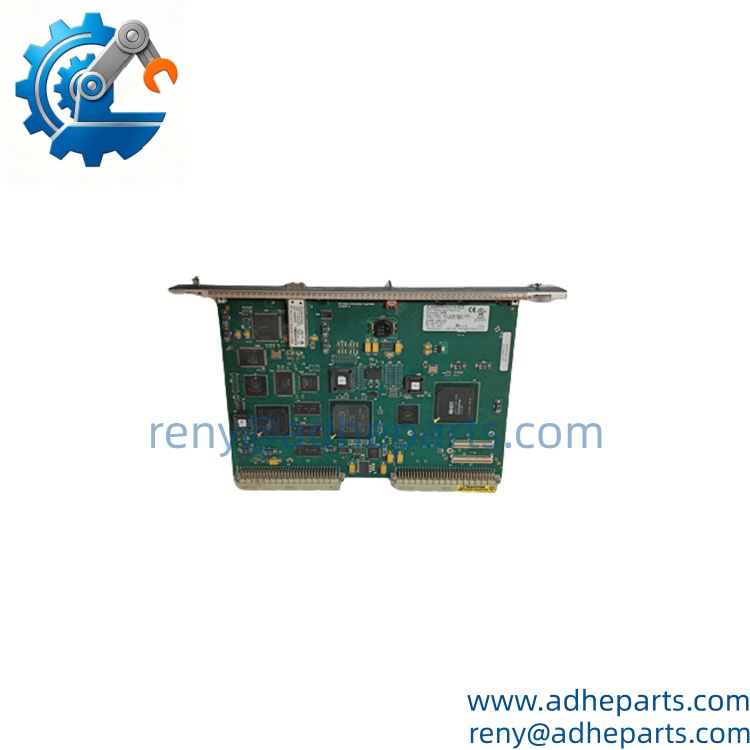

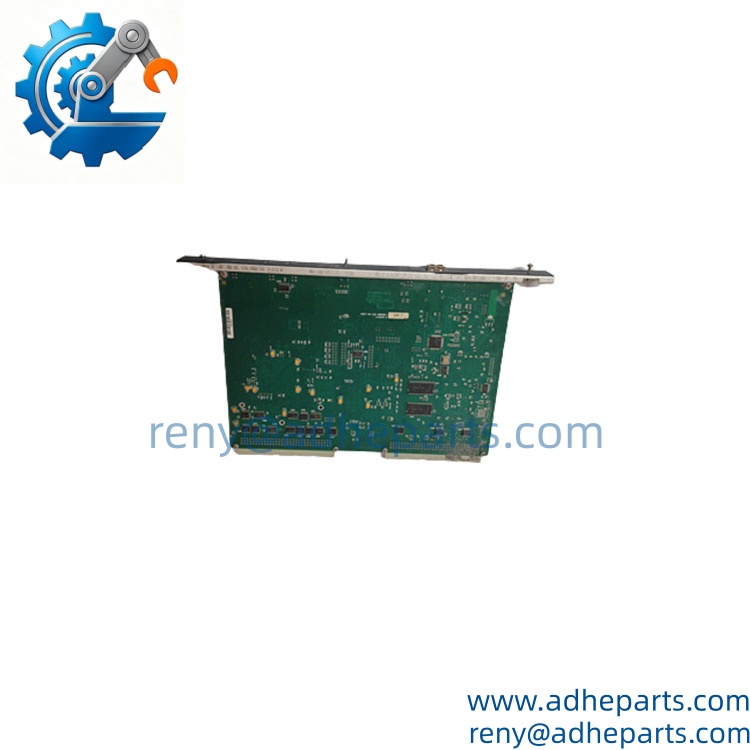

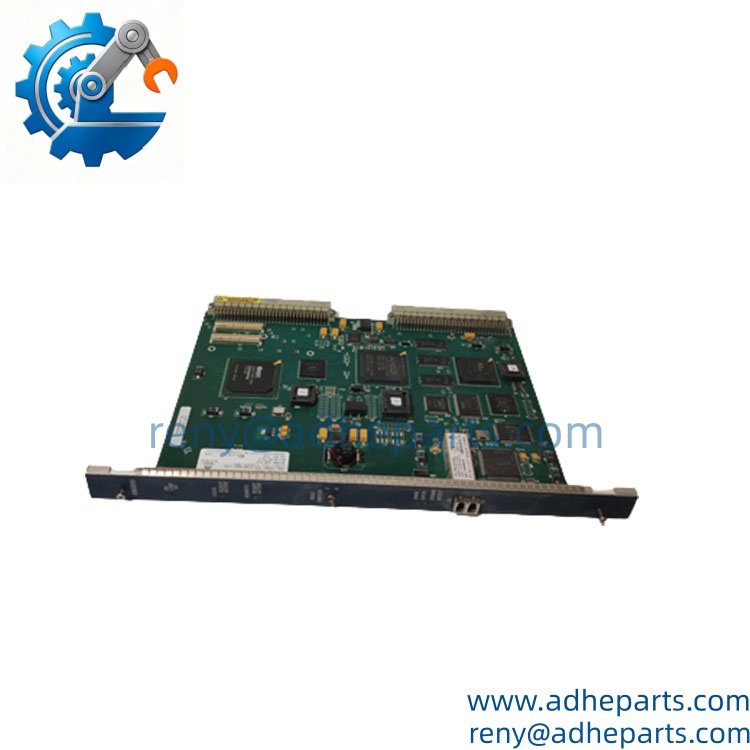

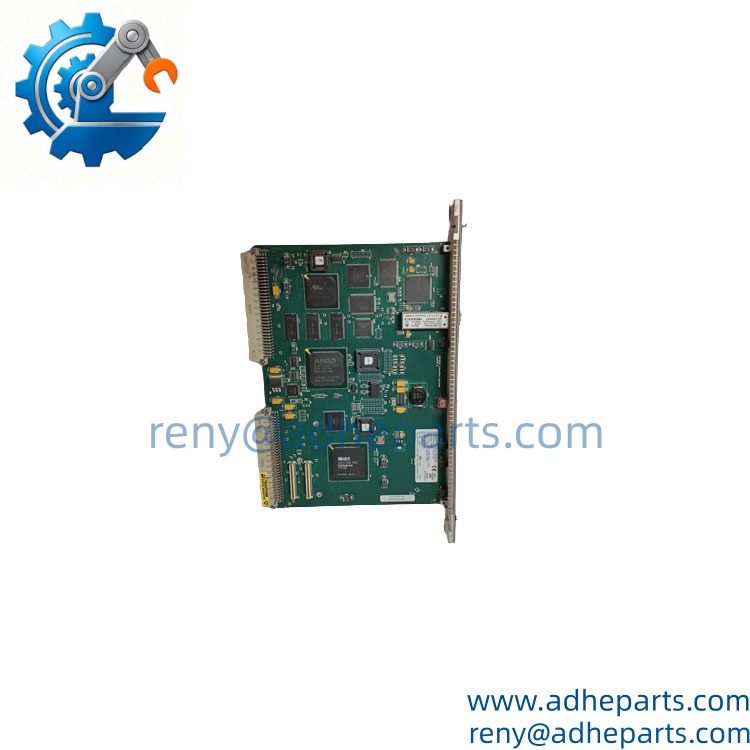

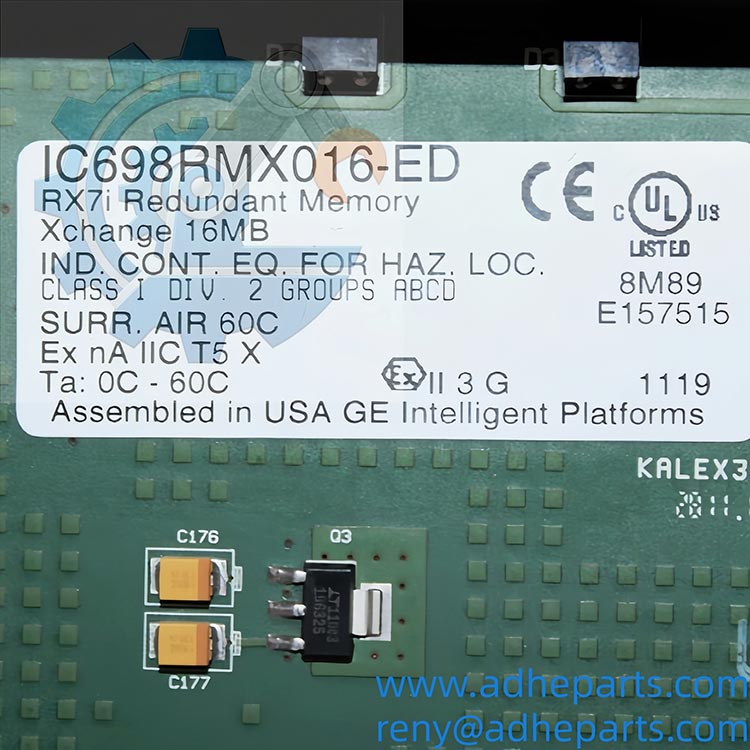

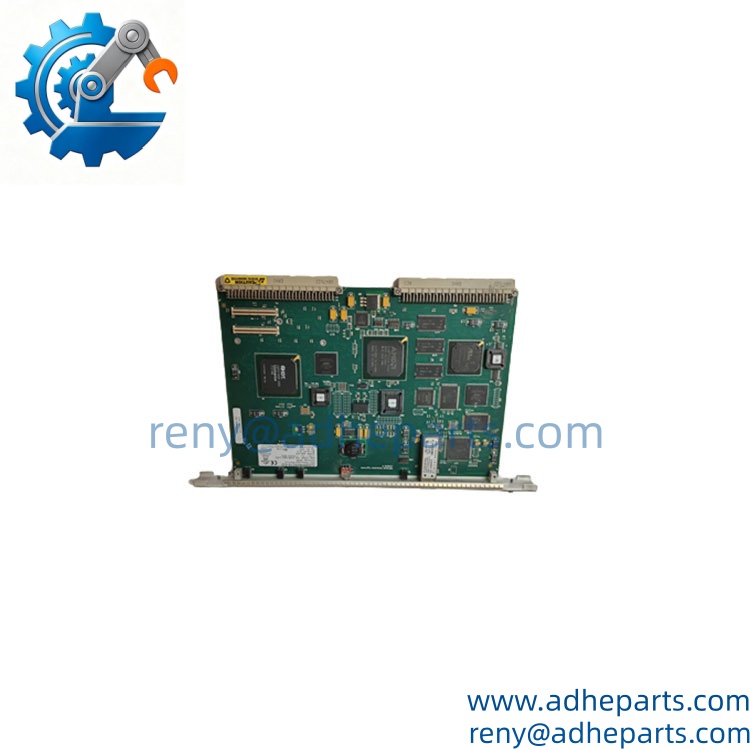

GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | IC698RMX016-ED |
| Platform Compatibility | PACSystems RX7i |
| Onboard Memory | 16 MB SDRAM for critical data storage and fast access |
| Operating Temperature Range | -40°C to +70°C wide industrial temperature range |
| Supported Protocols | Ethernet/IP, Modbus TCP for seamless supervisory system integration |
| Environmental Durability | Conformal coated PCB, resistant to shock, vibration, humidity and condensation |
| Core Function 1 | Seamless control transfer between primary and standby CPUs in redundant configurations |
| Core Function 2 | Network-accessible reflective memory for rapid cross-node data sharing and synchronization |
| Design Feature | Ruggedized package for mobile installations, heavy mining equipment and remote outdoor facilities |
| Value Benefit | Reduces maintenance costs and significantly improves overall system reliability |
GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- Power Generation Plant High-Availability Control: Ensures zero-downtime control system operation for power generation facilities, preventing unplanned outages that would cause massive operational losses.
- Large-Scale Continuous Manufacturing: Delivers seamless primary/standby CPU switchover for 24/7 running production lines, avoiding production interruptions caused by single CPU faults.
- Heavy Mining & Remote Outdoor Facilities: Operates reliably in poorly controlled control cabinet environments with high vibration, wide temperature swings and conductive dust, maintaining stable control performance for mining equipment.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never mix different memory capacity reflective memory modules on the same redundant network. The third node from the left will experience memory mapping conflicts that cause real-time data synchronization failures.
- ⚠️ Bold Warning 2: Firmware revision mismatch will disable the seamless CPU switchover function. This unit requires RX7i system firmware v9.0+; it will not complete a bumpless control transfer on v8.x legacy systems.
- ⚠️ Bold Warning 3: Skipping the 10-minute post-installation redundant switchover test will leave you with uncaught hidden synchronization faults. The issue will only surface when the primary CPU fails, leading to unexpected system downtime.
A large chemical plant maintenance team once swapped an IC698RMX016-ED module and skipped the full redundant switchover test. When the primary CPU failed 3 days later, the module could not complete the seamless control transfer, triggering a 4-hour unplanned plant shutdown that cost an estimated $35,000 in lost production.
GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against GE Fanuc’s official part registry, inspect the conformal coating integrity on the PCB, and confirm no bent pins on the high-density backplane connector.
- Live Rig Testing: Seat the unit in a calibrated RX7i redundant test chassis, apply system power, and confirm full primary/standby CPU handshake and 100% data synchronization stability for 2 continuous hours.
- Parameter Testing: Verify 16MB SDRAM full read/write performance, confirm seamless bumpless CPU switchover completes in under 10ms, and validate Ethernet/IP and Modbus TCP communication functions meet factory specifications.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
GE IC698RMX016-ED | 16MB SDRAM Redundant Control Master Unit
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the RX7i redundant system is running? Yes, but you must confirm the standby CPU is fully online and synchronized before removing the unit, otherwise you will trigger a temporary system control gap.
- What exact GE systems is this module compatible with? It works natively with all GE PACSystems RX7i series redundant control systems. It will not operate correctly with older Series 90-70 PLC platforms without a custom adapter kit.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or ESD in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine GE IC698RMX016-ED units have a laser-etched part number on the side housing, not a printed sticker. Clone units almost always fail the seamless bumpless CPU switchover performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official GE factory test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older IC698RMX008 8MB reflective memory unit? Well, technically it fits the same chassis slot, but you will need to reconfigure the redundant system memory mapping settings in Proficy Machine Edition to unlock the full 16MB memory space.
