ALSTOM MAE99-04 | 8-Port Opto-Isolated Serial Interface

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

ALSTOM MAE99-04

Key Technical Specifications

The ALSTOM MAE99-04 technical document identifies the unit specifically as an 8-channel serial interface unit. Its plant-side ports are bidirectional and compatible with RS485/422, while the connection toward the PMC serial module uses RS232 levels. Each serial port is optically isolated from the other ports and from processor 0V.

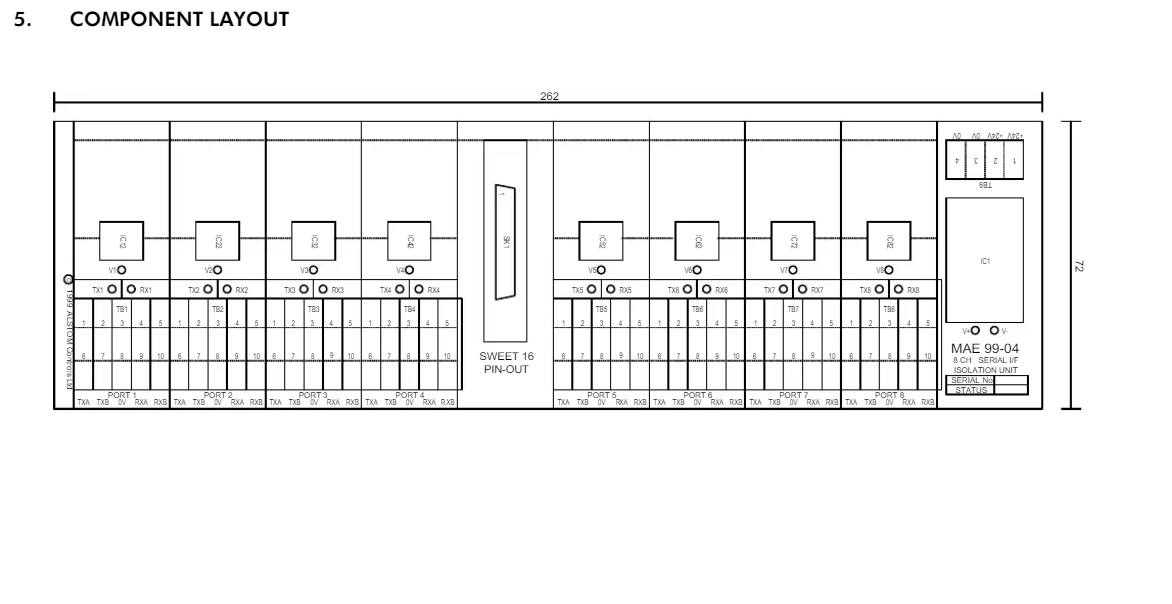

The layout Can Check:

ALSTOM MAE99-04

Product Introduction (Anti-Template)

When an ALSTOM control system needs multiple isolated serial links to plant equipment, the MAE99-04 provides the physical interface between field wiring and the system’s PMC serial module. The unit supports eight bidirectional serial ports, with RS485/RS422-compatible plant connections and an RS232-level link to the PMC module. Its optical isolation separates each port from the others and from processor 0V, which is important when several field communication circuits share the same control architecture.

The board is designed around a 72 mm DIN-rail mounting base and uses spring-cage terminal connections for plant wiring. The PCB is approximately 262 mm × 72 mm, with a 50-way SCSI connector providing the interface to the PMC serial module. Honestly, the isolation architecture is the important part here—not simply the number of serial ports—because incorrect grounding or interface conversion can create communication problems across an otherwise healthy system.

ALSTOM MAE99-04

ALSTOM MAE99-04

QC, Procurement & Logistics SOP

1. Inbound Verification
   Confirm the MAE99-04 identification, ALSTOM Controls markings, serial number, PCB condition, terminal blocks, connector, and DIN-rail housing. Check that the physical port arrangement corresponds to the customer’s existing unit.
2. Live Rig Testing
   Where a compatible ALSTOM test environment is available, verify power-up behavior and all eight communication channels. Test RS485/RS422 transmit and receive paths independently and confirm the isolation behavior between channels. Avoid substituting a generic RS232 test procedure for the actual plant-side interface.
3. QA & Anti-Static Packaging
   Inspect the PCB, terminal blocks, optical-isolation components, DC-DC converter section, connectors, and mounting housing. Package the module in ESD-safe material with mechanical protection around the terminal blocks and PCB edges.
4. Global Logistics & Export Compliance
   Protect the spring terminals and 50-way connector against impact during air or sea freight. Use moisture-resistant and anti-static packaging where appropriate. Confirm the equipment’s destination and applicable customs classification before shipment; the exact HS classification should be determined from the physical configuration and declared function.

ALSTOM MAE99-04

Technical Pitfalls & Integration Warnings

1. Firmware / Configuration Revision Mismatch
   The MAE99-04 itself is primarily an interface/isolation device, but the connected PMC serial module and host processor still depend on the correct system configuration. A hypothetical V2.8 software configuration expecting one serial-port mapping could produce communication faults if the system has been configured for a V3.1 port assignment.
2. DIP Switch / Configuration Errors
   Do not assume that communication parameters are controlled by the MAE99-04 itself. Check the associated PMC module, host configuration, and field-device settings for baud rate, addressing, termination, and protocol requirements before commissioning.
3. Wiring / Terminal Incompatibility
   The plant interface is RS485/RS422-compatible, while the PMC-side connection uses RS232 levels. These interfaces must not be treated as interchangeable. The technical document also specifies a 0V connection between devices on an RS485 link, so grounding and cable routing should be checked during installation.
4. ESD Destruction During Unboxing
   The contains electronic isolation and interface circuitry. Handling the exposed PCB without appropriate ESD controls can damage components even when there is no visible physical damage. Keep the unit in ESD-safe packaging until installation.

ALSTOM MAE99-04

ALSTOM MAE99-04

Frequently Asked Questions (FAQ)

1. What is the ALSTOM ?

The is an 8-channel serial interface isolation unit used to connect plant serial wiring to an ALSTOM serial interface PMC. It provides opto-isolation between individual serial ports and the processor-side ground.

2. Does the support ?

Yes. The plant-side serial ports are described as /RS422 compatible and bidirectional. The transmit interface is , while additional receive protection allows limited compatibility with RS232 levels for short links.

3. How many serial channels does it provide?

The unit provides 8 serial interface ports. The front-end layout identifies separate TX and RX indicators for Ports 1 through 8.

4. Is the same as a generic converter?

No. It is a dedicated ALSTOM system interface unit. It connects plant-side serial signals to the ALSTOM PMC serial architecture and provides individual optical isolation. Replacing it with a generic converter would not reproduce the complete electrical and mechanical interface.

5. What connector does the use?

The PMC-side connection uses a 50-way SCSI straight PCB female connector. The plant side uses terminal blocks, with the documented layout showing separate connections for each of the eight ports.

6. Can the module be hot-swapped?

Do not assume hot-swapping is supported. Isolate the equipment and follow the applicable ALSTOM system maintenance procedure before removing the . Disconnecting a serial interface or power connection under load can interrupt multiple communication channels.

7. What should I provide when ordering a replacement?

Provide the part number, photos of the complete unit and labels, serial number if visible, the associated ALSTOM system/processor configuration, and photos of the terminal and PMC-side connectors. This is especially important for legacy ALSTOM systems where a visually similar interface board may use a different electrical or communication configuration.
