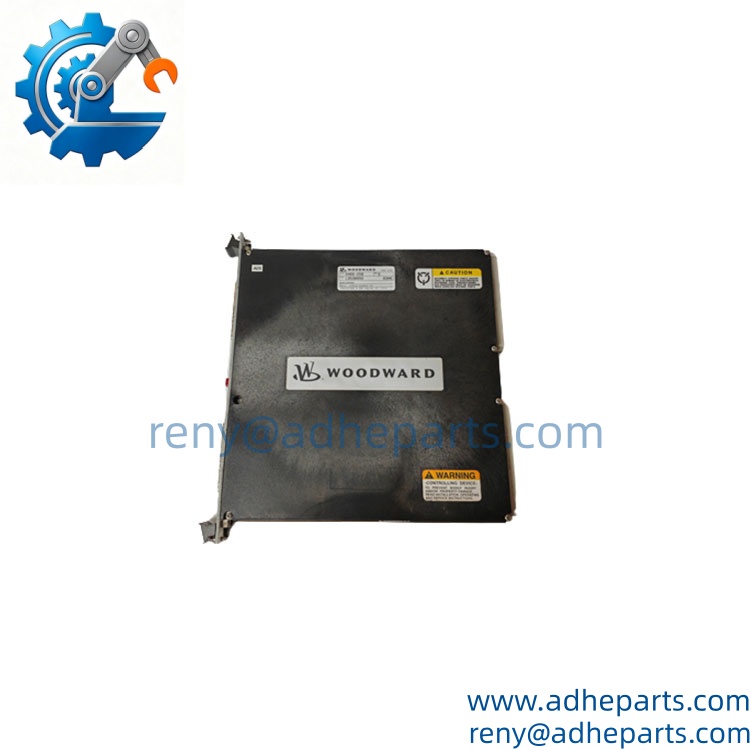

Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Simplex Discrete Input/Output Module |
| Model | 5466-258 |
| Product Family | MicroNet Digital Control |
| Discrete Inputs | 48 |
| Discrete Outputs | 24 |
| Input Signal | 24 VDC nominal |
| Module Type | High-Density Discrete I/O |
| System Compatibility | MicroNet / Vertex-Pro chassis |
| FTM Interface | High-density discrete/analog cable connection |

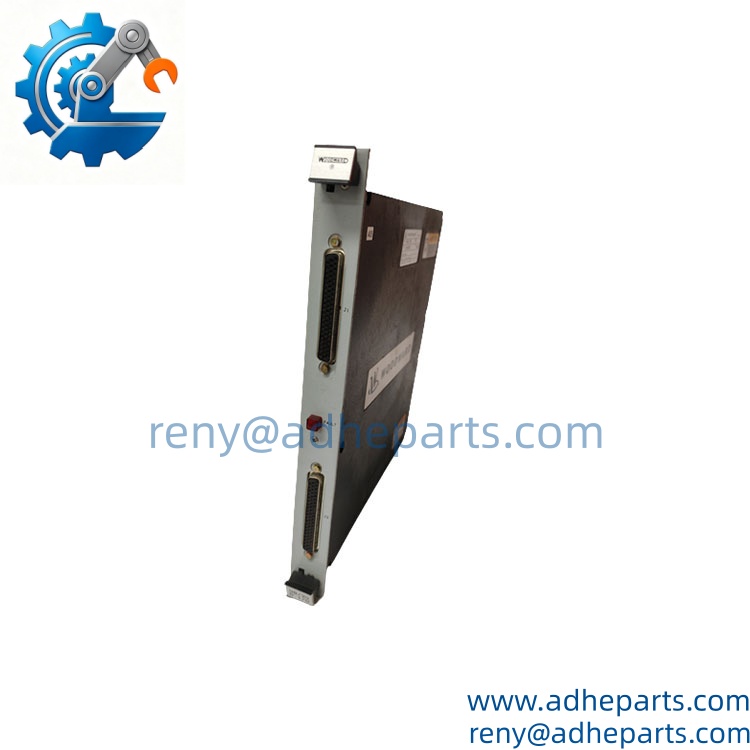

| Front Indication | Red fault LED |
| Installation | MicroNet chassis card slot |
| Operating Temperature | 0°C to +55°C |
| Certifications / Listings | UL, ATEX, CE EMC, DNV, ABS, LRS |
Woodward documentation identifies 5466-258 as an older MicroNet HDD module. Woodward’s Product Change Notification states that 5466-258 and 5466-256 were replaced by updated HDDIO modules, with drop-in replacement availability for certain 5200 and P1020 CPU-based systems. Older 040 or Pentium NT-based systems may require a broader system upgrade rather than a simple module substitution.
Product Introduction (Anti-Template)
Operating inside the MicroNet control architecture, the Woodward 5466-258 handles a large number of discrete field signals through a single rack-mounted module. Its 48-input and 24-output arrangement makes it useful where turbine or compressor control systems have many switches, permissives, alarms, and actuator-related digital signals to process.
The critical point is system compatibility. This is an older MicroNet module, and the correct replacement depends on the CPU generation and installed FTM arrangement. Woodward itself notes that later HDDIO modules can replace the 5466-258 in specific 5200 and P1020-based systems.
QC, Procurement & Logistics SOP
- Inbound Verification
- Confirm the complete part number as 5466-258.

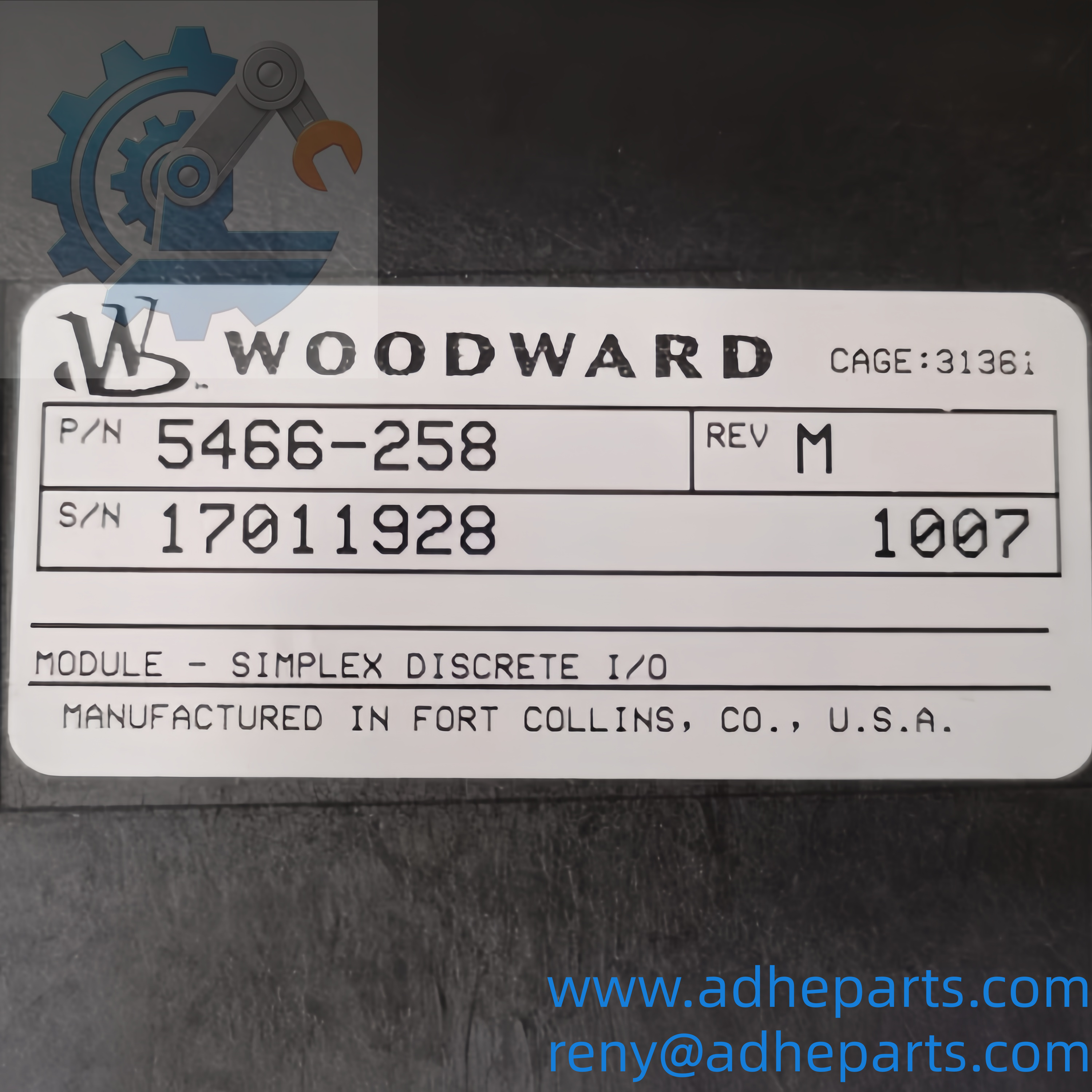

- Inspect the nameplate, revision markings, connectors, card edge, front panel, and mechanical locking hardware.
- Check the module against the required MicroNet chassis and FTM configuration.
- For surplus inventory, inspect storage condition and signs of previous installation.
- Live Rig Testing
- Perform a controlled power-on test when compatible MicroNet test equipment is available.
- Verify startup behavior and fault indication.
- Where the test setup permits, check representative discrete input and output channels.
- Do not connect field wiring to a bench test without confirming the correct FTM and voltage arrangement.
- QA & Anti-Static Packaging
- Record the product label and physical condition before packing.
- Place the electronic module in appropriate anti-static protection.
- Protect card-edge contacts and connectors from mechanical damage.
- Use rigid cushioning for international transportation; the module should not be allowed to move freely inside the carton.
- Global Logistics & Export Compliance
- Verify the commercial invoice, packing list, product description, country of origin, and customs classification before dispatch.
- Select the HS classification according to the actual I/O module and destination customs requirements.
- For urgent turbine maintenance, air freight is generally preferable; sea freight can be considered for consolidated shipments.
- Use shock-resistant export packaging to reduce the chance of connector or PCB damage during air or sea transportation.
- Customs clearance may take longer when the declared description or tariff classification does not match the physical equipment.
Technical Pitfalls & Integration Warnings
1. Firmware / CPU Generation Mismatch
Do not assume every MicroNet CPU can use a newer replacement module in the same way. Woodward specifically distinguishes 5200/P1020-based systems from older 040 and Pentium NT systems. A replacement strategy that works on one generation may require a wider control-system upgrade on another.
2. FTM and Configuration Errors
The 5466-258 is associated with specific high-density FTM arrangements. A technician may receive the correct I/O card but connect it to an incompatible termination arrangement. That can result in missing field signals, incorrect channel mapping, or commissioning delays. Check the FTM part number and cable arrangement before removing the existing module.
3. Wiring / Terminal Compatibility
The 48/24 configuration means the module handles a substantial number of discrete circuits. Do not rely on wire position alone when transferring field connections. Verify the actual channel assignment, common/return arrangement, and FTM wiring documentation first. Honestly, photographing the existing termination arrangement before disassembly can save a surprising amount of troubleshooting time.
4. ESD Damage During Unboxing
The module contains electronic circuitry that should be treated as ESD-sensitive equipment. Keep it inside its anti-static packaging until installation is ready. Avoid touching card-edge contacts or exposed circuitry with bare hands.
Frequently Asked Questions (FAQ)
Q1: Is the Woodward 5466-258 still manufactured?
No. The 5466-258 is an older MicroNet HDD module and has been replaced by updated hardware. Woodward’s own change notice identifies replacement HDDIO modules for applicable systems.
Q2: How many I/O points does the 5466-258 provide?
The module is a 48/24 discrete combination module, providing 48 discrete inputs and 24 discrete outputs. It was designed for high-density field signal processing in MicroNet control systems.
Q3: Can I use a newer Woodward module instead of 5466-258?
Possibly. The answer depends on the CPU architecture. Woodward states that updated HDDIO modules can serve as drop-in replacements for 5466-258 in systems based on CPU 5200 and P1020. Older CPU architectures require a different evaluation.
Q4: Can the 5466-258 be hot-swapped?
Do not assume that it can be removed under power simply because the chassis permits module removal. Follow the installed control system’s maintenance procedure and plant electrical isolation requirements. Disconnecting a live control I/O module can affect critical permissives, trips, and actuator logic.
Q5: What information should I provide when ordering a replacement?
Please provide the complete 5466-258 part number, a clear photo of the existing module label, the MicroNet CPU part number, chassis information, and the associated FTM part number if available. This is particularly important for older systems.
Q6: What is the typical lead time for a 5466-258?
Because this is an older module, lead time depends heavily on available surplus inventory and condition. New-surplus, unused, and refurbished units may have different availability. For an outage-critical requirement, confirm the exact physical unit before arranging shipment.
Q7: Can you ship the module internationally?
Yes. International air or sea freight can be arranged depending on urgency and shipment size. For turbine or compressor maintenance where downtime is expensive, air freight is normally the more practical option. Customs documentation should be prepared using the actual product description and an appropriate HS classification.
