3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3511 |
| Product Type | Pulse Input (PI) Module |
| Architecture | Triple Modular Redundant (TMR) |
| Number of Channels | 8 (non-commoned) |
| Frequency Range | 20 Hz to 20,000 Hz |
| Accuracy | ±0.01% (1,000 Hz to 20,000 Hz) |
| Resolution | 16 bits / 1 µs pulse count |
| Input Type | AC-coupled, balanced differential |
| Normal Mode Range | 1.5 V to 200 V peak-to-peak |
| Common Mode Range | –100 V to +100 V peak-to-peak |
| Update Rate | Typically 25 ms |
| Primary Application | Magnetic speed sensors on turbines, compressors, rotating equipment |
4. Product Introduction (Anti-Template)
The Triconex 3511 is a Pulse Input module designed for the Tricon Triple Modular Redundant (TMR) safety system. It provides eight high-sensitivity channels optimized for non-amplified magnetic speed sensors commonly used on turbines, compressors, and other rotating machinery.
The module detects voltage transitions from the sensor, counts pulses over a selectable time window, and calculates frequency or RPM with 1-microsecond resolution. Each of the three isolated input channels processes the signal independently; the Main Processors then vote on the results to maintain high integrity. The 3511 supports a wide frequency range (20 Hz to 20 kHz) and accepts sine, square, or pulse waveforms with a 10–90% duty cycle. It is a standard component in safety applications that require reliable overspeed or speed monitoring as part of a SIL-rated system.

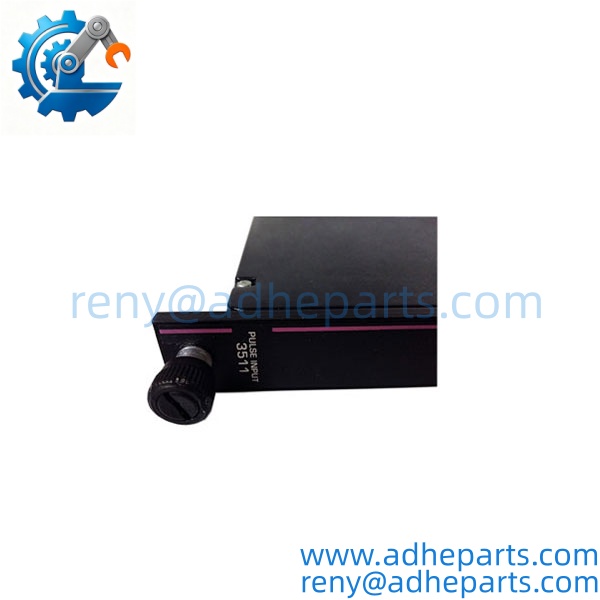

Triconex 3511

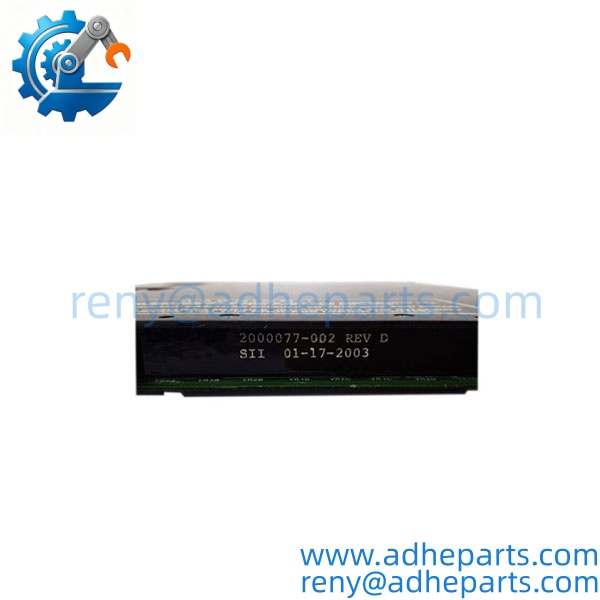

Triconex 3511

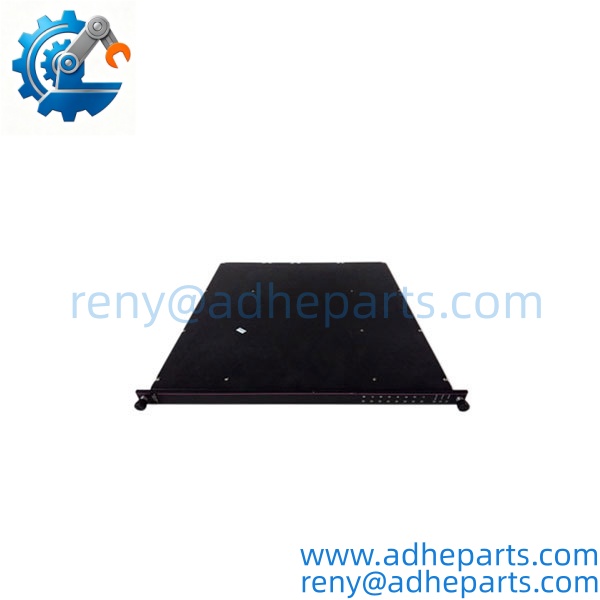

Triconex 3511

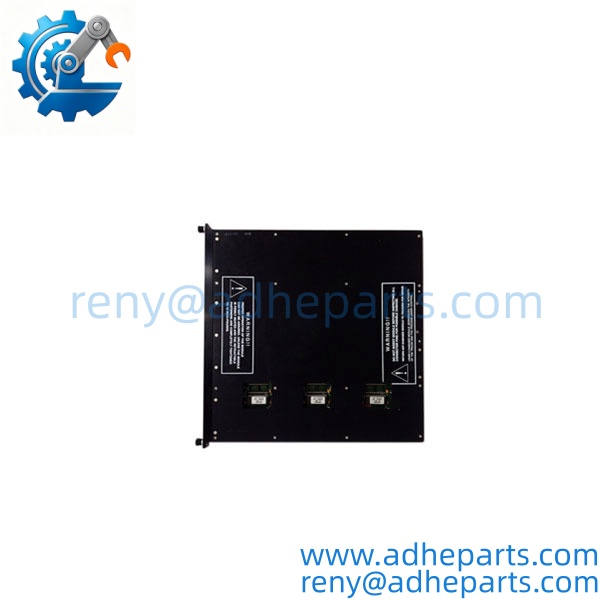

Triconex 3511
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full model number (3511), revision markings, connector condition, and any chassis compatibility labels. Photograph all identifiers.
- Functional Testing – Install in a compatible Tricon chassis where possible and verify basic channel status and diagnostic indicators. Full verification requires a running TMR system.
- QA & Packaging – Protect the backplane connectors and field terminals, clean the module, and pack in anti-static protective packaging.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial safety I/O modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Sensor Compatibility – The module is optimized for passive magnetic pickups. Amplified or active sensors may require different signal conditioning.
Signal Amplitude – Ensure the peak-to-peak voltage falls within the normal mode range (1.5–200 V). Signals that are too weak or too strong can cause missed counts or damage.
Grounding and Shielding – Maintain proper cable shielding and grounding practices. Noise on high-impedance differential inputs can produce false counts.
TMR Configuration – All three legs of the TMR system must see consistent pulse data. Mismatched wiring or sensor failure on one leg will be voted out but should be corrected promptly.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified Triconex 3511?
As a specialized safety system module, availability depends on surplus stock. Typical lead time after verification is 5–20 business days plus specialized shipping.
What is the function of the 3511?
It is a high-frequency Pulse Input module that converts signals from magnetic speed sensors into frequency or RPM values for the Tricon controller.
How many channels does it have?
Eight independent pulse input channels.
What frequency range does it support?
20 Hz to 20,000 Hz.
What type of sensors is it designed for?
Non-amplified magnetic speed sensors (passive pickups) commonly used on turbines and compressors.
Is the 3511 still in production?
It is a legacy Tricon module. Newer Triconex platforms use different I/O modules, but the 3511 remains available through surplus channels for existing systems.
What should be confirmed before ordering a replacement?
Exact model number and revision, chassis compatibility, sensor type and signal levels, and the specific speed-monitoring application requirements.
