3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3301 |
| Product Type | Digital Input Module |
| System Compatibility | Triconex Tricon / Trident TMR systems |
| Number of Channels | 32 (typical shared or isolated configuration) |
| Nominal Input Voltage | 24 V DC |
| Operating Voltage Range | Approximately 15–30 V DC |
| Architecture | Triple Modular Redundant (TMR) |
| Diagnostics | Channel-level online diagnostics |
| Response Time | Typically < 10 ms |
| Isolation | Channel-to-system isolation |
| Primary Application | Safety Instrumented Systems (SIS) |
4. Product Introduction (Anti-Template)
The Triconex 3301 is a digital input module designed for use in Triconex Triple Modular Redundant (TMR) safety systems. It interfaces field discrete signals—such as limit switches, emergency stop contacts, valve position feedback, and other binary sensors—with the Tricon or Trident controller.
Each input channel is processed through the TMR architecture, where three independent paths evaluate the signal and a voting mechanism ensures high diagnostic coverage and fault tolerance. This design supports SIL 3 applications common in oil & gas, petrochemical, and power generation facilities. The module includes comprehensive online diagnostics for open-circuit detection and other fault conditions, allowing the system to maintain safe operation even when individual channels or modules experience issues. As a legacy component, the 3301 continues to be sourced for existing Triconex installations.

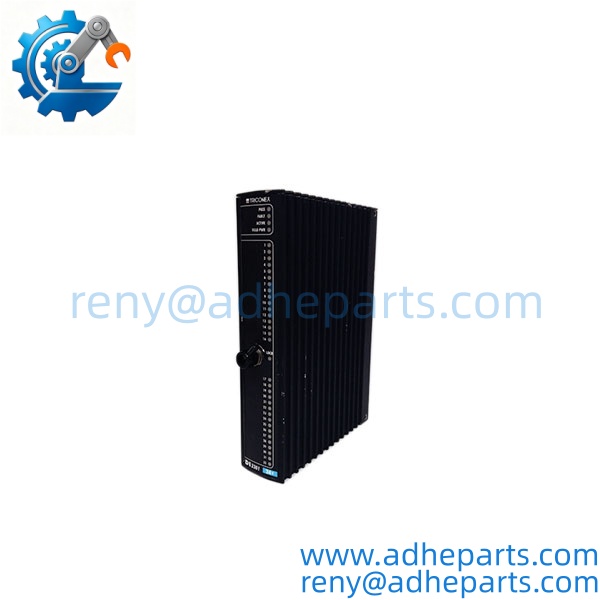

Triconex 3301

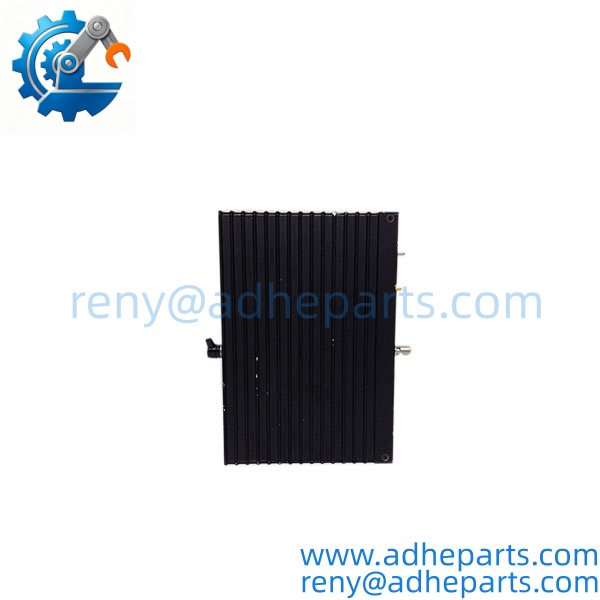

Triconex 3301

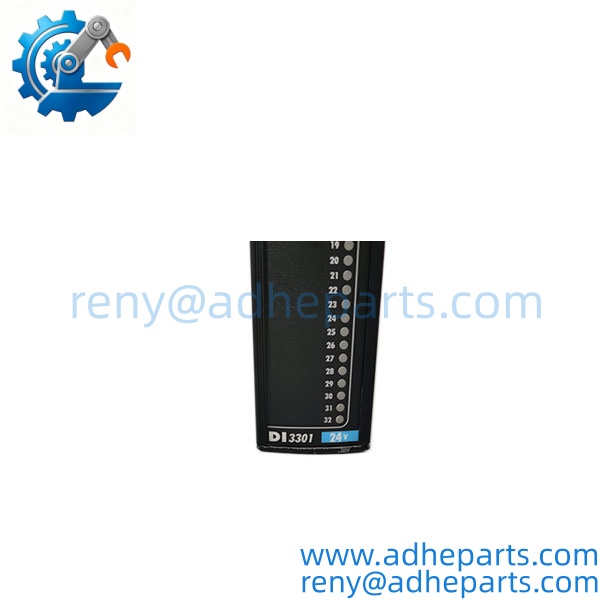

Triconex 3301

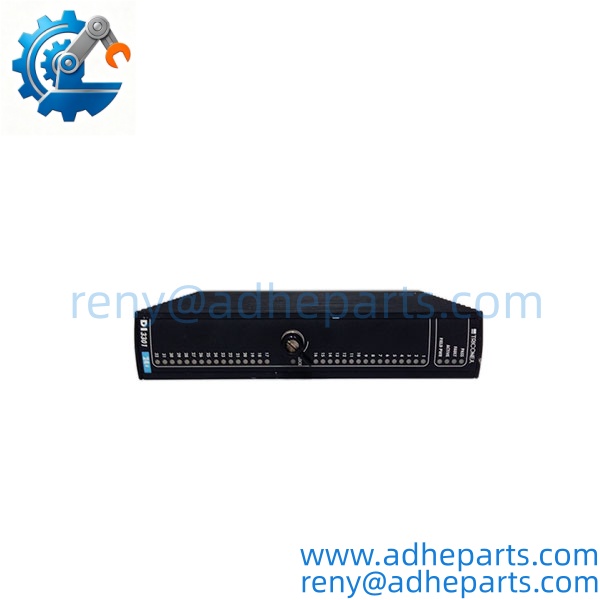

Triconex 3301

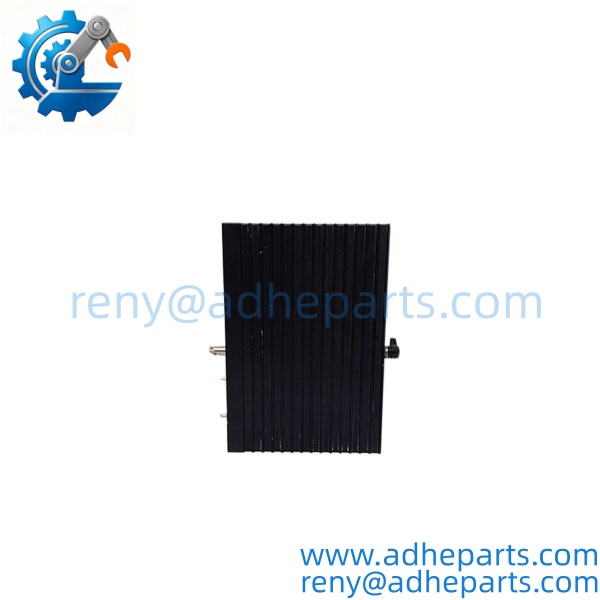

Triconex 3301
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full model number (3301), any revision or suffix markings, connector condition, and chassis compatibility labels. Photograph all identifiers.
- Functional Testing – Install in a compatible Triconex chassis where possible and verify basic input recognition and diagnostic status. Full TMR testing requires a complete system.
- QA & Packaging – Protect the backplane connectors and field terminals, clean the module, and pack in anti-static protective packaging.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial safety I/O modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Chassis Compatibility – Confirm the exact Tricon or Trident chassis and firmware version. Not all 3301 revisions are interchangeable across system generations.
Field Wiring – Observe polarity and voltage limits. Exceeding the input voltage range or incorrect grounding can damage channels or introduce noise.
TMR Voting Behavior – Understand how the system handles channel discrepancies. A single faulty channel is normally voted out, but multiple faults can force a safe-state response.
Hot-Swap Procedures – Follow Triconex hot-swap guidelines strictly. Improper removal or insertion can disrupt the TMR configuration.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified Triconex 3301?
As a legacy safety system module, availability depends on surplus stock. Typical lead time after verification is 5–20 business days plus specialized shipping.
What is the function of the 3301?
It is a digital input module that brings discrete field signals into a Triconex TMR safety controller.
How many input channels does it have?
Typically 32 channels (confirm exact configuration for the specific revision).
What voltage does it accept?
Nominal 24 V DC, with an operating range of approximately 15–30 V DC.
Is it still in production?
The 3301 is a legacy module. Newer Triconex platforms (Tricon CX and later) use different I/O modules. It remains available through surplus channels for existing systems.
What should be confirmed before ordering a replacement?
Exact model number and revision, chassis type (Tricon or Trident), firmware compatibility, and the specific input configuration required by the application.
What are typical applications?
Emergency shutdown (ESD), fire & gas (F&G), burner management, and other SIL-rated safety functions in process industries.
