GE WES5302-150 | 32-Channel Optically Isolated Industrial Control Signal Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Product Introduction

When your VMEbus-based industrial control system needs reliable digital signal output performance with strong electromagnetic interference resistance, this module acts as the core signal output hub between the VMEbus master controller and all field actuators.
It features 32 independent optically isolated output channels that completely eliminate electrical crosstalk between channels, effectively suppressing industrial site electromagnetic interference. Its four 8-bit output registers support both 8-bit and 16-bit data transmission, fully complying with VMEbus standard communication specifications for seamless system integration.

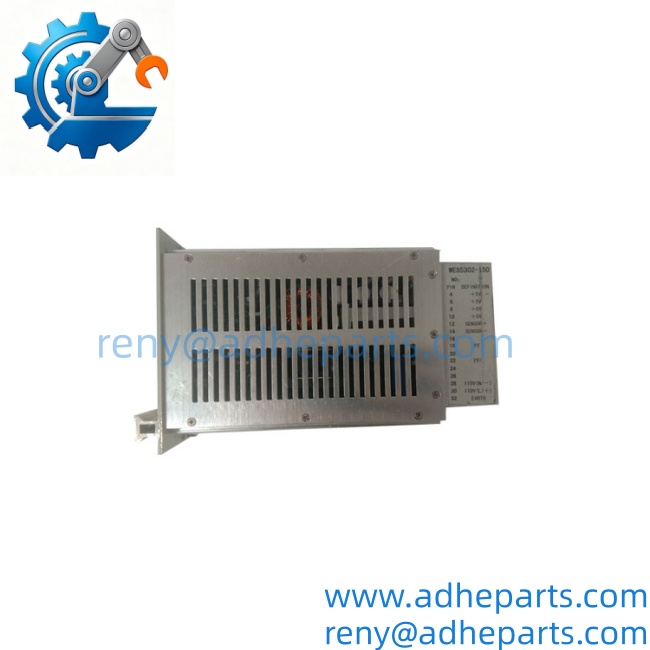

WES5302-150

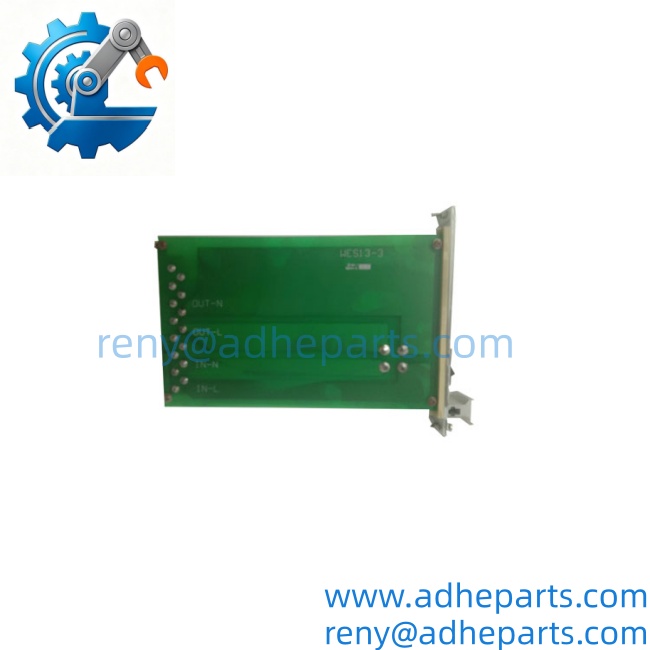

WES5302-150

4. Key Technical Specifications

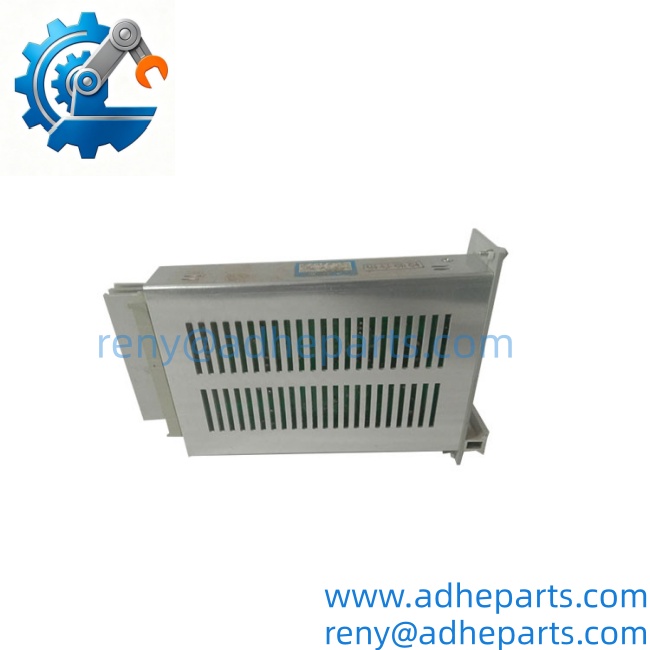

WES5302-150

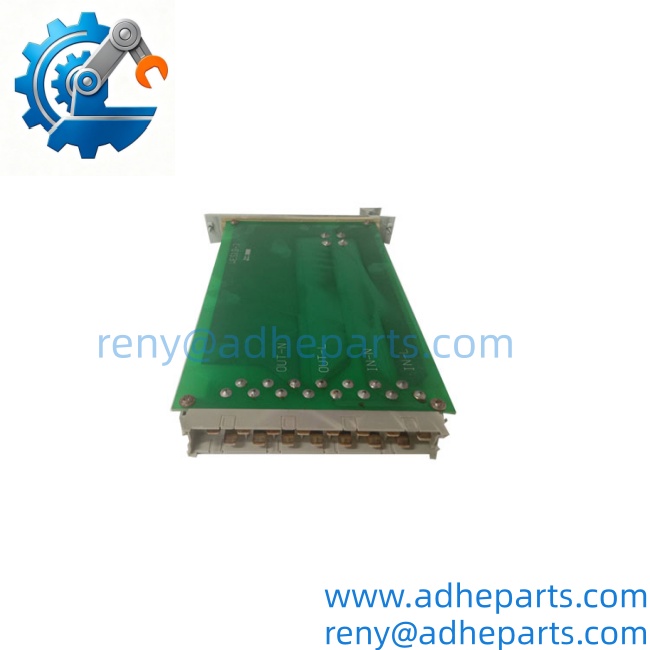

WES5302-150

5. Field Application & Technical Pitfalls

Critical Industrial Scenarios

• Coal-Fired Power Plant Boiler Control System: Acts as the core digital output module for coal-fired power plant boiler DCS systems, sending stable control signals to valve position actuators and ignition control units, eliminating signal errors caused by strong electromagnetic interference in the plant.
• Heavy Industrial Manufacturing Automation: Delivers reliable digital signal output for large heavy industrial equipment control systems, ensuring precise actuator operation even under high vibration and wide temperature swing conditions.
• Aerospace Test Bench Control: Adapts to high-precision industrial test bench environments, providing stable digital signal output for aerospace component test control systems.

Non-Negotiable Technical Pitfalls

• ‌⚠️ Bold Warning 1‌: Never connect inductive loads (such as large relays and solenoid valves) directly to the output channels without freewheeling diodes. The third output channel will experience overcurrent damage that causes permanent signal output failure.
• ‌⚠️ Bold Warning 2‌: Skipping the pre-commissioning full 32-channel output verification test will leave you with hidden dead output channels. This unit must complete full-channel on/off test to ensure all 32 channels operate correctly.
• ‌⚠️ Bold Warning 3‌: Do not install the module in a VMEbus slot that does not match the system backplane configuration. The VMEbus data bus will experience signal conflict that causes the entire system to crash.

A coal-fired power plant maintenance team once swapped a WES5302-150 module and skipped the full-channel verification test. The hidden dead output channel caused the boiler fuel valve to fail to open on command, triggering a 1.5-hour boiler shutdown that forced the plant to reduce power generation output.

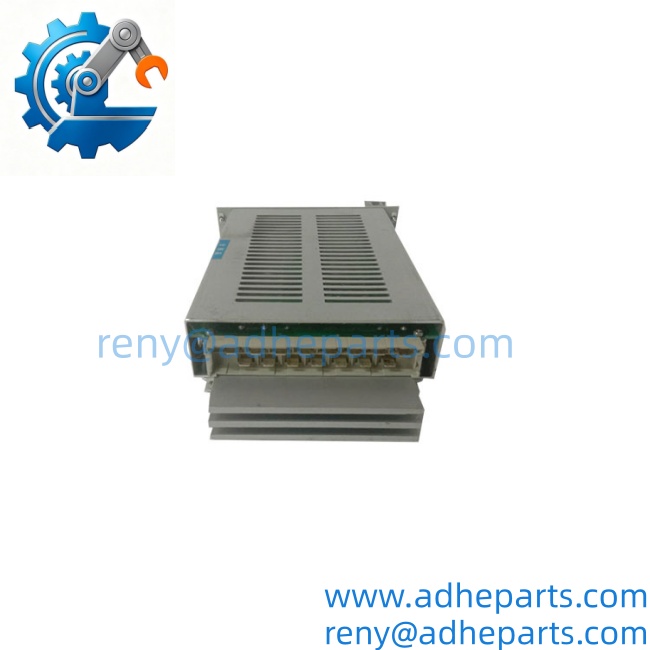

WES5302-150

6. Quality Control (QC) SOP & Transparency

1. ‌Inbound Verification‌: Cross-check the OEM serial number against GE’s official VMIC part registry, confirm the part number WES5302-150 matches the factory label, and inspect no bent pins on the VMEbus backplane connector.
2. ‌Live Rig Testing‌: Power the unit in a calibrated GE VMEbus control test rack, apply 24V DC power, and confirm full 32-channel digital output stability for 2 continuous hours.
3. ‌Parameter Testing‌: Verify all 32 optically isolated channels operate correctly, confirm VMEbus 8-bit/16-bit data transmission performance meets factory specifications, and validate all status LED indicators function properly.
4. ‌Final QA & Packaging‌: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

7. Frequently Asked Questions (FAQ)

• ‌Can I hot-swap this module while the VMEbus control system is running?‌ No. You must first stop the VMEbus master controller and cut off the output power before removing the unit, otherwise you will trigger unexpected signal output anomalies.
• ‌What exact systems is this module compatible with?‌ It works natively with GE Fanuc WESCON / VMIC VMEbus industrial control systems. It will not operate correctly with non-VMEbus standard systems without custom bus adapter hardware.
• ‌How long is the standard warranty for this new surplus unit?‌ 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overcurrent, miswiring, or improper VMEbus slot configuration in the field.
• ‌How do I tell a genuine OEM unit apart from a refurbished clone?‌ Genuine GE WES5302-150 modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 32-channel optically isolated output performance test.
• ‌What is the typical lead time for shipment?‌ In-stock units ship within 48 hours. If you require official GE factory VMEbus performance test documentation, add 2 extra business days to the turnaround window.
• ‌Can this module replace the older WES5301 legacy digital output unit?‌ Well, technically it fits the same VMEbus rack slot footprint, but you will need to reconfigure all output channel mapping parameters in the VMEbus system engineering software to unlock the full 32-channel high-isolation performance.
