Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 32 digital input channels, grouped into 4 banks × 8 |
| Input Type | 48 VDC wetted sourcing, module supplies field wetting voltage |
| Per-channel Current | ~4mA typical for closed contact |
| Isolation | Channel-wise opto-isolation, 500 Vrms field-to-logic isolation |
| Response Time | ≤10ms, software configurable input filtering |
| Indicators | 32 channel LEDs, 4 group fault diagnostic LEDs |
| Backplane | Ovation proprietary I/O chassis backplane powered |
| Operating Temperature | 0°C to +60°C cabinet ambient |
| Humidity | 5–90% RH, non-condensing |
| Mounting | Slide-in for Ovation I/O chassis |
| Weight | 0.78 kg |
Product Introduction
The Emerson Ovation 1C31234G01 is a high-density 32-channel digital input module built for Ovation DCS racks. It monitors dry relay contacts, breaker auxiliary switches and limit switches, converting contact status into digital data for Ovation controllers.
This module supplies 48VDC wetting voltage to field contact wiring. Per-channel optical isolation blocks electrical noise common in turbine halls and switchyards, reducing false contact state detection on power generation assets.

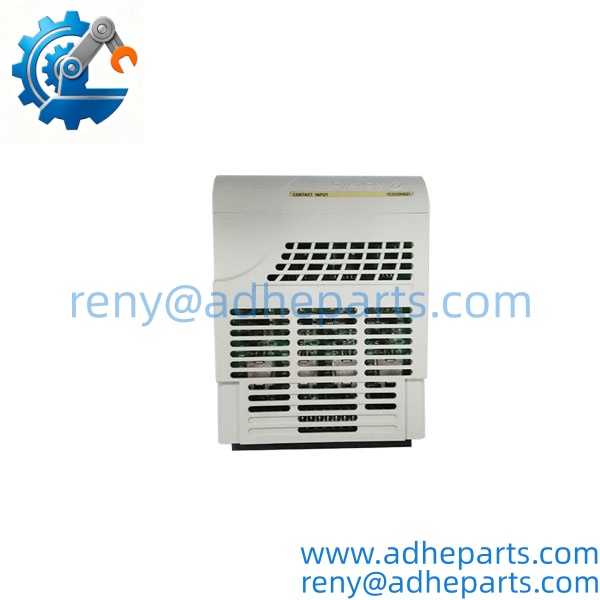

1C31234G01

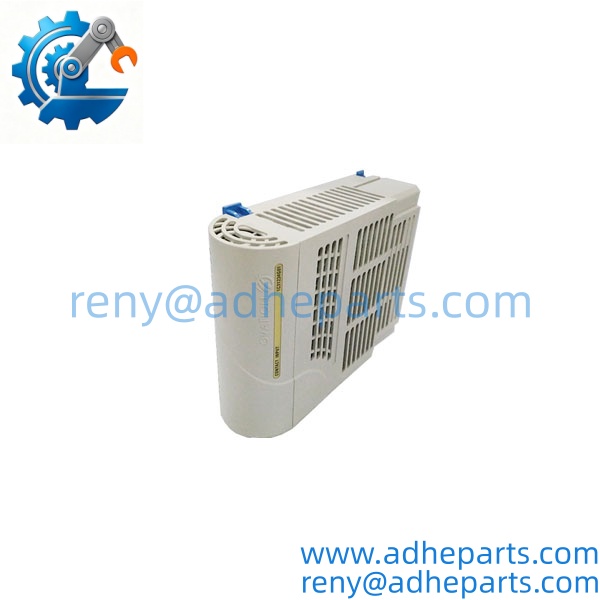

1C31234G01

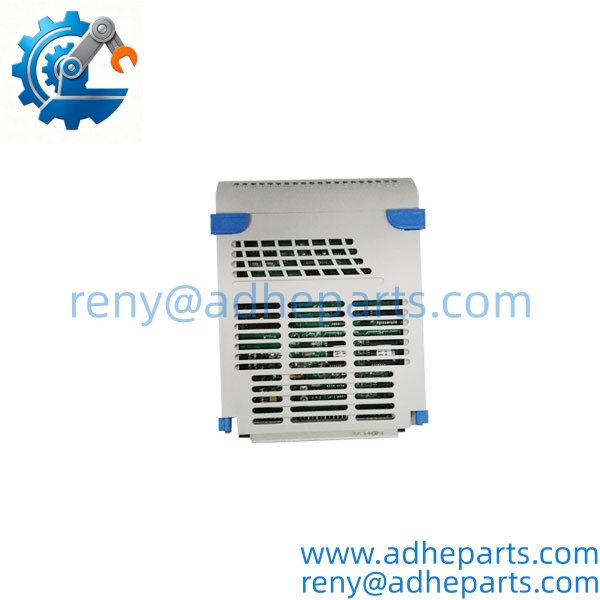

1C31234G01

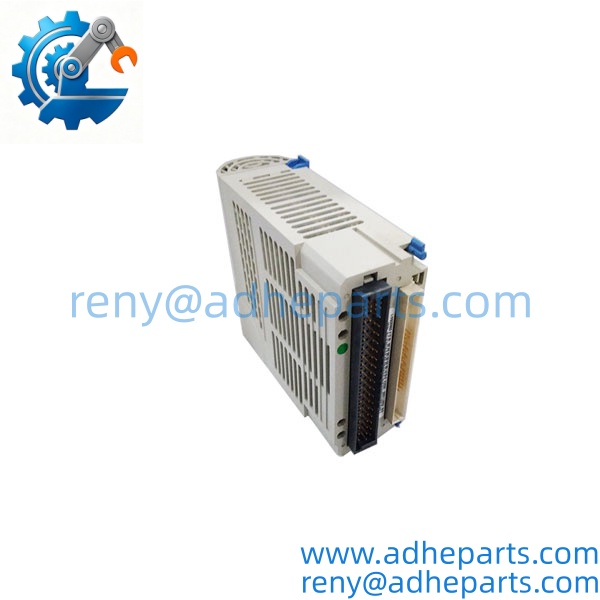

1C31234G01
Application Scenarios & Field Experience
Part 1 (Narrative Paragraph)
Power plant control racks rely on dense digital input cards to track breaker, valve and pump contact status. Corroded field wiring or aging module isolation on the 1C31234G01 creates intermittent contact alarms. A matching replacement restores discrete signal acquisition without modifying field wiring.
Part 2 (Numbered List)
- Fossil power plants: Boiler auxiliary equipment status monitoring for feed pumps and dampers.
- Combined cycle facilities: Gas turbine valve limit switch and breaker auxiliary contact sensing.
- Hydroelectric stations: Gate position limit contacts and generator breaker status inputs.
- Water treatment plants: Pump and valve discrete feedback signals for SCADA control racks.
Part 3 (Short Field Story)
A coal-fired power plant had sporadic false damper position alarms. Bench testing found degraded opto-isolators on one bank of the original 1C31234G01. We installed a matching module, performed channel checkout and validated wetting voltage across all 32 points. The rack reported contact states reliably for 21 months after swap.
