ABB DSDP140B | Direct Replacement S100 I/O Counter

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

4. Product Introduction (Anti-Template)

The ABB DSDP140B is a Counter Board (also described as a Positioning Module) designed for the S100 I/O system used with Advant OCS, MasterPiece 200 controllers, and System 800xA. It provides high-speed pulse input capability for counting, frequency measurement, or positioning applications.

The module interfaces with field pulse signals (encoders, proximity sensors, flow meters, etc.) and delivers the processed count data to the controller via the S100 I/O bus. It is commonly supplied as part of a kit (such as DSDP 140BK01) that may include cabling. Because it belongs to the mature S100 I/O family, exact revision and firmware compatibility with the host system must be verified. Units are primarily sourced as spares for existing Advant and early 800xA installations that still rely on S100 I/O.

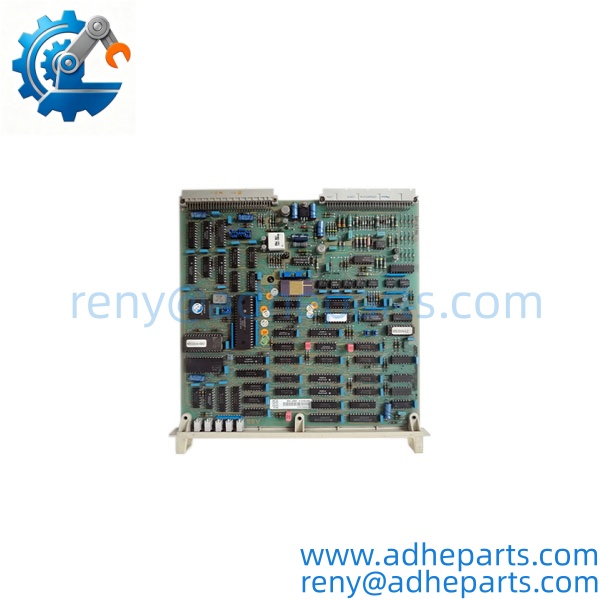

DSDP140B

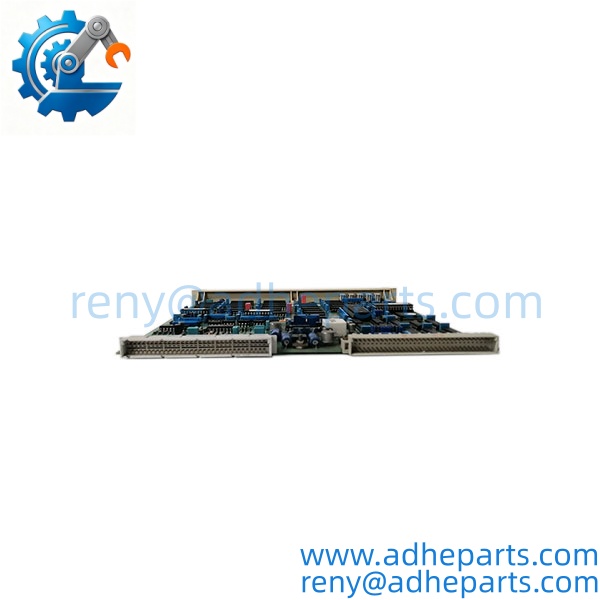

DSDP140B

DSDP140B

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full type designation (DSDP140B) and product ID (e.g., 57160001-ACX or equivalent), connector condition, and any revision markings. Photograph all labels.
2. Functional Testing – Install in a compatible I/O rack where possible and verify power-up and basic status indication. Full validation requires pulse sources and the host controller.
3. QA & Packaging – Protect edge connectors and the circuit board, clean according to electronics handling practices, and pack in anti-static protective packaging.
4. Global Logistics & Export Compliance – Classify under the correct HS code for industrial I/O modules. Packaging must protect against electrostatic discharge; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

System Compatibility – The DSDP140B is specific to the I/O architecture. It will not function in later ABB I/O families without the correct rack and controller environment.

Signal Type and Levels – Confirm the pulse signal voltage and type (sourcing/sinking, differential, etc.) match the module’s input specifications before connection.

Revision Matching – Use a revision compatible with the existing system software and other modules.

Hot-Swap / Replacement – Follow ABB procedures for module replacement to avoid bus disruption or configuration loss.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified DSDP140B?
As a specialized I/O counter module, availability depends on surplus stock. Typical lead time after verification is 5–20 business days plus standard shipping.

What is the primary function of the DSDP140B?
It is a Counter Board / Positioning Module for high-speed pulse input in ABB I/O systems.

What systems is it used with?
ABB Advant OCS, MasterPiece 200, and System 800xA installations that use I/O.

Is there a related kit version?
Yes. It appears in kits such as 3BSE020832R1 (DSDP 140BK01 Set).

Is the module still in production?
It belongs to the mature I/O product line. Availability is primarily through surplus channels for existing systems.

What should be confirmed before ordering a replacement?
Exact type designation and product ID (DSDP140B / 57160001-xxx), host system type (Advant / MasterPiece / 800xA with I/O), and required pulse input characteristics.
