Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Number | 216EA62 |
| Assigned System Slot | Occupies two rack partition positions in REG216 sub‑rackabb-drive … |
| Input Channels | 24 simultaneous‑sample analog inputs, grouped in sets of sixabb-drive … |
| Sampling Frequency | 600 Hz for 50 Hz grids; 720 Hz for 60 Hz gridsabb-drive … |
| Supported Signal Types | 0‑10 VDC, 4‑20 mA industrial loop signals |
| A‑D Conversion Resolution | 12‑bit |
| Power Requirement | 24 VDC system bus supply |
| Isolation | Galvanic isolation between field inputs and system backplane |
| Operating Temperature | ‑10 °C to +55 °C |
| Approximate Weight | 0.50 kg |
| Host Compatibility | ABB REG216 numerical generator protection platformgklinko.co… |
Product Introduction
Data‑lead: With a sampling rate tied directly to grid frequency and 24 parallel input paths, the 216EA62 forms the measurement front‑end for REG216 generator protection racks. It takes raw CT/PT derived and process‑transducer analog signals and passes cleaned digital readings to the main protection CPU.
This eurocard fits inside standard 19‑inch 6U racks deployed across hydro and thermal generating stations. Honestly, synchronized group sampling cuts phase measurement error that could produce false generator trip commands. Original factory build has long ceased, so facility spare‑part pools rely on aftermarket qualified hardware.

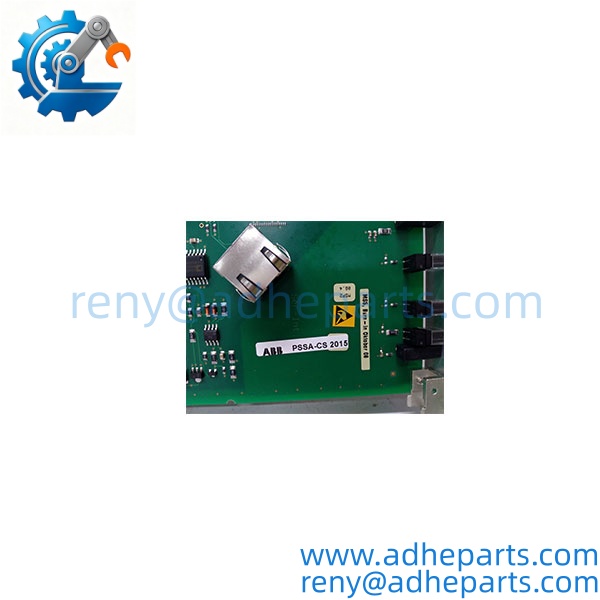

216EA62

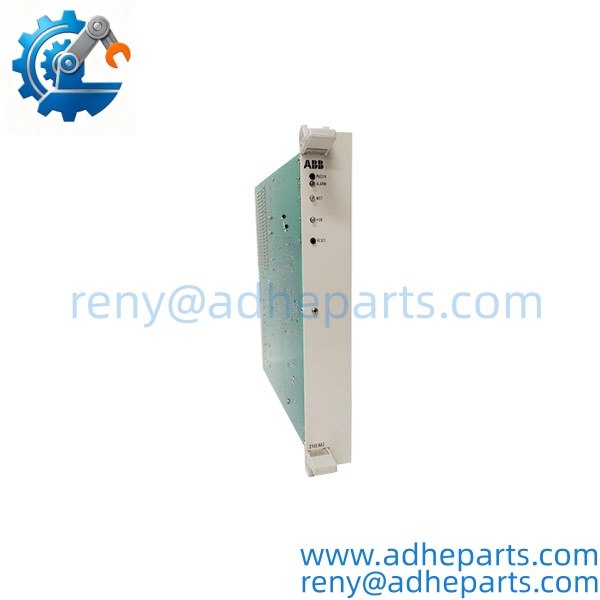

216EA62

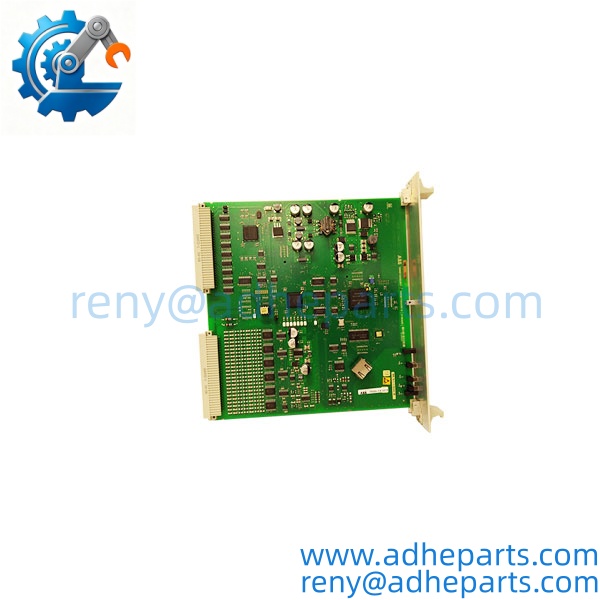

216EA62

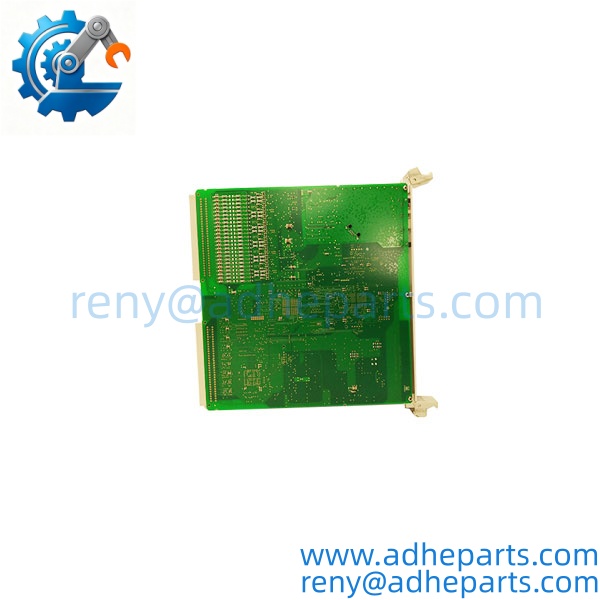

216EA62
QC, Procurement & Logistics SOP
- Inbound Verification: Confirm printed silk‑screen reads exactly 216EA62. Document unit serial identifier for traceability. Reject any module with sanded, over‑stamped, or defaced OEM labeling.
- Live Rig Testing: Apply rated 24 VDC rack supply. Feed calibrated reference analog signals into each channel group, verify sampled output matches expected values using REG216 compatible test hardware. Flag channels showing offset or no response.
- QA & Anti‑Static Packaging: Complete visual inspection for capacitor bulging, cracked solder joints, and worn edge connector pins. Place module inside static‑shield bag with custom foam cushioning for rack‑mount hardware transit.
- Global Logistics & Export Compliance: Apply correct HS classification for power‑protection electronic assemblies. Use reinforced shock‑resistant cartons for air or sea freight —though customs clearance for power‑equipment spares in Africa might add 2‑4 days. All shipping documentation strictly matches commodity description.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Different hardware revisions of 216EA62 exist across build batches. A field technician can seat the eurocard fully in its two‑slot position, yet register persistent measurement offset alarms after power‑up. Always cross‑reference hardware revision sticker against the existing rack’s CPU firmware version before replacement.
- DIP Switch / Configuration errors: Small on‑board DIP banks define grid frequency mode (50 Hz / 60 Hz) and channel group ranges. If a tech copies switch positions from a different REG216 module, the unit powers on but delivers distorted current‑voltage phasor data. Photograph original switch states before extracting the old board.
- Wiring/Terminal incompatibility: This unit depends on dedicated shielded ribbon cables connecting to external transformer interface hardware. Reusing un‑matched cabling salvaged from other REG216 sub‑assemblies introduces ground loops. You will see drifting measurements without immediate hardware burn‑out. Validate full cable part‑number match before hook‑up.
- ESD destruction during unboxing: High‑precision analog conversion chips sit exposed on the PCB. Handling without a grounded wrist strap can inflict hidden electrostatic harm. The module may pass quick bench spot‑checks and only trigger spurious generator protection trips months after rack installation.
Frequently Asked Questions (FAQ)
Q: What realistic global lead times should I plan for 216EA62 spare hardware? Verified surplus‑new stock can ship within 6‑9 working days. Refurbished units require component refresh plus full multi‑channel signal calibration, count on 21‑30 working days. Timelines stretch if access to a test rack cannot be secured.
Q: What shipping and customs considerations apply for cross‑border power‑plant spare‑part orders? Air freight works best for emergency generator‑rack downtime events. Sea freight lowers landed cost for planned spare‑part stocking. Precise HS classification must appear on commercial invoices; incomplete paperwork triggers extended customs holds across most industrial territories.
Q: Can I hot‑swap the 216EA62 while the protection rack stays energized? Do not hot‑swap. Even with protected 24 VDC bus rails, live removal can corrupt protection‑related measurement buffers and trigger unplanned generator trip outputs. Isolate slot power before installing or removing this eurocard.
Q: Can I drop‑in substitute a visually‑similar input card in place of 216EA62? Matching physical eurocard form‑factor does not guarantee functional compatibility. Channel count, sampling logic and embedded configuration differ across near‑numbered I/O cards. The host CPU will flag measurement faults even when connectors physically fit.
Q: What failure pattern occurs most often on returned 216EA62 units? Long‑term thermal stress inside plant cabinets degrades on‑board electrolytic capacitors. Typical symptoms include gradual channel drift, inconsistent sampled values, and sporadic protection‑system diagnostic alarms with no obvious field‑wiring fault.
Q: Does ABB still offer official factory repair for faulty 216EA62 modules? Original OEM repair workflows have been terminated. Repair work must go through qualified third‑party industrial‑electronics vendors. Turnaround extends because matching vintage precision analog components are difficult to source.
Q: What documentation will ship alongside my purchased module? Serial‑number traceability log, complete multi‑channel bench calibration summary report, and standard commercial shipping paperwork. OEM original datasheets are no longer distributed; archived reference material can be furnished upon explicit buyer request.
