HIMA F8627X | Direct Replacement Safety Ethernet Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

4. Product Introduction (Anti-Template)

The HIMA F8627X is a communication module designed for the H41q and H51q safety controller systems. It provides Ethernet-based connectivity supporting safeethernet for safety-related communication between systems, as well as OPC DA and OPC A&E via the HIMA OPC server, and MODBUS-TCP slave functionality.

A key feature is the ability to perform ELOP II programming of the CPUs directly over Ethernet (supported from ELOP II version 4.1). The module uses a 100 Base-T RJ45 interface and is compatible with both safe and non-safe CPU modules in the H41q/H51q family. It is typically installed in the 19-inch rack format (3 height units by 4 width units). The F8627X allows a single network infrastructure to handle multiple communication needs, reducing the requirement for separate buses. As a specialized safety-system component, exact firmware and system configuration compatibility must be verified for replacement use.

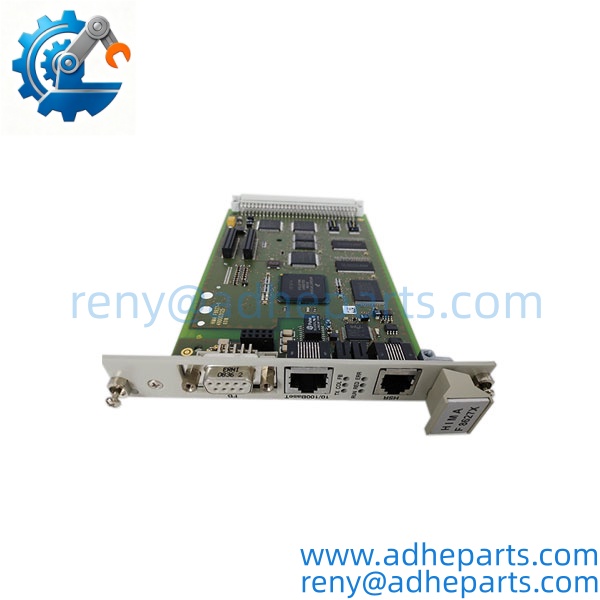

F8627X

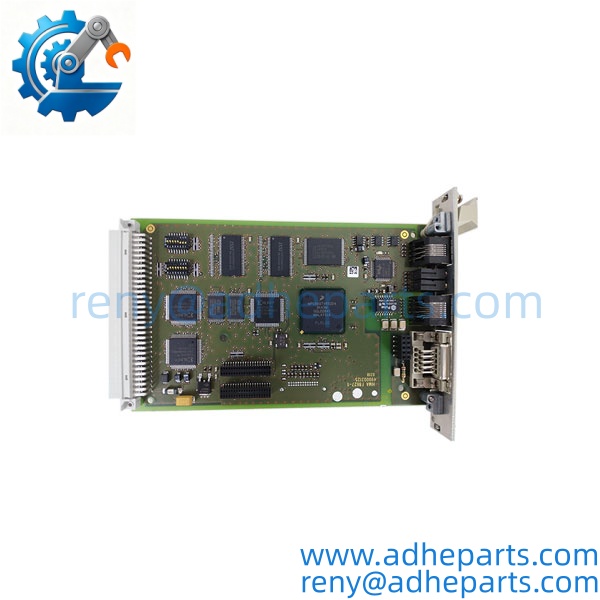

F8627X

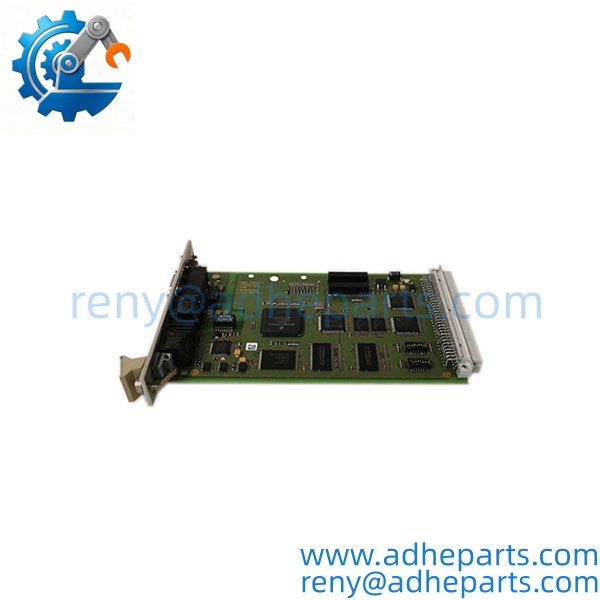

F8627X

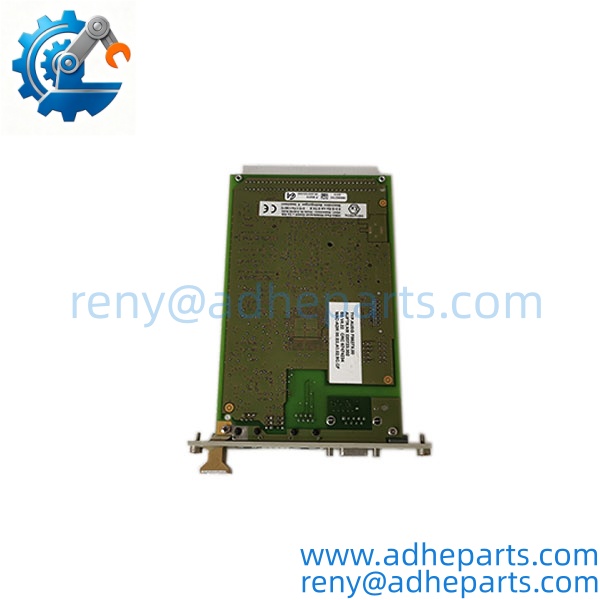

F8627X

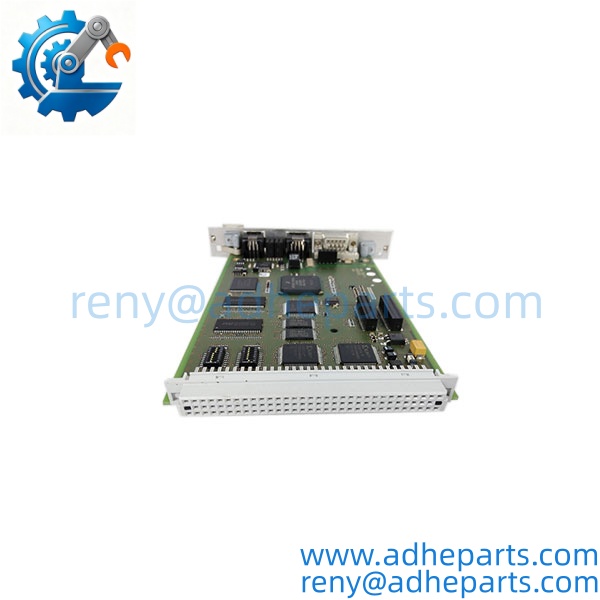

F8627X

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full model (F8627X) and part number (e.g., 984862765), connector condition, and any revision or firmware labels. Photograph all identifiers.
2. Functional Testing – Install in a compatible H41q/H51q chassis where possible, apply power, and verify basic status and Ethernet link indication.
3. QA & Packaging – Protect the RJ45 port and backplane connectors, clean the module, and pack in anti-static protective packaging.
4. Global Logistics & Export Compliance – Classify under the correct HS code for industrial safety communication modules. Packaging must protect against electrostatic discharge; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

System Compatibility – The F8627X is specific to H41q/H51q systems. Confirm chassis and CPU compatibility before installation.

Protocol Configuration – Correct configuration of safeethernet, OPC, or Modbus TCP settings is required. Incorrect setup can prevent communication or programming access.

ELOP II Version – Ethernet programming support requires ELOP II version 4.1 or higher.

Network Security – As a safety-related communication path, follow HIMA guidelines for network segregation and access control.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified F8627X?
As a specialized HIMA safety communication module, availability depends on surplus stock. Typical lead time after verification is 5–20 business days plus standard shipping.

What is the primary function of the ?
It is an Ethernet communication module supporting safeethernet, OPC, Modbus TCP, and ELOP II programming for H41q/H51q systems.

What interface does it use?
100 Base-T Ethernet via RJ45.

Which systems is it compatible with?
HIMA H41q and H51q safety controllers (both safe and non-safe CPUs).

Does it support programming over Ethernet?
Yes, ELOP II programming via Ethernet is supported from version 4.1.

Is the module still in production?
It belongs to the H41q/H51q product family. Availability for new projects depends on current HIMA portfolio status; many units are sourced as spares for existing systems.

What should be confirmed before ordering a replacement?
Exact model and part number ( / 984862765), host system type (H41q or H51q), required protocols, and ELOP II version compatibility.
