Product Introduction
When your FOXBORO I/A Series DCS system needs reliable multi-type analog signal acquisition performance to ensure the accuracy of process parameter monitoring in large industrial production, this module acts as the core universal signal input hub between field transmitters/sensors and the DCS main control unit.
It features fully universal channel design that supports 4 major categories of industrial analog signals without additional signal conditioning modules, greatly reducing spare part types and engineering configuration workload. Its built-in 1500V galvanic isolation design completely eliminates signal crosstalk and ground loop interference between different measurement points, ensuring long-term stable operation in high-electromagnetic-interference industrial sites. It supports dual-module redundant fault-tolerant configuration, perfectly meeting the strict reliability requirements of mission-critical process control scenarios.

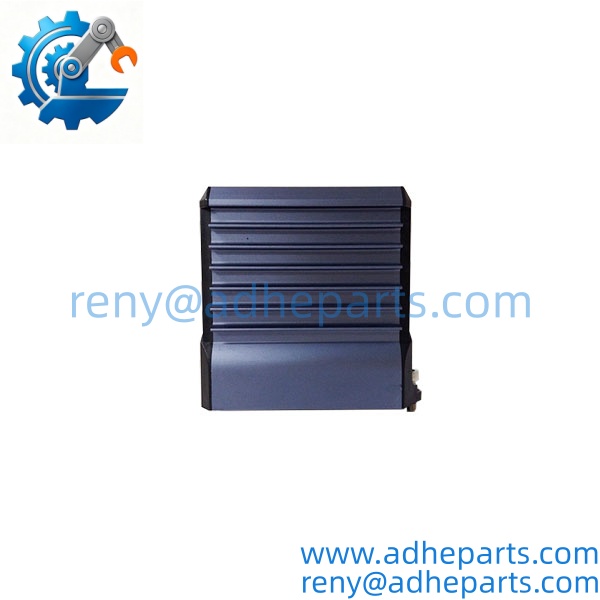

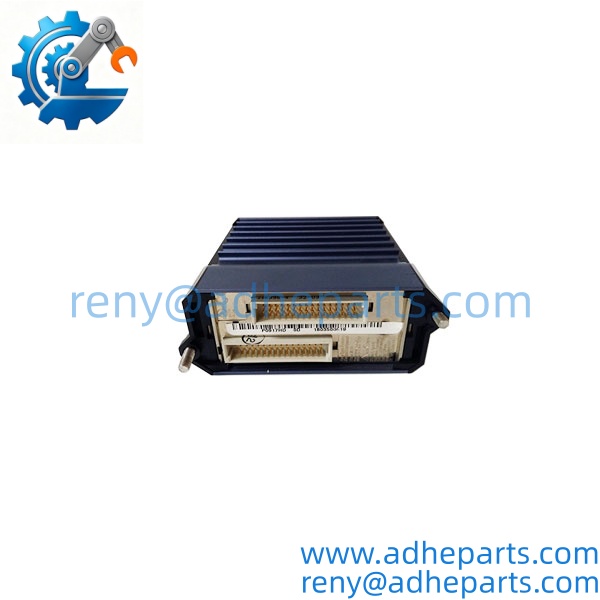

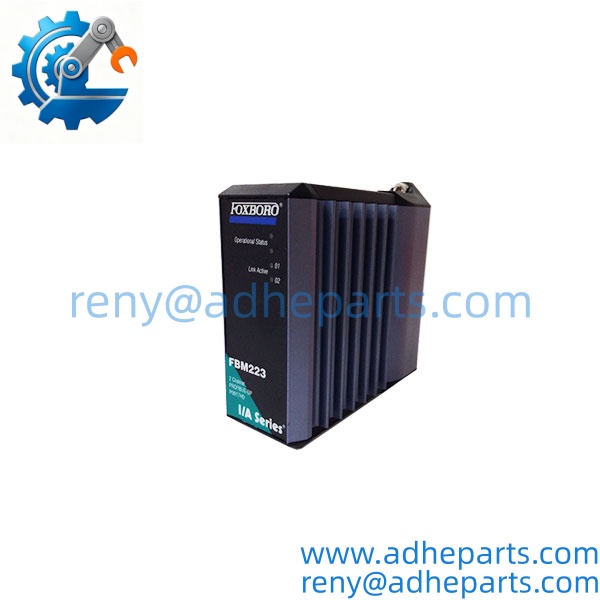

FBM223
FBM223
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | FBM223 P0917HD |
| Product Type | 16-Channel Universal Analog Input Module |
| Compatible System | FOXBORO I/A Series Distributed Control System |
| Supported Signal Types | 0-10V, 4-20mA, 0-100Ω RTD, multiple standard thermocouple types |
| Measurement Accuracy | ±0.05% of full scale |
| Resolution | 12~16 bits high-precision resolution |
| Update Rate | 100ms full-scan response speed |
| Galvanic Isolation | 1500V AC channel-to-channel and channel-to-system isolation |
| Power Supply | 24VDC, supports redundant power input |
| Power Consumption | ~8.5W low power consumption |
| Operating Temperature Range | 0°C ~ +60°C |
| Storage Temperature Range | -40°C ~ +85°C |
| Humidity Range | 5%~95% non-condensing |
| Installation Method | DIN rail or standard I/A Series DCS rack slot mounting |
| Dimensions | 44mm × 102mm × 108mm |
| Net Weight | ~1.1kg |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Petrochemical Refinery Process Control: Acts as the core analog acquisition unit for petrochemical refinery DCS systems, collecting temperature, pressure, flow and liquid level signals from various field transmitters, ensuring accurate and stable monitoring of the entire production process.
- **Thermal Power Plant DCS System Monitoring: Delivers reliable multi-type signal acquisition for thermal power plant DCS systems, monitoring boiler, steam turbine and generator operating parameters in real time, supporting the safe and stable operation of the power generation unit.
- **Pharmaceutical Factory Process Control: Adapts to strict pharmaceutical production environment requirements, providing high-precision process parameter monitoring for pharmaceutical production lines, ensuring production processes comply with GMP regulatory standards.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect non-standard 220VAC signals directly to the universal input channels. The third channel’s signal conditioning circuit will experience permanent overvoltage damage that completely disables the corresponding signal path.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full 16-channel signal type verification will leave you with hidden measurement mismatch. This unit must confirm each channel’s configured signal type matches the field connected device to avoid measurement deviation.
- ⚠️ Bold Warning 3: Do not operate the module without configuring redundant power supply in critical process control scenarios. Unexpected single power supply failure will cause the entire module to lose power, resulting in complete loss of 16 process monitoring points.
A large petrochemical plant maintenance team once swapped a FBM223 P0917HD module and skipped the full channel signal type verification. The hidden mismatched thermocouple channel configuration caused the reactor temperature measurement to deviate by 12°C, resulting in a 2-hour production process adjustment that affected product quality.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against FOXBORO’s official I/A Series part registry, confirm the part number FBM223 P0917HD matches the factory label, and inspect no bent pins or corrosion on the backplane and field signal connectors.
- Live Rig Testing: Power the unit in a calibrated FOXBORO I/A Series DCS test rack, apply 24VDC power, and confirm full 16-channel signal acquisition stability for 2 continuous hours.
- Parameter Testing: Verify all 4 major signal types (voltage, current, RTD, thermocouple) operate correctly, confirm ±0.05% full-scale accuracy meets factory specifications, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the I/A Series DCS system is running? Yes, but you must first set all corresponding 16 process loops to bypass mode in the DCS system, otherwise you will trigger temporary signal loss alarms.
- What exact systems is this module compatible with? It works natively with FOXBORO I/A Series distributed control systems. It will not operate correctly with non-FOXBORO DCS platforms without custom signal protocol adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by overvoltage, miswiring, or improper signal type configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine FOXBORO FBM223 P0917HD modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 16-channel multi-signal type accuracy test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official FOXBORO factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this module support fault-tolerant redundant operation? Yes, you need to install two identical FBM223 modules in the DCS rack and configure the redundant function in the I/A Series system software to achieve fault-tolerant operation.
