Product Introduction
When your GE Mark VIe turbine control system or industrial automation platform needs stable and high-precision temperature monitoring performance under extreme wide-temperature environments, this module acts as the core temperature signal acquisition hub between field RTD sensors and the control logic unit.
It supports mainstream industrial RTD types including Pt100 (BS1904/DIN43760/IEC 75), Ni120, Cu10 and JIS standard jPt100, with built-in 1500V AC galvanic isolation design that completely eliminates signal crosstalk and ground loop interference between different measurement points. Its 840ms maximum full-scan response speed balances high-precision measurement and real-time performance, perfectly meeting the strict temperature monitoring requirements of power generation and oil & gas industries.

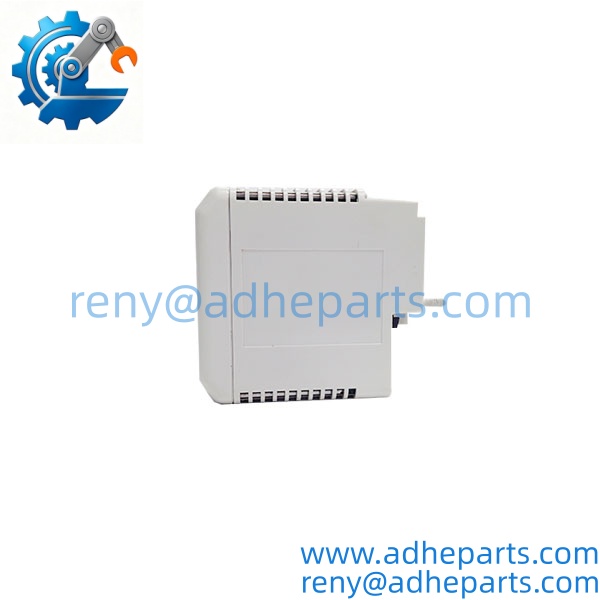

8106-TI-RT

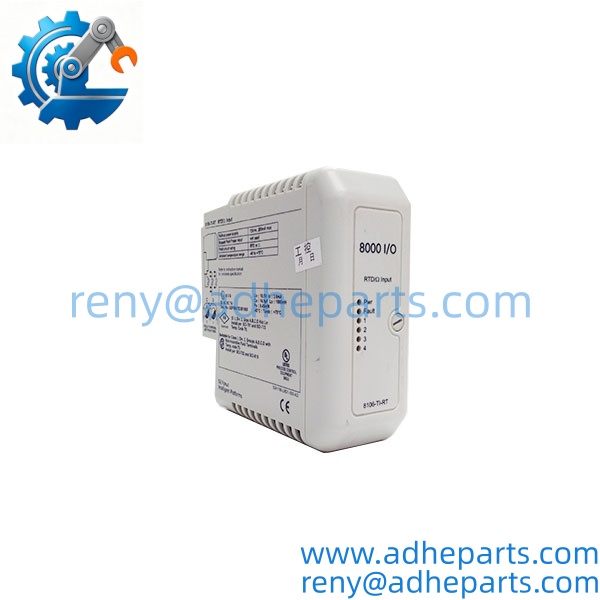

8106-TI-RT

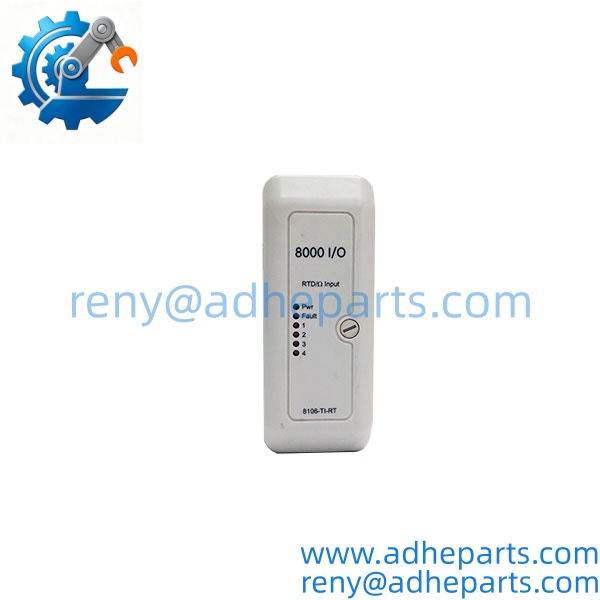

8106-TI-RT

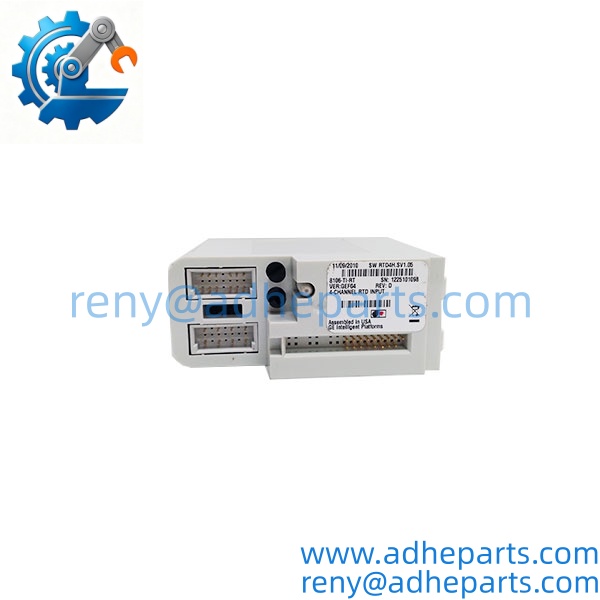

8106-TI-RT

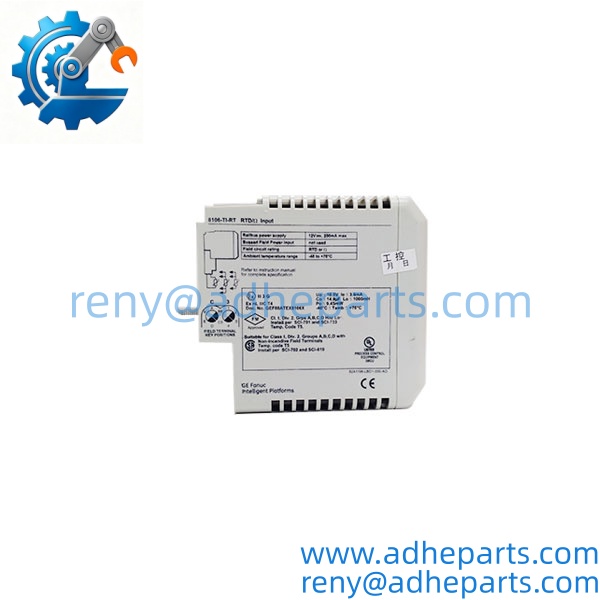

8106-TI-RT
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 8106-TI-RT |
| Product Type | 4-Channel RTD/Resistance Temperature Input Module |
| Series | GE MTL8000 / PAC8000 Industrial I/O Series |
| Number of Input Channels | 4 independent fully isolated RTD channels |
| Supported RTD Types | Pt100, Ni120, Cu10, JIS jPt100 |
| Signal Connection Mode | 2-wire, 3-wire, 4-wire RTD wiring fully supported |
| Measurement Resolution | 15-bit plus sign high-precision resolution |
| Full-Scan Response Time | 840 ms maximum |
| Galvanic Isolation | 1500V AC channel-to-channel and channel-to-backplane isolation |
| Power Consumption | 200 mA maximum current draw |
| Operating Temperature Range | -40°C ~ +85°C |
| Compatible Systems | GE Mark VIe, RX3i, VersaMax industrial control platforms |
| Installation Method | Standard GE PAC8000 / MTL8000 rack slot plug-in mounting |
| Safety Certifications | UL, cUL industrial safety certified |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Gas Turbine Control System Temperature Monitoring: Acts as the core temperature acquisition unit for GE Mark VIe gas turbine control systems, collecting high-precision bearing and casing temperature signals, ensuring the turbine operates within safe temperature limits.
- **Oil & Gas Refinery Process Control: Delivers stable high-precision temperature measurement for petrochemical refinery reaction kettles and pipeline process points, adapting to explosive and high-corrosion industrial site environments.
- **Renewable Energy Power Plant Control: Adapts to extreme wide-temperature outdoor environments, providing reliable temperature signal acquisition for wind turbine and solar power plant control systems.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never use 2-wire wiring mode for high-precision temperature measurement scenarios. The third channel will introduce extra wire resistance error that causes 2~5°C temperature measurement offset.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full 4-channel temperature calibration will leave you with hidden measurement deviation. This unit must complete full-range temperature verification with a standard RTD signal source to achieve rated 15-bit high-precision performance.
- ⚠️ Bold Warning 3: Do not connect non-RTD 4-20mA current signals directly to this module. The internal signal conditioning circuit will experience permanent damage that completely disables the corresponding channel.
A gas power plant maintenance team once swapped a 8106-TI-RT module and skipped the full-channel calibration. The 3.5°C temperature measurement offset caused the gas turbine bearing over-temperature protection loop to fail to trigger on time, resulting in a 2-hour unit forced shutdown to inspect potential equipment damage.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against GE’s official PAC8000 part registry, confirm the part number 8106-TI-RT matches the factory label, and inspect no bent pins or corrosion on the backplane and field signal connectors.
- Live Rig Testing: Power the unit in a calibrated GE Mark VIe system test rack, apply 24V DC power, and confirm full 4-channel RTD signal acquisition stability for 2 continuous hours.
- Parameter Testing: Verify 15-bit high-precision measurement performance meets factory specifications, confirm 1500V AC isolation performance meets safety standards, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the GE Mark VIe system is running? Yes, but you must first set the corresponding temperature measurement loops to bypass mode in the turbine control system, otherwise you will trigger temporary temperature signal loss alarms.
- What exact GE systems is this module compatible with? It works natively with GE Mark VIe, RX3i and VersaMax industrial control platforms. It will not operate correctly with non-GE control systems without custom signal type adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overvoltage, or improper signal type connection in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine GE 8106-TI-RT modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full 4-channel high-precision temperature accuracy test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official GE factory temperature performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older GE legacy RTD input unit? Well, technically it fits the same PAC8000 rack slot footprint, but you will need to reconfigure all RTD type and wiring mode parameters in the GE control system engineering software to unlock the full 15-bit high-precision performance.
