Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Designation | 5X00070G04 |
| Module Type | Analog Input (AI) |
| Channels | 8 |
| Input Signal Type | Low-level voltage (typically ±20 mV, ±50 mV, ±100 mV) |
| Resolution | 14-bit |
| Scanning | High-speed / mid-to-high speed |
| System Compatibility | Emerson Ovation DCS |
| Mounting | Ovation I/O rack / chassis |
| Typical Application | Thermocouples, strain gauges, low-level sensors |
4. Product Introduction (Anti-Template)
When an Ovation system needs accurate acquisition of low-level analog signals, the 5X00070G04 provides an 8-channel dedicated analog input module. It is designed for millivolt-range inputs such as thermocouples, strain-gauge bridges, and other low-level sensors commonly found in power generation and process plants.
The module performs high-resolution A/D conversion and high-speed scanning so that dynamic process signals can be captured with good fidelity. It installs in a standard Ovation I/O chassis and is recognized by the controller as a conventional analog input point. Because it is optimized for low-level signals, proper shielding, grounding, and cold-junction considerations (when used with thermocouples) remain important for measurement accuracy.

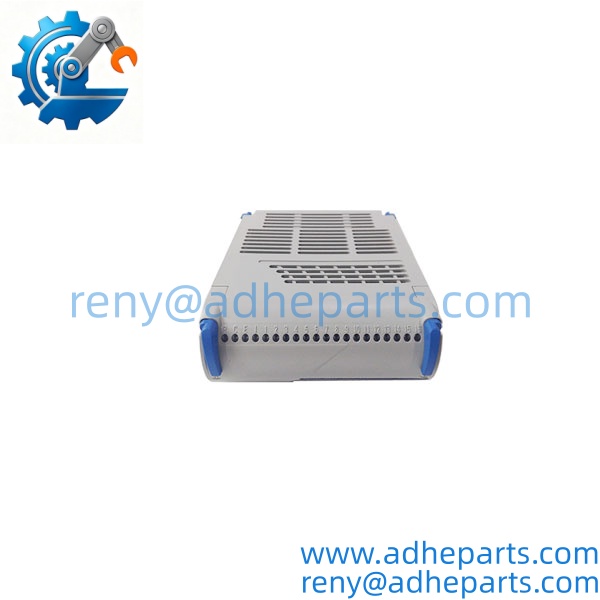

5X00070G04

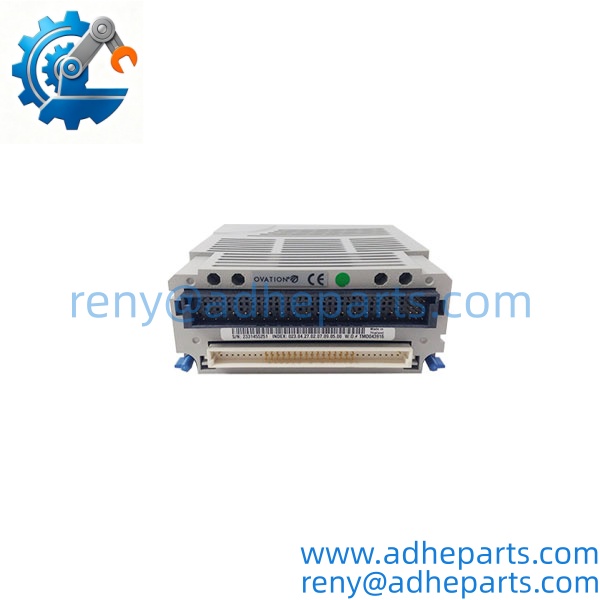

5X00070G04

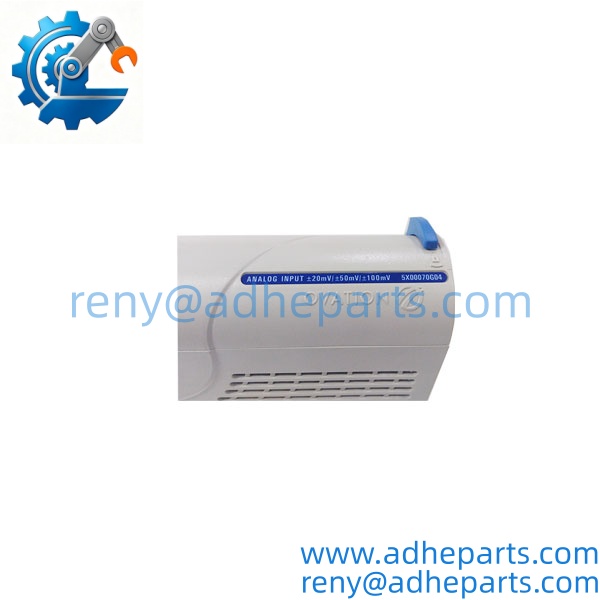

5X00070G04

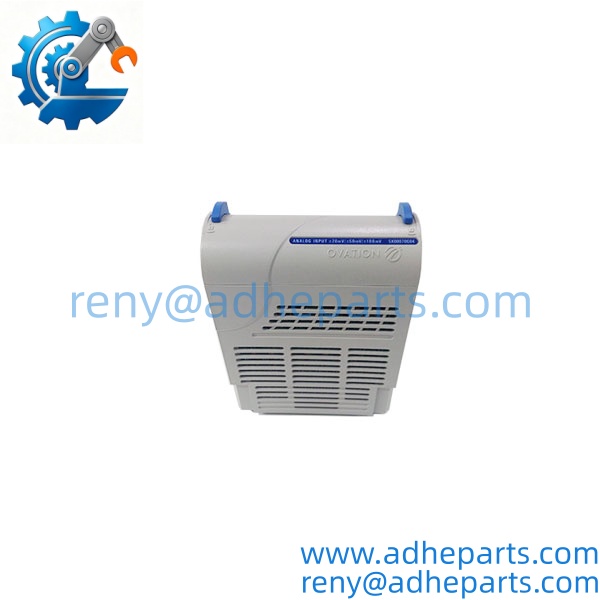

5X00070G04
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full part number (5X00070G04), connector condition, and any revision or date codes. Photograph all labels.
- Live Rig Testing – Install in a compatible Ovation I/O chassis, apply power, and verify module recognition plus basic channel response with calibrated low-level test signals.
- QA & Anti-Static Packaging – After functional inspection, protect the edge connectors, clean the module, and seal in anti-static shielding with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for industrial analog input modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Signal Range Matching – The module is intended for low-level mV inputs. Applying higher voltage or current signals can damage the input circuitry or produce incorrect readings.
Noise and Grounding – Low-level analog inputs are sensitive to electrical noise. Improper shielding or grounding will degrade measurement quality.
Thermocouple Considerations – When used with thermocouples, correct cold-junction compensation and extension-wire practices must be followed.
Module Configuration – Ensure the Ovation database and I/O configuration match the actual module type and channel assignments. Mismatches can cause points to appear offline or report bad quality.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 5X00070G04?
As a discontinued Ovation module, availability depends on surplus stock. Typical lead time after verification is 3–12 business days plus standard air freight.
What type of signals does the 5X00070G04 accept?
Low-level analog voltage signals, typically in the ±20 mV, ±50 mV, or ±100 mV ranges.
How many channels does it have?
8 analog input channels.
What is the resolution?
14-bit A/D conversion is the figure most commonly associated with this module.
Is it still in active production?
No. It is treated as a legacy/spare part for existing Ovation systems.
Can it be used for standard 4–20 mA signals?
No. It is designed for low-level millivolt inputs, not standard process current or high-level voltage signals.
What should be confirmed before ordering a replacement?
Exact part number, required input range, and compatibility with the existing Ovation I/O chassis and database configuration.
