Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Control System | Ovation |
| Part Number | 5X00070G01 |
| Module Type | High-Speed Analog Input Electronics Module |
| Input Type | Analog Current |
| Input Range | 4–20 mA |
| Number of Channels | 8 |
| Resolution | 14-bit |
| Conversion Rate | 50 or 60 samples/second |
| Input Configuration | Field or locally powered current input |
| Personality Module | 1C31227G01 |
| I/O Architecture | Ovation Serial I/O |
| Certification | CE Mark configuration documented |
| Typical Application | High-speed process signal acquisition |
| Condition | New Surplus / Used / Refurbished |
| Warranty | 1 Year |
The Ovation reference documentation specifically lists the 5X00070G01 + 1C31227G01 combination for eight 4–20 mA channels, with 14-bit resolution. The manual also describes the High-Speed Analog Input subsystem as providing 50 or 60 samples per second conversion.
The documented electrical planning data lists approximately 2.4 W main power consumption for the 5X00070G01 electronics module, with auxiliary power depending on the associated personality-module and loop-power arrangement.
Product Introduction (Anti-Template)
The Emerson Ovation 5X00070G01 is an eight-channel, 14-bit High-Speed Analog Input Electronics Module designed to acquire 4–20 mA process signals in Ovation DCS applications. Its higher acquisition rate makes it suitable for process measurements where the control system needs faster analog updates than a conventional analog-input configuration.
This module is only one half of the I/O assembly. The field interface uses the 1C31227G01 Personality Module, so checking the electronics module alone is not enough when replacing an installed card. In practice, the personality-module and loop-power arrangement should be verified before the replacement is released for shipment.

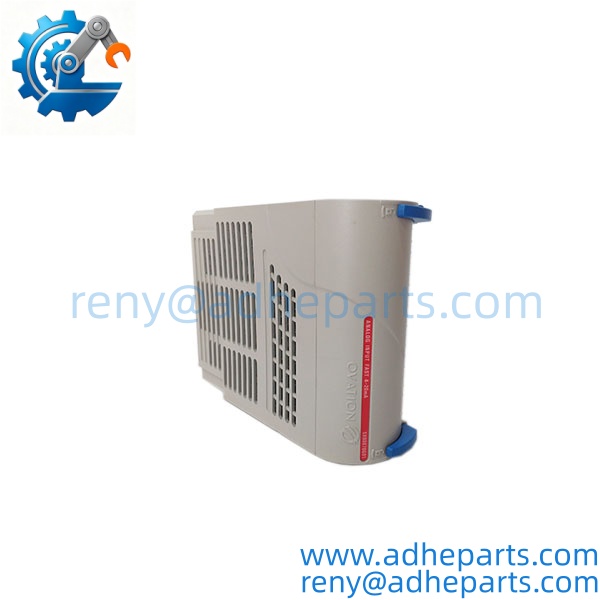

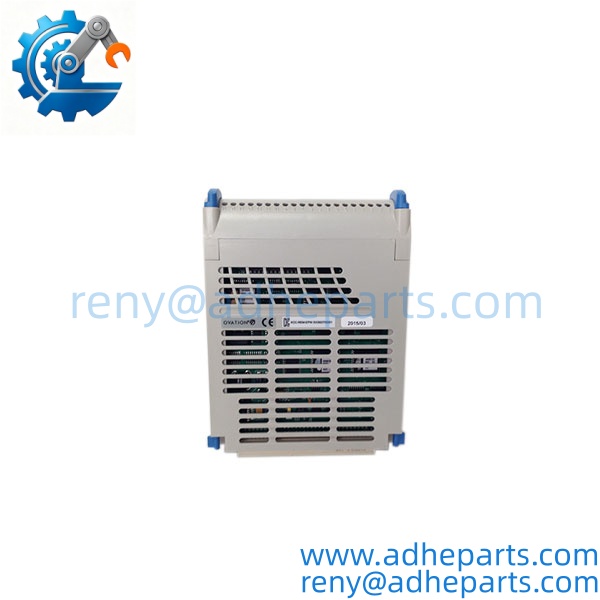

5X00070G01

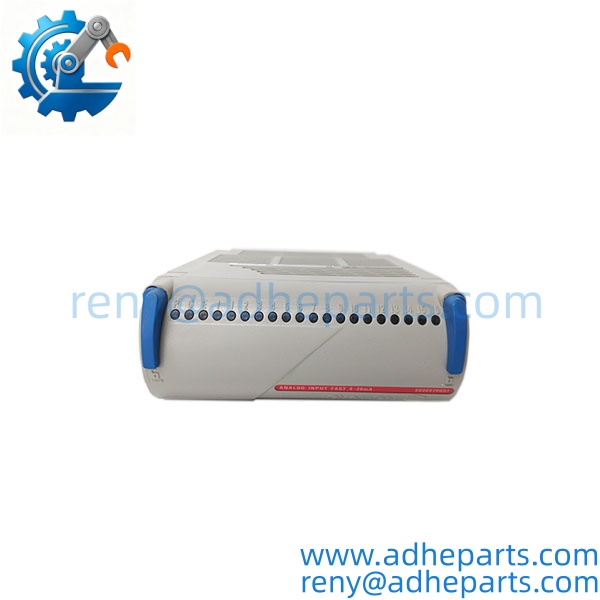

5X00070G01
5X00070G01
QC, Procurement & Logistics SOP
1) Inbound Verification
For every 5X00070G01 received into inventory, verify:
- Emerson / Ovation identification.
- Complete part number: 5X00070G01.
- PCB and hardware revision.
- Connector condition.
- Housing and mounting condition.
- Serial number where applicable.
- Signs of corrosion, overheating, or previous repair.
- Compatibility markings with the Ovation I/O architecture.
Photograph the complete label and connector area before the unit enters stock.
2) Live Rig Testing
Where an appropriate Ovation test environment is available, verify:
- Module initialization.
- Rack recognition.
- Eight-channel input operation.
- 4–20 mA signal acquisition.
- Analog value stability.
- Diagnostic status.
- Communication through the Ovation I/O architecture.
- Correct operation with the applicable Personality Module.
A simple power-on test is not enough for an analog input card. A module can initialize normally while one input channel has a damaged signal path.
3) QA & ESD Packaging
Handle the module as an electronic control-system assembly.
Before packing:
- Inspect PCB and connectors.
- Record part number and revision.
- Use ESD-safe handling.
- Place in antistatic packaging.
- Protect connectors from impact.
- Add shock-absorbing material.
- Use a rigid export carton.
Keep actual-stock photographs and inspection records with the order.
4) Global Logistics & Export Compliance
Prepare the commercial invoice and packing list using the exact manufacturer and part number.
The product description should accurately identify it as an Emerson Ovation High-Speed Analog Input Electronics Module. HS classification should be confirmed according to the actual configuration and destination customs requirements rather than relying on a generic automation-parts code.
For urgent plant maintenance, international air freight is normally more practical. Sea freight can be considered for larger maintenance shipments where delivery time is less critical.
5) Secure Air/Sea Packaging
Recommended packing sequence:
- ESD bag
- Moisture protection where required
- Connector protection
- Shock-resistant inner packaging
- Rigid export carton
- Shipping documentation
- Tracking information
Avoid allowing the PCB to move freely inside the carton. Mechanical shock is a particularly avoidable cause of connector and board damage.
Technical Pitfalls & Integration Warnings
1) Personality Module Mismatch
The 5X00070G01 is documented with 1C31227G01 for the 4–20 mA high-speed input configuration.
Scenario:
The electronics module is replaced, but the existing personality module belongs to another signal configuration.
The card may physically fit while the field interface does not match the intended signal type.
2) 4–20 mA Wiring and Loop-Power Arrangement
The documentation supports field- or locally powered current-input configurations.
Scenario:
A transmitter works correctly with one I/O configuration but gives an incorrect reading after replacement because the loop-power arrangement or wiring was changed.
Check transmitter power, loop polarity, common/reference arrangement, shielding, and channel assignment before commissioning.
3) Sampling-Speed Assumption
The 5X00070G01 belongs to the High-Speed Analog Input family, with 50 or 60 samples/second conversion documented.
Do not assume that every Ovation analog-input card has the same acquisition characteristics. A visually similar module from another I/O family may have different performance.
4) Configuration and Engineering Scaling
Scenario:
The replacement card receives a correct 4–20 mA signal, but the DCS display shows the wrong engineering value.
The physical signal range and the software scaling are separate issues. Verify channel assignment, engineering units, zero/span, alarm limits, and the Ovation project configuration.
5) ESD Damage
Analog input circuitry can be damaged by improper handling even when there is no visible PCB damage.
Keep the module in ESD-safe packaging until installation and use appropriate grounding procedures during replacement.
6) Hot-Swap Risk
Do not assume that the 5X00070G01 can be removed or inserted while energized. Follow the applicable Ovation system maintenance procedure and cabinet design requirements before replacing the module.
Frequently Asked Questions (FAQ)
Q1: What is Emerson Ovation 5X00070G01?
It is an Ovation 14-bit High-Speed Analog Input Electronics Module designed for acquiring 4–20 mA process signals.
Q2: How many channels does 5X00070G01 have?
It provides 8 analog input channels.
Q3: What signal does 5X00070G01 accept?
The G01 version is designed for 4–20 mA current inputs.
Q4: What is the resolution of the 5X00070G01?
The High-Speed Analog Input configuration provides 14-bit resolution.
Q5: Which Personality Module is used with 5X00070G01?
The documented combination is 1C31227G01. The Ovation I/O reference table pairs these two modules for eight-channel 4–20 mA high-speed analog input.
Q6: Is 5X00070G01 the same as a standard Ovation analog input card?
Not exactly. It belongs to the High-Speed Analog Input family and is specified for faster acquisition than the standard 14-bit analog-input configuration.
Q7: Can I replace 5X00070G01 with another Ovation analog input module?
Do not substitute based only on channel count or 4–20 mA compatibility. Verify the I/O architecture, acquisition requirements, Personality Module, wiring, and project configuration before substitution.
Q8: Can you provide actual photos before shipment?
Yes. Actual-stock photographs can include the 5X00070G01 label, PCB markings, connectors, revision information, and overall condition.
Q9: What should I send for compatibility checking?
A clear photo of the existing 5X00070G01, its Personality Module, the cabinet/rack position, and the complete part-number labels are useful for checking the replacement before shipment.
