ABB AIM0006 2RCA021397A0001P | Analog Input Card, New Original

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Do not order against this table alone. I cannot confirm the channel count, input types, or resolution from the model number. Match every line against the OEM datasheet and the label on your existing module.

4. Product Introduction

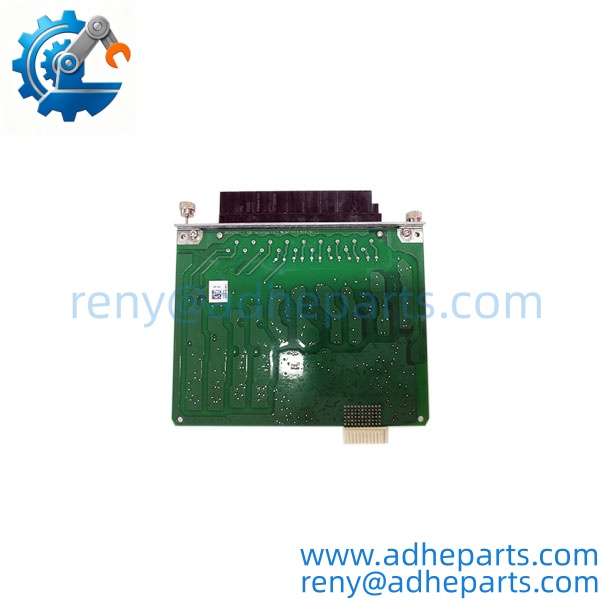

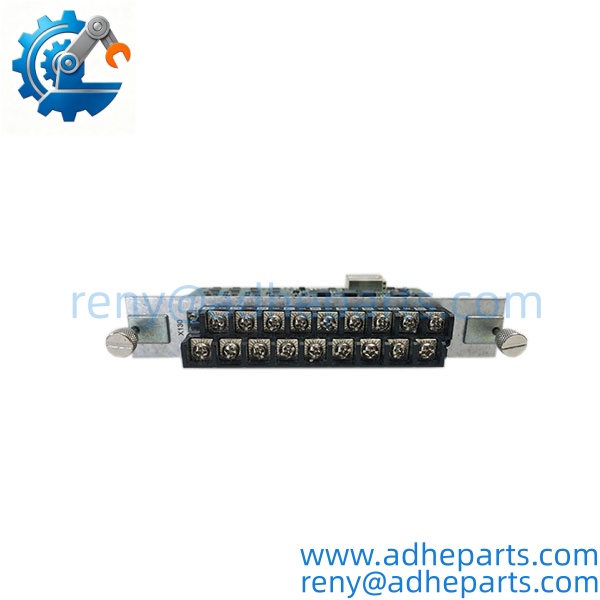

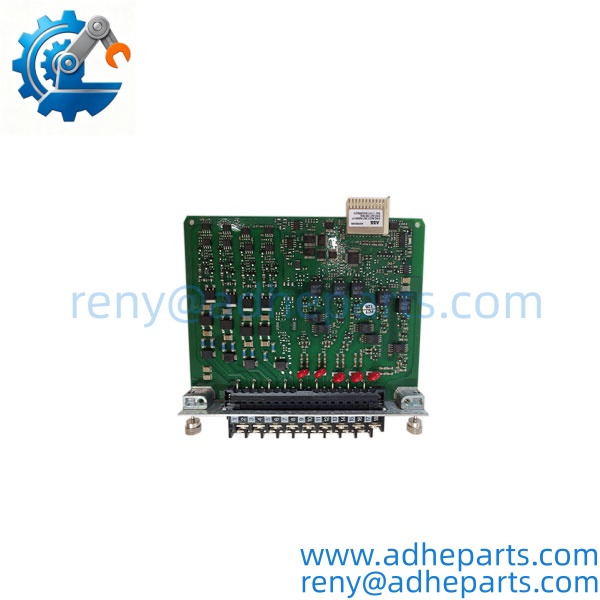

The ABB AIM0006, ordering code 2RCA021397A0001P, is an analog input module for an ABB control system. It acquires field process signals — transmitter outputs, RTD or thermocouple readings, or voltage signals depending on the build — and passes them to the controller over the rack backplane. The AIM designation and the 2RCA ordering code point to an analog input function, but the exact channel count and signal types depend on the specific build.

The engineering value of an ABB analog input module in this class is the per-channel diagnostics and the isolation. A well-designed input card reports an open field loop, an out-of-range signal, or a shorted channel back to the controller, so the operator sees the failed point on the alarm summary instead of discovering it when a control loop stops responding. The isolation between channels prevents a ground fault on one transmitter from corrupting the readings on the adjacent channels — a failure mode that is common on shared-ground input cards in plants where transmitters sit at different ground potentials.

I cannot tell you from the model number whether this is a 4-channel card, an 8-channel card, or a 16-channel card, or whether it accepts current, voltage, RTD, or thermocouple inputs. Read the faceplate label on your existing module — it states the channel count and the input type. Send me that photo and the rack model, and I will confirm the assembly against the OEM documentation.

AIM0006

AIM0006

AIM0006

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure mode that costs the most on an analog input card is a channel that drifts instead of dying. The transmitter still works, the loop still reads a value, but the reading is off by 2% and the control loop no longer holds its setpoint. Operators see it as a process problem. In my experience, the card is rarely the first suspect, and by the time it is pulled, the crew has already recalibrated the transmitter twice and checked the wiring. When you replace an analog input module, record the channel assignment, the signal type, and the transmitter calibration before you pull the old card. A replacement with the same scaling but a different field device calibration will introduce a fresh error that looks like a bad module.

Part 2 – Numbered List (Application Scenarios)

1. Power Generation – Turbine and Boiler Instrumentation – The module acquires 4–20mA signals from pressure, temperature, and flow transmitters on boiler and turbine auxiliary systems. The per-channel isolation prevents a ground fault on one transmitter from corrupting adjacent readings.
2. Oil & Gas – Compressor Station Monitoring – Used to read pressure and temperature transmitters on compressor skids. The open-loop detection alerts the operator when a field wire fails before the control loop loses its input entirely.
3. Chemical – Reactor Loop Instrumentation – The module reads analog signals from temperature, pressure, and level transmitters on exothermic reactors. Accurate input scaling is critical because the reactor control loop depends on the measured value.
4. Water Treatment – Process Instrumentation – Used across intake, treatment, and distribution controls to read flow, level, and analyzer signals. The module reports out-of-range conditions to the operator station, reducing unplanned field visits.

Part 3 – Short Field Story

A power plant had a feedwater control loop that would not hold setpoint after a maintenance outage. The crew had recalibrated the flow transmitter and checked the loop wiring. The loop still drifted. We asked them to check the analog input channel with a calibrated signal injector. The channel read 3.6% low at mid-scale — the front-end amplifier had drifted out of tolerance. The transmitter was fine, the wiring was fine, and the control loop was correctly tuned. The plant replaced the AIM0006 module, transferred the channel configuration, and the loop held setpoint on the first run. The card had failed in a way that looked like a process problem, not an I/O fault.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the ABB marking, the AIM0006 model string, the 2RCA021397A0001P order code, and the date code. We inspect the backplane connector and the terminal block header for bent pins or cracked plastic. A module with a damaged connector or evidence of moisture ingress is rejected.
• Revision and Configuration Documentation – We read and photograph the full model string, the firmware revision, and the module revision letter. That record ships with the module so you can compare it against the unit you are replacing.
• Rack Fit Verification – Each module is seated in a compatible test rack to confirm the connector engages fully and the retention mechanism holds. A module that fits loosely will cause intermittent backplane faults in the field.
• Power-Up Self-Test – The module is powered in a live rack and we verify it completes its boot sequence and that the controller recognizes the module type without a fault.
• Input Channel Verification – We inject calibrated signals into each channel at 0%, 50%, and 100% of range and verify the module’s reported values against the reference. Accuracy must stay within the OEM specification. We test at multiple points to catch a drifted front-end amplifier.
• Open-Loop Detection Test – We disconnect the field signal on one channel and verify the module reports the fault to the controller. A module that reads correctly but does not report faults is not acceptable.
• Isolation Test – We apply the rated isolation voltage between channels and between a channel and ground. Leakage current must stay below the datasheet limit.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: What channel count and signal type does the AIM0006 have?

A: I cannot confirm the channel count or the input signal type from the model number alone. ABB uses the AIM designation across more than one analog input module family, and the 2RCA021397A0001P ordering code governs the build. Read the faceplate label on your existing module — it states the channel count and the input type. Send us a photo of the label and the rack model, and we will confirm the assembly before you order.

Q2: Is the terminal block included with the module?

A: That depends on the build. Some ABB analog input modules ship with the terminal block, and some use a separate terminal block or a pre-wired cable assembly. Check the label and the OEM documentation for your specific build. If you send us a photo of your existing module and its terminal arrangement, we can confirm what is included.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers input channel failure, isolation breakdown, backplane communication failure, and connector failure under normal operating conditions. It does not cover damage from connecting field supply voltage to the input terminals, reversed field wiring, or ESD damage from handling without a wrist strap. We test every module in a live rack across the full input range before it ships.

Q4: Do you have this exact order code in stock?

A: ABB module inventory moves and varies by build. Confirm availability before you plan an outage. If we do not have the exact ordering code you need, we will tell you what we do have and whether a different build would suit your application. Do not assume any AIM0006 will drop in — the ordering code suffix and the firmware revision matter.

Q5: Any installation pitfalls I should watch for?

A: Four. First, record the channel assignments, signal types, and transmitter calibrations before you pull the old module. Second, verify the field wiring and the loop resistance before you connect the load — a shorted or grounded field wire will damage the input channel. Third, confirm the module’s firmware revision is compatible with your controller before you install it. Fourth, after the swap, inject a known signal into each channel and verify the controller reports the correct value before you return the loop to service. A module that powers up is not necessarily reading correctly.
