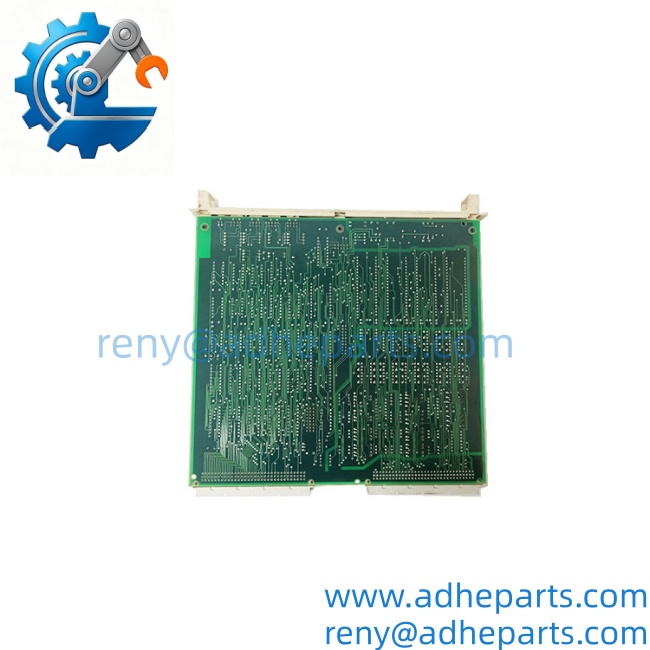

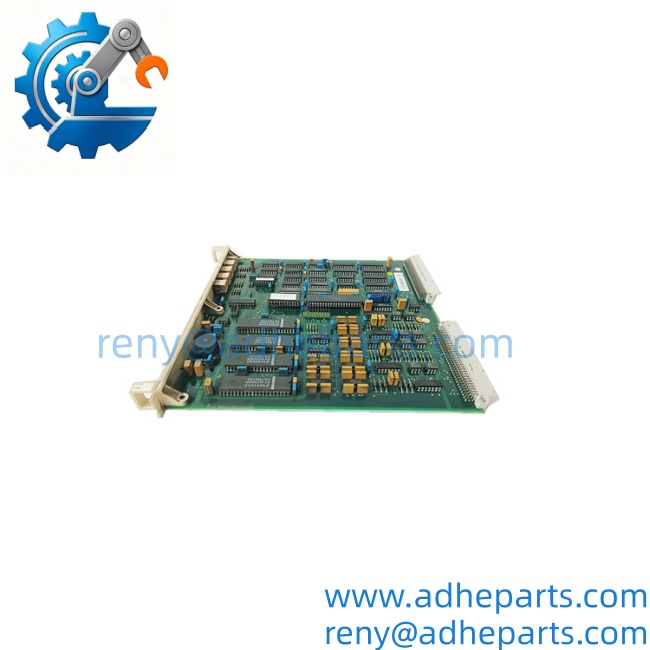

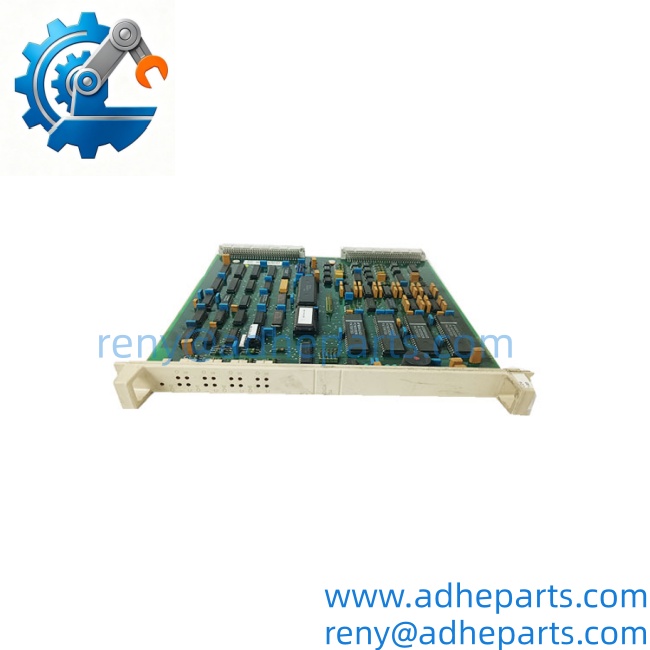

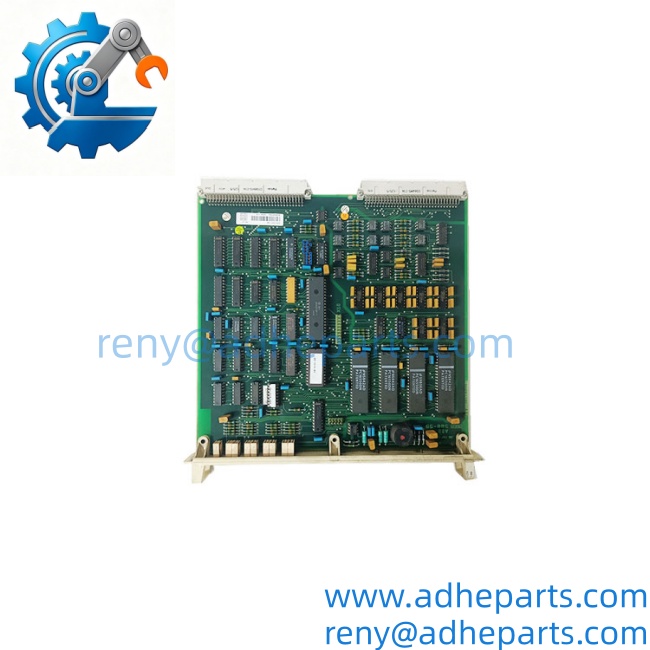

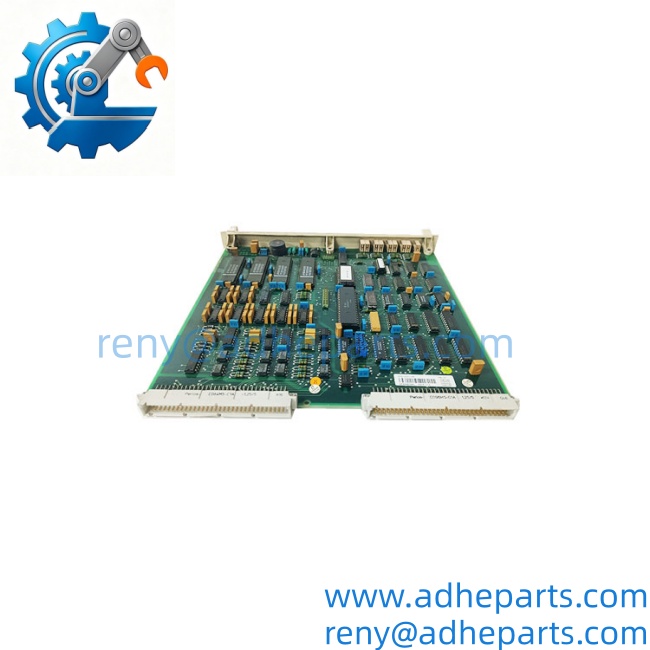

ABB DSCA114 57510001-AA | Asynchronous Communication Board

Description

Key Technical Specifications

ABB identifies the DSCA114 as an asynchronous communication board with RS-232/V.24 functionality. The product documentation associates it with the Advant Master process-control system and MasterPiece communication-module architecture.

ABB DSCA114 57510001-AA

Product Introduction (Anti-Template)

When a legacy control system needs to exchange serial data with an external device, the communication board must match both the physical interface and the host architecture. The ABB DSCA114 57510001-AA is an asynchronous communication board designed for the ABB Advant Master process-control system. Its documented interface is RS-232/V.24, making it relevant to serial communication tasks within compatible MasterPiece and Advant control configurations.

This is not a generic plug-in serial adapter. The correct rack position, cable arrangement, communication parameters, and installed system software must be verified before replacement. Honestly, matching the original board number is only the first step; the connected equipment and serial settings determine whether the replacement will communicate correctly.

ABB DSCA114 57510001-AA

QC, Procurement & Logistics SOP

1. Inbound Verification

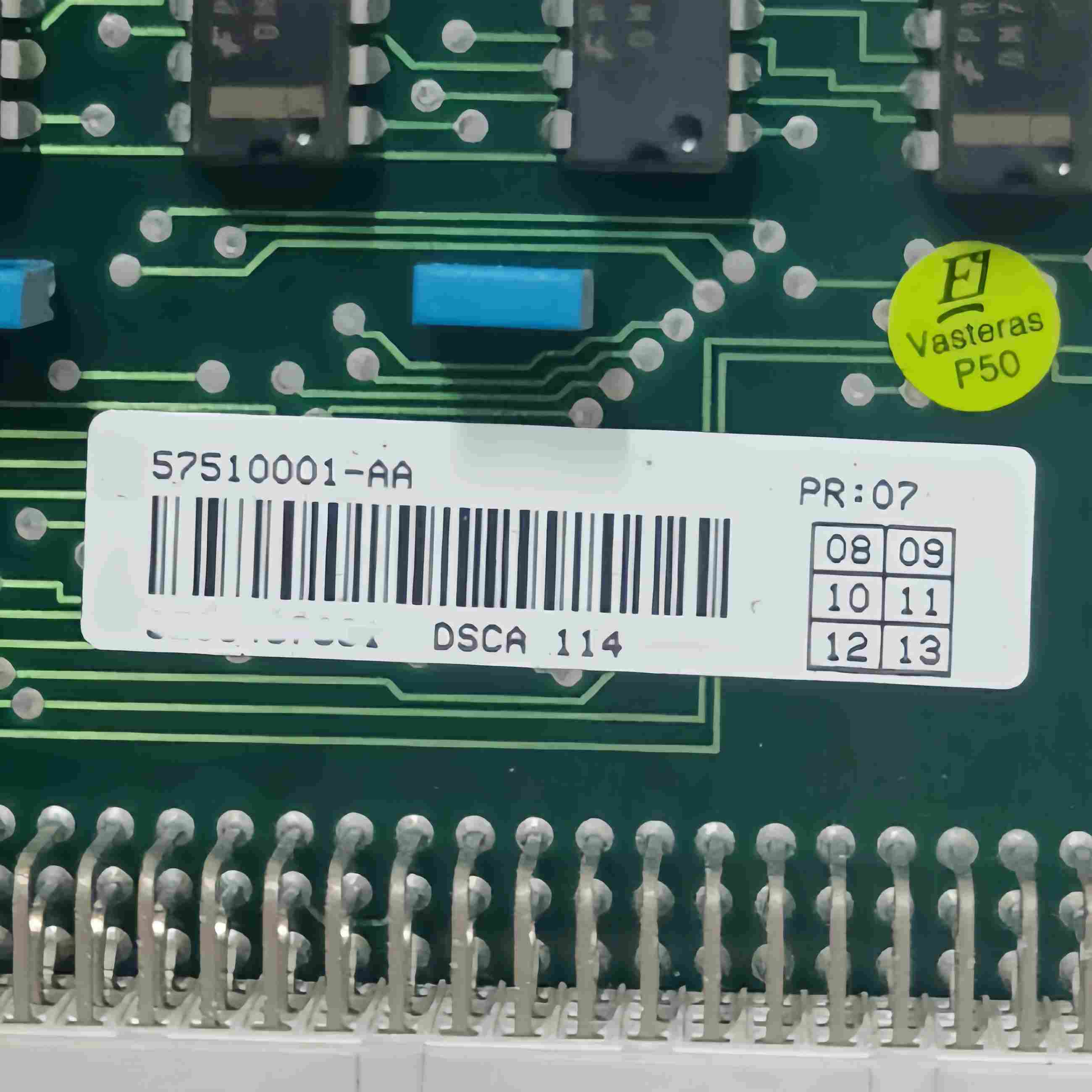

   Check the complete identification DSCA114 / 57510001-AA against the nameplate and board markings. Record the serial number, hardware revision, connector condition, and any visible repair or modification history.
2. System Compatibility Verification
   Confirm that the installed system uses the ABB Advant Master or compatible MasterPiece architecture. Verify the board position, cable type, communication interface, and application requirements before approving the unit.
3. Live Rig Testing
   Where a suitable test environment is available, check board startup, serial-port activity, communication stability, and data exchange with the intended external device. Confirm that the configured baud rate, parity, stop bits, and addressing match the application.
4. QA & Anti-Static Packaging
   Protect the PCB, edge connectors, and communication interfaces against ESD, moisture, and mechanical impact. Use an anti-static bag and rigid internal support to prevent board flexing during transport.
5. Global Logistics & Export Compliance
   Confirm final packed dimensions and gross weight before freight booking. The bare board is documented at approximately 0.4 kg, while the shipping weight will depend on the protective packaging. Use an appropriate customs classification for the actual communication board and verify destination import requirements.

ABB DSCA114 57510001-AA

ABB DSCA114 57510001-AA

Technical Pitfalls & Integration Warnings

1. Firmware / Software Revision Mismatch
   Example: the replacement board is installed in a system using a different communication software revision. The board may power up but fail to exchange data correctly with the host controller or connected device. Verify the installed system version and communication configuration.
2. DIP Switch / Configuration Errors
   Serial communication depends on correct parameters such as baud rate, parity, stop bits, and station settings. An incorrect configuration can appear as a failed board even when the hardware is functional.
3. Wiring / Terminal Incompatibility
   The documented interface is RS-232/V.24. Do not substitute an RS-485 or another serial interface without confirming the electrical standard, connector pinout, cable wiring, and signal reference. RS-232 and RS-485 are not interchangeable by default.
4. ESD Destruction During Unboxing
   The board can be damaged by static discharge through its edge connector or exposed circuitry. Keep it in anti-static packaging until installation, and avoid touching conductive contacts with bare hands.

ABB DSCA114 57510001-AA

Frequently Asked Questions (FAQ)

Q1. What is ABB DSCA114 used for?
It is an asynchronous communication board for ABB Advant Master process-control systems, with a documented RS-232/V.24 interface.

Q2. Is 57510001-AA the same product as DSCA114?
Yes. 57510001-AA is the ABB product ID associated with the communication board.

Q3. Does the board support RS-485?
The ABB product documentation specifically identifies RS-232/V.24. RS-485 should not be assumed unless the exact hardware revision and system documentation confirm it.

Q4. Can it be used in any ABB DCS cabinet?
No. It should be matched to the applicable Advant Master or MasterPiece architecture, board position, cable arrangement, and system configuration.

Q5. Can the be hot-swapped?
Do not assume hot-swapping is permitted. Follow the installed system’s maintenance procedure and isolate the relevant equipment before removing or inserting the communication board.

Q6. What information is needed to source a replacement?
Provide , 57510001-AA, clear photos of the nameplate and connectors, the host controller or rack model, and the communication cable or connected-device details.

Q7. What is the international lead time?
Lead time depends on actual stock and the condition requested. New surplus, used, and repaired units may have different preparation times, so the exact board revision and test requirements should be confirmed before a firm delivery date is issued.
