Description

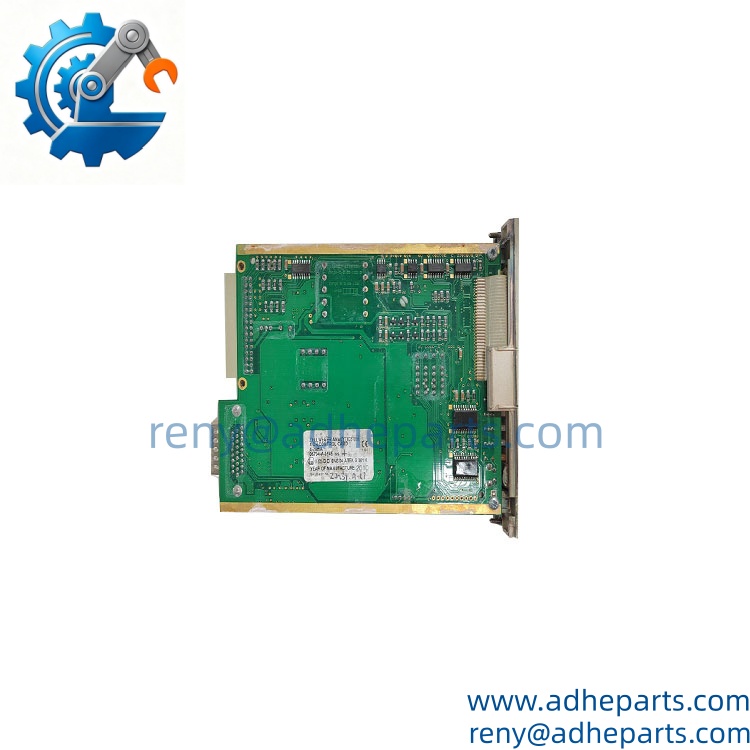

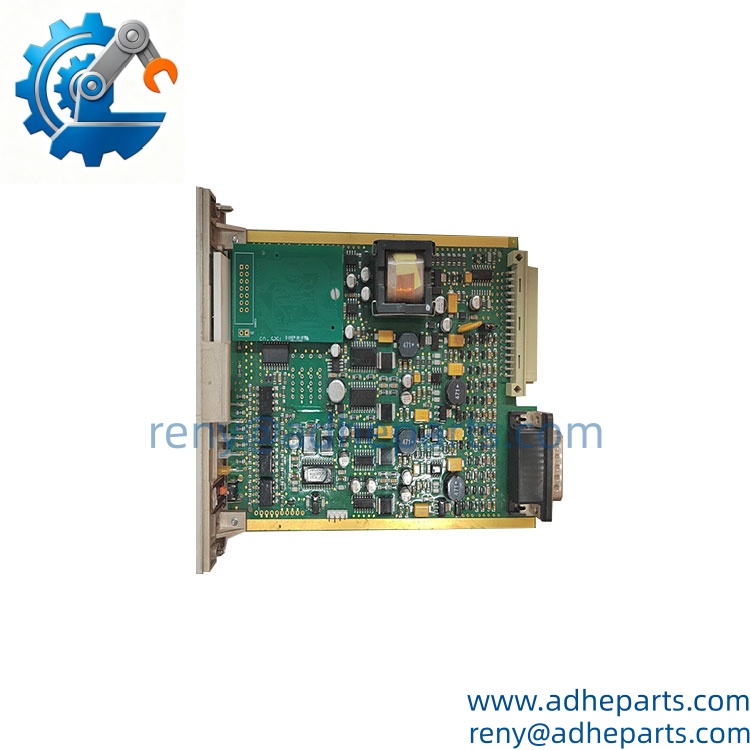

Honeywell’s System 57 documentation specifically identifies 05704-A-0145 as the Four Channel Control Card for 4-20mA inputs, distinguishing it from 05704-A-0144, which is the catalytic-input version.
A typical system may include:
System 57 Rack Backplane → Honeywell 05704-A-0145 → 4-20mA Gas Detectors → Alarm Relay Modules
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Four-Channel Control Card |
| Model | 05704-A-0145 |
| Product Family | Honeywell System 57 |
| System | 5704 Control System |
| Input Type | 4-20mA |
| Number of Channels | 4 |
| Supply Voltage | 18-32 VDC |
| Loop-Powered Output | Isolated 24 VDC ±5% regulated |
| Maximum Loop Supply Current | 25mA |
| Measurement Range | 0-25mA |
| Maximum Loop Resistance | 500Ω, including sensor |
| Power Consumption | 8.3W maximum; 7.5W typical |
| Operating Temperature | -5°C to +55°C |
| Storage Temperature | -25°C to +55°C |
| Humidity | 20-90% RH, non-condensing |
| Dimensions | 132 × 25 × 172 mm |
| Weight | Approximately 165-170g |
Honeywell’s System 57 manual states that the 05704-A-0145 provides control, display, and alarm facilities for up to four connected gas detectors. The card uses an EEPROM-stored configuration, while the front panel provides gas-reading display, channel status, alarm indication, alarm reset, and card-selection functions.
Product Introduction (Anti-Template)
A gas detector is only useful if its signal reaches the control system correctly. The Honeywell 05704-A-0145 is designed for exactly that point in the chain, handling four independent 4-20mA gas-detector inputs within the System 57 5704 control platform. The front-panel display provides gas readings and channel information, while the alarm indicators show channel and card status.
Do not confuse this card with the 05704-A-0144. The latter is intended for catalytic detector inputs, whereas the 05704-A-0145 is specifically the 4-20mA version. That distinction matters when replacing a failed channel card in an operating gas detection cabinet.
QC, Procurement & Logistics SOP
- Inbound Verification

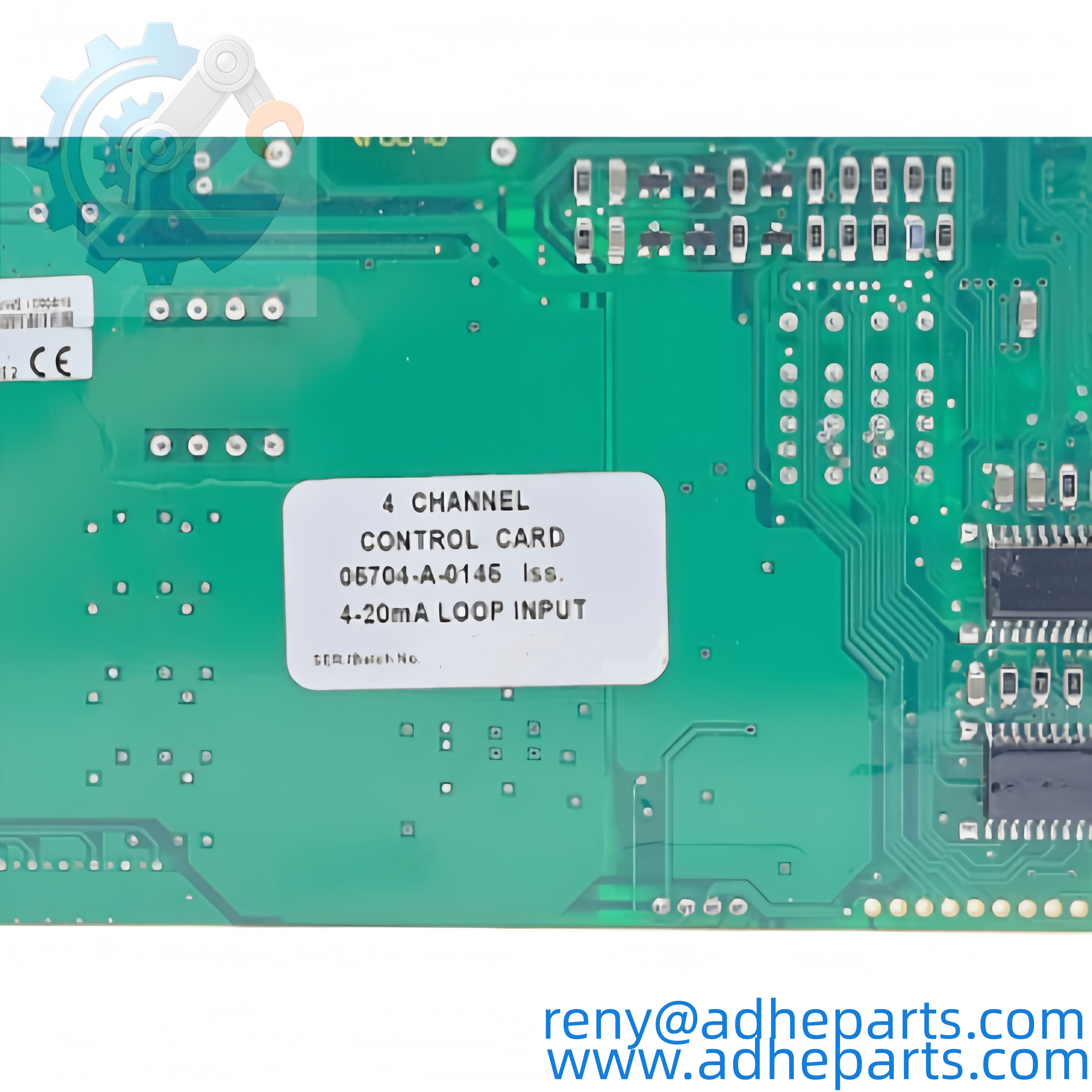

- Confirm the complete part number: 05704-A-0145.
- Check the Honeywell identification label, PCB condition, card-edge contacts, front-panel display, LEDs, and connectors.
- Verify that the card is the 4-20mA version rather than the catalytic-input 05704-A-0144.
- Check the card against the installed System 57 / 5704 chassis configuration before release.
- Live Rig Testing
- Apply controlled 18-32 VDC power using compatible test equipment.
- Check startup behavior, display operation, channel indication, alarm LEDs, and fault indication.
- Where suitable equipment is available, simulate representative 4-20mA signals on the input channels.
- Verify that the measured signal remains within the specified 0-25mA measurement range.
- Check loop-powered output behavior when the test setup supports it.
- QA & Anti-Static Packaging
- Photograph the part number and physical condition before packing.
- Protect the PCB and card-edge contacts against ESD.
- Use anti-static packaging with shock-absorbing material.
- Prevent the narrow 25mm-wide card from moving inside the export carton during transportation.
- Global Logistics & Export Compliance
- Prepare the commercial invoice, packing list, product description, country of origin, and applicable HS classification.
- Use an HS classification appropriate for the actual electronic control card and destination customs requirements.
- For urgent gas-detection system repairs, air freight is normally the sensible option.
- Sea freight can be considered for consolidated, non-urgent shipments.
- Secure the card against vibration, impact, and moisture during international transportation.
Technical Pitfalls & Integration Warnings
1. Input-Type Mismatch
This is the first thing to check. The 05704-A-0145 is designed for 4-20mA detector inputs, while the 05704-A-0144 is the catalytic-input version. Installing the wrong card can leave the detector signal unusable even though the replacement physically fits the system.
2. Configuration / EEPROM Errors
The System 57 configuration is stored in EEPROM. A replacement card should therefore be checked against the configuration required by the existing installation. If alarm thresholds, channel assignments, inhibit settings, or other programmed parameters are not correctly established, the card may power up normally while the gas-detection system behaves incorrectly.
3. Loop Wiring and Resistance
The 4-20mA input supports a measurement range of 0-25mA, with a maximum loop resistance of 500Ω including the sensor. Excessive cable resistance or an incorrect transmitter arrangement can cause the measured current to fall outside the expected operating conditions. Check the complete loop—not just the control card.
4. ESD During Unboxing
The card contains sensitive electronic circuitry. Keep it inside its anti-static packaging until installation is ready, and avoid touching the card-edge contacts. A visually perfect board can still be damaged by careless handling.
Frequently Asked Questions (FAQ)
Q1: What exactly is the Honeywell 05704-A-0145?
It is a four-channel control card for the Honeywell System 57 / 5704 gas detection system. Its input configuration is designed for 4-20mA gas detectors.
Q2: How many gas detector channels can it handle?
The card supports up to four connected gas detectors. The front-panel display can indicate gas readings, channel status, and channel number, while dedicated LEDs provide alarm and fault information.
Q3: Is the 05704-A-0145 the same as the 05704-A-0144?
No. The two cards are different input versions. Honeywell identifies 05704-A-0144 as the catalytic-input four-channel control card and 05704-A-0145 as the 4-20mA-input version.
Q4: Can this card be hot-swapped?
Do not assume that it can be removed under power without following the site maintenance procedure. This is part of a gas detection and alarm system, so removing an active channel card can affect detector monitoring and alarm availability. Isolate the relevant equipment according to the installed System 57 procedure before replacement.
Q5: What is the required supply voltage?
The published specification gives an operating supply range of 18-32 VDC. The 4-20mA version has an isolated 24 VDC ±5% regulated loop-powered output, with a maximum specified supply current of 25mA for loop-powered devices.
Q6: What is the maximum loop resistance?
The specified maximum loop resistance is 500Ω, including the connected sensor. This should be considered when checking long cable runs or existing field wiring.
Q7: Is the 05704-A-0145 still available as an original replacement?
The part has been phased out/discontinued in some supply channels, so availability depends on remaining inventory and condition. Honeywell’s historical product documentation confirms the part number as the System 57 5704 four-channel 4-20mA control card.
For an urgent replacement, provide the existing card’s complete part number, a clear nameplate photograph, the 5704 chassis information, and the detector type. That combination gives procurement and engineering teams a much safer basis for confirming compatibility.
