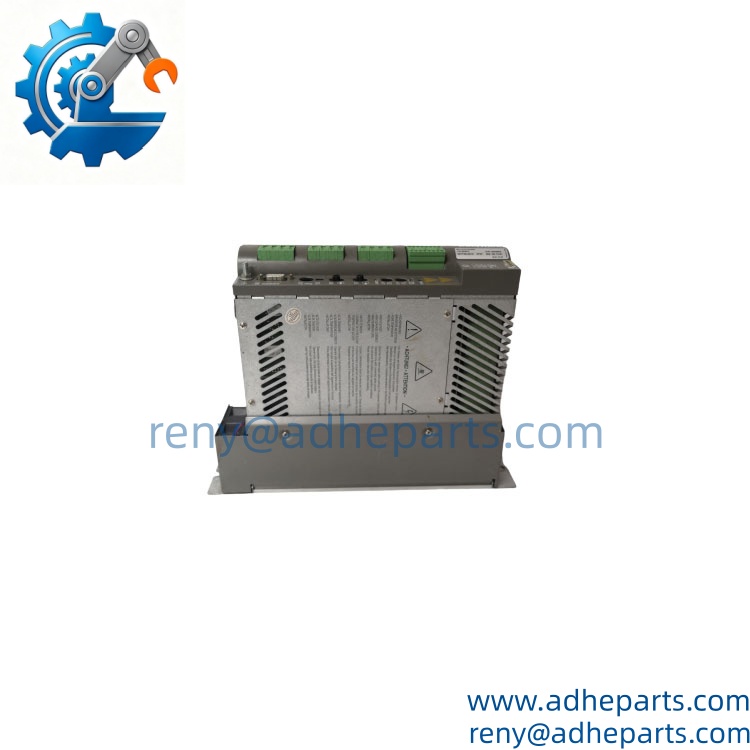

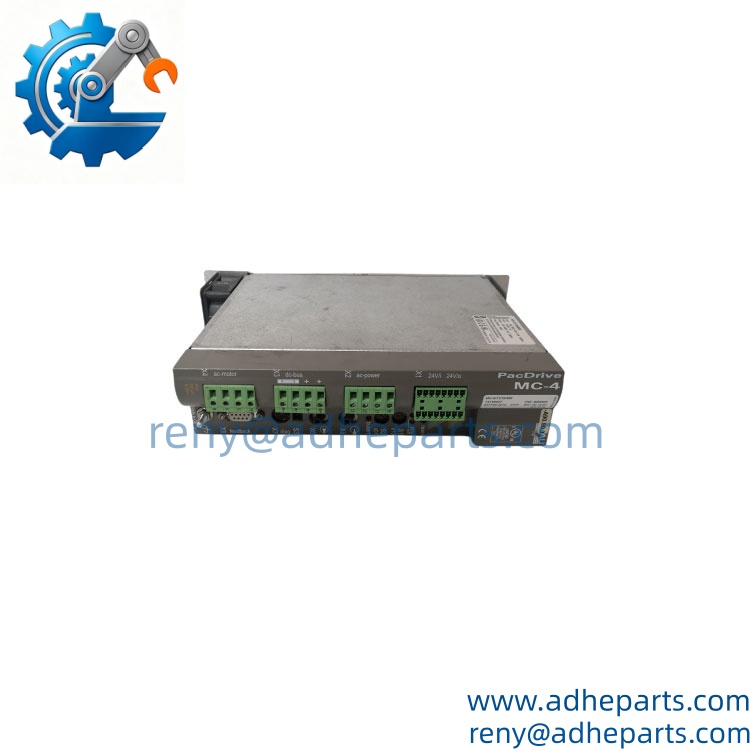

The ELAU MC-4/11/10/400 is the 10 A, 400 V variant of the PacDrive MC-4 servo drive family. The original ELAU documentation identifies its order number as 13 13 02 47, while Schneider Electric lists VDM01D10AA00 as the newer reference and states that it is identical to the former MC-4/11/10/400 reference.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ELAU / Schneider Electric |
| Model | MC-4/11/10/400 |
| Schneider Reference | VDM01D10AA00 |
| Original ELAU Order Number | 13 13 02 47 |
| Product Type | Digital Servo Drive |
| Product Family | PacDrive MC-4 |
| Rated Input | 3-phase 380–480 VAC ±10% |
| Mains Frequency | 48–62 Hz |
| Control Supply | 24 VDC ±25%, 1 A |
| DC Bus Voltage | 530–680 VDC |
| Continuous Motor Current | 10 A RMS |
| Peak Motor Current | 25 A RMS for 1 second |
| Rated Output Power | 6.9 kVA |
| Output Voltage | 0–480 VAC |
| Output Frequency | 0–600 Hz |
| Internal Braking Resistor | 60 Ω |
| Braking Power | 100 W continuous / 10 kW peak |
| Protection Rating | IP20 |
| Operating Temperature | +5°C to +45°C |
| Approx. Unit Weight | 3.6 kg boxed |
The original technical documentation specifies 10 A RMS rated motor current, 25 A RMS peak current for 1 second, and 6.9 kVA rated output. The drive accepts a three-phase 380–480 VAC supply and generates a 530–680 VDC intermediate circuit.
The type designation itself carries useful engineering information: MC-4 / 11 / 10 / 400 identifies the MC-4 generation, the hardware frame designation, the 10 A rated current, and the 400 V class. The original ELAU manual lists several current and voltage variants within the same family, so the final suffix should always be checked before replacement.
Product Introduction (Anti-Template)
Operating as a compact single-axis drive within the ELAU PacDrive M architecture, the MC-4/11/10/400 combines the mains supply unit, power stage, and software regulator in one enclosure. Its 10 A RMS output rating makes it suitable for servo applications requiring a 400 V-class motor supply, while the drive accepts 380–480 VAC three-phase input at 48–62 Hz.
The drive communicates with the PacDrive controller through a fiber-optic SERCOS interface, making it suitable for decentralized machine architectures. It also supports electronic motor identification through the motor’s electronic nameplate. Honestly, that feature can save a technician a fair amount of commissioning time—provided the replacement drive, motor, and controller configuration are actually compatible.
QC, Procurement & Logistics SOP
- Inbound Verification
Verify the complete identification on the nameplate, including MC-4/11/10/400, article number, hardware version, software version, serial number, and production information. The ELAU manual shows these fields on the unit’s logistics and technical type plates. - Live Rig Testing
