ABB 5SHY35L4520 | High-Power IGCT Semiconductor

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

ABB documentation identifies the 5SHY35L4520 as an asymmetric IGCT with 4,500 V VDRM, 2,800 V DC voltage capability, 4,000 A ITGQM, and 1,700 A ITAVM. ABB also specifies a 125°C maximum junction temperature and 40 kN mounting force.

The device is designed for high-power switching applications and is optimized for snubberless turn-off. The manufacturer’s current product information also identifies it as an asymmetric IGCT and lists the 85/26 package format.

Product Introduction (Anti-Template)

When a medium-frequency converter needs high-current switching with controlled turn-off, the ABB 5SHY35L4520 provides a 4.5 kV asymmetric IGCT platform rated at 4,000 A maximum turn-off current and 1,700 A average on-state current. Its press-pack construction and 40 kN specified mounting force make mechanical installation part of the electrical design, not an afterthought. The device is intended for demanding power-conversion equipment rather than general-purpose thyristor replacement.

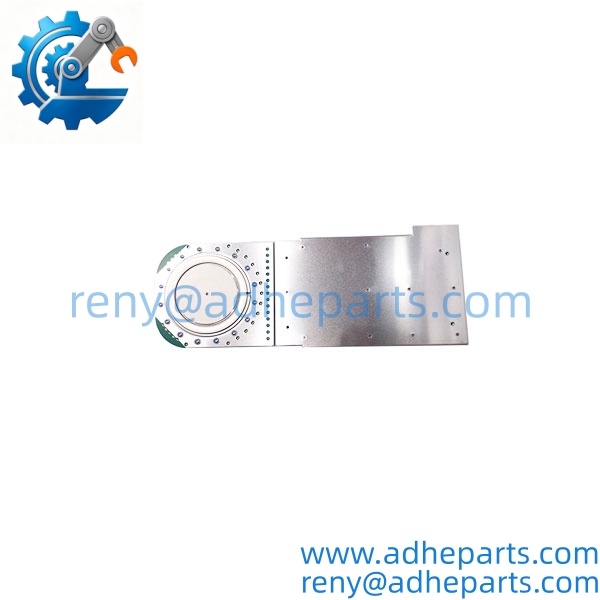

ABB 5SHY35L4520

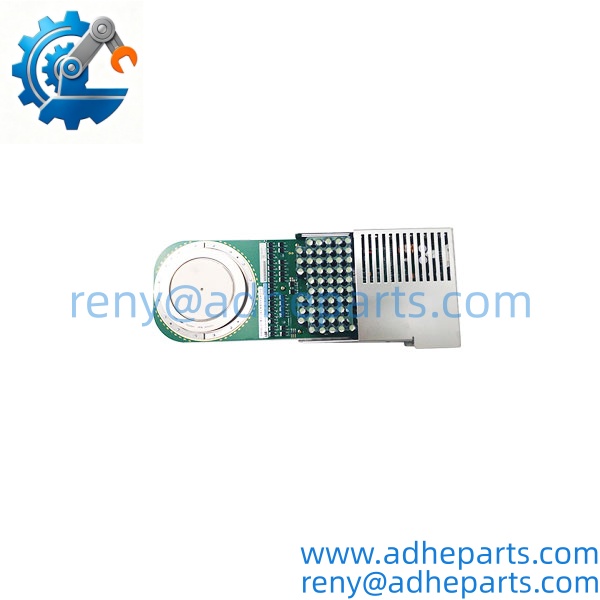

ABB 5SHY35L4520ABB 5SHY35L4520

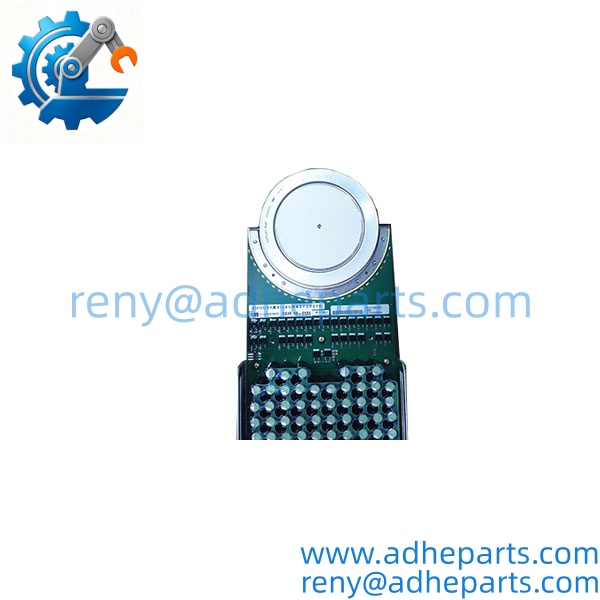

ABB 5SHY35L4520

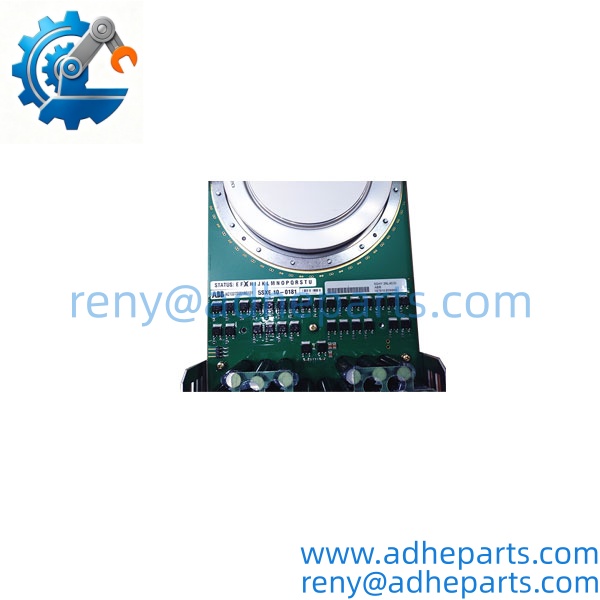

ABB 5SHY35L4520

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the complete 5SHY35L4520 marking, manufacturer identification, production or date code where available, gate-unit condition, contact surfaces, and physical package. Compare the device with the buyer’s existing unit before shipment.
2. Live Rig Testing
   High-power IGCTs should only be electrically tested with equipment specifically designed for the device. Verify gate-drive compatibility, controlled triggering, insulation, leakage behavior, and converter-level operation. Do not apply uncontrolled voltage directly to a loose device.
3. QA & Anti-Static Packaging
   Inspect the press-pack contact surfaces, ceramic or insulating areas, gate connection, and housing for cracks or mechanical damage. Protect the gate interface and package from impact, moisture, contamination, and electrostatic discharge.
4. Global Logistics & Export Compliance
   Confirm the applicable HS classification according to the actual device and destination customs requirements. ABB product information lists customs tariff number 85413000 for this part. Use rigid shock-resistant packaging because damage to the contact surfaces can affect the required mounting pressure and electrical performance.

Technical Pitfalls & Integration Warnings

1. Gate-Unit Revision Mismatch
   The 5SHY35L4520 has been associated with different IGCT gate-unit generations in application documentation. Do not assume that a visually similar gate-drive assembly is compatible. Confirm the exact IGCT generation and gate-unit design before energizing the device.
2. Firmware or Configuration Mismatch
   The IGCT itself is not a conventional PLC or DCS module, but its gate-drive and converter controller may depend on specific configuration parameters. A controller configured for V3.1, for example, should not be assumed compatible with a V2.8 gate-drive configuration. Verify the complete converter control setup.
3. Mounting Force and Contact-Surface Errors
   The specified mounting force is 40 kN. Incorrect mechanical pressure, uneven mounting, contaminated contact surfaces, or poor alignment can increase thermal resistance and cause abnormal heating. Honestly, mechanical installation is one of the easiest details to underestimate on a press-pack semiconductor.
4. ESD and Gate-Terminal Damage During Unboxing
   Protect the gate interface from electrostatic discharge and accidental electrical overstress. Keep the device in its original protective packaging until it is ready for controlled installation and inspection.

Frequently Asked Questions (FAQ)

1. What is the ABB 5SHY35L4520?
It is an asymmetric Integrated Gate-Commutated Thyristor (IGCT) designed for high-power switching applications, particularly power-conversion equipment.

2. What are the main electrical ratings?
The key ratings are 4,500 V VDRM, 2,800 V DC voltage, 4,000 A ITGQM, and 1,700 A ITAVM.

3. Is 5SHY35L4520 interchangeable with 5SHY35L4521 or 5SHY35L4522?
Not automatically. These part numbers have similar headline ratings, but the exact device revision, thermal characteristics, gate unit, mechanical installation, and converter design must be checked before substitution. The 5SHY35L4522, for example, has a higher 2,100 A ITAVM rating than the 5SHY35L4520.

4. What mounting force is required?
ABB documentation specifies a 40 kN mounting force. The mounting assembly should be checked for the correct pressure distribution and mechanical alignment.

5. Can this IGCT be hot-swapped?
No. It should only be replaced after the converter has been properly shut down, isolated, discharged, and verified safe according to the equipment manufacturer’s maintenance procedure.

6. What information should be provided for compatibility confirmation?
Provide the complete IGCT part number, gate-unit part number, photographs of the device and gate connection, converter model, existing semiconductor reference, and the equipment application. This allows the replacement to be checked against both the power device and its gate-drive system.

7. What is the typical shipping requirement?
Because this is a precision high-power semiconductor with a substantial mechanical package, rigid shock protection and anti-static handling are recommended. Final lead time depends on actual stock condition, inspection, packing, destination, and shipping method.
