Woodward 9907-164 | LVDC 505 Steam Turbine Controller

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

Woodward’s official 505 manual identifies 9907-164 as the LVDC version of the 505 Digital Governor, with an 18–32 VDC power requirement. The same manual groups 9907-162, 9907-163, and 9907-164 as 505 Digital Governor variants for steam-turbine applications.

The published interface data for the 9907-164 also identifies a 30-function keypad, 2 × 24-character display, RS-232/RS-422 Modbus communication, and programmable 4–20 mA inputs.

Product Introduction (Anti-Template)

Operating as the control center of the legacy Woodward 505 Digital Governor platform, the 9907-164 is a microprocessor-based controller designed for steam turbines using single or split-range actuators. Its front-panel operator interface provides menu-driven configuration and operating functions, while the controller accepts discrete and analog process signals for turbine control. Woodward specifically identifies the 9907-164 as the 18–32 VDC LVDC version of the 505 family.

The controller can be used for applications involving steam turbines, turbine-generators, and related turbine machinery. Woodward’s documentation also distinguishes the 9907-164 from the AC-powered 9907-162 and AC/DC 9907-163. This distinction matters during replacement: matching only the 505 family name is not sufficient when the existing cabinet requires a specific power architecture.

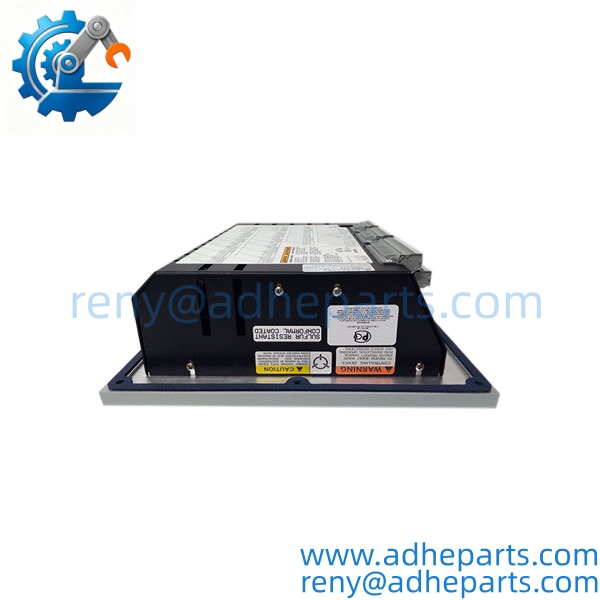

9907-164

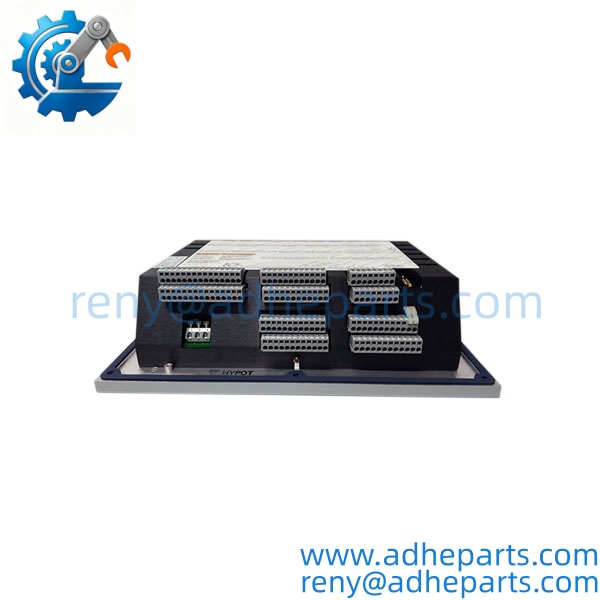

9907-164

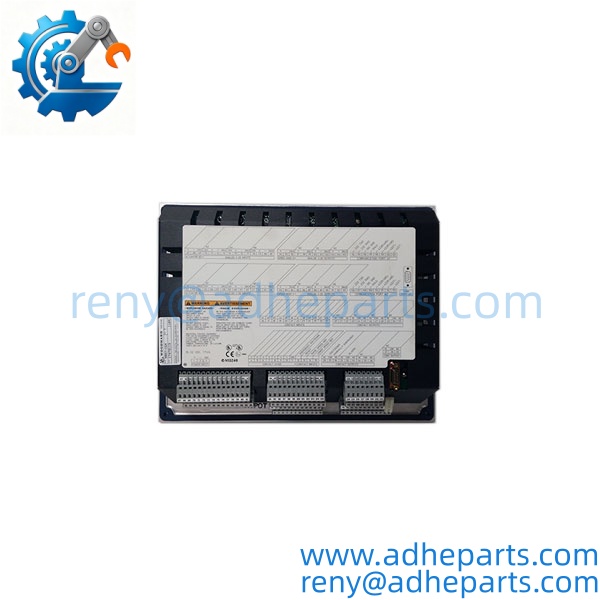

9907-164

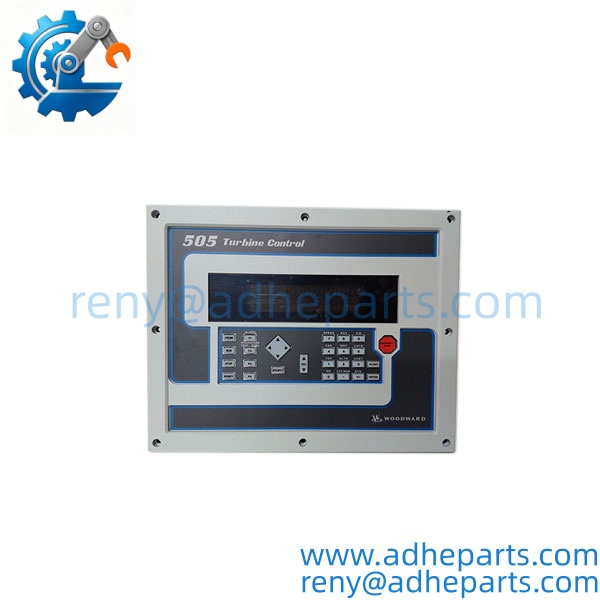

9907-164

9907-164

QC, Procurement & Logistics SOP

1. Inbound Verification

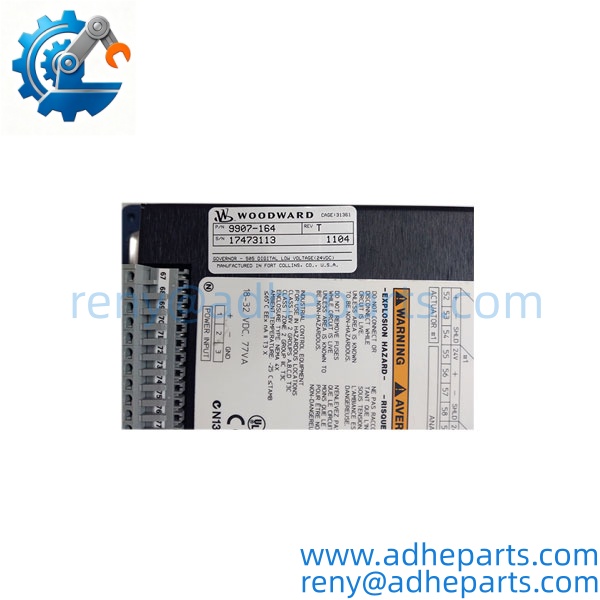

   Verify the complete 9907-164 part number, revision suffix, serial number, front-panel condition, keypad, display, connectors, and enclosure. For legacy equipment, photograph the complete nameplate before stock entry and confirm whether the unit carries the later conformal-coating revision.
2. Live Rig Testing
   Where a suitable 505 test setup is available, verify controller startup, keypad/display operation, diagnostic status, input channels, communication interface, and configuration access. For a replacement project, compare the existing turbine configuration before commissioning.
3. QA & Anti-Static Packaging
   Protect the controller against ESD, vibration, impact, and moisture. Use antistatic packaging around electronic interfaces and sufficient cushioning around the front-panel assembly. Photograph the unit and serial label before shipment.
4. Global Logistics & Export Compliance
   Confirm the appropriate HS classification according to the actual product description and destination requirements. Use shock-resistant export packaging and maintain identical model identification across the quotation, commercial invoice, packing list, and shipping documents.

Technical Pitfalls & Integration Warnings

1. Firmware / Revision Mismatch
   The 505 platform contains multiple hardware and software revisions. Woodward’s manual identifies different revision requirements and later conformal-coating changes for 9907-164 units. A replacement with a different revision may therefore require configuration or software verification before commissioning.
2. Configuration Errors
   The 9907-164 is a configurable turbine governor, not a generic PLC. Incorrect speed settings, actuator configuration, valve limits, control-loop parameters, or shutdown settings can affect turbine operation. Do not commission a replacement using default settings without comparing the installed controller’s configuration.
3. Power-Supply Incompatibility
   The 9907-164 requires 18–32 VDC. It should not be confused with the 9907-162, which uses 180–264 VAC, or the 9907-163, which accepts AC/DC power. Applying the wrong supply architecture is a serious replacement risk.
4. ESD During Unboxing
   Avoid opening antistatic packaging in an uncontrolled environment or touching connector contacts unnecessarily. Ground the technician and work surface before installation, particularly when handling a legacy controller whose internal electronics may no longer have the protection of its original packaging.

Frequently Asked Questions (FAQ)

1. What is the Woodward 9907-164 used for?
The 9907-164 is a 505 Digital Governor designed for steam-turbine control with single or split-range actuators. Woodward identifies it as an LVDC version of the 505 Digital Governor family.

2. What power supply does the 9907-164 use?
The official Woodward manual specifies 18–32 VDC for the 9907-164.

3. Is 9907-164 the same as 9907-163?
No. Both belong to the 505 Digital Governor family, but their power configurations are different. The 9907-164 is the LVDC version, while the 9907-163 is the AC/DC version.

4. Does the 9907-164 have Modbus communication?
Published technical data identifies an RS-232/RS-422 interface with Modbus protocol. Verify the exact communication configuration against the installed turbine-control system before replacement.

5. Is the 9907-164 still suitable for a new turbine installation?
Woodward’s product information indicates that the 9907-164 belongs to an older 505 generation and is not intended for new plant installations; newer Woodward 505-family products are available for new applications. For an existing installation, however, sourcing an exact legacy replacement can still be relevant.

6. Can the 9907-164 be directly replaced by a newer 505 controller?
Do not assume a direct replacement solely from the 505 product name. Power supply, enclosure, wiring, I/O configuration, software, turbine application, and commissioning requirements must be checked. Woodward identifies newer 505D products as upgrade paths for legacy 505 installations.

7. What should I provide when requesting a replacement?
Provide the complete 9907-164 part number, revision marking, nameplate photo, quantity, destination, and—if available—the existing controller configuration. For a running turbine, information about the actuator arrangement and existing 505 configuration is also useful for compatibility checking.
