Product Introduction
When your MOOG high-precision servo motion control system needs ultra-stable and ultra-fast motion control performance to ensure the accuracy and repeatability of high-precision motion equipment, this module acts as the core algorithm processing and control hub of the entire servo system.
It features a dedicated 32-bit high-speed motion processor with microsecond-level control loop response capability, supporting complex multi-axis synchronous motion control algorithms. Its built-in industrial-grade ESD protection and wide-temperature design ensure stable operation in harsh industrial environments, perfectly meeting the strict motion control requirements of high-end industrial and aerospace fields.

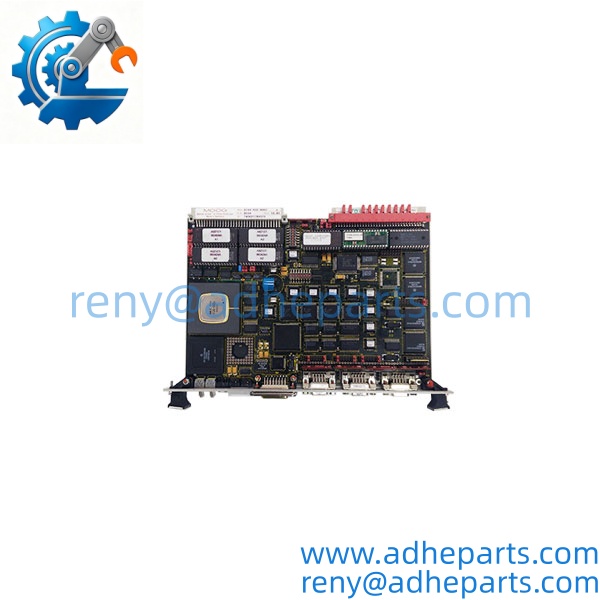

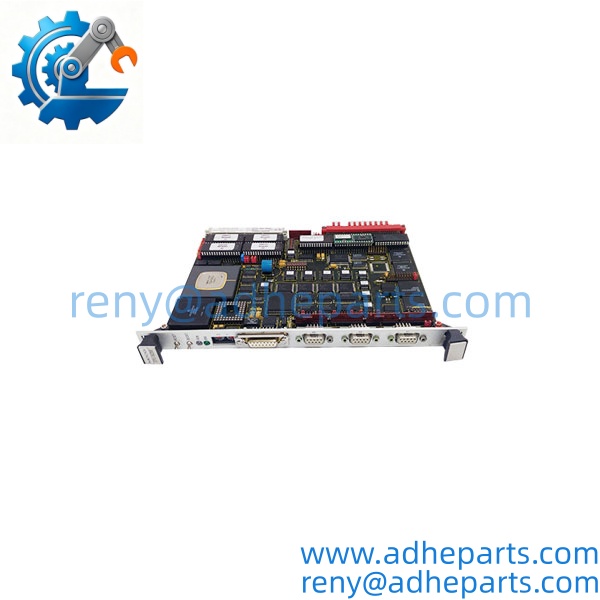

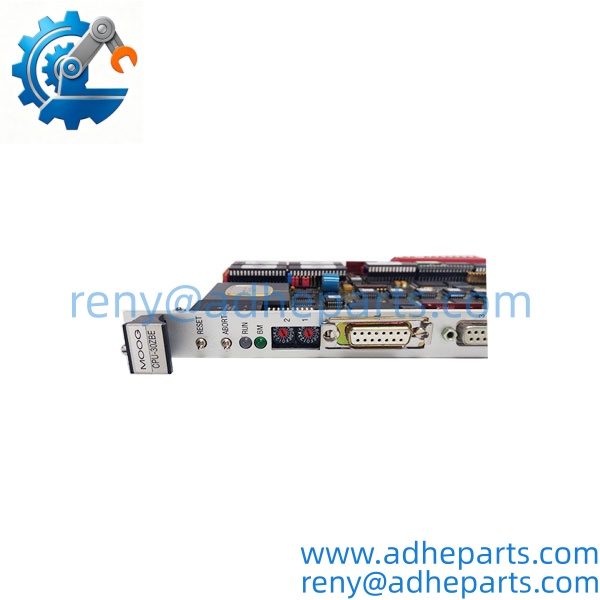

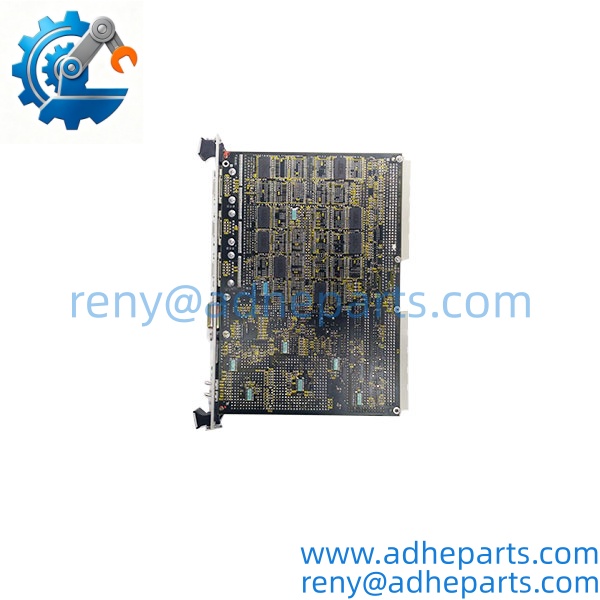

CPU-30ZBE D143-502-A002
CPU-30ZBE D143-502-A002
CPU-30ZBE D143-502-A002
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | CPU-30ZBE D143-502-A002 |
| Product Type | Servo Motion Control CPU Module |
| Brand | MOOG |
| Core Processor | 32-bit dedicated high-speed motion control processor |
| Control Loop Response | Microsecond-level ultra-fast closed-loop processing |
| ESD Protection | Built-in industrial-grade ESD protection for all signal ports |
| Operating Temperature Range | -10°C ~ +60°C |
| Installation Method | Standard MOOG servo system rack slot plug-in mounting |
| Compatible Systems | MOOG G761/G760 series servo valve control systems, industrial precision motion platforms |
| Application Scenarios | Aerospace test bench control, precision machine tool motion control, material testing system drive |
| Net Weight | ~550g |
| Protection Rating | IP20 when fully installed |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Aerospace Vibration Test Bench Control: Acts as the core motion control unit for aerospace high-frequency vibration test benches, providing ultra-fast closed-loop control signals for MOOG high-response servo valves, ensuring the test bench accurately reproduces the specified vibration spectrum.
- **Precision CNC Machine Tool Motion Control: Delivers stable high-precision multi-axis synchronous motion control for high-end precision CNC machine tools, ensuring the machine tool achieves micron-level machining accuracy.
- **High-Performance Material Testing Machine Control: Adapts to high-precision material testing scenarios, providing precise load and displacement closed-loop control for material fatigue testing machines, ensuring test data accuracy.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never directly touch the PCB circuit board without proper anti-static wrist strap protection. The third high-speed signal channel’s dedicated motion processing chip will experience permanent ESD damage that completely disables the control function.
- ⚠️ Bold Warning 2: Skipping the pre-installation full motion control loop auto-tuning will leave you with hidden servo system oscillation risk. This unit must complete full-axis parameter auto-tuning to ensure the motion control loop achieves stable and high-precision performance.
- ⚠️ Bold Warning 3: Do not install the module in a servo system slot that does not match the backplane bus specification. The system will experience signal bus conflict that causes the entire motion control system to crash.
A precision machine tool manufacturing plant maintenance team once swapped a CPU-30ZBE D143-502-A002 module and skipped the motion loop auto-tuning. The hidden parameter mismatch caused the machine tool feed axis to experience unexpected high-frequency oscillation, resulting in over $40,000 in precision spindle damage losses.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against MOOG’s official motion control part registry, confirm the part number CPU-30ZBE D143-502-A002 matches the factory label, and inspect no bent pins or corrosion on all signal and backplane connectors.
- Live Rig Testing: Power the unit in a calibrated MOOG servo system test bench, apply standard power supply, and confirm full motion control algorithm processing stability for 2 continuous hours.
- Parameter Testing: Verify all motion control channels operate correctly, confirm microsecond-level loop response performance meets factory specifications, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the servo motion system is running? No. You must first shut down all servo axes and cut off the module power supply before removing the unit, otherwise you will trigger unexpected servo runaway risks.
- What exact systems is this module compatible with? It works natively with MOOG G761/G760 series servo valve control systems and MOOG dedicated motion control platforms. It will not operate correctly with non-MOOG servo systems without custom control algorithm adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by ESD impact, miswiring, or improper servo parameter configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine MOOG CPU-30ZBE D143-502-A002 modules have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full microsecond-level motion control loop performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official MOOG factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older MOOG legacy motion control CPU unit? Well, technically it fits the same servo system rack slot footprint, but you will need to reconfigure all motion control loop parameters in the MOOG servo configuration software to unlock the full high-speed control performance.
