GE Fanuc IC693CPU374 | Series 90-30 Processor, Replacement Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the label on your existing module before ordering. Memory configuration and firmware revision govern compatibility.

4. Product Introduction

The GE Fanuc IC693CPU374 is a high-performance CPU module for the Series 90-30 PLC platform. It executes the control program, scans the local and expansion I/O, and manages communication through its integrated Ethernet port and serial ports. It is the processor that runs the machine or process logic in a 90-30 system.

The engineering value is the integrated Ethernet. Older 90-30 CPUs required a separate Ethernet module in the rack. The IC693CPU374 puts the Ethernet port on the CPU itself, which frees a slot for I/O and reduces the number of modules in the system. In my experience, that matters in a compact panel where every slot counts. The 240 KB user memory is enough for most machine-level and process-level applications, and the SRTP protocol supports programming, HMI communication, and peer-to-peer data exchange over the plant network.

Two things decide whether a swap works. First, the firmware revision. The CPU firmware must match the version your project was compiled for, or the program may not download or run correctly. Second, the rack power budget. The CPU draws backplane current from the rack power supply, and an undersized supply will cause brownout faults that look like CPU failures.

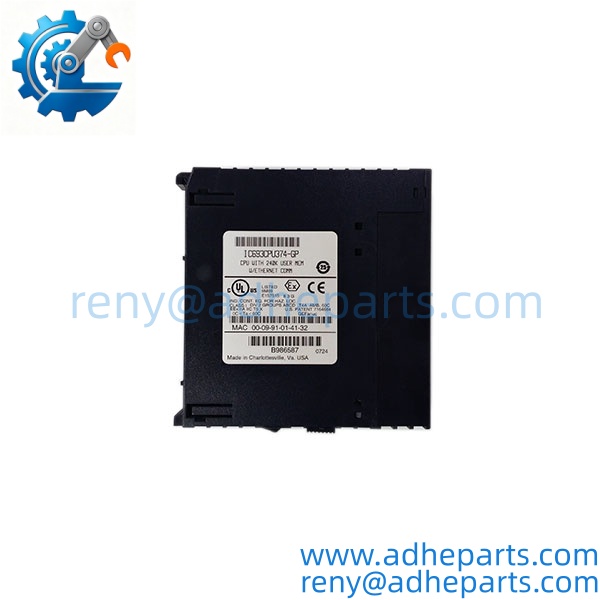

IC693CPU374

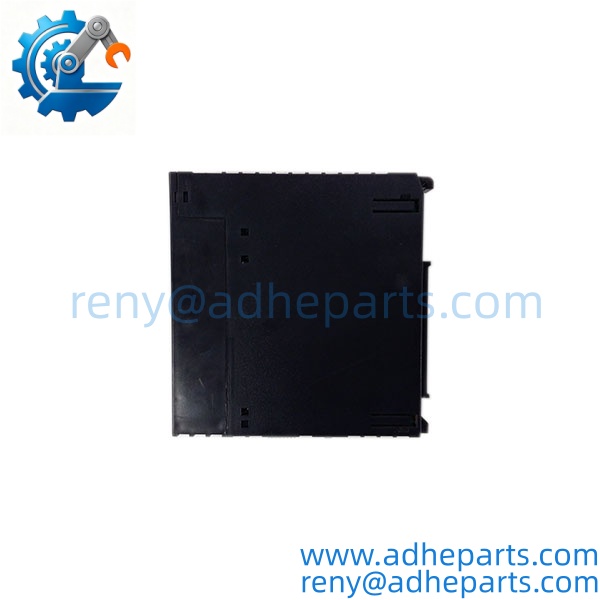

IC693CPU374

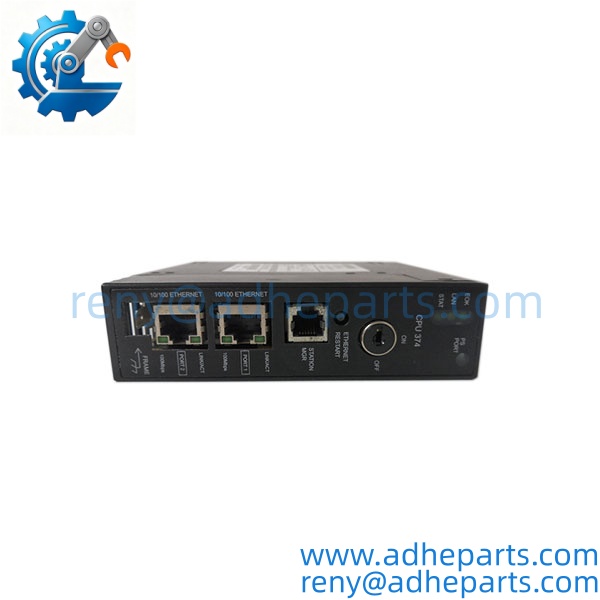

IC693CPU374

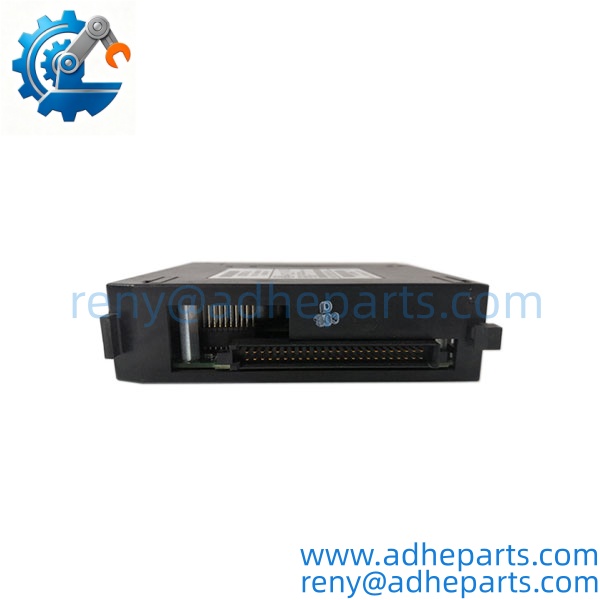

IC693CPU374

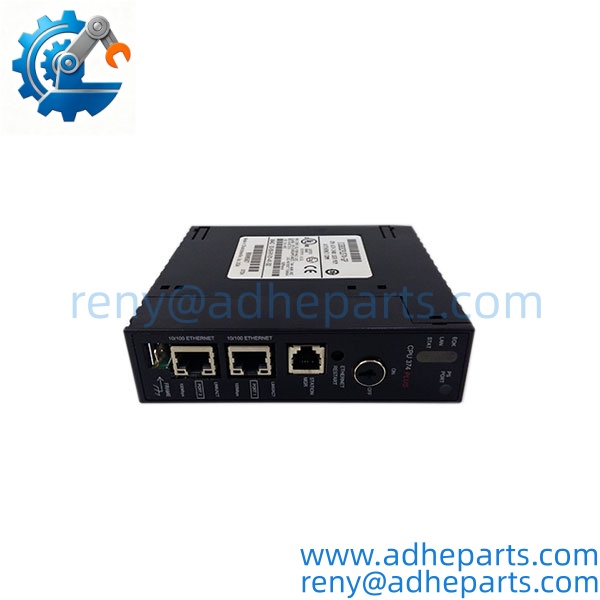

IC693CPU374

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that hurts most on a 90-30 CPU is not a dead processor — it is a CPU that runs but loses its program on power loss. The lithium backup battery holds the RAM contents when the rack loses power. When that battery reaches end of life, the program is lost on the next outage, and the machine will not restart until someone downloads the project. I have seen a plant lose a full shift because the battery died and no one had the project file. When you replace a 90-30 CPU, record the battery date code and replace it on schedule. That is the preventive step that keeps the line running.

Part 2 – Numbered List (Application Scenarios)

1. Packaging Machinery – Line Control – The CPU runs the machine sequencing, interlocks, and HMI communication. The integrated Ethernet port connects to the operator panel and the plant network without an additional module.
2. Material Handling – Conveyor and Sortation Control – Used to control conveyor zones, diverters, and sortation logic. The 240 KB memory handles the I/O count and the logic for a typical distribution center conveyor system.
3. Water Treatment – Pump Station Control – The CPU executes the pump sequencing and the level control logic. The Ethernet port carries data to the SCADA system, and the serial port connects to a legacy radio or modem.
4. Machine Tools – Cell Controller – Used as the cell controller for a machining or assembly cell. The CPU coordinates the machine tools, the robots, and the part transfer equipment over the plant network.

Part 3 – Short Field Story

A bottling plant in the Midwest had a 90-30 line that would not restart after a weekend power outage. The maintenance team found the CPU in a fault state with no program. The battery had died months earlier and the program was lost. The plant had a backup of the project on an old programming terminal, but it took most of a shift to locate the terminal and download the program. The line ran again, but the plant replaced the CPU battery on every 90-30 processor after that and stored the project files on the plant network. The CPU had been fine — the battery was the problem.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the GE Fanuc marking, the IC693CPU374 model string, and the date code. We inspect the backplane connector for bent pins and the Ethernet and serial connectors for damage. A module with a cracked connector shroud or evidence of moisture ingress is rejected.
• Revision and Firmware Documentation – We read and photograph the full model string, the firmware revision, and the battery date code. That record ships with the module so you can compare it against the unit you are replacing.
• Battery Verification – We measure the onboard lithium cell under load. A cell reading below the OEM minimum is replaced before shipping, and the new date code is recorded on the test sheet.
• Backplane Fit Verification – Each module is seated in a Series 90-30 test rack to confirm the connector engages fully and the retention mechanism holds. A module that fits loosely will cause intermittent backplane faults in the field.
• Power-Up Self-Test – The module is powered in a live rack and we verify it completes its boot sequence, the Run LED indicates normal operation, and the processor reports no configuration error.
• Ethernet Communication Test – We verify the Ethernet port with a loopback and confirm link and throughput. We also verify the SRTP communication with a test programming terminal.
• Serial Port Test – We verify both serial ports with a loopback at the supported baud rates.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Will my existing 90-30 program load into this CPU?

A: Only if the firmware revision matches or is compatible with the project. The program and the hardware configuration are tied to the CPU model and firmware version. If your project was built for a different 90-30 CPU, you must update the hardware configuration in the programming software before you download. Pull your existing project file before you remove the old CPU — that file is your recovery path.

Q2: What is the difference between the IC693CPU374 and the IC693CPU364?

A: Both are 90-30 CPUs with Ethernet, but they differ in processor speed and memory. The IC693CPU374 is the higher-performance module with more user memory. If you are replacing a 364 with a 374, verify that your project does not rely on a specific memory size or firmware feature that differs between the two. Match the firmware revision if possible.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers processor failure, backplane connector failure, Ethernet port failure, and serial port failure under normal operating conditions. It does not cover damage from hot-swapping the module with the rack energized, bent pins from forced insertion, or ESD damage from handling without a wrist strap. The lithium backup cell is a consumable — we install a fresh one before shipping but do not warranty its capacity beyond 30 days.

Q4: Do you have this in stock?

A: Series 90-30 inventory moves and varies by revision. Confirm availability before you plan an outage. If we are out of the revision you need, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the rack before inserting or removing the CPU. These modules are not hot-swap capable. Second, verify the rack power supply is sized for the full load — an undersized supply causes brownout faults that look like CPU failures. Third, record the firmware revision and the battery date code from the old CPU before you remove it. Fourth, after the swap, verify the program is loaded, the Ethernet communication is working, and the I/O is scanning before you return the line to production. A CPU that powers up is not necessarily running the process correctly.
