3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Catalog Number | 1747-L541 |
| Processor Type | SLC 5/04 |
| User Memory | 16K words |
| Max Discrete I/O | 4096 inputs + 4096 outputs |
| Max Analog I/O | 480 points |
| Communication Ports | DH+ (Data Highway Plus) and RS-232 |
| Typical Program Scan Time | 0.9 ms per K word |
| Typical I/O Scan Time | 0.225 ms |
| Max Local Chassis | 3 chassis / 30 slots |
| Backplane Current | 1 A @ 5 V DC |
| Programming Software | RSLogix 500 |
| Keyswitch | RUN / REM / PROG |
4. Product Introduction (Anti-Template)
The 1747-L541 is the 16K-memory version of the Allen-Bradley SLC 5/04 processor. It installs in slot 0 of any SLC 500 modular chassis and serves as the central controller for the system.
It offers significantly faster communication than the earlier SLC 5/03 through its built-in DH+ port, while retaining a standard RS-232 port for programming, DF1, DH-485, Modbus RTU master, or ASCII devices. The processor supports up to 4096 discrete inputs and outputs plus 480 analog points across a maximum of three local chassis. Program execution is typically 0.9 ms per thousand words. Although Rockwell discontinued the SLC 500 family, the 1747-L541 remains widely used in existing installations and is still actively supported through surplus and repair channels.

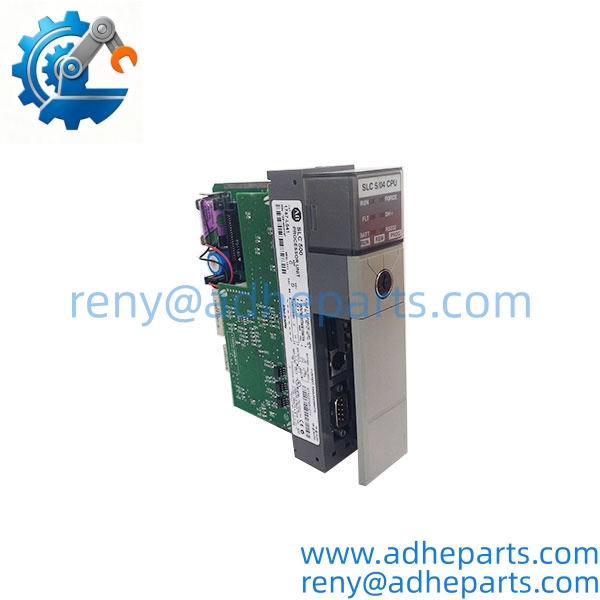

1747-L541

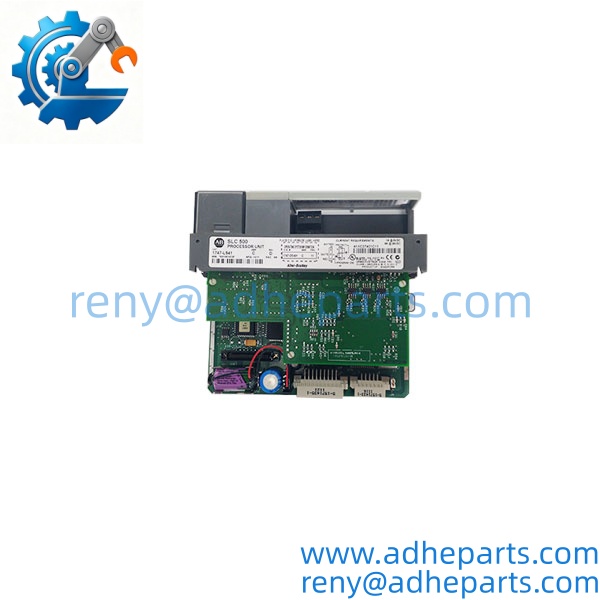

1747-L541

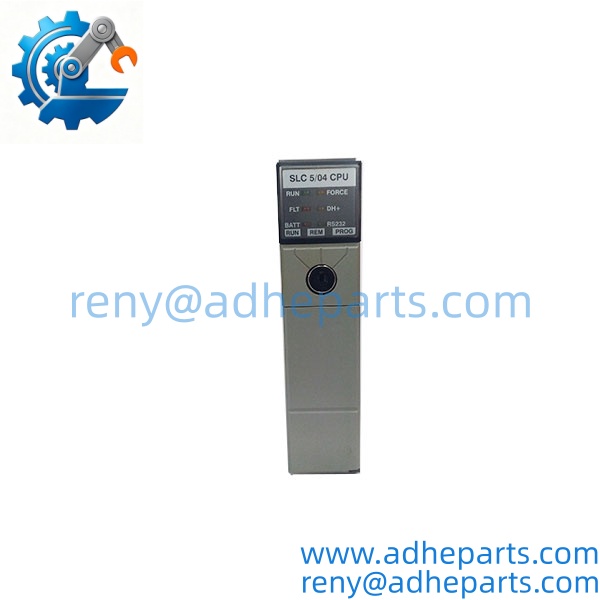

1747-L541

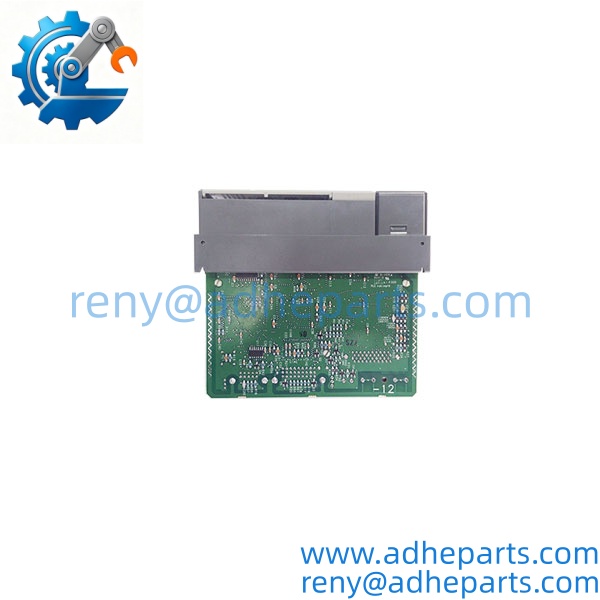

1747-L541
5. QC, Procurement & Logistics SOP
- Inbound Verification – Confirm full catalog number (1747-L541), series/revision letter, keyswitch operation, and LED condition. Photograph all labels.
- Live Rig Testing – Install in a compatible SLC 500 chassis, apply power, verify keyswitch modes, battery status, DH+ and RS-232 communication, and basic program load/run capability.
- QA & Anti-Static Packaging – After functional inspection, protect the backplane connector and communication ports, clean the module, and seal in anti-static packaging with desiccant.
- Global Logistics & Export Compliance – Classify under the correct HS code for PLC processor modules. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Memory Module Confusion – Optional 1747-M memory modules provide program backup only; they do not expand the processor’s working 16K user memory.
Battery Maintenance – The lithium battery (1747-BA) maintains RAM during power loss. A low or failed battery will cause program loss on power cycle.
Chassis and Power Supply – Ensure the chassis power supply can support the 1 A @ 5 V draw of the processor plus all I/O modules.
Firmware and Software – Use a compatible version of RSLogix 500. Mixing very old and newer OS series can cause compatibility issues.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for a verified 1747-L541?
Surplus and refurbished units are commonly available. Typical lead time after verification is 1–7 business days plus standard shipping.
What is the memory size of the 1747-L541?
16K words of user memory.
What communication ports does it have?
Built-in Data Highway Plus (DH+) and RS-232.
Is the 1747- still in production?
No. Rockwell Automation discontinued the SLC 500 processors (including the 1747-) at the end of 2021. It is now a legacy/spare part.
What software is used to program it?
RSLogix 500.
How many I/O points can it control?
Up to 4096 discrete inputs and 4096 discrete outputs, plus up to 480 analog points.
What is the difference between , L542, and L543?
All are SLC 5/04 processors. The difference is memory size: = 16K, L542 = 32K, L543 = 64K words.
