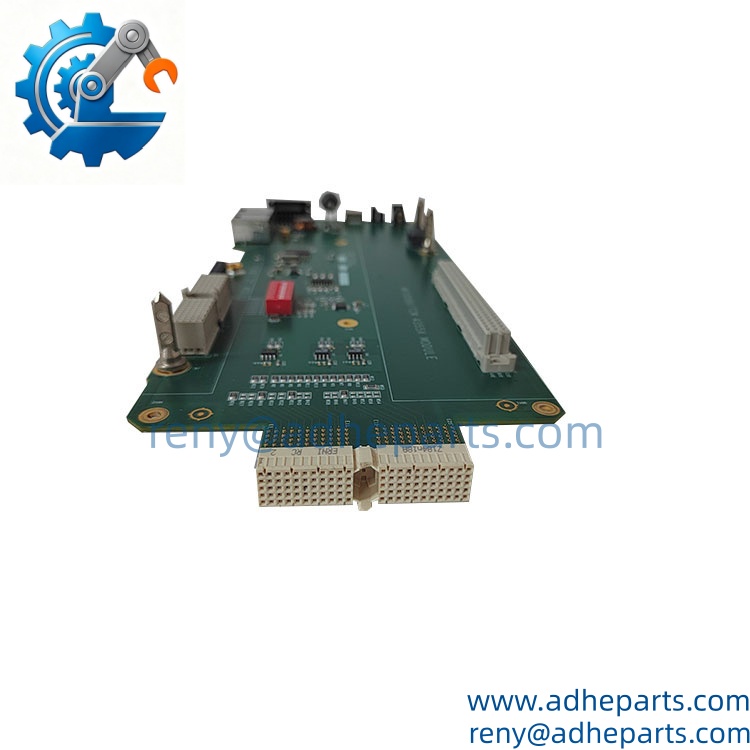

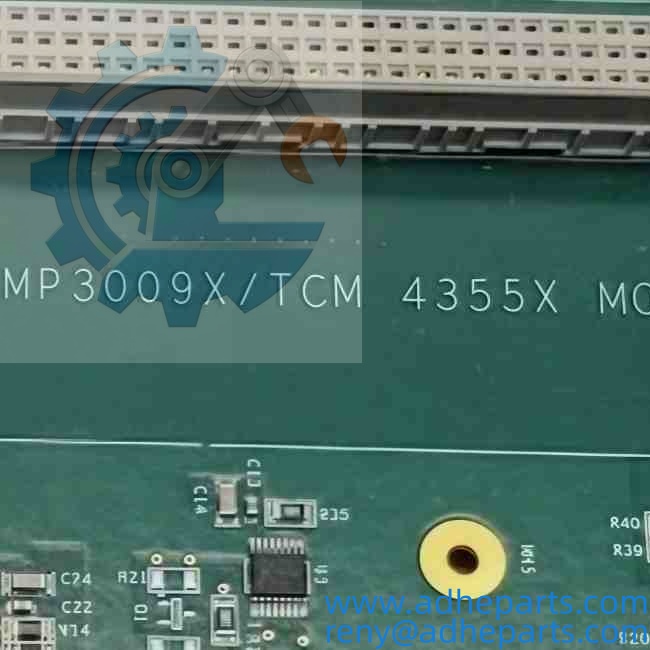

TRICONEX MP3009X/TCM 4355X
TRICONEX MP3009X/TCM 4355X
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Architecture | Triple Modular Redundant (TMR) |
| Processor | Dual-core QorIQ P1021, approx. 800 MHz |
| Memory | 256 MB DRAM + 2 MB battery-backed SRAM + 128 MB Flash |
| TriBus Speed | Up to 25 Mbps (standard chassis) / 1000 Mbps (enhanced) |
| Communication Ports (TCM) | Dual Ethernet (copper/fiber options) + serial RS-232/485 |
| Supported Protocols | TriStation, Modbus TCP/IP, Modbus RTU, TSAA, Peer-to-Peer |
| Hot-Swap Capability | Yes |
| Safety Rating | SIL 3 (IEC 61508 / IEC 61511) |
| Operating Temperature | 0 °C to 60 °C (typical) |
| Chassis Compatibility | Tricon main chassis (Models 8110 / 8120E) |
| Power | Backplane powered |
4. Product Introduction (Anti-Template)
When a safety system must keep running after a single-channel fault, the MP3009X forms the core of the Tricon TMR solution. Three independent Main Processors execute the same logic, vote on every result, and continue operation even if one channel fails. The paired TCM 4355X adds the external communication layer, giving the controller Ethernet and serial links for TriStation engineering access, Modbus integration, and peer-to-peer data exchange.
The combination supports Tricon v9 through v11 systems. The MP3009X handles high-speed TriBus traffic and large application memory, while the TCM 4355X manages deterministic outbound communications without compromising the safety integrity of the voting processors. Both modules are designed for online replacement so maintenance does not force a process shutdown.

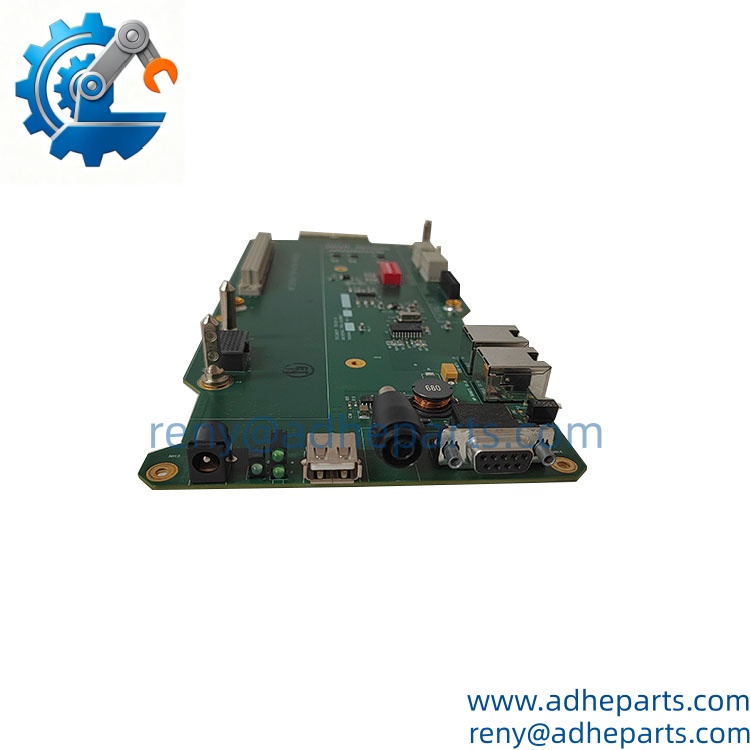

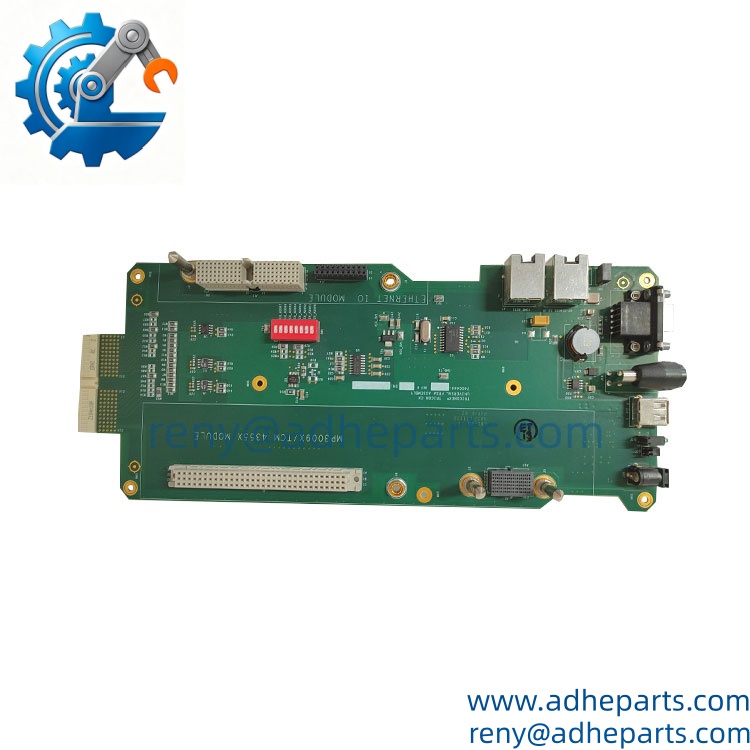

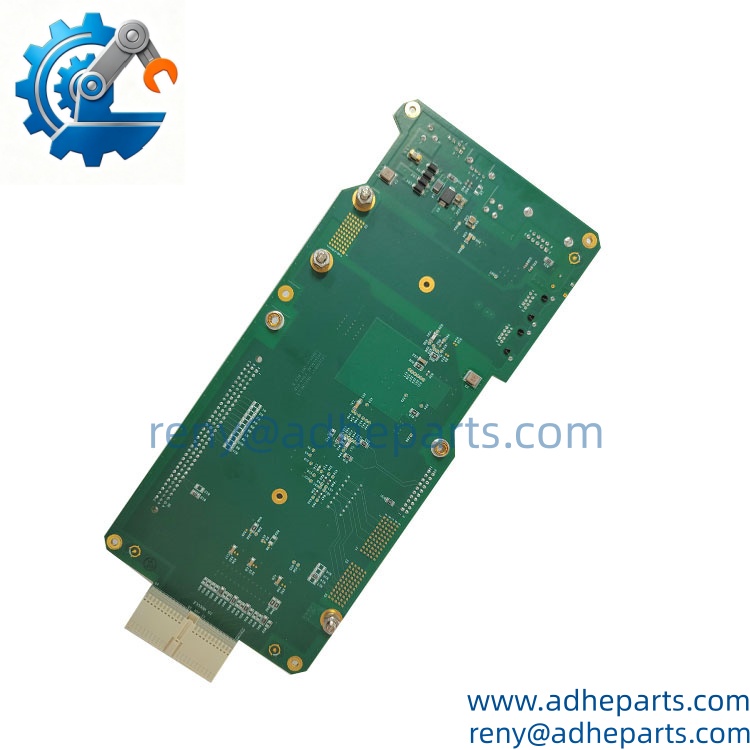

TRICONEX MP3009X/TCM 4355X
TRICONEX MP3009X/TCM 4355X
5. QC, Procurement & Logistics SOP
- Inbound Verification – Origin is confirmed against Triconex/Schneider manufacturing records. Module faceplates, revision labels, connector condition, and key component markings are photographed and logged.
- Live Rig Testing – Modules are installed in a compatible Tricon chassis, powered, and verified for TMR synchronization, TriBus communication, Ethernet/serial link status, and basic diagnostic self-tests.
- QA & Anti-Static Packaging – After functional pass, edge connectors are inspected, modules are cleaned, and each is sealed in anti-static shielding with desiccant and humidity indicator.
- Global Logistics & Export Compliance – Classified under the correct HS code for industrial safety-control modules. Packaging is rated for air and sea freight vibration; export documentation is prepared to minimize customs delays.
6. Technical Pitfalls & Integration Warnings
Chassis & Firmware Mismatch – Installing MP3009X modules into an unsupported older chassis or mixing them with incompatible firmware revisions can prevent TriBus synchronization or limit communication speed. Always match the chassis model (8110 vs 8120E) and system version.
TMR Channel Imbalance – Replacing only one MP without verifying the other two channels can leave the system in a degraded voting state. All three Main Processors should be at the same hardware and firmware revision level.
Communication Port Configuration – Incorrect TCM 4355X Ethernet or serial settings (speed, duplex, protocol mapping) isolate the controller from the engineering workstation or DCS. Validate port configuration in TriStation before returning the system to service.
Hot-Swap Procedure Errors – Although the modules support online replacement, improper sequencing or failure to follow the Tricon maintenance procedure can force a channel fault or temporary loss of communications. Follow the official hot-swap steps exactly.
7. Frequently Asked Questions (FAQ)
What is the realistic global lead time for verified MP3009X / TCM 4355X modules?
Stock units normally ship within 1–3 business days after payment clearance. Air freight to major industrial regions typically adds 3–8 days once customs processing is complete.
Are these modules hot-swappable?
Yes. Both the Main Processor and the TCM support online replacement in a properly configured Tricon system, allowing maintenance without a full shutdown.
What safety integrity level do they support?
SIL 3 per IEC 61508 and IEC 61511 when used in a correctly engineered and maintained TMR Tricon system.
Which Tricon versions are compatible?
Primarily Tricon v9, v10, and v11 systems. Confirm exact chassis and firmware compatibility before installation.
What external protocols does the TCM 4355X support?
TriStation, Modbus TCP/IP, Modbus RTU, TSAA, and peer-to-peer communications are commonly supported. Exact capabilities depend on system configuration.
How many Main Processors are required?
A complete TMR system uses three MP3009X modules—one for each independent channel.
Can the modules be mixed with older 3008 processors?
Mixing different Main Processor generations is not recommended and is often restricted by system firmware. Upgrade all three channels together for full compatibility and performance.
