Product Introduction
When your ABB ACS6000/ACS8000 medium-voltage high-power drive system needs ultra-reliable IGCT precise drive performance to ensure the stable operation of large high-power motor speed regulation equipment, this module acts as the core gate drive control hub between the drive main control unit and the high-power IGCT power device.
It features full fiber-optic signal transmission design, completely eliminating electromagnetic interference in high-power industrial sites, ensuring the gate drive signal is transmitted accurately and reliably. Its built-in multi-layer protection functions including overcurrent, overvoltage, short-circuit (DESAT) and thermal monitoring, can quickly respond to power device fault states, effectively protecting the expensive high-power IGCT module from permanent damage. The ultra-wide operating temperature design perfectly adapts to harsh industrial site environments.
GVC700AE01

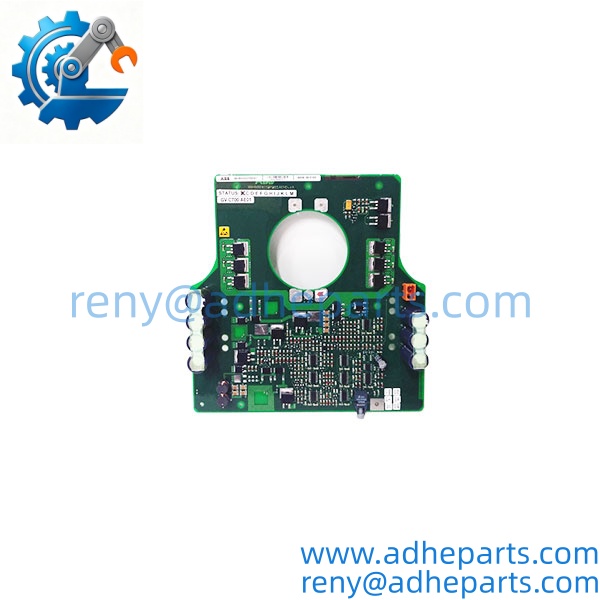

GVC700AE01

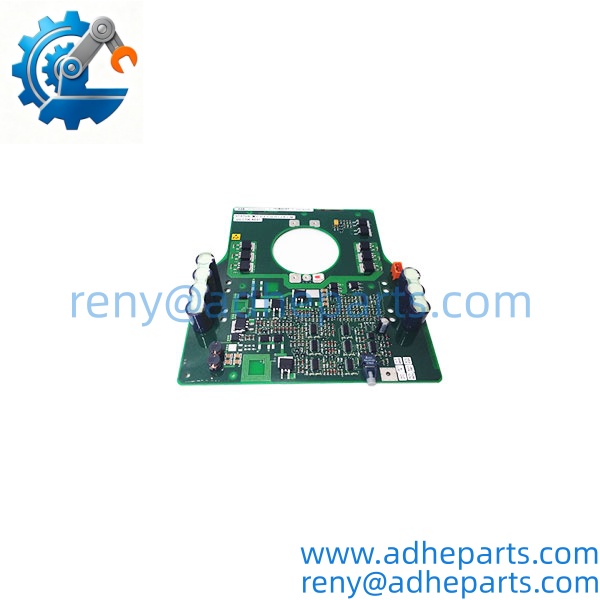

GVC700AE01
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | GVC700AE01 (3BHB004027R0101) |
| Product Type | IGCT Gate Drive Control Unit |
| Compatible Systems | ABB ACS6000, ACS8000 Medium-Voltage High-Power Drive Systems |
| System Voltage Rating | Up to 6.5 kV |
| Continuous Current Capacity | 1150 A |
| Max Switching Frequency | Up to 2 kHz |
| Drive Power Supply Voltage | 24 V DC |
| Communication Mode | Fiber-optic signal transmission (full electrical isolation) |
| Cooling Method | Water-cooled (matched with power module) |
| Operating Temperature Range | -40°C ~ +70°C |
| Protection Features | Overcurrent, overvoltage, DESAT short-circuit, thermal monitoring |
| MTBF | > 100,000 hours |
| Energy Efficiency Optimization | Reduces drive system power consumption by up to 15% |
| Installation Method | Standard ABB medium-voltage drive power unit slot mounting |
| Net Weight | ~0.1 kg |
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Large Mine Conveyor Medium-Voltage Drive Control: Acts as the core IGCT drive unit for ABB ACS6000 medium-voltage frequency converters in large mines, providing precise drive control for high-power mine conveyor motors, ensuring the stable and reliable operation of the conveyor system.
- **Petrochemical Large Compressor Speed Regulation: Delivers reliable high-power drive performance for petrochemical large centrifugal compressor medium-voltage speed regulation systems, adapting to explosive and high-corrosion industrial site environments, meeting the continuous operation requirements of 24/7 production.
- **Metallurgical Rolling Mill Main Drive Control: Adapts to high-vibration and high-temperature metallurgical workshop environments, providing ultra-high-response IGCT drive control for rolling mill main drive motors, ensuring the precision and stability of the rolling process.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never directly touch the high-voltage power terminals of the IGCT module without confirming the DC bus is fully discharged. The residual voltage on the capacitor will cause severe electric shock hazard and permanent damage to the gate drive circuit.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full fiber-optic signal path test will leave you with hidden drive signal dead zones. This unit must confirm all fiber-optic signal transmission is normal before powering on the high-voltage main circuit.
- ⚠️ Bold Warning 3: Do not replace the IGCT module without completing the gate drive signal waveform verification. The abnormal drive pulse width will cause the IGCT device to experience excessive turn-off loss, resulting in permanent power device burnout.
A large steel plant maintenance team once swapped a GVC700AE01 unit and skipped the drive waveform verification. The hidden abnormal gate drive pulse caused the IGCT device to experience overheating damage, resulting in a 3-hour rolling mill production line downtime that cost over $45,000 in lost production revenue.
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against ABB’s official medium-voltage drive part registry, confirm the part number GVC700AE01 (3BHB004027R0101) matches the factory label, and inspect no damage or deformation on all fiber-optic interfaces and power connectors.
- Live Rig Testing: Power the unit in a calibrated ABB ACS6000 drive test bench, apply 24V DC power, and confirm full 2-hour continuous stable drive signal output operation.
- Parameter Testing: Verify all gate drive signal waveforms meet factory specifications, confirm overcurrent/short-circuit protection functions trigger correctly, and validate all status LED indicators function properly.
- Final QA & Packaging: Seal the tested unit in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.
Frequently Asked Questions (FAQ)
- Can I hot-swap this unit while the medium-voltage drive system is running? No. You must first shut down the high-voltage main circuit, confirm the DC bus is fully discharged, and cut off the 24V DC drive power supply before removing the unit, otherwise you will trigger severe high-voltage safety hazards.
- What exact systems is this unit compatible with? It works natively with ABB ACS6000 and ACS8000 medium-voltage high-power drive systems. It will not operate correctly with non-ABB medium-voltage drive platforms without custom drive circuit adaptation.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by high-voltage electric shock, miswiring, or improper IGCT device matching in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine ABB GVC700AE01 units have a laser-etched part number on the PCB, not a printed sticker. Clone units almost always fail the full gate drive signal waveform accuracy test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official ABB factory performance test documentation, add 2 extra business days to the turnaround window.
- Can this unit directly replace the older ABB legacy IGCT gate drive unit? Well, technically it fits the same power unit slot footprint, but you will need to re-verify the gate drive signal waveform parameters in the drive system software to ensure it matches the corresponding IGCT device model.
