ABB DDC779BE02 | 12-Pulse Firing Control Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Key Technical Specifications

ABB’s PCS6000 service manual lists DDC779BE02 under the replaceable DRU control components and specifically identifies its component name as 12-Pulse Firing Board. The same table lists a dedicated replacement procedure for this board, confirming that it is a field-replaceable PCS6000 control component.

Product Introduction (Anti-Template)

Operating as the 12-pulse firing control board within an ABB PCS6000 Drive Rectifier Unit, the DDC779BE02 HIEE400106R0001? [Note: this product’s correct ABB order number is 3BHE006805R0002] handles the firing-control function required by the converter’s power semiconductor stage. ABB’s PCS6000 service documentation specifically identifies DDC779BE02 as the 12-Pulse Firing Board, making the board’s actual application much more specific than generic descriptions of it as an ABB CPU or I/O module.

The board should therefore be procured as a power-converter control spare, not as an AC 800M controller replacement. Public listings contain conflicting descriptions of this part, including AC 800M CPU and generic digital-I/O classifications. The ABB service documentation provides the stronger identification and should take priority when determining application.

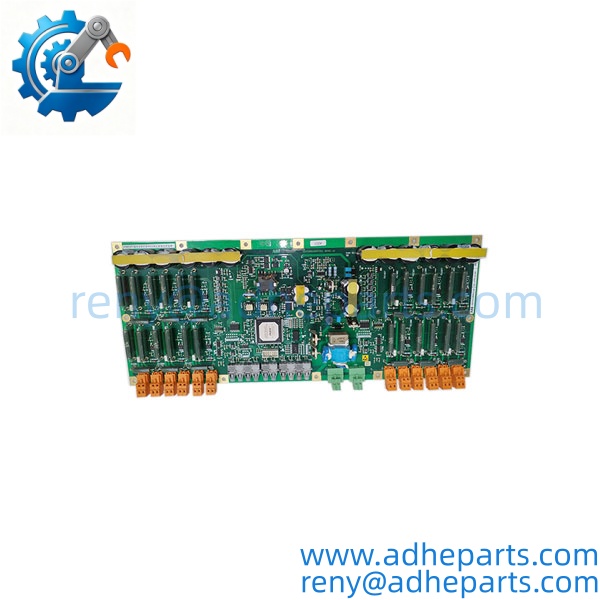

DDC779BE02

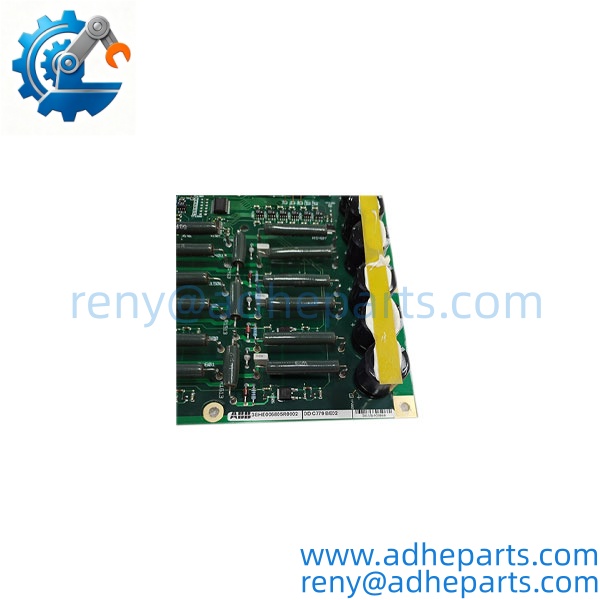

DDC779BE02

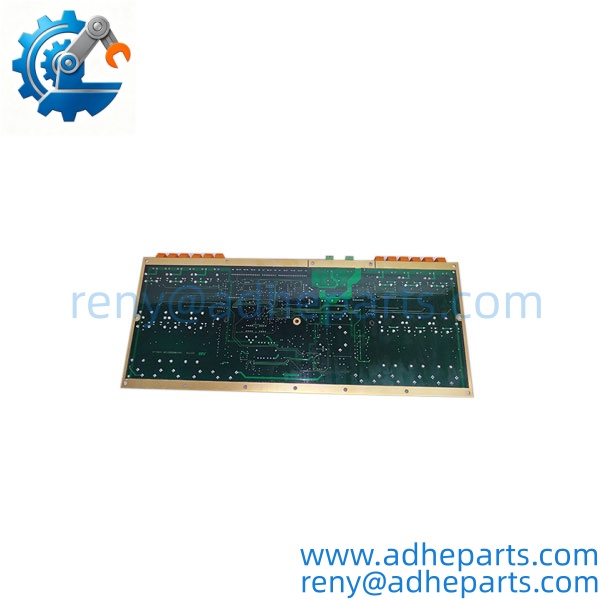

DDC779BE02

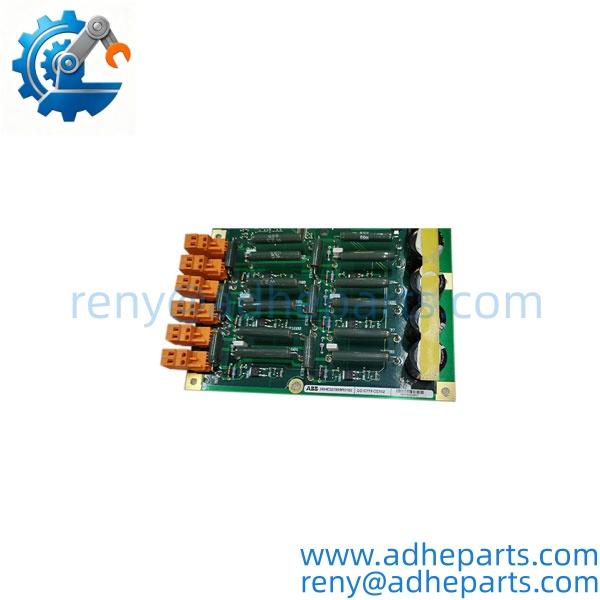

DDC779BE02

QC, Procurement & Logistics SOP

1. Inbound Verification
   Verify the PCB marking DDC779BE02, ABB order number 3BHE006805R0002, hardware revision, serial information, and connector condition. Compare the board with the customer’s installed board before shipment.
2. Live Rig Testing
   Where a compatible test environment is available, verify board power-up, diagnostic status, communication with the associated control system, and firing-control interface behavior. Do not attempt a standalone high-power firing test without the proper test equipment and safety procedures.
3. QA & Anti-Static Packaging
   Inspect the PCB for corrosion, damaged components, bent connectors, contamination, and previous repair marks. Record the board identification and use ESD-safe packaging. Protect connectors and PCB edges from impact during transportation.
4. Global Logistics & Export Compliance
   Confirm the exact system configuration and board revision before dispatch. Use rigid anti-static packaging for international air or sea freight. Commercial documentation should describe the item accurately as an ABB 12-pulse firing/control board.

Technical Pitfalls & Integration Warnings

1. Firmware / Control Configuration Mismatch
   A firing board is not a generic replacement PCB. The DDC779BE02 works as part of a specific converter control architecture. Replacing it without checking the associated control configuration can result in incorrect firing behavior or failure to start the converter.
2. Board Revision Mismatch
   The complete ABB part number 3BHE006805R0002 should be matched before ordering. Do not assume another DDC779-family board is interchangeable simply because the basic DDC779 designation is similar. service documentation should be checked against the customer’s exact converter configuration.
3. Wiring / Pulse-Interface Incompatibility
   Firing-control circuitry interfaces directly with the converter’s power-electronics control system. Connector positions, pulse interfaces, and associated control wiring must match the original installation. Never infer terminal assignments from another ABB DDC-series board.
4. ESD and Uncontrolled Energization
   ESD damage can occur before installation, while incorrect handling during replacement can create additional risks around converter control hardware. The converter should be fully isolated and discharged according to the site’s electrical safety procedure before the board is removed or installed.

Frequently Asked Questions (FAQ)

Q1. What is ABB 3BHE006805R0002?
It is an ABB 12-pulse firing board used in the Drive Rectifier Unit control system. ABB’s service manual explicitly lists under the replaceable DRU control components.

Q2. Is an AC 800M CPU?
No. Although some third-party listings incorrectly describe the part as an AC 800M processor, ABB’s service documentation identifies as a 12-Pulse Firing Board.

Q3. What system uses the ?
The documented application is the power-converter system, specifically the Drive Rectifier Unit (DRU).

Q4. Is interchangeable with another DDC779 board?
Do not assume interchangeability. The exact ABB order number, board revision, converter configuration, and associated control hardware should be checked before substitution.

Q5. Can the board be replaced in the field?
Yes. ABB’s service documentation includes in the list of DRU control components replaceable by the customer. The actual replacement must follow the site’s electrical isolation and service procedure.

Q6. What information should I provide when requesting this board?
Provide , 3BHE006805R0002, a photograph of the installed board label, the system/drive identification, and the board revision if visible. This is particularly important because public listings for this part contain conflicting technical descriptions.

Q7. What should be checked before international shipment?
Confirm the complete part number, board revision, physical condition, connector configuration, and application. For a high-power converter spare, packaging should protect the PCB against ESD, vibration, moisture, and connector damage during international transport.
