Product Introduction (Anti-Template)
Speed-sensor signals in turbine control cabinets cannot simply be treated as ordinary analog inputs. Ground potential differences, electrical interference, and the requirements of overspeed protection can make signal isolation an important part of the input architecture. The Woodward 1751-6058 is a four-channel transformer isolation module designed for this specific role within MicroNet control arrangements.
The module works with the Analog Input Field Terminal Module (FTM) to provide MPU speed-input signals to the Digital Speed Sensor Module while also providing isolation for customer overspeed protection devices. Woodward documentation specifies four 1691-1082 isolation transformers inside the assembly.

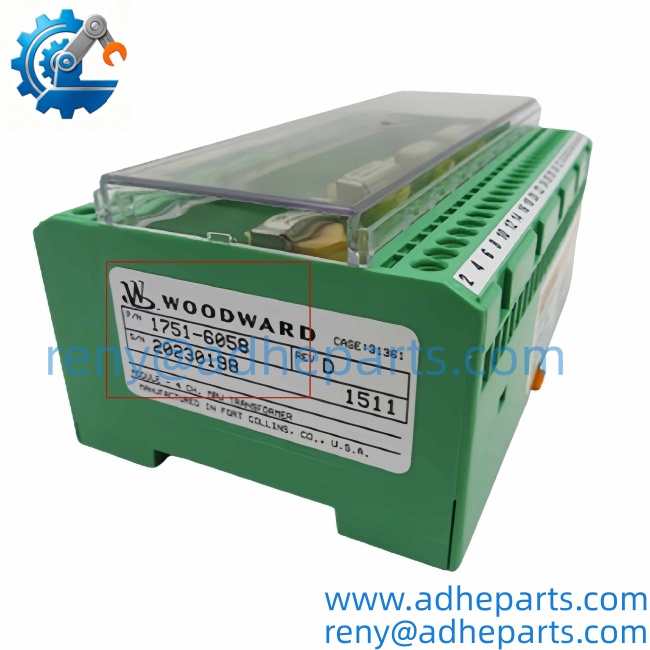

1751-6058
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Woodward |
| Model | 1751-6058 |
| Product Type | 4-Channel MPU Transformer Isolation Module |
| System Family | MicroNet Simplex / MicroNet Plus |
| Number of Channels | 4 |
| Signal Source | Magnetic Pickup Unit (MPU) speed signals |
| Isolation Method | Transformer isolation |
| Internal Transformers | 4 × Woodward 1691-1082 |
| Primary Interface | Analog Input FTM |
| Downstream Function | Provides MPU speed signals to Digital Speed Sensor Module |
| Protection Interface | Isolation for customer overspeed protection devices |
| Hazardous-Area Requirement | Wiring must comply with applicable Class I, Division 2 requirements where specified |
| Service Consideration | Verify exact system architecture and FTM configuration before replacement |
Field Application & Technical Pitfalls (The Engineer’s Guide)
Turbine Speed Measurement
The 1751-6058 is used in MicroNet-based turbine control architectures where MPU signals need transformer isolation before reaching the speed-processing portion of the control system. It is particularly relevant when maintaining an existing installation rather than redesigning the entire speed-input chain.
Overspeed Protection Interface
A second role is isolation of customer overspeed protection devices. This makes the module part of a safety-relevant signal path, so substitution should be based on the documented Woodward architecture rather than simply matching the number of channels.
Legacy MicroNet Maintenance
For maintenance teams supporting older turbine controls, the 1751-6058 can be a practical spare to hold when failure of the isolation stage could prevent reliable speed acquisition or affect the overspeed protection interface.
Pitfall 1 — Do not confuse it with the MPU sensor.
The 1751-6058 does not measure shaft speed mechanically. The MPU is the field sensor; this module provides transformer isolation within the electrical signal path.
Pitfall 2 — Do not substitute by channel count alone.
A four-channel transformer module from another application may look similar but have different electrical characteristics or system interfaces. Confirm the complete Woodward part number and the associated Analog Input FTM.
Pitfall 3 — Treat hazardous-area wiring requirements seriously.
Woodward documentation specifically calls for appropriate Class I, Division 2 wiring methods and warns against connecting or disconnecting electrical connectors while energized unless the area is known to be non-hazardous.
A typical maintenance situation is straightforward: an existing MicroNet turbine controller continues to operate, but one signal-isolation module becomes suspect during troubleshooting. Replacing the controller would be unnecessary if the actual fault is confined to the signal interface. The practical approach is to verify the part number, FTM arrangement, wiring, and downstream speed-input behavior before changing the assembly.
Quality Control (QC) SOP & Transparency
- Part-number verification: Confirm the nameplate shows Woodward 1751-6058 before shipment. Serial and revision information are recorded when available.
- Physical inspection: Check the enclosure, terminal/interface points, labels, connectors, and mounting condition for impact or corrosion.
- Internal configuration check: Where inspection is appropriate, verify the assembly corresponds to the documented four-channel transformer configuration.
- Signal-path verification: Confirm the intended application is an MPU isolation circuit associated with the appropriate Analog Input FTM and MicroNet architecture.
- Functional testing: Where a suitable test setup is available, verify channel continuity and transformer isolation characteristics against the applicable test procedure.
- Application review: Compare the customer’s existing module number, system family, FTM arrangement, and wiring before approving a replacement.
- Final QA: Record photographs, identification information, and test results before packing.
- Packaging: Use ESD-conscious handling and protective packaging suitable for industrial electronic equipment. For safety-related or hazardous-area applications, installation and energization should follow the applicable site procedures.
FAQ
Q1: What exactly is Woodward 1751-6058?
It is a four-channel transformer isolation module used with Woodward MicroNet control architecture for MPU speed signals and customer overspeed protection circuits.
Q2: Is 1751-6058 the actual magnetic pickup sensor?
No. The MPU is the field speed sensor. The 1751-6058 sits in the electrical signal path and provides transformer isolation.
Q3: How many signal channels does it provide?
Four transformer-isolated channels. Woodward’s documentation identifies four 1691-1082 isolation transformers inside the module.
Q4: What equipment is it associated with?
Woodward documents the 1751-6058 for MicroNet Simplex and MicroNet Plus systems, where it works with the Analog Input FTM and Digital Speed Sensor Module.
Q5: Can I replace it with another four-channel transformer module?
Not without verification. Channel count alone does not establish compatibility. Check the complete part number, system architecture, Analog Input FTM, wiring, and downstream speed-input requirements.
Q6: Can the module be hot-swapped?
Do not assume so. Woodward’s documentation contains specific warnings concerning electrical connector disconnection in potentially hazardous areas. Follow the applicable shutdown and site safety procedure before replacement.
Q7: What should I provide when requesting a replacement?
Provide the complete 1751-6058 part number, a clear nameplate photograph, the associated MicroNet system or FTM information, and photographs of the existing wiring/interface. This reduces the risk of supplying a visually similar but electrically unsuitable isolation module.
