GE DS200LDCCH1ANA | Mark V LAN Drive Control, Replacement Unit

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing board before ordering. The revision letter on this board governs firmware compatibility.

4. Product Introduction

The GE DS200LDCCH1ANA is a drive control and LAN communication board for the Speedtronic Mark V turbine control platform. It sits in the Mark V rack and carries two jobs: it passes drive control signals between the controller and the drive interface, and it carries the local network traffic that lets the controller talk to the rest of the Mark V system. On a gas or steam turbine, that is the board that keeps the controller and the drive hardware on speaking terms.

The engineering value is the on-board fusing and the diagnostics. This board carries fuses that protect the downstream circuits, and the front-panel indicators report the board’s communication state. In my experience, a blown on-board fuse is one of the most common failure modes on this board family — and it is also the one that gets misdiagnosed. A technician sees a dead board and orders a replacement when the real problem is a shorted field circuit that will blow the fuse on the new board the moment it is installed. Check the fuse and the field circuit before you assume the board is bad.

DS200LDCCH1ANA

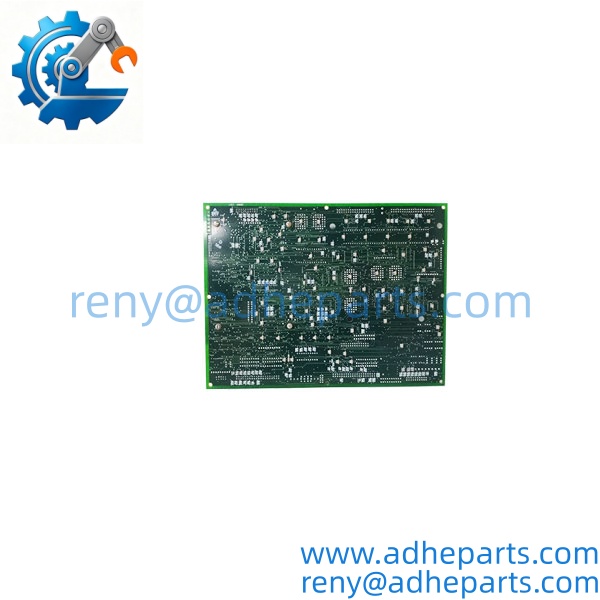

DS200LDCCH1ANA

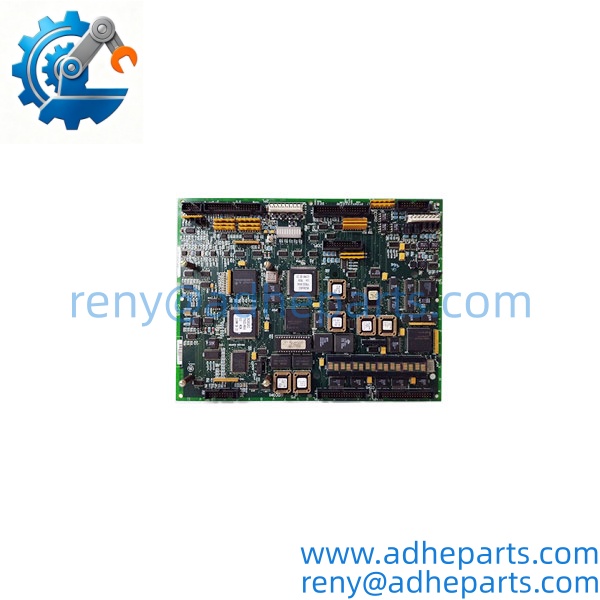

DS200LDCCH1ANA

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The failure that costs the most downtime on a Mark V turbine is a communication dropout between the controller and the drive. The unit is running, the operator sees a control fault, and the board is the suspect. I have seen a crew replace a DS200LDCCH1ANA board twice and still have the fault because the real problem was a marginal connector on the LAN cable. On this platform, the board is rarely the only thing that can fail. Before you order a replacement, check the LAN cable, the connector seating, and the on-board fuses. Then check the revision letter against your system’s firmware. A board with the right part number and the wrong revision will initialize and still drop communication under load.

Part 2 – Numbered List (Application Scenarios)

1. Gas Turbine Control – Drive Interface Communication – The board carries drive control signals between the Mark V controller and the drive cabinet. A dropout here shows up as a drive fault and a unit trip.
2. Steam Turbine Control – Local Network Node – The board is a node on the Mark V local network. A failed board drops that node from the network and the controller loses visibility on the affected functions.
3. Combined Cycle Plants – Mark V Retrofit Support – Used where a Mark V system is still in service and the OEM no longer stocks the exact revision. Replacement is often the only path short of a full control system migration.
4. Industrial Turbines – Auxiliary System Control – The board carries control and communication for auxiliary systems on the Mark V platform. The on-board fusing protects the downstream circuits from field faults.

Part 3 – Short Field Story

A combined cycle plant had a gas turbine that tripped on a “drive communication fault” during a load change. The crew replaced the DS200LDCCH1ANA board and the fault came back two days later. We asked them to check the on-board fuses on the failed board and the field wiring to the drive. The fuses were blown, and the field cable had a chafed conductor that was shorting intermittently against the conduit. The plant replaced the cable and installed the correct revision board. The fault cleared. The board had been doing its job — the field wiring was the problem.

6. Standard Operating Procedure (SOP) for Quality Control

• Visual & Origin Inspection – We verify the GE marking, the DS200LDCCH1ANA model string, and the date code. We inspect the backplane connector for bent pins and the board for evidence of heat damage, rework, or moisture. A board with a cracked connector or burned traces is rejected.
• Revision Documentation – We read and photograph the full model string, the revision letter, all jumper and switch settings, and the on-board fuse ratings. That record ships with the board so you can compare it against the unit you are replacing.
• Fuse Verification – We check every on-board fuse for continuity and confirm the rating matches the OEM specification. A board with a blown or wrong-rated fuse is corrected before shipping.
• Power-Up Self-Test – The board is inserted into a known-good Mark V test rack. We verify it initializes without a backplane fault and that the controller recognizes the board type.
• LAN Communication Test – We connect the board to a Mark V test network and verify it communicates with the controller at the specified node address. We run a continuous exchange loop and log any dropped frames.
• Drive Signal Path Verification – We verify the drive control signal path against a test fixture and confirm the outputs match the commanded values.
• Connector Integrity Test – We mate and unmate the backplane connector ten times to confirm the contacts do not deform and the retention mechanism holds. A loose board causes intermittent faults that are hard to diagnose in the field.
• ESD-Safe Packaging – The board is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected by rigid shrouds, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Will this board work in my Mark V rack without a firmware change?

A: Only if the revision letter matches or is compatible with your system’s firmware. The revision letter on this board governs the firmware image, and a mismatched revision can initialize and still drop communication under load. Read the revision letter off your existing board and compare it to the replacement before you order.

Q2: What are the on-board fuses for, and should I check them?

A: The fuses protect the downstream circuits on the board and the field wiring. A blown fuse is one of the most common failure modes on this board family. Before you replace a board, check the fuses and check the field circuit for a short. A shorted field circuit will blow the fuse on the replacement board the moment it is installed.

Q3: What is the warranty on this board?

A: We offer a 12-month warranty from the ship date. It covers component failure, backplane connector failure, and LAN communication failure under normal operating conditions. It does not cover damage from hot-swapping the board with the rack energized, bent pins from forced insertion, or field wiring faults that cause fuse failure. We test every board in a live Mark V rack before it ships.

Q4: Do you have this exact board in stock?

A: Mark V inventory moves quickly, and stock varies by revision. Confirm availability before you plan an outage. If we are out of the revision you need, we will tell you what we actually have rather than quote a date we cannot hold.

Q5: Any installation pitfalls I should watch for?

A: Four. First, power down the Mark V rack before inserting or removing the board — these boards are not hot-swap capable. Second, record the revision letter, all jumper and switch settings, and the fuse ratings from the old board before you remove it. Third, check the field wiring and the LAN cable for shorts or chafing before you install the replacement; a field fault will damage the new board. Fourth, after the swap, verify the board communicates with the controller and the drive signal path is correct before you return the unit to service. A board that powers up is not necessarily communicating correctly.
