NRD108031 TRVC070999000 BOTTOM
Key Technical Specifications
| Parameter | Value |
|---|---|
| Form Factor | VME 6U subboard, bottom rack assembly |
| Memory | 128KB 32-bit wide SRAM, 100ns access time |
| Bus Controller | VMEchip2, programmable bus access timing |
| Memory Options | Optional battery backup SRAM |
| Firmware Storage | Programmable EPROM, map decoder logic |
| Data Access Width | Supports 8-bit, 16-bit, 32-bit bus transfers |
| Operating Temperature | 0°C to +60°C cabinet ambient |
| Humidity | 5–90% RH, non-condensing |
| Communication Interface | VME backplane bus |
| Dimensions | 233 mm × 160 mm |
| Weight | 0.23 kg |
Product Introduction
The Alstom NRD108031 TRVC070999000 BOTTOM is a VME bottom subboard built as a memory and bus interface component for legacy Alstom turbine control racks. It handles SRAM storage, address decoding and backplane bus arbitration for the main processor card.
This board supports low-level diagnostic access without DRAM layers. Battery-backed SRAM retains critical process and trip setpoints during brief power loss, which prevents loss of turbine configuration data in power generation control cabinets.

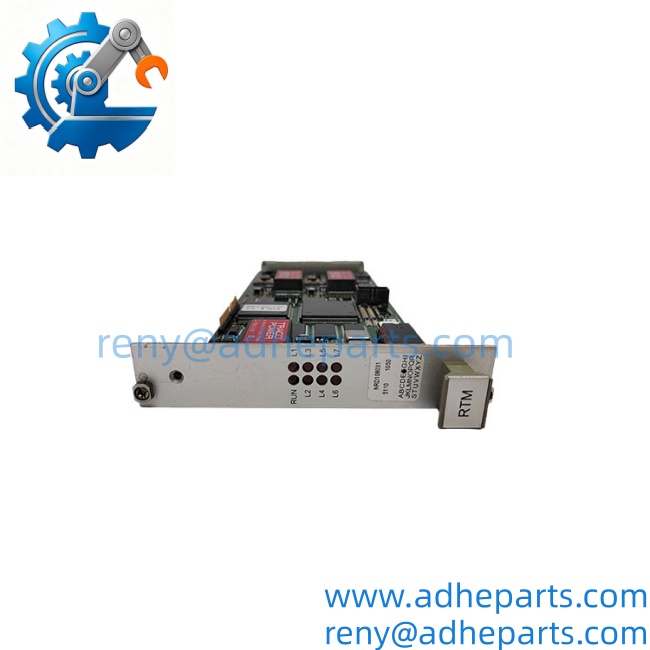

NRD108031 TRVC070999000 BOTTOM

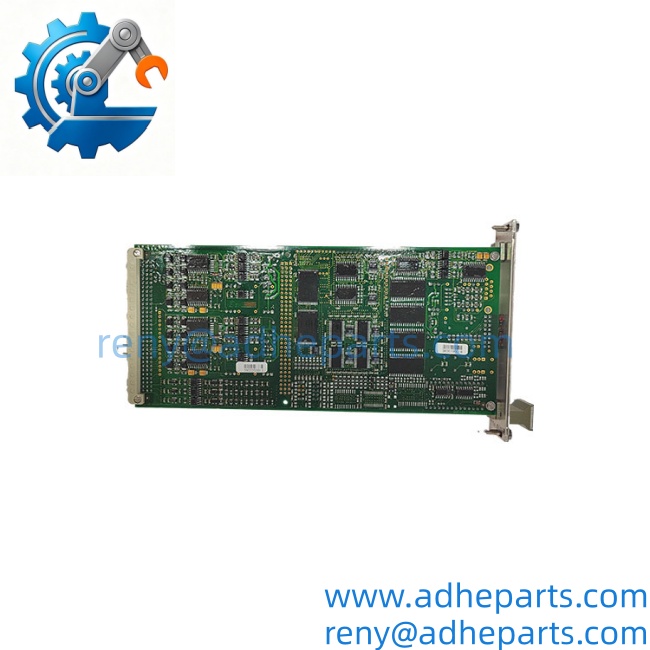

NRD108031 TRVC070999000 BOTTOM

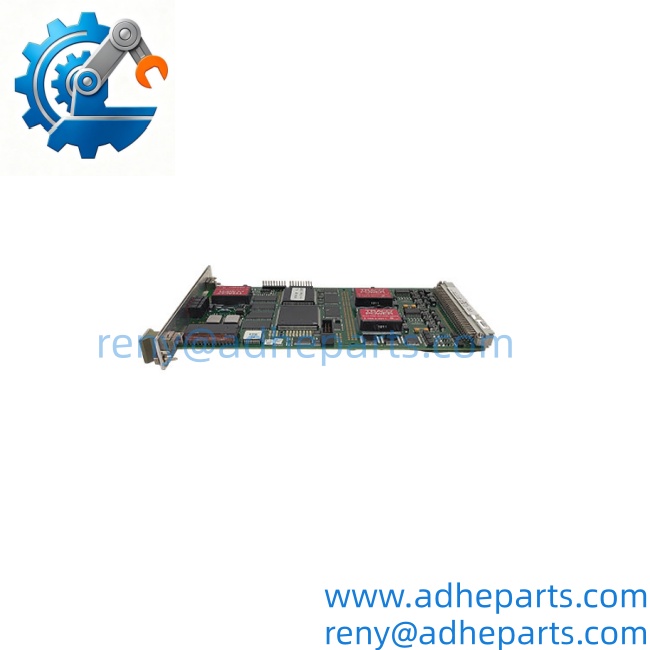

NRD108031 TRVC070999000 BOTTOM
Application Scenarios & Field Experience
Part 1 (Narrative Paragraph)
Legacy Alstom turbine control racks often fail from degraded SRAM or bus timing faults on the bottom subboard. A faulty NRD108031 BOTTOM card can cause random memory corruption, lost setpoints or intermittent VME bus timeouts, forcing turbine trips even when the main CPU remains functional.
Part 2 (Numbered List)
- Thermal power plants: Steam turbine governor racks, memory storage for protection setpoints.
- Combined cycle facilities: Gas turbine sequence control, VME bus signal arbitration.
- Hydroelectric stations: Generator control cabinets, retention of overspeed protection parameters.
- Industrial powerhouse: Refinery on-site turbine control, fault diagnostic memory access.
Part 3 (Short Field Story)
A gas-fired power station faced random VME bus errors and occasional loss of turbine trip parameters. Bench testing showed SRAM read failures on the original NRD108031 TRVC070999000 BOTTOM subboard. We installed a matching replacement, reloaded all protection setpoints, and synced the VME bus timing. The rack ran without memory corruption for 19 months after replacement.
Standard Operating Procedure (SOP) for Quality Control
- Visual & Origin Inspection: Verify OEM part marking, board coating and solder joints; reject units with scratched traces, component corrosion or tampered EPROM seals.
- Live Rig Testing: Mount on VME test rack, power the board, validate SRAM read/write cycles and VMEchip2 bus handshake.
- Firmware Verification: Record EPROM revision number on the test log; confirm revision compatibility with your existing rack CPU.
- ESD-Safe Packaging: Seal inside static shielding bag, fitted foam padding, carton printed with ESD handling warnings.
Frequently Asked Questions (FAQ)
Q1: Can I swap different TRVC revision variants of NRD108031 BOTTOM interchangeably in my VME rack? A: The mechanical form factor matches, but confirm EPROM firmware and VME timing settings. Mismatched revisions create bus timeout errors or memory mapping faults.
Q2: What warranty applies to the Alstom NRD108031 TRVC070999000 BOTTOM subboard? A: We offer a 12-month warranty. Warranty excludes damage from ESD events, incorrect backplane voltage, overheating or improper EPROM flashing.
Q3: What is stock and lead time for this NRD108031 BOTTOM module? A: Selected revisions are in stock. Final availability and dispatch timeline will be confirmed after you submit your procurement inquiry.
Q4: Will firmware differences break communication between this bottom subboard and the rack main CPU? A: Yes. Older EPROM revisions use different address mapping. We share firmware revision details before shipment so your controls team validates register and memory mapping.
Q5: Can I hot-swap this BOTTOM subboard while the turbine remains online? A: Hot swap is not supported for this subboard. Removing the board interrupts VME memory access, corrupts setpoints and triggers an immediate turbine protection trip.
