ABB SNAT604 | Direct Replacement Drive Control Board

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

3. Key Technical Specifications

4. Product Introduction (Anti-Template)

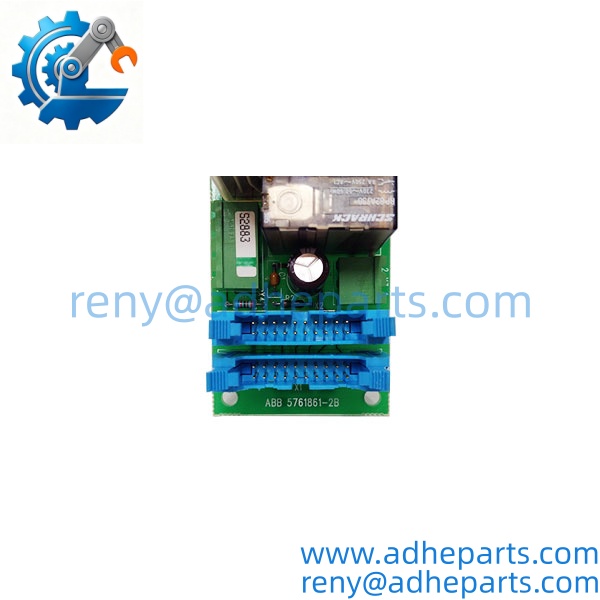

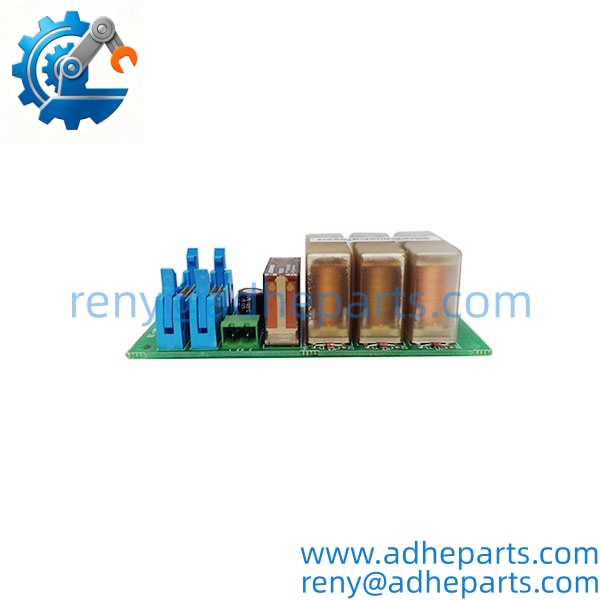

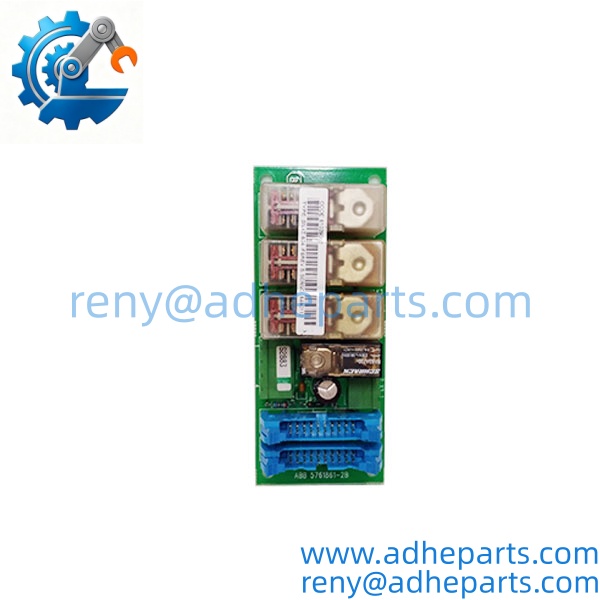

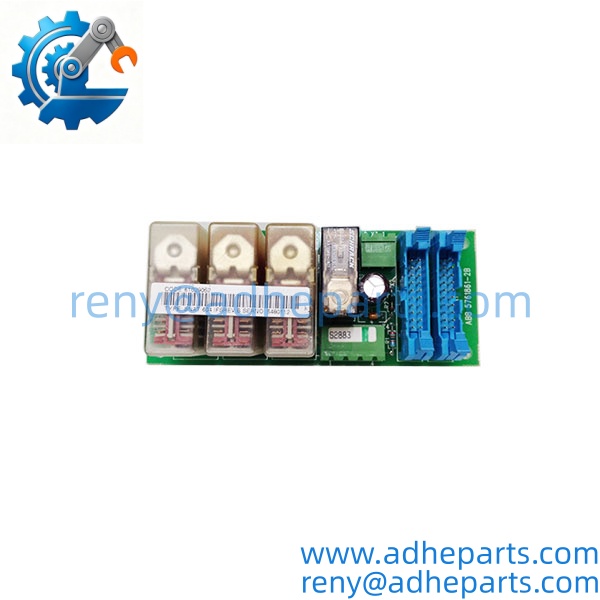

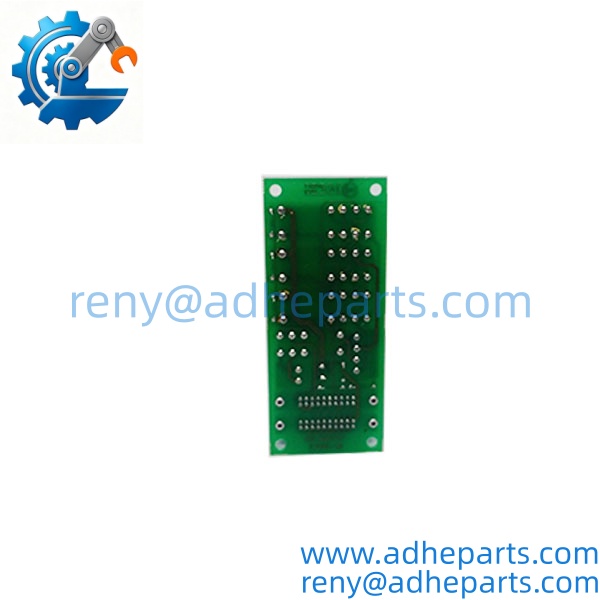

The ABB SNAT604 5761861-2B is a specialized control board used in ABB drive and converter systems. It is frequently identified in documentation and spare-parts listings as the Inhibition of False Start Relay Board (SNAT 604 IFS).

The board forms part of the SNAT-series interface and control electronics found in certain ABB power conversion equipment. Its primary role relates to interlocking and protection logic that prevents unintended or false starting of the drive. The specific hardware revision 5761861-2B identifies the exact PCB version. Because these boards are application-specific, the correct replacement must match both the type designation and the revision used in the original system.

SNAT604-5761861-2B

SNAT604-5761861-2B

SNAT604-5761861-2B

SNAT604-5761861-2B

SNAT604-5761861-2B

5. QC, Procurement & Logistics SOP

1. Inbound Verification – Confirm full markings (SNAT604 and 5761861-2B), connector condition, and any revision labels. Photograph all identifiers.
2. Live Rig Testing – Install in a compatible drive or test fixture where possible, apply power, and verify basic board recognition and interlock functionality.
3. QA & Packaging – After inspection, protect all connectors, clean the board, and pack in anti-static protective packaging with desiccant.
4. Global Logistics & Export Compliance – Classify under the correct HS code for industrial control circuit boards. Packaging must protect against electrostatic discharge and mechanical shock; export documentation is prepared to minimize customs delays.

6. Technical Pitfalls & Integration Warnings

Revision Matching – The suffix 5761861-2B is critical. Using a different hardware revision can cause compatibility or interlock problems.

System Context – This board is part of a larger drive/converter electronics package. Replacing it in isolation without checking related interface boards can leave residual faults.

Connector Handling – Use proper ESD precautions. Bent or contaminated pins are a frequent cause of intermittent interlock failures.

False-Start Logic – After replacement, verify that the inhibition-of-false-start function operates correctly under both normal and fault-simulation conditions.

7. Frequently Asked Questions (FAQ)

What is the realistic global lead time for a verified SNAT604 5761861-2B?
As a specialized drive control board, availability depends on surplus stock. Typical lead time after verification is 5–15 business days plus standard air freight.

What is the function of the SNAT604 board?
It is commonly known as the Inhibition of False Start Relay Board (IFS) used in ABB drive/converter control systems.

What does the number 5761861-2B mean?
It is the specific hardware / PCB revision of the board.

Is detailed public documentation readily available?
Public datasheets are limited. Identification is typically confirmed by the full part number and the target drive system documentation.

Is it still in active production?
It is a mature / legacy board and is primarily available through surplus and specialist channels.

What should be confirmed before ordering a replacement?
Exact full part number ( 5761861-2B), the drive or converter model it belongs to, and any related interface boards that must match.

What are typical applications?
ABB industrial drive and power conversion systems that use the SNAT-series control electronics.
