Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Full Part Number | 83SR04C‑E, GJR2390200R1210 |
| Mechanical Form | 6U Eurocard, DIN41612 edge connectors |
| Interface Ports | X11 station‑bus, X21 field process I/O |
| Operating Temperature | ‑25 °C to +55 °C |
| Typical Power Draw | 1.5 W |
| Functional Capacity | 4 analog closed‑loops, binary timer & interlock processing |
| Safety Classification | SIL‑3 capable within Procontrol P14 architecture |
| Approximate Weight | 0.55 kg |
| Host Compatibility | Procontrol P14 multifunction processing station |
| Certification | CE compliant |
Product Introduction
When a main CPU trips and downtime costs thousands per minute, legacy power‑plant DCS spare parts become critical site assets. The 83SR04C‑E operates as a distributed control card inside ABB Procontrol P14 systems, removing full loop dependency on a single central controller.
It handles both continuous analog regulation and hardwired binary interlock tasks for boiler and turbine auxiliaries. Honestly, this distributed design saves hours of rewiring during partial rack upgrades. Original OEM manufacturing stopped years ago, so nearly all field replacements draw from aftermarket component pools.

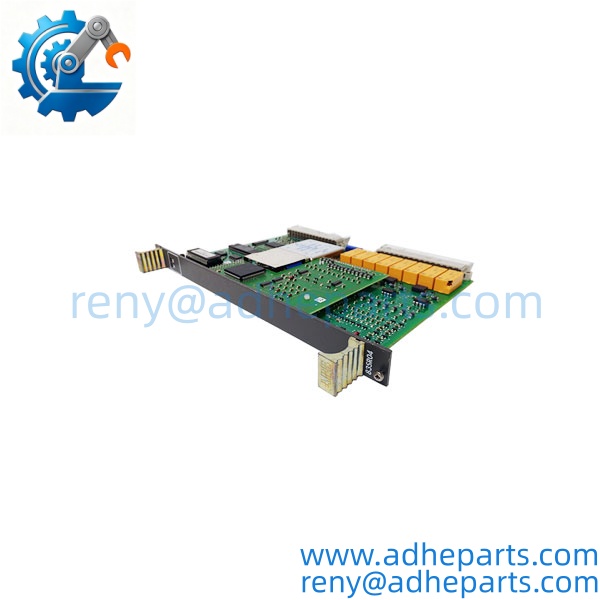

83SR04C-E

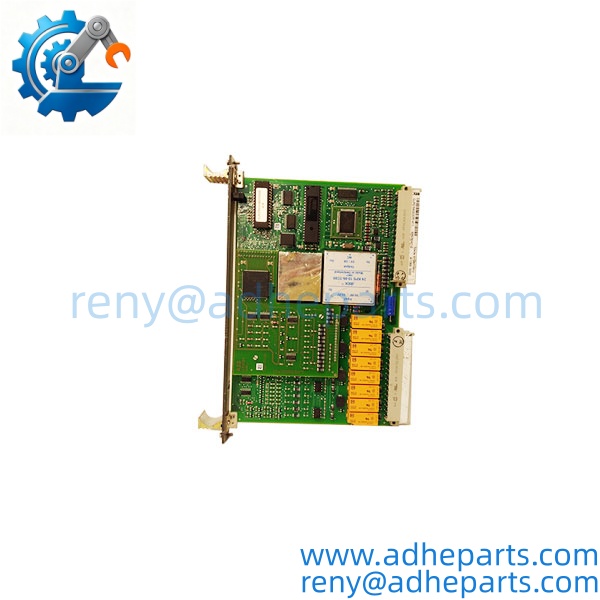

83SR04C-E

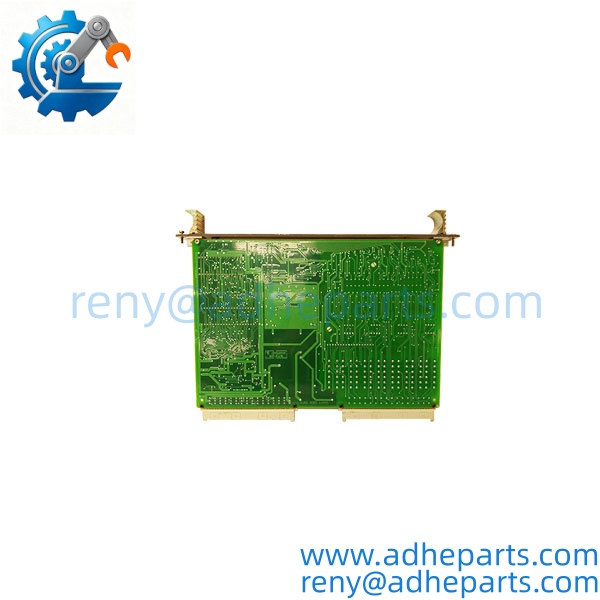

83SR04C-E

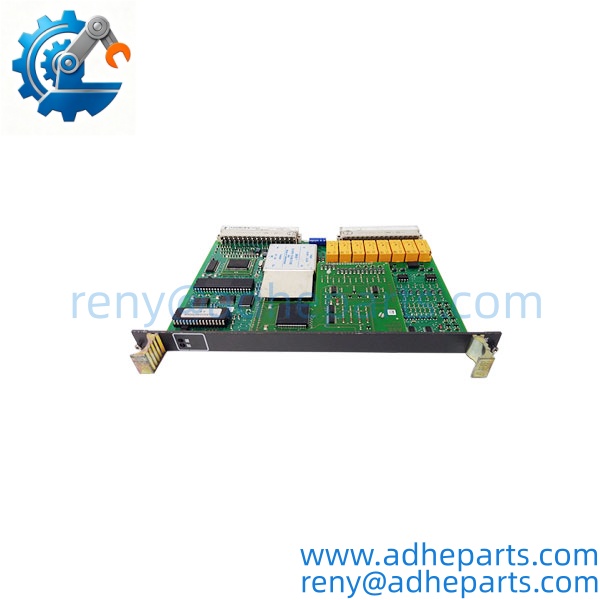

83SR04C-E
QC, Procurement & Logistics SOP
- Inbound Verification: Cross‑check printed hardware label against the full part number GJR2390200R1210. Inspect for original OEM marking; document serial numbers for origin traceability, flag any altered or sanded labels.
- Live Rig Testing: Apply rated supply voltage for power‑on self‑test. Validate station‑bus handshake and basic channel response on a Procontrol P14 test fixture; reject units showing random channel drop‑outs.
- QA & Anti‑Static Packaging: Complete visual inspection for capacitor swelling, cracked solder joints, or corroded edge pins. Seal module inside static‑shield bag with foam padding for transit.
- Global Logistics & Export Compliance: Assign optimized HS classification for industrial control electronics. Use rigid anti‑shock outer cartons built for air or sea freight to reduce physical damage risk —though customs clearance in the EU might add 2 days. All supporting shipping documents match declared commodity description.
Technical Pitfalls & Integration Warnings
- Firmware Rev Mismatch: Swapping an 83SR04C‑E with a D‑revision board without host station firmware review creates bus protocol drops. A plant technician may physically seat the board correctly, yet face random interlock trips after rack power‑up. Always match hardware suffix revision to site BOM records.
- DIP Switch / Configuration errors: Small bank of on‑board DIP switches sets station address and loop operating mode. If a tech copies switch positions from a different card model, the module will boot but refuse to communicate on the backplane bus. Document existing switch settings before pulling the old unit.
- Wiring/Terminal incompatibility: X21 field I/O uses older proprietary pin assignments. Reusing terminal cables built for an alternate P14 module will short analog signal lines, producing drifting process readings without immediate hardware burn‑out. Cross‑reference pin‑out charts before connecting field wiring.
- ESD destruction during unboxing: Vintage semiconductor chips sit exposed on the PCB. A technician pulling the card out of packaging without a grounded wrist strap can inflict latent damage. The unit may pass bench test, then fail three weeks after installation inside a live plant rack.
Frequently Asked Questions (FAQ)
Q: What realistic global lead times should I plan for this obsolete part? Surplus‑new verified stock can ship within 5‑8 working days. Fully refurbished units need component refresh and bench validation, expect 18‑28 working days. Extended delays happen when valid test‑rack access is limited.
Q: What shipping and customs options apply for cross‑border orders? Air freight delivers faster for emergency downtime mitigation. Sea freight lowers cost for planned spare‑part stocking. Correct HS classification must appear on commercial invoices; incomplete paperwork slows customs inspection in most destination territories.
Q: Can I hot‑swap this 83SR04C‑E while the Procontrol P14 rack stays powered? Do not hot‑swap. Even though the backplane carries steady 24 VDC, live removal can corrupt on‑board configuration memory and trigger unplanned safety interlock trips across linked plant loops. Perform rack‑slot power isolation before card removal.
Q: Will an 83SR04E‑E work as a drop‑in backward‑compatible substitute for my existing 83SR04C‑E? The physical form factor fits the same slot, but backward compatibility is not guaranteed. Host station firmware must support the newer hardware revision. Many power‑plant sites cannot modify legacy system firmware, so direct substitution often fails.
Q: What is the most common failure mode seen on returned 83SR04C‑E units? Age‑related degradation of on‑board electrolytic capacitors ranks highest. Symptoms include slow analog loop drift, intermittent communication resets, and sporadic interlock activation with no obvious field‑wiring fault.
Q: Is factory repair service still accessible for a faulty 83SR04C‑E? Original OEM repair workflows have been closed. Repair work must go through qualified third‑party electronic service resources. Turnaround windows stretch longer because replacement vintage components are hard to source.
Q: What documentation will arrive alongside my shipped module? Serial number verification record, bench test summary report, and commercial shipping paperwork. Original factory datasheets are no longer issued by OEM; archived reference material can be supplied separately upon buyer request.
