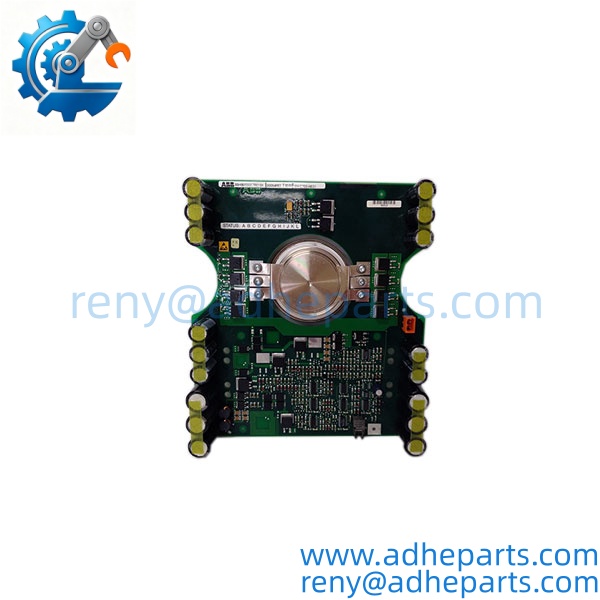

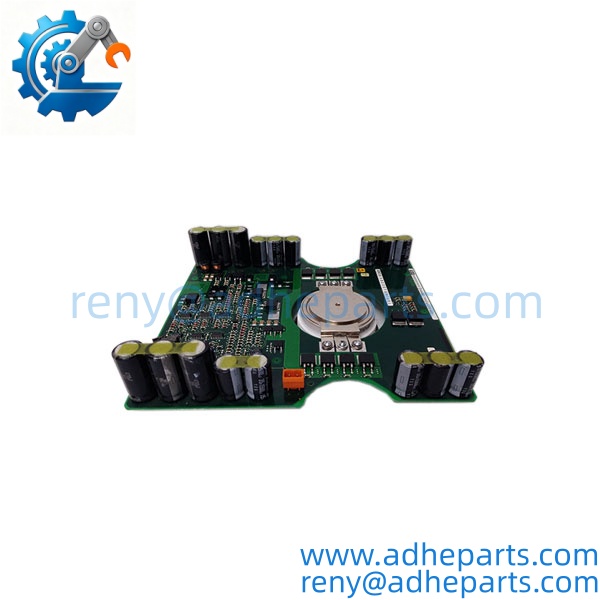

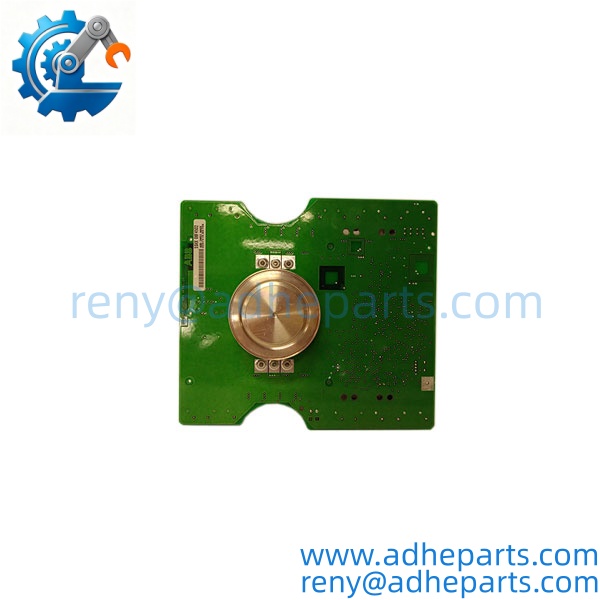

ABB 5SHX08F4502 | 4.5kV High Power IGCT Module

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

Product Introduction (Anti-Template)

The ABB 5SHX08F4502 is an IGCT power semiconductor module designed for high-power switching applications where conventional semiconductor devices may not provide sufficient voltage and current capability. It combines the high blocking capability of thyristor technology with fast turn-off characteristics, making it suitable for medium-voltage converters and industrial drive systems.

Installed inside equipment such as medium-voltage drives and power conversion systems, this module acts as the switching element that controls electrical energy flow. The device is normally used together with a dedicated gate unit and cooling structure, so replacement requires checking the complete power stack design rather than matching only the semiconductor part number.

5SHX08F4502

5SHX08F4502

5SHX08F4502

5SHX08F4502

5SHX08F4502

Key Technical Specifications

The 5SHX08F4502 is identified as an ABB IGCT module with approximately 4.5 kV voltage capability and high-current switching characteristics. Exact current ratings depend on the thermal design, mounting conditions, and application environment.

Field Application & Technical Pitfalls (The Engineer’s Guide)

Medium-Voltage Drive Systems

The 5SHX08F4502 is commonly associated with high-power converter platforms where reliable switching control is required for large motors and industrial processes. Applications can include mining equipment, metal-processing drives, large pumps, compressors, and other high-power rotating machinery.

Power Conversion Equipment

Within converter cabinets, multiple IGCT devices may operate together as part of a valve stack. A single failed device can affect system availability, especially in equipment where redundancy is limited.

Reactive Power Compensation Systems

IGCT technology is also used in high-power electrical conversion systems such as SVC and similar converter-based installations. The switching performance directly affects converter efficiency and thermal loading.

Pitfall 1 — Mixing IGCT modules from different electrical ratings:
A 4.5 kV IGCT module is not automatically interchangeable with another ABB semiconductor module. Check voltage class, current rating, gate unit compatibility, and mechanical dimensions before replacement.

Pitfall 2 — Incorrect mounting pressure:
Press-pack semiconductor devices rely on controlled mechanical pressure for electrical and thermal performance. Using incorrect clamping force can create overheating, contact resistance, or premature device failure. (The exact mounting procedure must follow the equipment manual.)

Pitfall 3 — Ignoring gate unit compatibility:
The IGCT does not operate as an independent component. The gate driver, fiber connection, and control electronics must match the semiconductor device.

Field lesson: A maintenance team once replaced a damaged power semiconductor with a similar-looking module from another converter cabinet. The unit passed basic checks but failed during high-load operation because the gate-drive arrangement and thermal conditions were different. The lesson is simple: for IGCT replacements, electrical matching is only half the job.

Quality Control (QC) SOP & Transparency

1. Inbound Verification

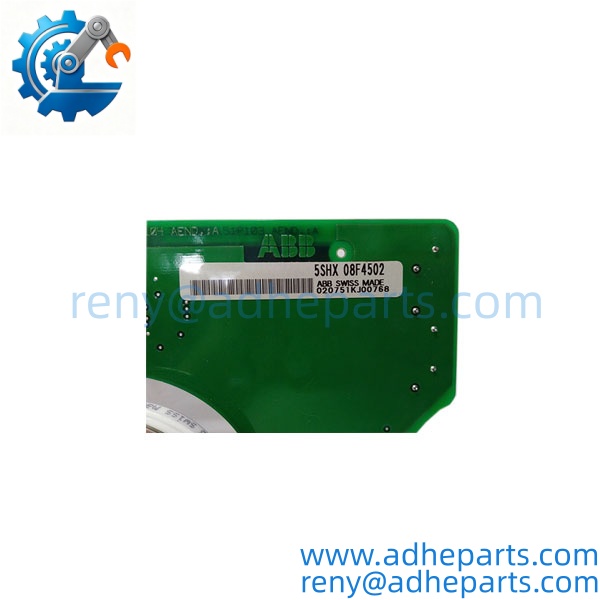

   • Confirm ABB marking, complete model number, and semiconductor identification label.
   • Compare the supplied unit with customer photos or equipment records.
2. Anti-Counterfeit and Origin Check
   • Inspect laser markings, labels, packaging condition, and manufacturing identifiers.
   • Check for signs of relabeling, mechanical damage, or unauthorized refurbishment.
3. Physical Inspection
   • Examine the semiconductor housing, contact surfaces, mounting areas, terminals, and insulation components.
   • Check for scratches, contamination, cracks, or abnormal discoloration.
4. Electrical Parameter Verification
   • Test available semiconductor characteristics according to suitable equipment capability.
   • Verify that measured parameters are within acceptable limits.
5. Gate Interface Inspection
   • Check gate connection condition and compatibility with the intended gate unit.
   • Inspect fiber-optic interface areas where applicable.
6. Thermal Interface Check
   • Confirm contact surface condition and verify that the module is suitable for the customer’s cooling arrangement.
7. Final QA Documentation
   • Record model number, serial markings, inspection results, and product photos.
8. ESD-Safe Packaging
   • Package the IGCT module using suitable anti-static protection and mechanical cushioning.

Frequently Asked Questions (FAQ)

Q1: What is ABB 5SHX08F4502?
It is an ABB IGCT (Integrated Gate-Commutated Thyristor) module used as a high-power switching component in medium-voltage converter applications.

Q2: Is 5SHX08F4502 a complete drive module?
No. It is a semiconductor switching component inside a larger power-conversion assembly. The complete system also requires compatible gate control, cooling, and protection circuits.

Q3: What applications use this IGCT module?
Typical applications include medium-voltage drives, industrial converters, and power electronics systems requiring high-voltage/high-current switching capability.

Q4: Can I replace it with another ABB IGCT module?
Not without verification. Check:

• Voltage rating
• Current rating
• Gate unit compatibility
• Mechanical dimensions
• Cooling method
• Converter model

Q5: What should I check before installation?
Verify the complete power stack design, including the gate unit, mounting hardware, cooling arrangement, and original semiconductor identification.

Q6: Does ABB 5SHX08F4502 require a gate driver?
Yes. IGCT devices require a dedicated gate control unit. The associated gate electronics must match the specific application.

Q7: What warranty is available for this part?
Supply conditions typically depend on whether the unit is new surplus or refurbished. A 12-month warranty can be provided for qualifying supplied units.

Q8: What information should be provided for quotation?
Provide:

• Complete part number: 5SHX08F4502
• Existing converter or drive model
• Photos of the installed module
• Gate unit model
• Required condition (new surplus or refurbished)

This information avoids supplying a physically similar semiconductor that does not match the original power stack design.
