Product Introduction
When safety interlock circuits lose reliable input sensing, unplanned process trips and hazardous operating states follow. This T8800 module is the field interface card for Tricon TMR safety racks, sampling 40 separate 24VDC discrete sensor inputs for safety logic processing.
Its triple-voted signal handling filters transient noise so only confirmed field states pass to the controller. It works exclusively within the Tricon chassis backplane, making it a critical spare for legacy SIL3 protection systems.

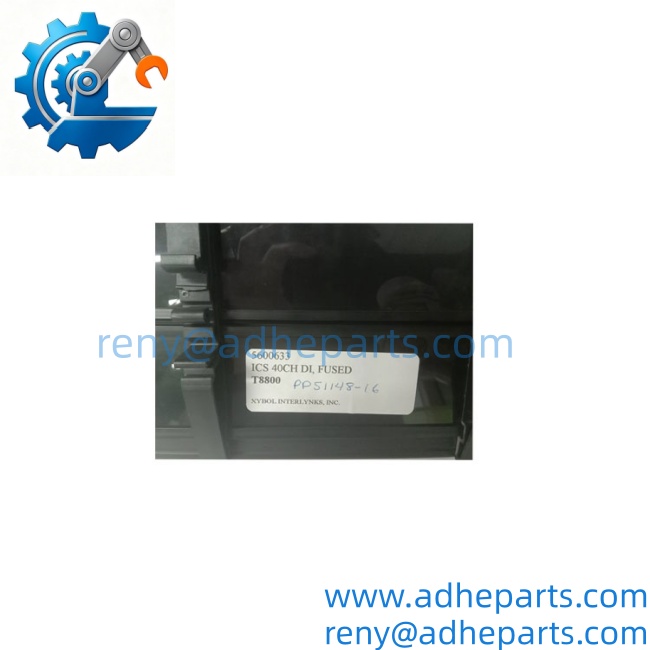

Triconex 5600633 T8800
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 5600633 T8800 |
| Channel Count | 40 digital input channels |
| Rated Input Voltage | 24 VDC |
| Safety Certification | IEC 61508 SIL 3 |
| Typical Response Time | < 1 ms |
| Operating Temperature | -20°C to +60°C |
| Input Signal Type | Dry contact / 24VDC field discrete signals |
| Architecture Compatibility | Tricon TMR triple modular redundant rack |
| Backplane Interface | Tricon dedicated rack connector |
| Weight | 1.14 kg |
| Mounting | Tricon rack slot installation |
Triconex 5600633 T8800
Field Application & Technical Pitfalls (The Engineer’s Guide)
Critical Industrial Scenarios
- Oil & gas burner management systems: monitors flame detectors, emergency stop buttons, and valve limit switches for safety trip logic.
- Power generation turbine protection: captures generator discrete alarm and trip contacts to trigger safe shutdown sequences.
- Petrochemical plant interlock racks: tracks vessel level switches and pressure trip contacts to prevent overpressure events.
Critical Technical Pitfalls
- Firmware / Hardware Revision Mismatch: A T8800 with differing hardware revision will flag constant backplane faults even if the module powers up normally. Match revision numbers in TriStation before swapping.
- Improper ESD Handling: Unprotected contact with connector pins can degrade internal voting circuitry; wear grounded wrist straps at all times when handling.
- Backplane Slot Assignment Errors: Installing the T8800 into a non-I/O designated rack slot will block handshaking and create persistent module fault LEDs.
A refinery instrument technician once hot-inserted a spare T8800 without checking revision compatibility. The module powered on, but TriStation registered continuous channel diagnostics faults. The plant stayed online because of TMR fault tolerance, yet they lost redundant fault coverage for 18 hours while sourcing the matching hardware revision. That gap left the unit exposed to a second sensor fault that could have triggered an unplanned shutdown.

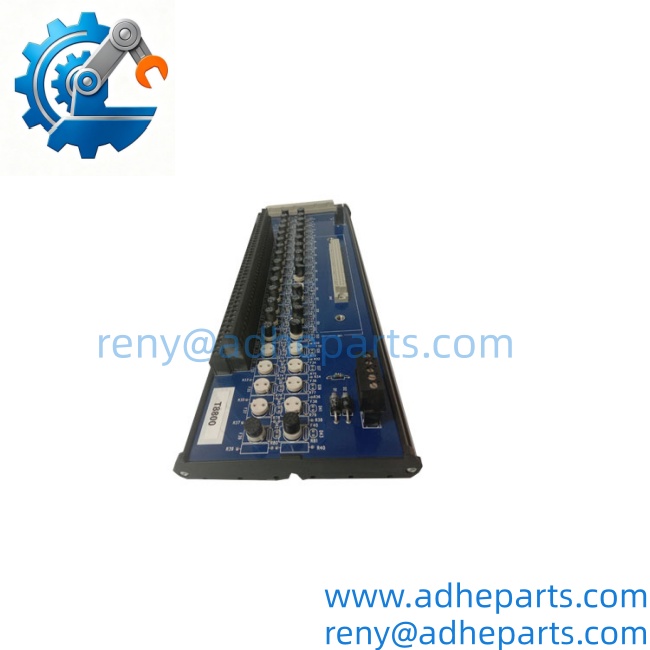

Triconex 5600633 T8800
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-reference OEM part label, serial number, and factory packing slip; inspect PCB traces and connectors for counterfeit marking inconsistencies and physical damage.
- Live Rig Testing: Mount module in Tricon test chassis, power the rack, validate backplane handshake, and cycle each of the 40 channels with simulated 24VDC input signals.
- Parameter Testing: Verify input threshold accuracy, check insulation resistance between field channels and backplane ground, confirm all diagnostic LEDs behave per OEM datasheet.
- Final QA & Packaging: Log serial number and test report; place module in anti-static shielding bag, affix QC passed label, pack inside rigid carton for shipment.
Frequently Asked Questions (FAQ)
- Can I hot-swap the T8800 while the Tricon safety rack remains online? Yes, this module supports hot swap within the Tricon TMR rack. Confirm the rack is operating in a degraded-safe state before extraction. Never remove a module if the system already has an active fault on another voting leg.
- Is this compatible with third-party PLC racks outside the Tricon platform? No. Its backplane connector and TMR communication protocol are proprietary to Tricon systems. It will not operate with unrelated controller hardware.
- What warranty applies to this new surplus ? This unit carries a 12-month warranty covering functional hardware defects. Warranty does not apply to damage from miswiring, ESD abuse, incorrect firmware configuration, or improper rack installation.
- How do I verify this is genuine OEM stock versus remanufactured hardware? Compare serial number format, component labeling on the PCB, and connector molding against OEM documentation. Refurbished units often show solder rework marks on channel circuits or replaced surface mount chips.
- What happens if one input channel fails on the ? The TMR voting architecture isolates that single channel fault. Remaining valid inputs continue feeding the safety logic, though plant procedures should schedule replacement before a second fault occurs.
- What is the typical lead time if this part is out of stock? Lead time shifts based on global surplus inventory pools; confirm availability before freezing outage planning.
- Does the come with TriStation configuration files preloaded? No. The module holds no user application logic. You will download the existing TriStation project after installation to bind the hardware to your configured I/O point assignments.
