Honeywell FC-RUSIO-3224 | Safety Manager Remote I/O, Fast Shipping

Description

Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.

FC-RUSIO-3224

3. Key Technical Specifications

Confirm each line against the OEM datasheet and the marking on your existing module before ordering.

4. Product Introduction

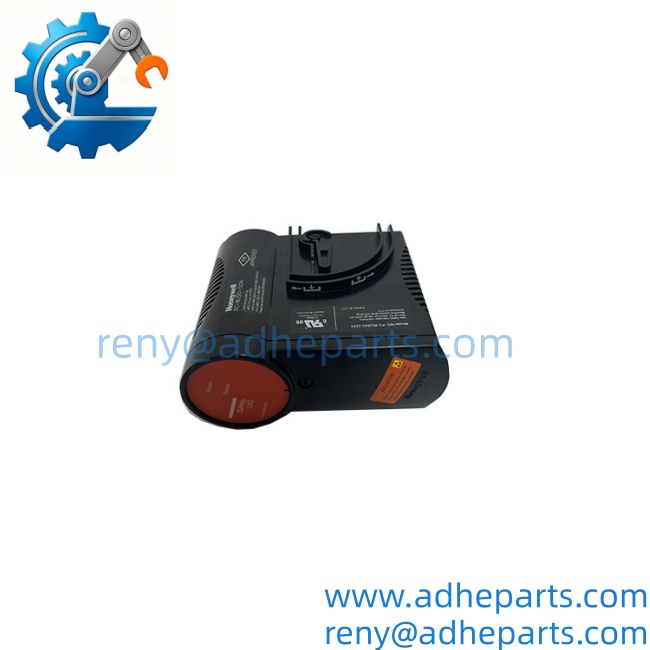

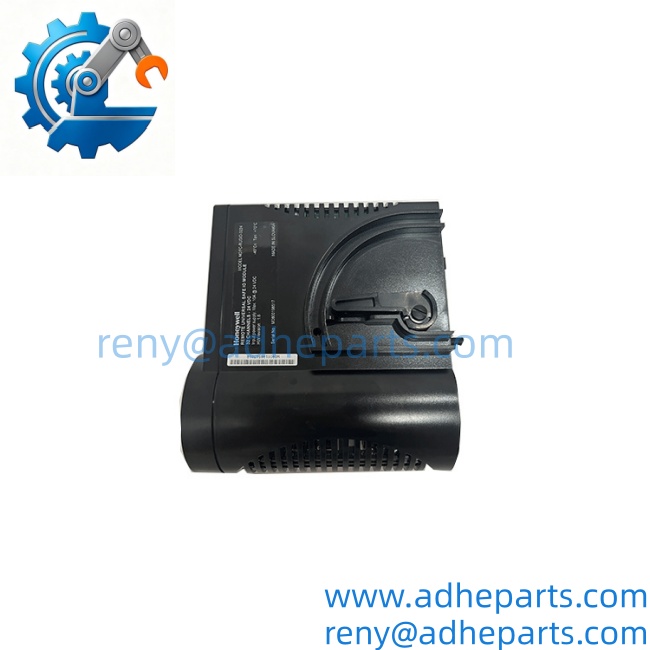

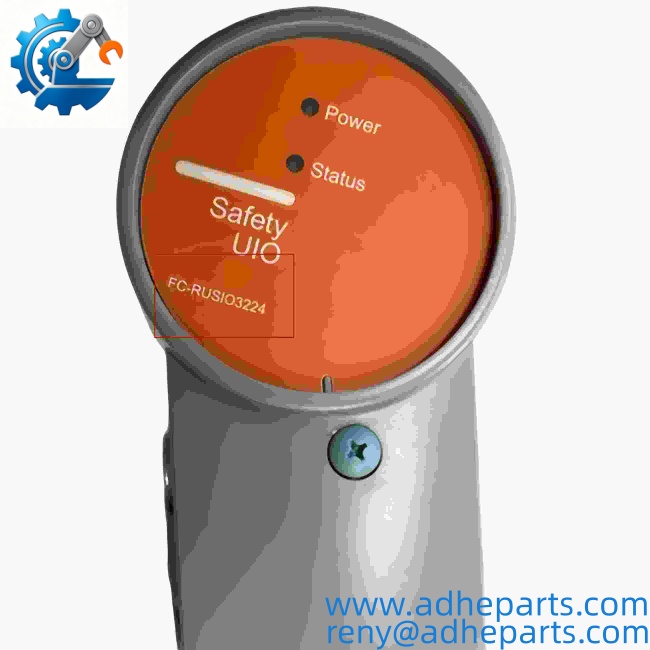

The Honeywell FC-RUSIO-3224 is a remote universal safety I/O module for the Safety Manager platform. It provides 32 channels that can be individually configured as digital inputs or outputs, allowing one module to handle mixed safety signals in a remote cabinet. It communicates over SafeNet, Honeywell’s safety-rated Ethernet protocol, and reports channel-level diagnostics back to the Safety Manager controller.

Each channel is isolated, so a fault on one field loop cannot propagate to adjacent channels. The module supports SIL 3 applications when used in a redundant configuration with the Safety Manager controller. The 24V DC field interface matches standard industrial signaling, and the remote mounting capability reduces home-run cable to the central safety cabinet.

FC-RUSIO-3224

5. Application Scenarios & Field Experience

Part 1 – Narrative Paragraph

The problem with central safety cabinets is cable. Every emergency shutdown switch, every gas detector, every valve position feedback runs back to one room. On a large plant, that is thousands of meters of cable, hundreds of terminal blocks, and a cable tray that is full before the project is half done. Remote safety I/O solves that by putting the I/O card in a field cabinet near the process. The FC-RUSIO-3224 does this for Honeywell Safety Manager systems. It carries SIL 3 capability into a remote enclosure and communicates back to the controller over SafeNet. In my experience, the cable savings alone justify the change on any project with more than a few hundred meters between the process and the control room.

Part 2 – Numbered List (Application Scenarios)

1. Oil & Gas – Emergency Shutdown Systems – The FC-RUSIO-3224 mounts in a field cabinet near the wellhead or separator. It reads ESD pushbuttons and gas detector contacts, and drives shutdown valve solenoids. The remote location keeps cable runs short in classified areas.
2. Chemical – Reactor Interlock Systems – Used to monitor temperature and pressure switches on exothermic reactors. The 32 configurable channels allow a single module to handle both input monitoring and output tripping, reducing spare parts inventory.
3. Power Generation – Burner Management Systems – The module reads flame scanner contacts and limit switches on a boiler front, and drives fuel shutoff valve solenoids. The SIL 3 rating meets the burner management safety requirements.
4. Pipeline – Compressor Station Safety – Mounted in a remote instrument building, the module reads vibration switches and pressure pilots, and trips the compressor on high discharge pressure. SafeNet communication over FTE maintains the safety loop integrity.

Part 3 – Short Field Story

A Gulf Coast chemical plant had a recurring nuisance trip on a reactor safety loop. The trip was traced to a ground loop between a field switch in a wet area and the central safety cabinet. The crew had replaced the switch twice. We recommended moving the I/O to a field cabinet with the FC-RUSIO-3224. The per-channel isolation broke the ground loop, and the nuisance trips stopped. The plant avoided a shutdown and has since standardized on remote safety I/O for all wet-area field devices.

FC-RUSIO-3224

6. Standard Operating Procedure (SOP) for Quality Control

Every FC-RUSIO-3224 module passes this QC sequence:

• Visual & Origin Inspection – We verify the Honeywell marking, the FC- model number, and the date code. We inspect the connectors and housing for cracks or moisture ingress. A module with a damaged connector or evidence of rework is rejected.
• Revision Documentation – We read and record the firmware revision string and photograph the module before packing so you can compare it to your existing unit.
• Power-Up Self-Test – The module is powered from a bench supply at 24V DC. We verify it initializes without a fault and that the status LEDs indicate normal operation.
• Channel Configuration Test – We configure a sample of channels as inputs and outputs. For inputs, we apply 24V DC and verify the module reports the correct state. For outputs, we command the channel on and measure the output voltage into a load.
• Isolation Test – We apply the rated isolation voltage between selected channels and between a channel and ground. Leakage current must stay below the datasheet limit.
• Communication Test – The module is connected to a Safety Manager test rack. We verify the controller recognizes the module over SafeNet and exchanges diagnostic data without a communication fault.
• Fault Reporting Test – We simulate an open field wire on one input channel and verify the module reports the fault to the controller. A module that reads inputs correctly but does not report faults is not acceptable for safety service.
• ESD-Safe Packaging – The module is wrapped in anti-static film, seated in a conductive foam insert with the connectors protected, and packed in a double-wall carton with static warning labels.

7. Frequently Asked Questions (FAQ)

Q1: Is the FC- compatible with all Honeywell Safety Manager controllers?

A: The module is designed for the Safety Manager platform, but compatibility depends on the controller firmware revision and the SafeNet configuration. Not all Safety Manager releases support remote I/O. Check your controller’s firmware version and the SafeNet configuration guide before ordering. If you send us the controller model and firmware revision, we can confirm the match.

Q2: Can I replace a different RUSIO variant with this FC-?

A: Mechanically, the mounting and connector layout may be similar, but the channel count and configuration options differ between RUSIO variants. The FC- has 32 channels; other variants may have 16 or 64. Compare the full model number and the label on your existing module before ordering.

Q3: What is the warranty on this module?

A: We offer a 12-month warranty from the ship date. It covers channel failure, isolation breakdown, communication failure, and connector failure under normal operating conditions. It does not cover damage from connecting field supply voltage to an output channel, reversed field wiring, or ESD damage from handling without a wrist strap. We test every module on a live Safety Manager rack before it ships.

Q4: Do you have this exact part number in stock?

A: Honeywell Safety Manager inventory moves and varies by part number. Confirm availability before you plan an outage. If we are out of the FC-, we will tell you what we do have and whether a different RUSIO variant would suit your application.

Q5: Any installation pitfalls I should watch for?

A: Four. First, verify the field supply voltage and the channel configuration before you connect any load — configuring an output channel as an input and applying 24V DC can damage the module. Second, record the channel assignments and the field device wiring before you pull the old module. Third, the SafeNet communication requires proper network termination and grounding; follow the Honeywell installation guide. Fourth, after the swap, test each channel through its range and verify the controller reports the correct state before you return the safety loop to service.
