Description
Note: Many products are not yet listed. Please contact us for more product information. Our supply channels are constantly expanding, and we currently have 20 stable shared supply channels. Please confirm the model, product, price, and all other necessary information with customer service before placing an order. We offer new, refurbished, and used products, and prices are adjusted according to the year of the item you require.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model | T8846 |
| Part Number | PP49283-8 |
| Product Type | Speed Input Field Termination Assembly |
| Abbreviation | SIFTA |
| Product Family | Trusted T88xx |
| Main Application | Rotating-machinery speed monitoring |
| Compatible Monitor | Trusted T8442 Speed Monitor Module |
| Number of Speed Inputs | 9 |
| Input Grouping | 3 independent groups, 3 inputs per group |
| Mounting | DIN rail |
| Field Power | Dual-redundant +24 V DC supply inputs per group |
| Signal Types | Passive speed input, active input, and open-collector interface connections |
| Interface | Dedicated field wiring connectors |
| Safety Architecture | Trusted fault-tolerant safety system |
| Condition | New surplus or used, depending on available stock |
| Warranty | 12 months |
The T8846 manual identifies three independent speed-input groups and provides dedicated field-power connections for each group. The field-power interface uses redundant +24 V DC inputs and 0 V returns.
Product Introduction — Anti-Template
The ICS Triplex T8846 PP49283-8 is the field termination assembly used to connect speed sensors to a Trusted safety-system speed-monitoring circuit. It handles the practical side of the installation—field wiring, signal routing, grouped power connections, and sensor termination—while the associated T8442 module performs the speed-monitoring function. For turbine and rotating-equipment maintenance teams, this distinction matters: replacing the termination assembly does not replace the monitoring electronics.
The unit is intended for equipment-specific Trusted installations where channel grouping, redundant field power, and terminal assignments must match the original design. Before ordering, compare the part-number label, connector arrangement, wiring drawings, and associated speed-monitor module.

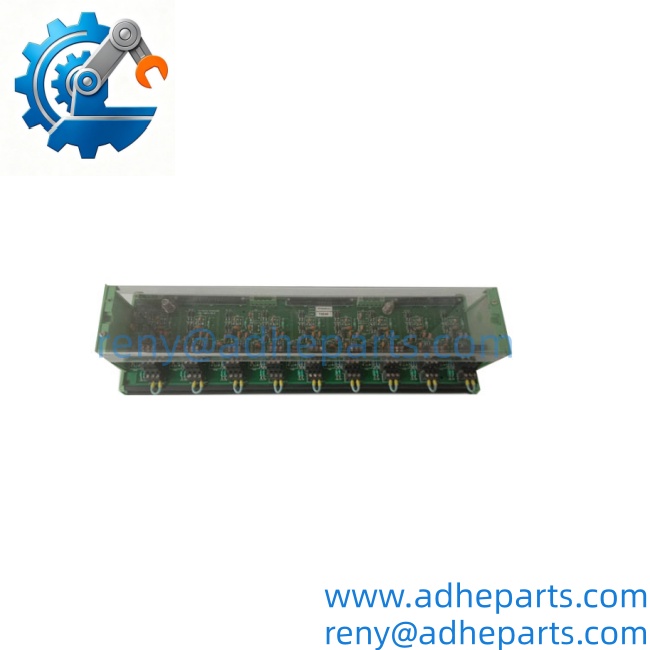

T8846 PP49283-8

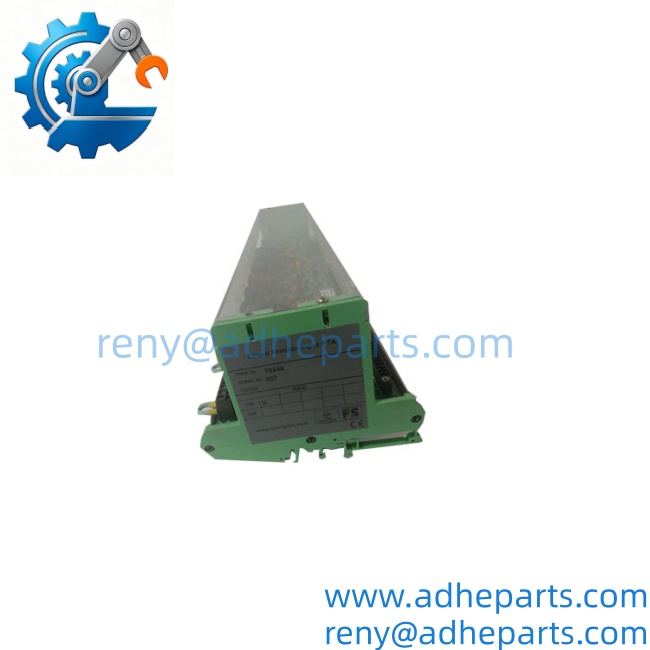

T8846 PP49283-8

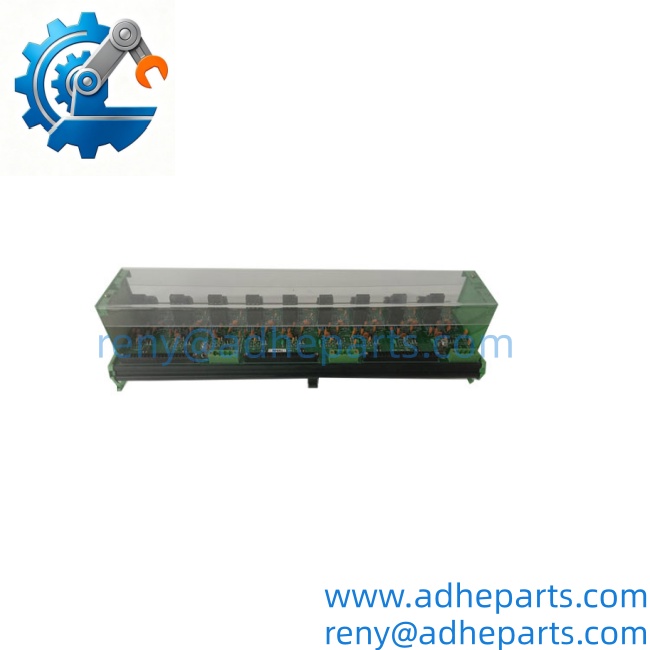

T8846 PP49283-8
QC, Procurement & Logistics SOP
1) Inbound Verification
Verify the following before quotation and shipment:
- Manufacturer marking: ICS Triplex or Rockwell Automation.
- Model: T8846.
- Part number: PP49283-8.
- Product identification: Speed Input Field Termination Assembly or SIFTA.
- Connector positions and terminal markings.
- DIN rail mounting features.
- Condition of terminal blocks, sockets, housings, and mounting clips.
- Any corrosion, cracked plastic, damaged terminals, or missing hardware.
- Compatibility with the customer’s Trusted T8442 speed-monitoring module.
- Whether the customer requires the exact PP49283-8 revision or accepts another documented revision.
The label should be checked carefully because T8846 is part of a wider Trusted system, and the number alone should not be used to identify a different T88xx module.
2) Functional and Wiring Verification
The T8846 is primarily a field termination assembly, so testing focuses on wiring integrity and interface continuity rather than processor performance. Where the correct test documentation is available, inspection may include:
- Visual inspection of all terminals and connectors.
- Continuity checks for field-power paths.
- Verification of the three independent input groups.
- Inspection of passive, active, and open-collector signal terminals.
- Checking duplicate passive input terminals where provided.
- Verification of chassis-ground connections.
- Confirmation that no terminal is shorted to an adjacent circuit.
- Test-bench connection with the approved T8442 module or equivalent authorized fixture.
Do not apply arbitrary voltage to the signal terminals. Use the original wiring diagram and the specified field-power arrangement.
3) QA, ESD Protection, and Packaging
Before shipment, record:
- Front and rear photographs.
- Part-number and serial-number markings.
- Terminal labels and connector condition.
- DIN rail mounting condition.
- Any signs of previous installation or field contamination.
Although the is primarily a termination assembly, it still contains electrical interface components that should be protected from static discharge and mechanical impact. Use an antistatic bag, terminal protection, cushioning, and a rigid outer carton.
4) Global Logistics and Export Compliance
Confirm the following information for the commercial invoice and packing list:
- Exact product description.
- Manufacturer and part number.
- Quantity.
- Country of origin based on the actual unit.
- Declared value and currency.
- Destination and consignee details.
- Whether the buyer requires a certificate of origin, conformity statement, warranty letter, or inspection report.
- Required shipping method and import documentation.
The final HS code should be confirmed according to the unit’s actual function as a field termination assembly and the customs rules of the exporting and importing countries. Do not classify it solely as a PLC, CPU, or general controller.
5) Secure Air and Sea Packaging
For express air shipment, protect every terminal and connector from impact and movement. For sea freight or long-term storage, use a moisture barrier, desiccant, and additional outer-carton reinforcement. Avoid placing heavy items directly on the terminal assembly.
Technical Pitfalls & Integration Warnings
Do Not Treat as the Speed Monitor
The is the field termination assembly. The associated Trusted T8442 module performs the speed-monitoring function. Replacing one with the other is not a valid substitution.
Confirm the Three Input Groups
The assembly uses three independent speed-input groups. The customer’s wiring must match the correct group and channel. Mixing group wiring can defeat the intended redundancy and create incorrect speed signals.
Verify the Field-Power Arrangement
The uses redundant +24 V DC field-power inputs for the speed-input groups. Confirm the A/B supply arrangement, 0 V returns, and grounding before energizing the system.
Check Passive, Active, and Open-Collector Wiring
The terminal interface includes different signal arrangements, including passive inputs, active inputs, and open-collector connections. A sensor that appears mechanically compatible may still use the wrong electrical interface.
Do Not Assume Hot-Swap Capability
Do not remove or install the while the associated system is energized unless the approved Trusted maintenance procedure explicitly permits it. Isolate field power and follow the site’s lockout/tagout requirements.
Confirm Connector and Terminal References
The terminal designations, socket numbers, and channel assignments must match the system drawings. Wire color alone is not sufficient for identification.
Frequently Asked Questions
What is the ICS Triplex PP49283-8?
It is a Trusted Speed Input Field Termination Assembly used to connect rotating-machinery speed sensors to a Trusted speed-monitoring system.
Is a controller or CPU?
No. It is a field termination and signal-interface assembly. The monitoring logic is handled by the associated Trusted speed-monitor module, such as the T8442.
How many speed inputs does it support?
The supports 9 speed input channels arranged as 3 independent groups of 3 channels.
Which module works with ?
The documented associated module is the Trusted Speed Monitor Module. Confirm the exact system configuration before replacing the assembly.
What power supply does the use?
The field-power interface uses dual-redundant +24 V DC inputs and 0 V returns for the speed-input groups. Confirm the actual wiring diagram before connection.
Can another T88xx module replace ?
Not automatically. T88xx modules have different functions and interfaces. The replacement must match the exact model, part number, terminal arrangement, and system application.
What information is needed for a quotation?
Please provide the complete part number, a photo of the nameplate, the terminal side, the associated Trusted monitor module, and the equipment or cabinet model. This helps confirm whether the required item is the termination assembly or another Trusted module.
