Product Introduction
When your safety instrumented system (SIS) needs high-reliability analog signal acquisition that meets strict SIL 3 safety integrity requirements, this module acts as the certified safety signal gateway between field safety sensors and the HIMA safety logic solver.
It features redundant dual-core processing architecture with 2-out-of-3 voting logic, effectively eliminating single-point hardware faults that could compromise safety performance. Its built-in full-channel self-diagnostic mechanism continuously monitors signal integrity, triggering immediate fault alarms when anomalies are detected to maintain system safety.

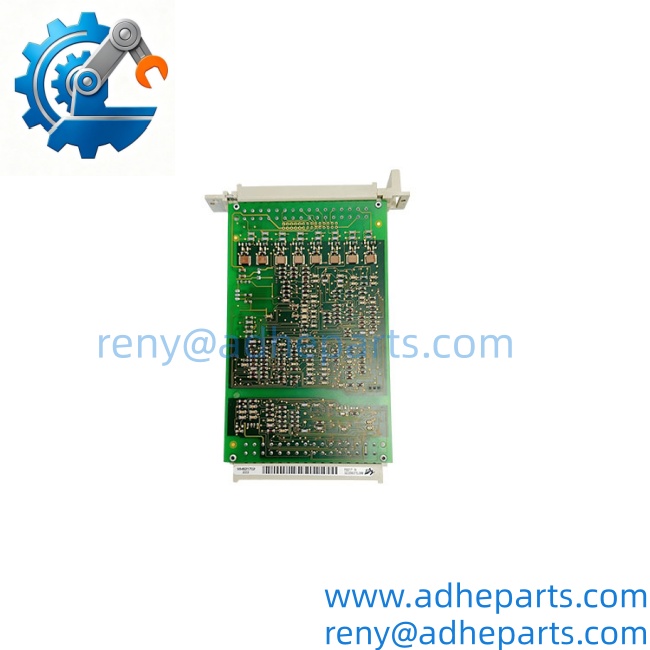

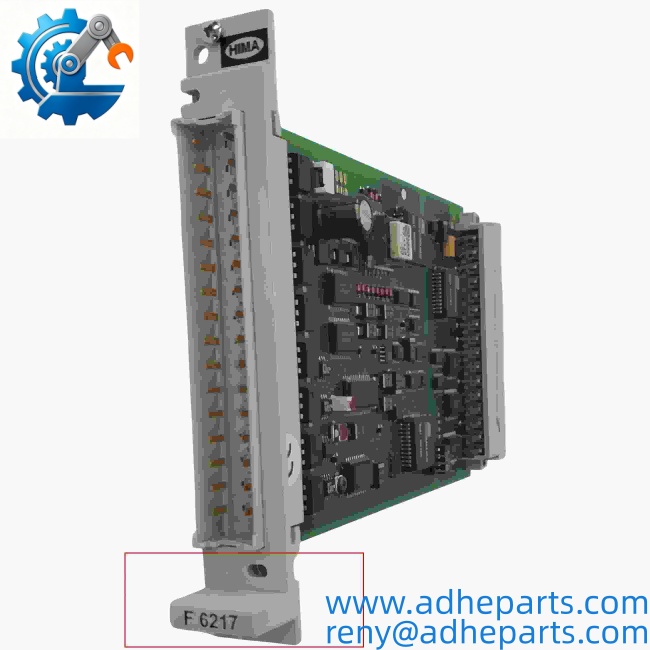

HIMA F6217
Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | F6217 984621702 |
| Product Type | 8-Channel Safety Analog Input Module |
| Supported Systems | HIMA HIMax, HIQuad, F35/F40/F45 Safety Controllers |
| Number of Input Channels | 8 independent safety analog input channels |
| Input Signal Range | 0/4–20 mA current, 0–5/10 V voltage |
| A/D Conversion Resolution | 12-bit high precision |
| Input Resistance | 100 kΩ for all channels |
| Safety Integrity Level | SIL 3, fully compliant with IEC 61508 / IEC 61511 standards |
| Safety Response Time | <450 ms for safety-related actions |
| PFHD (Probability of Dangerous Failure) | <10⁻⁹ /h |
| Certification | ATEX and UL dual certified for hazardous area use |
| Operating Temperature Range | -20°C ~ +70°C |
| Installation Method | Standard HIMA safety system rack slot mounting |

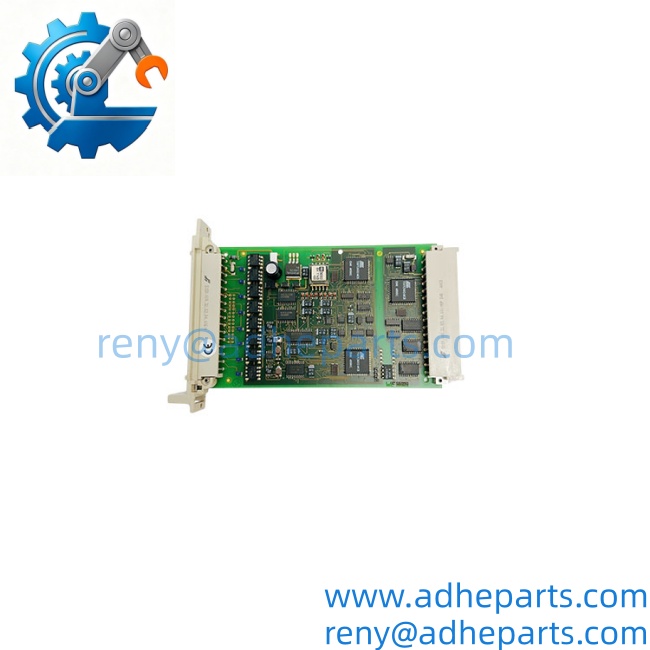

HIMA F6217
Field Application & Technical Pitfalls
Critical Industrial Scenarios
- **Petrochemical Plant ESD System Signal Acquisition: Acts as the core analog input module for petrochemical plant Emergency Shutdown (ESD) systems, collecting critical pressure, temperature and level signals for safety protection loops.
- **LNG Terminal Fire & Gas (F&G) Monitoring: Delivers SIL 3 certified signal acquisition for LNG liquefaction plant fire and gas detection systems, ensuring reliable toxic and flammable gas concentration monitoring.
- **Offshore Oil Platform Safety Control: Adapts to harsh offshore high-humidity and salt-spray environments, providing certified safety signal acquisition for offshore platform process safety instrumented systems.
Non-Negotiable Technical Pitfalls
- ⚠️ Bold Warning 1: Never connect non-safety-rated field sensors directly to this module. The third input channel will lose safety integrity certification, making the entire loop unable to meet SIL 3 requirements.
- ⚠️ Bold Warning 2: Skipping the pre-commissioning full-channel safety calibration will leave you with hidden measurement offset. This unit must complete 4-20mA full-range safety verification to maintain its SIL 3 performance rating.
- ⚠️ Bold Warning 3: Do not disable the built-in channel self-diagnostic function in the safety configuration software. The module will lose automatic fault detection capability, leading to undetected signal anomalies that compromise system safety.
An LNG plant maintenance team once swapped a F6217 module and skipped the full-channel safety calibration. The 5% signal measurement offset caused the high-level safety protection loop to fail to trigger on time, resulting in a 2-hour process safety alarm delay that required full plant safety inspection before resuming production.

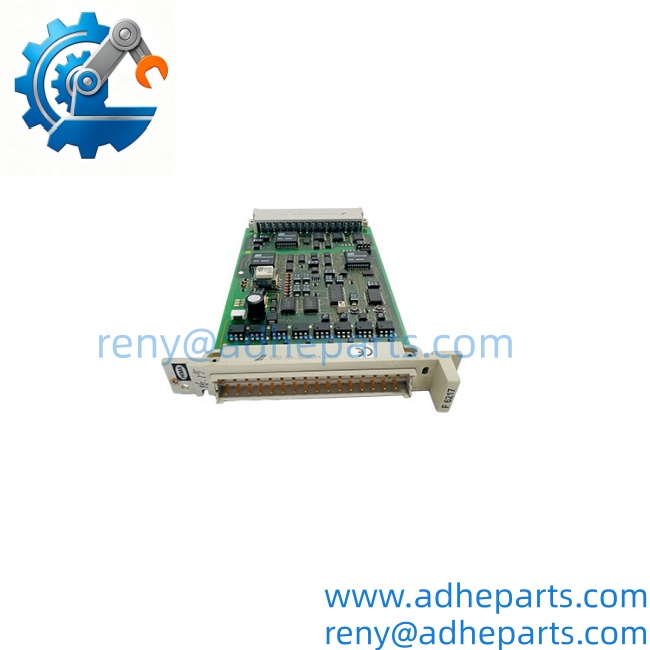

HIMA F6217

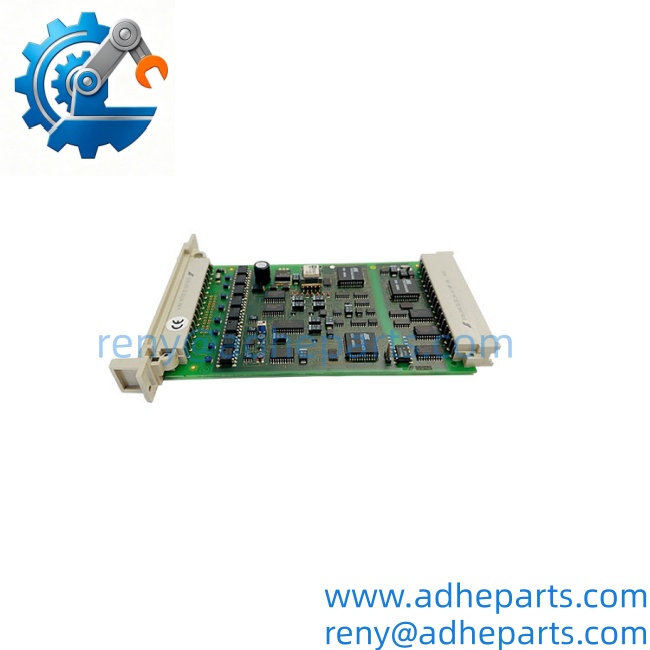

HIMA F6217
Quality Control (QC) SOP & Transparency
- Inbound Verification: Cross-check the OEM serial number against HIMA’s official part registry, confirm the part number F6217 984621702 matches the factory label, and inspect no bent pins on the backplane and field signal connectors.
- Live Rig Testing: Power the unit in a calibrated HIMA HIMax safety test rack, apply 24V DC power, and confirm full 8-channel safety signal acquisition stability for 2 continuous hours.
- Parameter Testing: Verify 12-bit A/D conversion accuracy meets factory specifications, confirm SIL 3 safety response time stays below 450ms, and validate all safety diagnostic LED indicators function correctly.
- Final QA & Packaging: Seal the tested module in a static-shielding anti-static bag, attach a unique QC passed serial label, and nest it in foam padding inside a rigid industrial shipping carton.

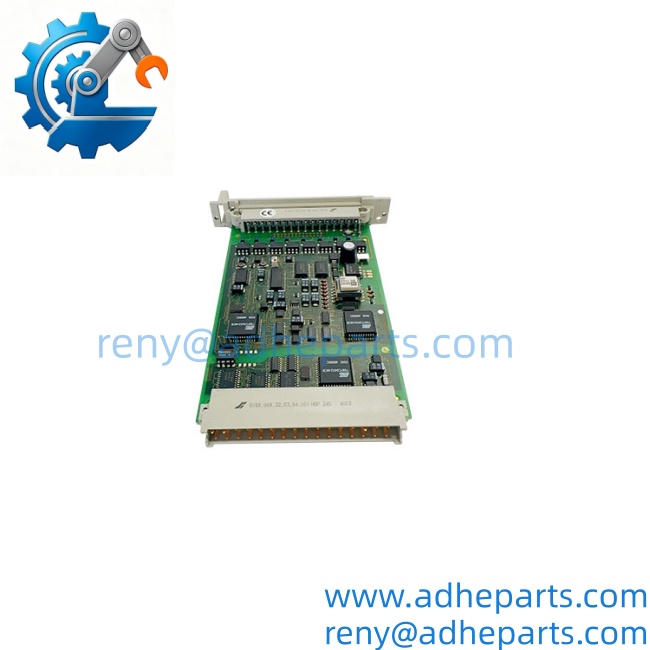

HIMA F6217
Frequently Asked Questions (FAQ)
- Can I hot-swap this module while the HIMA SIS system is running? Yes, but you must first set the corresponding safety loops to bypass mode in the safety system, otherwise you will trigger temporary safety signal loss alarms.
- What exact HIMA systems is this module compatible with? It works natively with HIMA HIMax, HIQuad and F35/F40/F45 safety controller platforms. It will not operate correctly with non-HIMA SIS systems without custom safety protocol conversion.
- How long is the standard warranty for this new surplus unit? 12 months from delivery. It covers all manufacturing defects, but does not extend to units damaged by miswiring, overvoltage, or improper safety configuration in the field.
- How do I tell a genuine OEM unit apart from a refurbished clone? Genuine HIMA F6217 984621702 modules have a laser-etched part number on the metal housing, not a printed sticker. Clone units almost always fail the SIL 3 safety response time performance test.
- What is the typical lead time for shipment? In-stock units ship within 48 hours. If you require official HIMA factory SIL 3 safety certification documentation, add 2 extra business days to the turnaround window.
- Can this module replace the older F620 legacy safety analog input unit? Well, technically it fits the same rack slot, but you will need to reconfigure all safety channel parameters in the HIMA safety engineering software to maintain full SIL 3 safety integrity performance.
