Description
3. Key Technical Specifications
- Number of slots: 12 I/O slots
- Slot compatibility: TMR5200 or TMR040 CPUs
- Expansion capability: Up to three additional I/O chassis via RTN networks (TMR5200) or dedicated transceiver connections (TMR040)

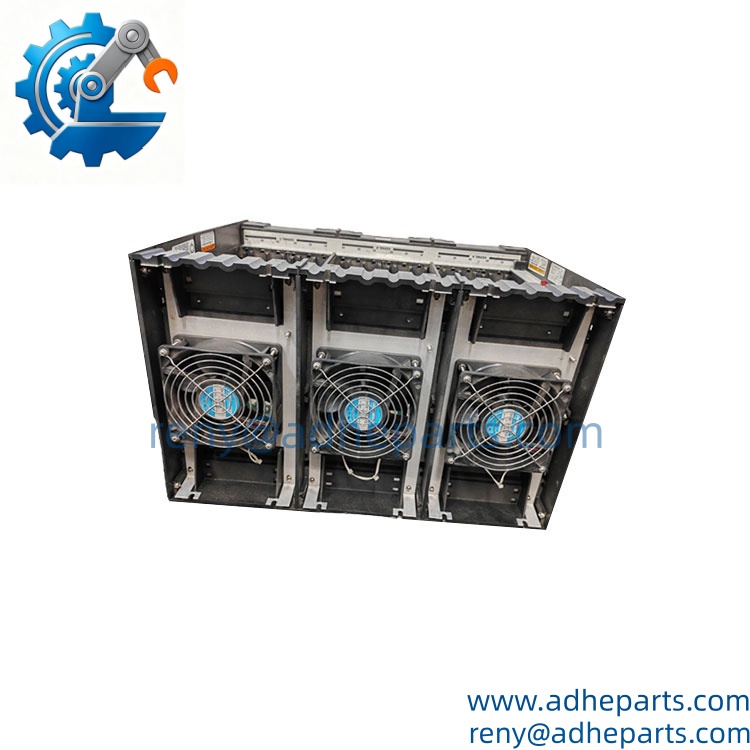

- Cooling: Forced air with three fans, temperature switch for high-temp detection
- Power: Kernel power supply (models 5466-1049 or equivalents) required for system operation
- Dimensions: Approx 19 cm x 12 cm x 13.5 cm (varies with modules)
- Weight: Approx 17 lb (7.7 kg)
- Mounting: Standard cabinet rack
- Environmental: Industrial operating range with fan cooling
- Connections: VERSAmodule Eurocard bus, ribbon cables for interconnects
4. Product Introduction (Anti-Template)

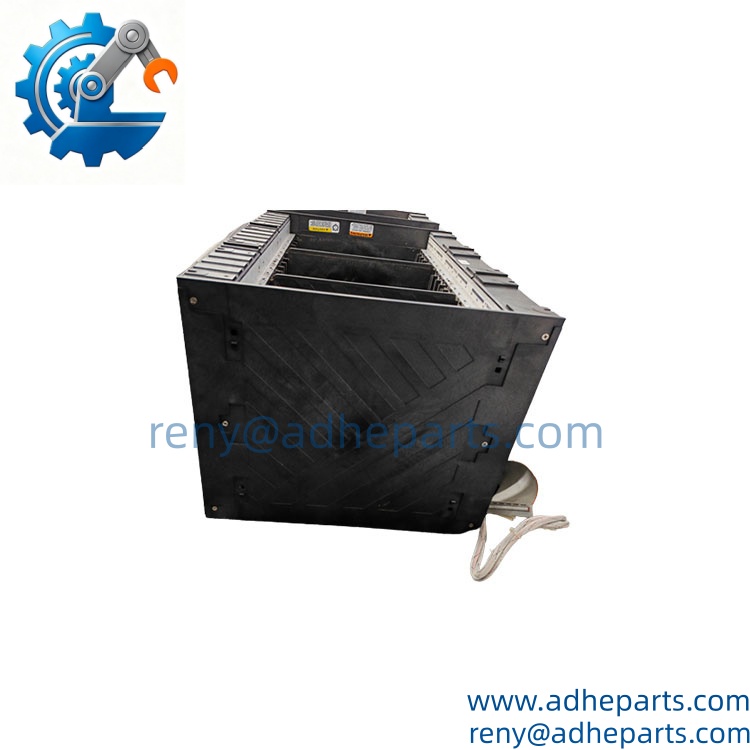

When a main CPU trips and downtime costs thousands per minute, the last thing you need is an unresponsive output card. The Woodward 5453-279 slots right into TMR racks as a 12-slot expansion chassis built for exactly those critical redundancy needs. It houses CPUs, kernel power supplies, and I/O modules with forced-air cooling that keeps everything rock-steady under load.
Honestly, this design choice saves hours of rewiring when you stay inside the same MicroNet TMR family. The premolded blocks and motherboard connections eliminate loose wires, while the fans and temperature switch give technicians an instant visual check without opening a laptop.
5. QC, Procurement & Logistics SOP
- Inbound Verification: Origin tracing against Woodward part labeling, OEM seal and date-code inspection, visual check for bent pins or damaged connectors.
- Live Rig Testing: Power-on self-test in a compatible rack, verification of all twelve slots under load, confirmation of response timing and protocol validation.
- QA & Anti-Static Packaging: Final functional sign-off, conformal inspection, sealed in anti-static bags with desiccant and foam support.
- Global Logistics & Export Compliance: Optimized HS code classification for industrial electronic modules, double-boxed with shock indicators, documented for air or sea freight to minimize customs holds.
6. Technical Pitfalls & Integration Warnings
Firmware or system revision mismatch can drop communication. Picture a plant running an older TMR CPU that expects a specific protocol handshake—swap in a later lot and the inputs stay dark until the backplane firmware is aligned.
DIP switch or address configuration errors are classic. A technician sets the wrong base address, the chassis powers up with LEDs, yet the TMR never sees the points; hours later the root cause is a single switch that should have been left at factory default.
Wiring or terminal incompatibility bites hard. Source or sink wiring mistakes happen when people forget to match the field device polarity; the channel reads zero or flickers randomly.
ESD during unboxing still kills modules. Dry winter air, no wrist strap, a quick touch on the edge connector, and one channel fails intermittent weeks later. Always ground before handling.
7. Frequently Asked Questions (FAQ)
How long does global shipping usually take once the unit clears QA? Most regions see 3–7 business days by air after export docs are complete. Sea freight stretches that to 3–5 weeks depending on port congestion—customs clearance in the EU might add 2 days.
What shipping and customs options do you support? We handle air freight for urgency and sea for bulk. All shipments carry optimized HS classification and full commercial invoice so clearance stays predictable.
Can I hot-swap the 5453-279 while the rack is live? Not recommended. Removing or inserting under power risks backplane arcing and can take out adjacent modules. Power down the I/O base first.
Is the 5453-279 backward-compatible with older MicroNet racks? In most cases yes within the same family, provided voltage, commons, and addressing match. Always confirm the exact backplane revision and firmware before the swap.
What happens if the load exceeds 0.5 A on one channel? The overcurrent and thermal protection kick in. The channel shuts down until the fault clears and the module cools; repeated overloads can permanently degrade that output.
Do you supply the terminal blocks or just the module? Module only unless specified. Match the original terminal style or use the Woodward-compatible blocks rated for the current.
Any special storage or handling notes before installation? Keep in original anti-static packaging until ready. Avoid condensation; bring the unit to ambient temperature before powering up in a humid plant.
